TSDF-07-D: DescriptionHeader and Wire Housing.050" Tiger Eye Discrete Wire, Terminal Housing; CategoryThe connector Header and line shell; File Size111KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TSDF-07-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TSDF-07-D	-	-	View	Buy Now

TSDF-07-D Overview

Header and Wire Housing.050" Tiger Eye Discrete Wire, Terminal Housing

TSDF-07-D Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Headers and wire housings
series	TSDF
Encapsulation	Bulk
Factory packaging quantity	48

Preview

Download Datasheet

View All

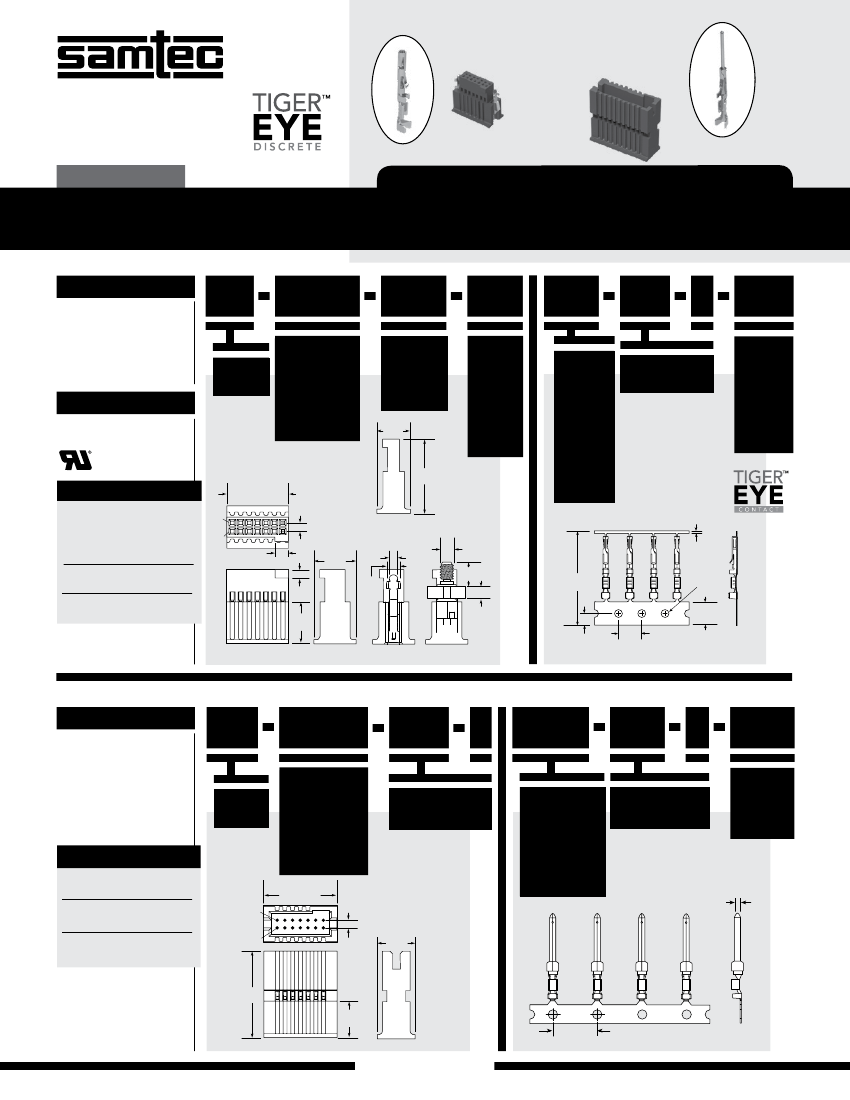

F-219 SUPPLEMENT (Rev 12APR19)

ISDF–07–D–M

TSDF–10–D–S

CC03R–2830–01–G

T1M44-L–2830–01–G

(1.27 mm) .050"

ISDF, CC03R, CC03M, TSDF, T1M44-L, T1M44-R SERIES

DISCRETE WIRE COMPONENTS & TOOLING

SPECIFICATIONS

For complete specifications

see www.samtec.com?ISDF,

www.samtec.com?CC03R or

www.samtec.com?CC03M

Insulator Material:

Black LCP

Contact Material:

BeCu

TYPE

POSITIONS

PER ROW

ROW

OPTION

TYPE

WIRE

GAUGE

01

PLATING

= Housing

ISDF

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

(Standard sizes)

–03, –04,

–05, –07,

–10, –15,

–20, –25,

–40, –50

= Single Row

–S

= Double Row

(5.08)

.200

–D

= Metal

Retention

Latch

–M

–S

= Contact,

Full Reel

(35,000 Parts

per Reel)

CC03R

= 28 to 30 AWG

–2830

= Gold flash

on contact

–GF

–G

= Screw

Down

(–D only)

(11.18)

.440

CC03M

= Contact,

Mini Reel

(1,000-5,000

Parts per

Reel)

= 10 µ"

(0.25 µm)

Gold on

contact

TOOLING

• Hand Tool:

CAT-HT-203-2830-12

• Clamp for mounting

hand tool to work table:

CAT-HT-MNT-01

• Mini Applicator:

CAT-MC-203-2830-XX-01

• Extraction Tool:

CAT-EX-169-01

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

01

02

No. of Positions

x (1.27) .050

+ (0.38) .015 (1.27)

.050

–S

(1.27)

.050

(2.03)

.080

(2.00)

.079

DIA

(3.68)

.145

(2.03) .080

(6.35)

.250

(1.27)

.050

(6.32)

.249

(0.38)

.015

(15.37)

.605

(1.27)

.050

DIA

(3.81)

.150

(1.91)

.075

(3.81)

.150

(1.78)

.070

–D

–M

–S

SPECIFICATIONS

For complete specifications

see www.samtec.com?TSDF,

www.samtec.com?T1M44-L or

www.samtec.com?T1M44-R

Insulator Material:

Black LCP

Contact Material:

BeCu

TYPE

POSITIONS

PER ROW

ROW

OPTION

S

TYPE

WIRE

GAUGE

01

PLATING

= Housing

TSDF

TOOLING

• Hand Tool:

CAT-HT-144-2830-12

• Mini Applicator

CAT-MC-144-2830-XX-01

• Extraction Tool:

CAT-EX-169-01

02

01

(Standard sizes)

No. of Positions x

(1.27) .050

+ (2.54) .100

–03, –04,

–05, –07,

–10, –15,

–20, –25,

–40, –50

(1.27)

.050

= Double Row

–D

= Contact, Loose

T1M44–L

= Contact,

Full Reel

(35,000 Parts

per Reel)

= 28 to 30 AWG

–2830

T1M44–R

= 10 µ"

(0.25 µm)

Gold on

contact

–G

(0.46) .018 DIA

(6.10)

.240

(4.83)

.190

(14.26)

.562

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(6.05)

.238

(3.81) .150

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

TSDF-07-D Related Products

	TSDF-07-D	TSDF-02-S-S	TSDF-07-S-S	TSDF-03-S-S	TSDF-45-D-S	TSDF-10-S-S	TSDF-04-S-S
Description	Header and Wire Housing.050" Tiger Eye Discrete Wire, Terminal Housing	Header and Wire Housing.050" Tiger Eye Discrete Wire, Terminal Housing	Header and Wire Housing.050" Tiger Eye Discrete Wire, Terminal Housing	Header and Wire Housing.050" Tiger Eye Discrete Wire, Terminal Housing	Header and Wire Housing.050" Tiger Eye Discrete Wire, Terminal Housing	Header and Wire Housing.050" Tiger Eye Discrete Wire, Terminal Housing	Header and Wire Housing.050" Tiger Eye Discrete Wire, Terminal Housing
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	-
package instruction	-	-	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	-	-	compliant	-	compliant	compliant	compliant
Factory Lead Time	-	-	2 weeks	-	2 weeks	3 weeks	2 weeks
body width	-	-	0.19 inch	-	0.24 inch	0.19 inch	0.19 inch
subject depth	-	-	0.562 inch	-	0.562 inch	0.562 inch	0.562 inch
body length	-	-	0.45 inch	-	2.35 inch	0.6 inch	0.3 inch
Connector type	-	-	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	-	-	PREASSEM CONN	-	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	-	-	GOLD OVER NICKEL (50)	-	GOLD OVER NICKEL (50)	GOLD OVER NICKEL (50)	AU ON NI
Contact material	-	-	BERYLLIUM COPPER	-	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	-	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	-	-	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Insulator color	-	-	BLACK	-	BLACK	BLACK	BLACK
insulator material	-	-	LIQUID CRYSTAL POLYMER (LCP)	-	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	-	-	0.05 inch	-	0.05 inch	0.05 inch	0.05 inch
Installation type	-	-	CABLE	-	CABLE	CABLE	CABLE
Number of rows loaded	-	-	1	-	2	1	1
polarization key	-	-	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	-	-	UL	-	UL	UL	UL
reliability	-	-	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	-	-	7	-	90	10	4
