ITEM NO.
1
2
3
4
NAME
HOUSING
SCREW
WIRE CONNECTOR
CONDUCTOR
MATERIAL
PA66
STEEL
STEEL
COPPER ALLOY
NOTES
UL94-V0
M3/ZN PLATED
M3/ZN PLATED
TIN PLATED
7
6
5
REV
A
ZONE
-
4
3
REVISIONS
DESCRIPTION
INITIAL RELEASE
2
DATE
09/24/2012
1
ECN
BU-SB12870
BY
TJN
F
PART NO.
DP25-GY
DP25-RD
DP25-OR
DP25-YW
DP25-GN
DP25-BU
DP25-LK
COLOR
GREY
RED
ORANGE
YELLOW
GREEN
BLUE
BLACK
PANTONE #
COOL GRAY2U
1805U
152U
7404U
362U
300U
BLACK
F
5.09
E
24.19
58.85
E
A
10.19
2
1
D
4
D
46.80
3
C
C
A
SECTION A-A
B
NOTES:
1.
2.
3.
4.
5.
6.
A
SLA3_BUSS_NAE_GENRL_REV_A
B
RATINGS: UL 600V/25A, IEC 630V/24A
INSULATION WITHSTAND VOLTAGE 2000VAC/1MINUTE
TEMPERATURE RANGE -40°C~105°C
SEE 2A2943 FOR DIN DIMENSION DETAILS
SCREW TORQUE 0.8N-M (6.9IN-LB)
WIRE RANGE UL 22~12AWG, IEC 0.5~2.5 mm²
ASSEMBLY MUST BE FREE OF OIL, GREASE AND OTHER FOREIGN MATERIALS.
ASSEMBLY MUST COMPLY WITH RoHS SPECIFICATION #1P2163.
MODEL SOURCE DATA
MODEL VERSION
3D VIEW
SCALE NONE
.
--
THIS DRAWING IS AN UNCONTROLLED COPY IF
PRINTED OR SENT ELECTRONICALLY,
DO NOT SCALE DRAWING
GENERAL DRAWING PRACTICES IN
ACCORDANCE WITH
ASME - Y14.100-2004
DIMENSIONS AND TOLERANCES IN
ACCORDANCE WITH
ASME - Y14.5M-1994
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
MILLIMETERS TOLERANCES TO BE
APPROVALS
ENGINEER
DATE
TJN
DRAWN
09/26/2012
09/26/2012
--/--/----
St. Louis, MO 63178 (USA)
TITLE
7.
8.
TJN
MANUFACTURING ENGINEER
CONFIDENTIAL.
THE INFORMATION CONTAINED IN THIS DOCUMENT
IS THE PROPERTY OF COOPER INDUSTRIES, INC. IT IS NOT FOR PUBLIC
DISCLOSURE. POSSESSION OF THE INFORMATION DOES NOT CONVEY ANY
RIGHT TO LOAN, SELL, OR DISCLOSE THE INFORMATION. UNAUTHORIZED
REPRODUCTION OR USE OF THE INFORMATION IS PROHIBITED. THIS DOCUMENT
IS TO BE RETURNED TO COOPER INDUSTRIES, INC. UPON COMPLETION OF THE
PURPOSE FOR WHICH IT WAS LOANED OR UPON REQUEST.
ONE PLACE X.X
TWO PLACE X.X X
ALL ANGLES X.X
= ±
0.3
mm
= ±
0.13
mm
= ±
1
°
--
MATERIAL
A
SEE TABLE

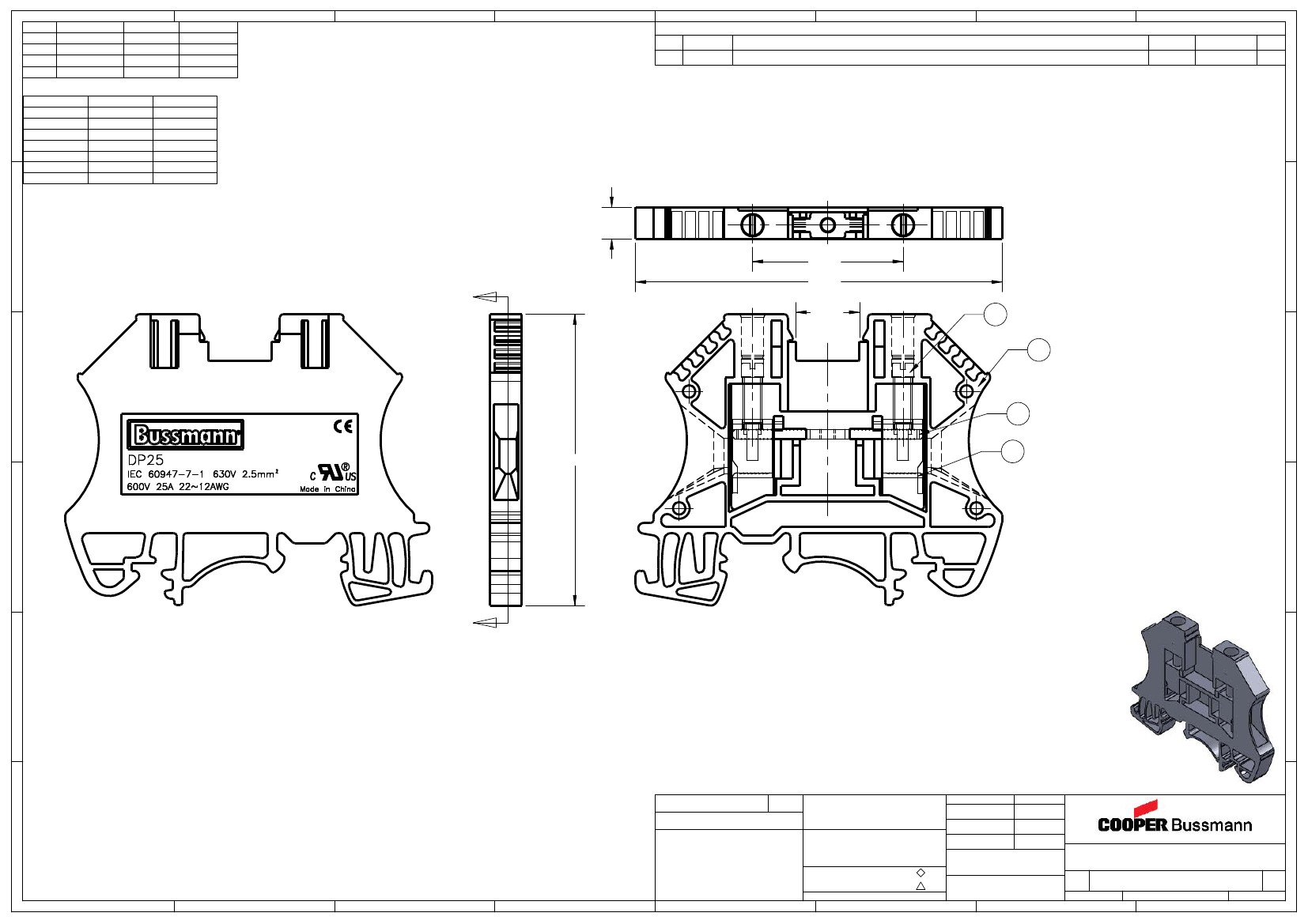

FEED THROUGH TERMINAL BLOCK
SIZE
DWG NO.
REV
COPYRIGHT.
COOPER INDUSTRIES, INC.
THIS IS AN UNPUBLISHED WORK. THE DISCLOSURE OF THIS WORK IS LIMITED
TO SELECT PERSONNEL. FURTHER DISSEMINATION OR DISCLOSURE TO THE
PUBLIC IS PROHIBITED. THIS UNPUBLISHED WORK IS PROTECTED BY FEDERAL
COPYRIGHT LAW AND ALL RIGHTS THEREUNDER ARE RESERVED BY
COOPER INDUSTRIES, INC.
SPECIAL CHARACTERISTIC
SIGNIFICANT CHARACTERISTIC
(
0
)
(
0
)
FINISH
SEE TABLE
A3
SCALE:
DP25-XX
2:1
SHEET
A
1 OF 1
