TBOX100-838-FL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Embedded solution> To calculate> Embedded box type computer> TBOX100-838-FL

TBOX100-838-FL: DescriptionFanless Embedded System with Intel Atom Processor E3845 1.91GHz processor 4GB DRAM USB*2 VGA Giga RJ-45 LAN*2 Phoenix DC-in COM*1 4ch video-in 1ch audio-in with capture card 9 to 36VDC ACC ignition; CategoryEmbedded solution To calculate Embedded box type computer; File Size916KB，3 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TBOX100-838-FL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TBOX100-838-FL	-	-	View	Buy Now

TBOX100-838-FL Overview

Fanless Embedded System with Intel Atom Processor E3845 1.91GHz processor 4GB DRAM USB*2 VGA Giga RJ-45 LAN*2 Phoenix DC-in COM*1 4ch video-in 1ch audio-in with capture card 9 to 36VDC ACC ignition

TBOX100-838-FL Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	Embedded box computer
Processor brand	Intel
Processor type	Intel Atom
chipset	SoC Integrated
frequency	1.91 GHz
storage	4 GB
Working power voltage	12 V, 24 V
Interface Type	PCI-e, Serial, USB
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 60 C
size	163.8 mm x 108 mm x 56.3 mm
storage type	DDR3L-1333
series	tBOX100-838-FL
Processor series	E3845

Preview

Download Datasheet

View All

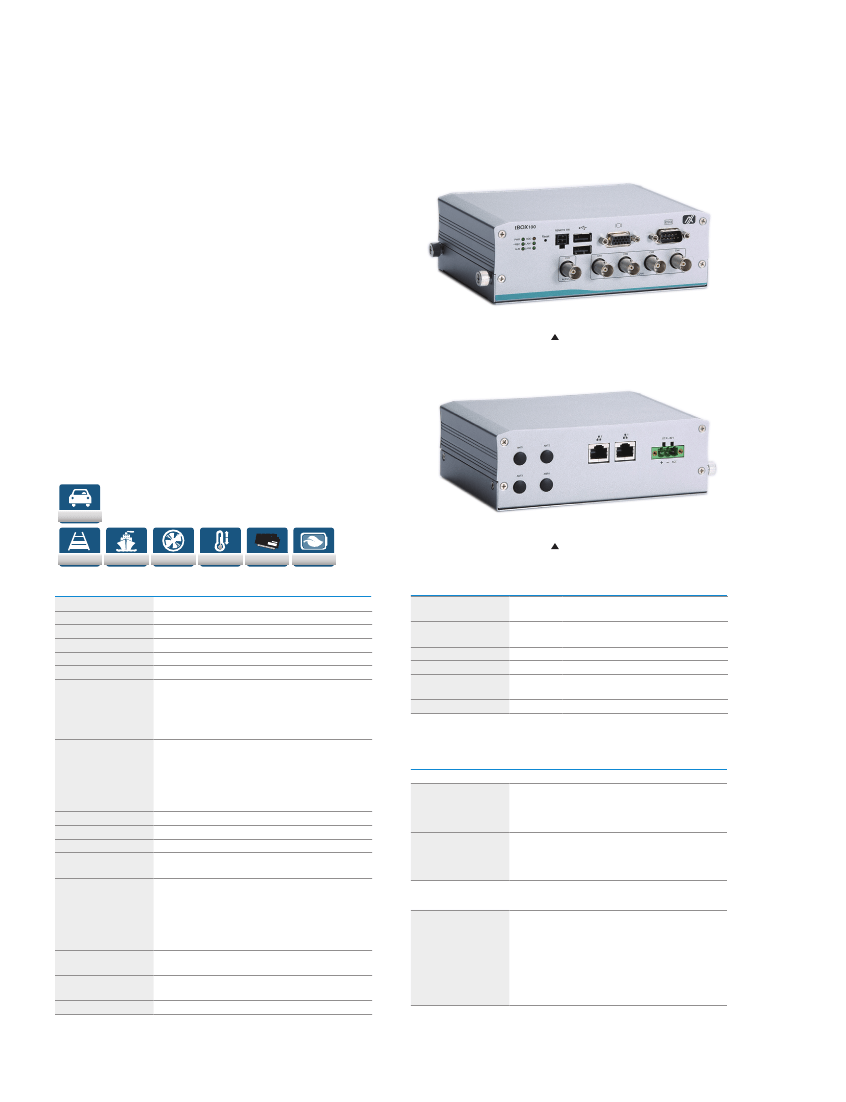

tBOX100-838-FL

Fanless Embedded System with Intel® Atom® Processor E3845 for Vehicle,

Railway and Marine PC

Features

●

CE (Class A) certified, E-Mark, ISO 7637-2 EN 50155, EN 50121,

DNV 2.4 and IEC 60945 compliance

●

Intel® Atom® processor E3845 4C @ 1.91 GHz

●

4GB DDR3L-1333 memory onboard

●

Intelligent solution of vehicle power management (ACC ignition)

●

Compact size, multiple I/Os, DIN-rail and wall mount

●

1 PCI Express Mini Card slot and 1 SIM Card slot

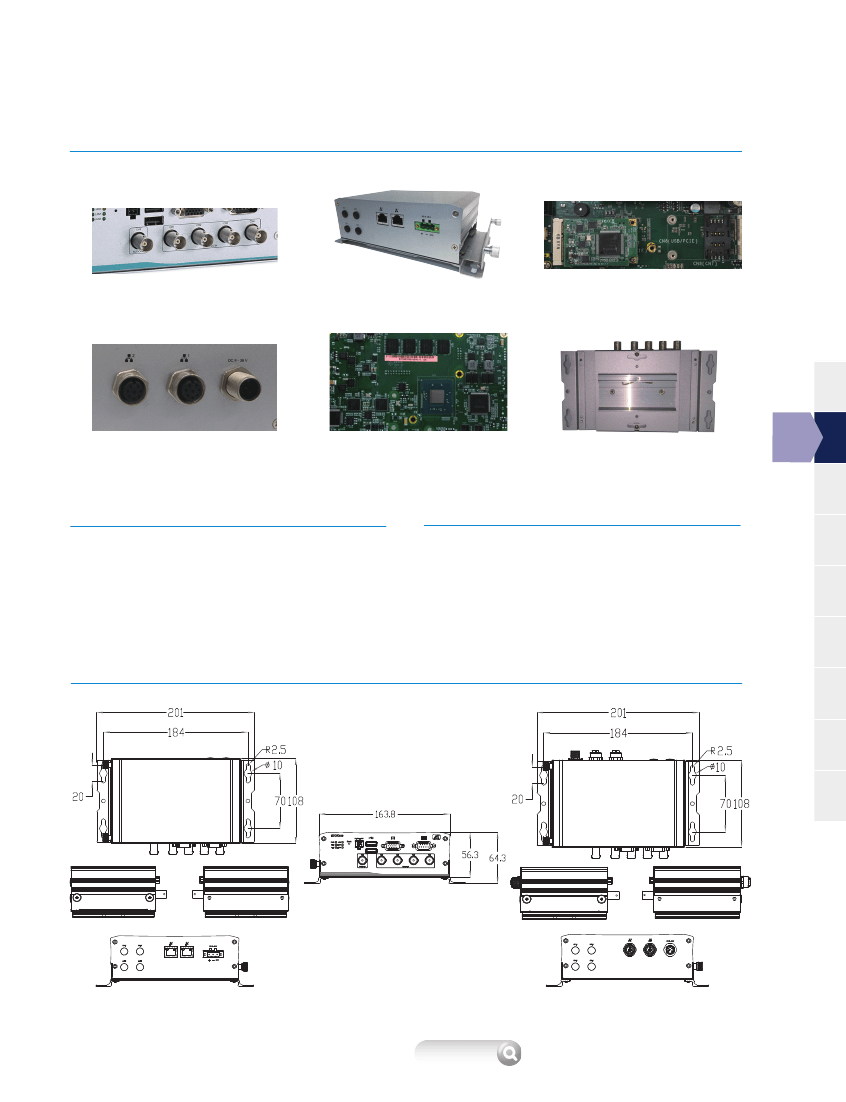

Front view

E13/ISO7637

DDR3L

Rear view

EN50155

IEC60945

Fanless

Ext. Temp

DDR3L

Low Power

Specifications

Standard Color

Construction

CPU

System Memory

Chipset

BIOS

System I/O Outlet

Silver

Aluminum extrusion and heavy-duty steel, IP40

Intel® Atom® processor E3845 (4C @ 1.91 GHz)

DDR3L-1333, 4GB memory onboard

SoC integrated

AMI

Rear Side

Option #1: 2 x M12 A-coded GbE LAN +

1x M12 DC power input

Option #2: 2 x RJ-45 GbE LAN +

1 x Phoenix DC power input (Intel® i210 x2)

4 x Antenna opening

Front Side

1 x RS-232/422/485

1 x VGA

2 x USB 2.0

1 x Remote switch

1 x Reset button

4 x video-in

255 levels, 1 ~ 255 sec.

1 x 2.5” 7/9.5 mm SATA drive

N/A

1 x full-size PCI Express Mini Card slot

1 x SIM Card slot

1 x green LED indicator for system power

1 x green LED indicator for programmable #1

1 x green LED indicator for programmable #2

1 x yellow LED indicator for HDD active

1 x green LED indicator for LAN #1 active

1 x green LED indicator for LAN #2 active

9 ~ 36 VDC, typical: 12/24 VDC

14 ~ 32 VDC, typical: 24 VDC

-40°C ~ +60°C (-40°F ~ +140°F) with W.T. SSD

-25°C ~ +55°C (-13°F ~ +131°F) with W.T. HDD

5% ~ 95%, non-condensing

Vibration Endurance

Shock

Dimensions

Weight (net/gross)

Certificate

EOS support

2 Grms w/ SSD (5 ~ 500Hz, X, Y, Z direction; random)

1 Grms w/ HDD (5 ~ 500Hz, X, Y, Z direction; random)

Comply EN 61373 section 10 table 3 category 1 class A and

class B up to 5 Grms (30ms, ±X/Y/Z direction)

163.8 mm (6.44") (W) x 108 mm (4.25”) (D) x 56.3 mm (2.22") (H)

0.77 kg (1.69 lb)/1.40 kg (3.09 lb)

CE (Class A) certified, E-Mark, ISO 7637-2 EN 50155,

EN 50121, DNV 2.4 and IEC 60945 compliance

Windows® 10, WE8S, WES 7, Linux, VxWorks7

Ordering Information

Standard

tBOX100-838-FL-E3845-

RJ-ACC-DC

(P/N: E26N100100)

tBOX100-838-FL-E3845-

24MRDC

2018 Q1 available

Fanless vehicle embedded system with Intel® Atom®

processor E3845, 4GB RAM, 2 GbE LANs (RJ-45), phoenix

DC-in, COM, 5 BNC (4 x video-in/1 x audio-in), capture card

and ACC ignition

Fanless railway embedded system with Intel® Atom®

processor E3845, 4GB RAM, 2 GbE LANs (M12), M12

DC-in, COM, 5 BNC (4 x video-in/1 x audio-in) and

capture card

Watchdog Timer

Storage

RAID function

Expansion Interface

System Indicator

Power Supply

Operating Temperature

Humidity

Optional

2.5” SATA HDD/SSD

3G/4G/GPS module

Wi-Fi/Bluetooth module

PCI Express Mini Card

Remote switch cable

M12 LAN cable

M12 power cable

*Specifications and certifications may vary according to various options.

115

* All specifications and photos are subject to change without notice.

TBOX100-838-FL Related Products

	TBOX100-838-FL	tBOX100-838-FL-E3845-M12-RL-DC	tBOX100-838-FL-E3845-M12-ACC-DC	tBOX100-838-FL-E3845-RJ-DC	tBOX100-838-FL-E3845-RJ-ACC-DC	TBOX100-838-FL-E3845-24MRDC
Description	Fanless Embedded System with Intel Atom Processor E3845 1.91GHz processor 4GB DRAM USB2 VGA Giga RJ-45 LAN2 Phoenix DC-in COM*1 4ch video-in 1ch audio-in with capture card 9 to 36VDC ACC ignition	Embedded box computer Fanless Railway Grade embedded system E3845 1.91GHz processor 4GB DRAM USB2 VGA Giga M12 LAN2 M12 DC-in COM*1 4x BNC video-in 1x BNC audio-in	Embedded box computer Fanless Vehicle Grade embedded system E3845 1.91GHz processor 4GB DRAM USB2 VGA Giga M12 LAN2 Phoenix DC-in COM*1 4x BNC video-in 1x BNC audio-in 9 to 36VDC ACC ignition	Fanless Marine Grade embedded system E3845 1.91GHz processor 4GB DRAM USB2 VGA Giga RJ-45 LAN2 Phoenix DC-in COM*1 4x BNC video-in 1x BNC audio-in Terminal block DC 9 to 36VDC	Embedded box computer Fanless Vehicle Grade embedded system E3845 1.91GHz processor 4GB DRAM USB2 VGA Giga RJ-45 LAN2 Phoenix DC-in COM*1 4x BNC video-in 1x BNC audio-in 9 to 36VDC ACC ignition	Fanless Embedded System with Intel Atom Processor E3845 1.91GHz processor 4GB DRAM USB2 VGA Giga M12 LAN2 M12 DC-in COM*1 4ch video-in 1ch audio-in with capture card 9 to 36VDC
Maker	Axiomtek	Axiomtek	Axiomtek	Axiomtek	Axiomtek	Axiomtek
Product Category	Embedded box computer	Embedded box computer	Embedded box computer	Embedded box computer	Embedded box computer	Embedded box computer
Processor brand	Intel	Intel	Intel	Intel	Intel	Intel
Processor type	Intel Atom	Intel Atom	Intel Atom	Intel Atom	Intel Atom	Intel Atom
chipset	SoC Integrated	SoC Integrated	SoC Integrated	SoC Integrated	SoC Integrated	SoC Integrated
frequency	1.91 GHz	1.91 GHz	1.91 GHz	1.91 GHz	1.91 GHz	1.91 GHz
storage	4 GB	4 GB	4 GB	4 GB	4 GB	4 GB
Working power voltage	12 V, 24 V	12 V, 24 V	12 V, 24 V	12 V, 24 V	12 V, 24 V	24 V
Minimum operating temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Maximum operating temperature	+ 60 C	+ 60 C	+ 60 C	+ 60 C	+ 60 C	+ 60 C
size	163.8 mm x 108 mm x 56.3 mm	163.8 mm x 108 mm x 56.3 mm	163.8 mm x 108 mm x 56.3 mm	163.8 mm x 108 mm x 56.3 mm	163.8 mm x 108 mm x 56.3 mm	163.8 mm x 108 mm x 56.3 mm
storage type	DDR3L-1333	DDR3L-1333	DDR3L-1333	DDR3L-1333	DDR3L-1333	DDR3L-1333
series	tBOX100-838-FL	tBOX100-838-FL	tBOX100-838-FL	tBOX100-838-FL	tBOX100-838-FL	tBOX100-838-FL
Processor series	E3845	E3845	E3845	E3845	E3845	E3845
Interface Type	PCI-e, Serial, USB	PCI-e, Serial, USB	PCI-e, Serial, USB	PCI-e, Serial, USB	PCI-e, Serial, USB	-
Factory packaging quantity	-	1	1	1	1	-
