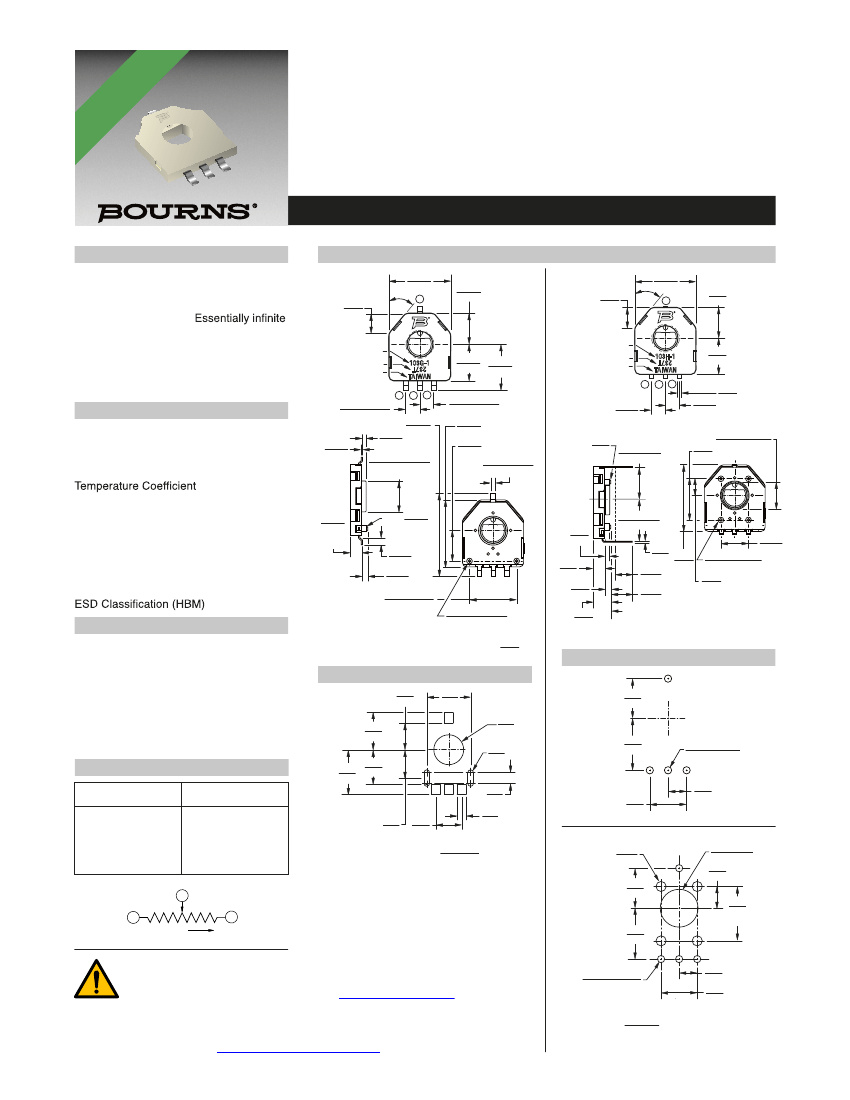

3382 - 12 mm Rotary Position Sensor
Electrical Characteristics
Standard Resistance Range
............................... 2.5K to 100K ohms
Resistance Tolerance ..............±30 % std.
Linearity ............................................±2 %
Resolution....................
Insulation Resistance @ 500 VDC
............................... 100 megohms min.
Dielectric Strength
Sea Level ................................500 VAC
70,000 Feet .............................350 VAC
Adjustment Angle.................... 330 ° nom.
Environmental Characteristics
Power Rating (16 volts max.)
50 °C ...................................... 0.05 watt
120 °C ......................................... 0 watt
Operating Temperature Range
................................. -40 °C to +120 °C
......±500 ppm/°C
Humidity................................. TRS ±20 %
Shock........ 20 G TRS ±10 %; VRS ±10 %
Load Life @ 50 °C Rated Power
..................................... TRS +10/-20 %
Rotational Life................1,000,000 cycles
TRS ±20 %
Thermal Shock ...........................5 cycles
TRS ±20 %; VRS ±10 %
Moisture Sensitivity Level .......................1
................... N/A
Physical Characteristics
Mechanical Angle ......Continuous rotation
Torque................................ 30 gf-cm max.
Weight ................ Approximately 0.0321 g
Marking .......................... Resistance code
and date code

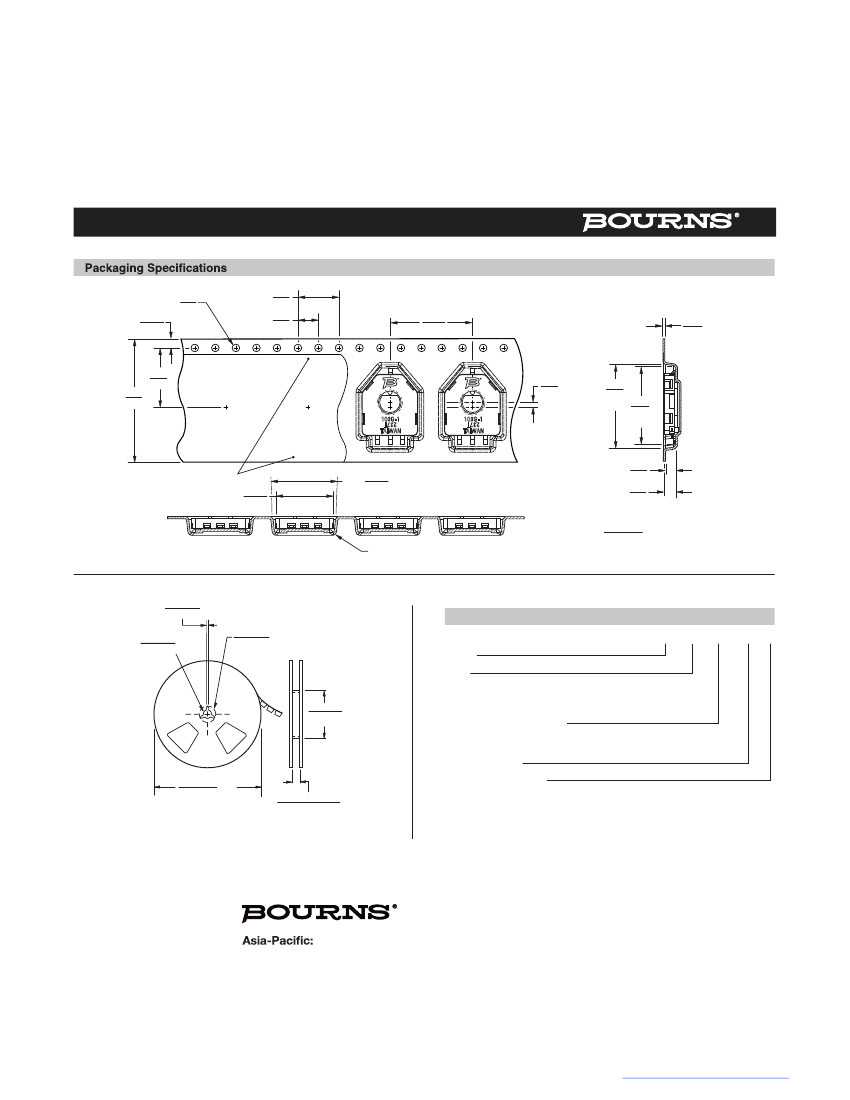

Standard Packaging
G Style .................... 1000 pcs./13 ” reel
H Style .............................. 50 pcs./tube
IP Rating ........................................... IP40
Standard Resistance Table
Resistance
(Ohms)
2,500
5,000
10,000
25,000
50,000
100,000
Resistance
Code
252
502
103
253
503
104
Product Dimensions
3382G
3.58
(.141)
40 °
11.00
(0.433)
2
3382H
5.54
(0.218)
3.58 40 °
(.141)
11.00
(.433)
2
5.54
(.218)
RESISTANCE CODE,
PIN & SHAFT STYLE
DATE CODE
MFG. LOCATION
6.50
8.20
(0.256) (0.323)
1
2
3
RESISTANCE CODE,
PIN & SHAFT STYLE
DATE CODE
MFG. LOCATION
1
2
3
6.50
(.256)
0.76
2.49 (.030)
(0.098)
2.49 ± 0.10
(0.098 ± 0.004)
TYP.
0.20
(0.008)
0.60
(0.024)
14.90
(0.587)
5.0 +0.0/-0.1
(0.197 +0.0/-0.004)
DIA.
2.49 ± 0.10
(0.098 ± 0.004)
12.04
(0.474)
5.49
(0.216)
4 PLCS.
0.76 ± 0.10
(0.030 ± 0.004)
TYP.
2.49
(0.098)
CHAMFER TYP.
0.20
45 ° X
(.008)
5.40 ± 0.50
(.213 ± .020)
5.0 +0.0/-0.1
7.50 (.197 +0.0/-.004)
DIA.
(.295)
2.11
(0.083)
MOUNTING
SURFACE
45 ° X
0.20
(0.039)
CHAMFER
TYP.
1.02
TYP.
(0.040)
1.02
TYP.
(0.040)
0.79
(.031)
1.93
(.076)
0.97
(.038)
2.90
(.114)
6.90 ± 0.50
(.272 ± .020)
TYP.
0.20
(.008)
12.04
(.474)
2.8
(.110)
3.5
(.138)
MOUNTING
SURFACE
5.00
(.197)
1.0 +0.05/-0.10
DIA.
(.039 +.020/.004)
3.00
(.118)
1.0 +0.05/-0.10
(0.04 +.002/-.004)
DIA. 2 PLCS.
NOTE: ALL TERMINATIONS TO BE COPLANAR WITHIN
0.1
(0.001)
8.50 ± 0.10
(0.335 ± 0.004)
Recommended Land Patterns
5.5
(.217)
Recommended Land Pattern
5.2
(.205)
7.2
(.283)
6.7
8.7 (.264)
(.343)
8.50
(.335)
DIA.
5.8
(.228)
DIA. 2 PLCS.
1.1
(.043)
7.0
(.276)
DIA. 4 PLCS.
1.0 +0.1/-0.0
(.039 +.004/-0.0)
5.5
(.217)
5.00
(.197)
2.1
(.083)
1.8
(.071)
5.00
(.197)
2.50
(.098)
DIMENSIONS:
MM
(INCHES)
DIA. 4 PLCS.
1.4
(.055)
5.5
(.217)
DIA.
5.21 ± 0.12
(.205 ± .005)
3.0
(.118)
7.493
(.295)
2 PLCS.
2
CCW
WIPER
1
CLOCKWISE
3
CW
7.0
(.276)
DIA. 4 PLCS.
1.0 +0.05/-0.10
(.039 +.002/-.004)
WARNING Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice. Users should verify actual device performance in their specific
applications. The products described herein and this document are subject to specific legal disclaimers as set forth on
the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf
2.50
(.098)
5.00
(.197)
TOLERANCES:
±0.30
UNLESS OTHERWISE NOTED
±(.012)
