High Current Fuses
MEGA
®
High Performance Fuse Rated 70V-SF51

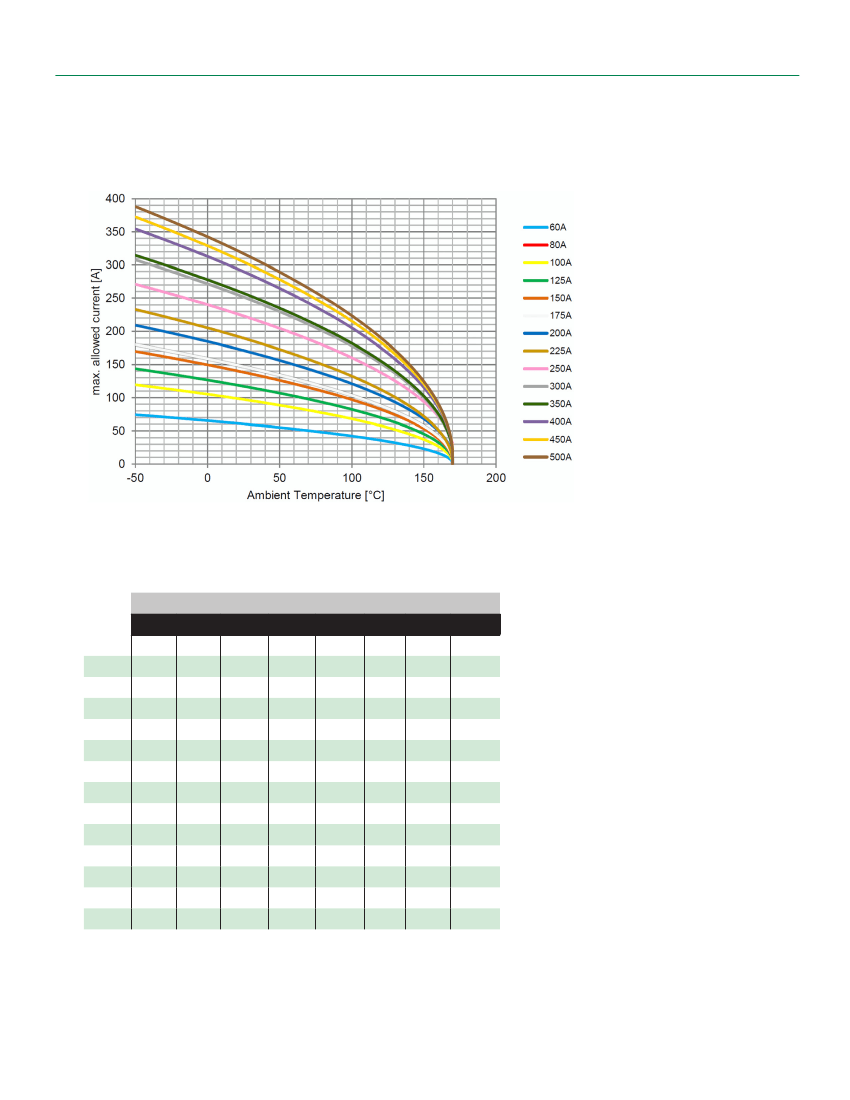

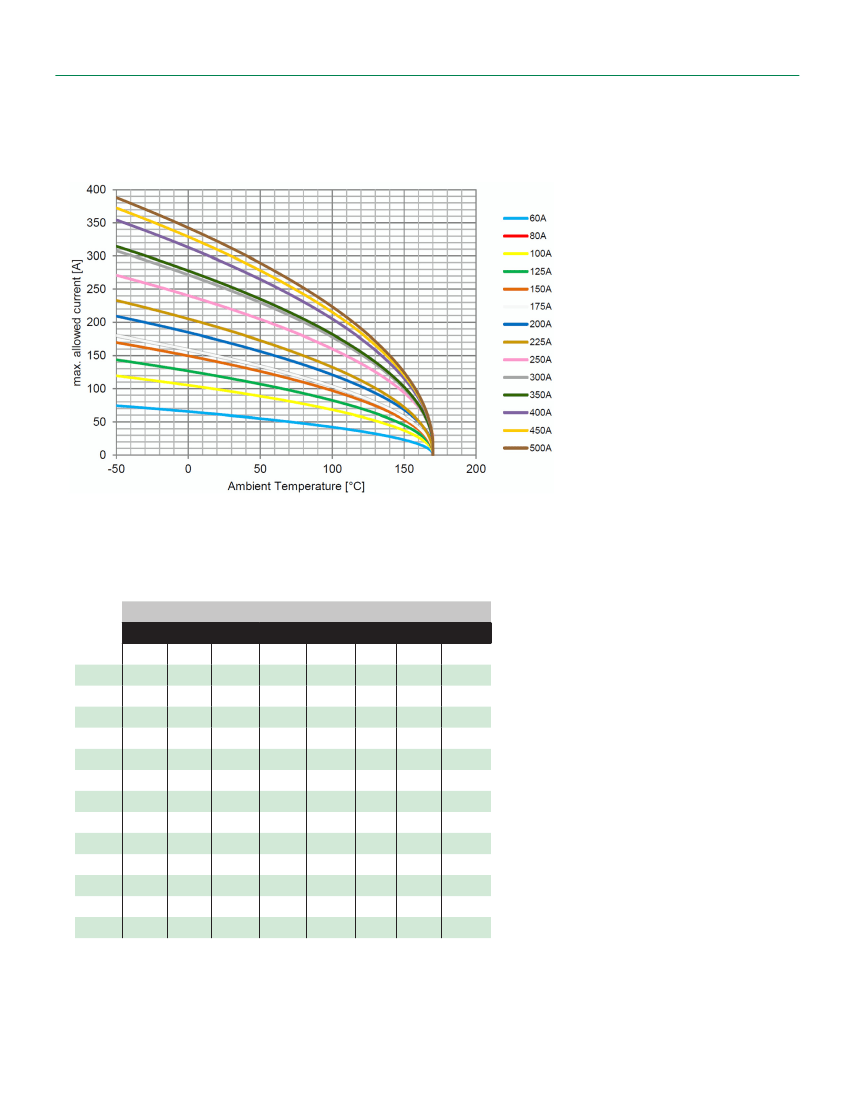

Typical Derating
Temperature Security Margin is 20%
Wire Cross Sections And Test Fixture acc. ISO 20934
Temperature Table
max. allowed current load [A] at ambient temperature
-20°C
60A
80A
100A
125A
150A
175A
200A
225A
250A
300A
350A
400A
450A
500A
111
134
158
168
195
217
253
287
293
330
347
361
105
127
150
159
185
205
240
272
278
313
329
342
99
119
141
149
174
193
227
256
262
295
310
322
83
100
118
126
147
162
192
216
221
248
261
271
75
90
107
113
133
146
175
195
200
225
236
245
70
85
100
107
125
137
165
184
188
212
222
231
66
79
94
100
117
128
155
172
176
198
208
216
55
66
78
84
98
107
132
145
148
167
175
181
69
0°C
65
20°C
61
65°C
52
85°C
46
95°C
44
105°C
41
125°C
34
Littelfuse products are not designed for, and shall not be used for, any purpose (including, without limitation, automotive, military, aerospace, medical, life-saving, life-sustaining or nuclear facility applications, devices intended for
surgical implant into the body, or any other application in which the failure or lack of desired operation of the product may result in personal injury, death, or property damage) other than those expressly set forth in applicable Littelfuse
product documentation. Warranties granted by Littelfuse shall be deemed void for products used for any purpose not expressly set forth in applicable Littelfuse documentation. Littelfuse shall not be liable for any claims or damages
arising out of products used in applications not expressly intended by Littelfuse as set forth in applicable Littelfuse documentation. The sale and use of Littelfuse products is subject to Littelfuse Terms and Conditions of Sale, unless
otherwise agreed by Littelfuse.
High Current Fuses
MEGA
®
High Performance Fuse Rated 70V-SF56

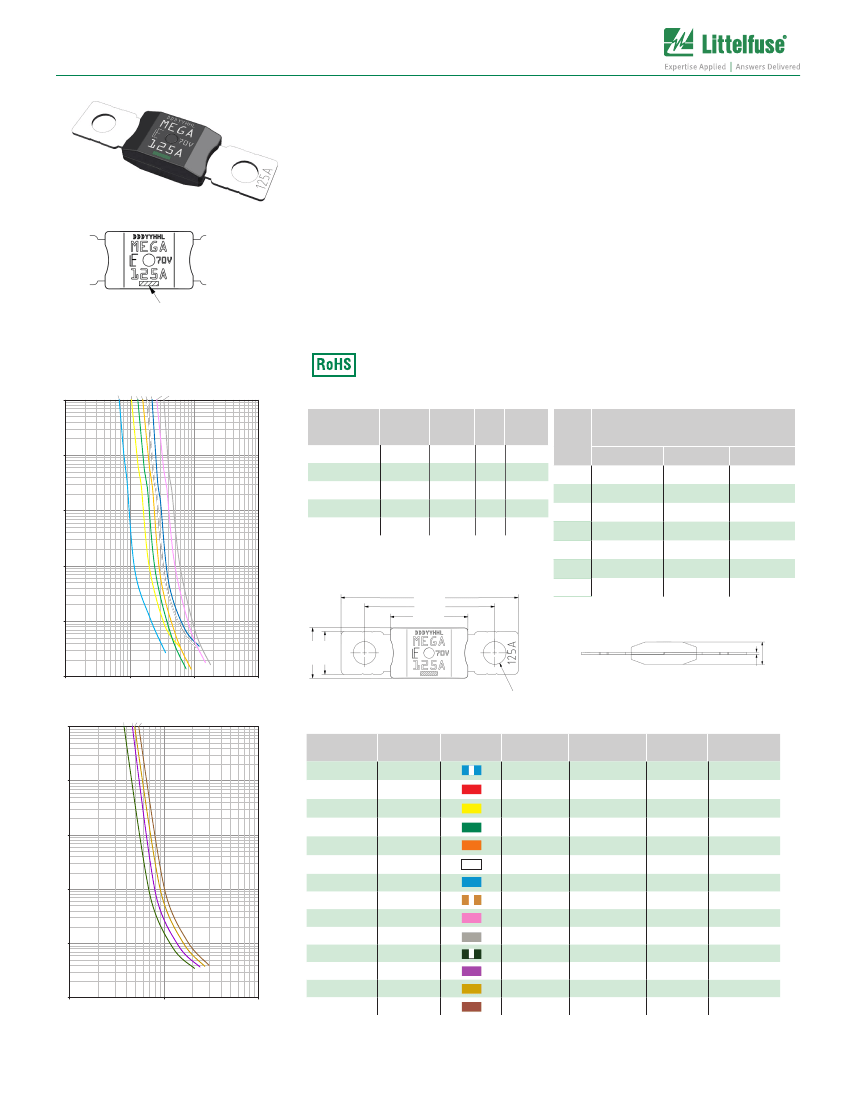

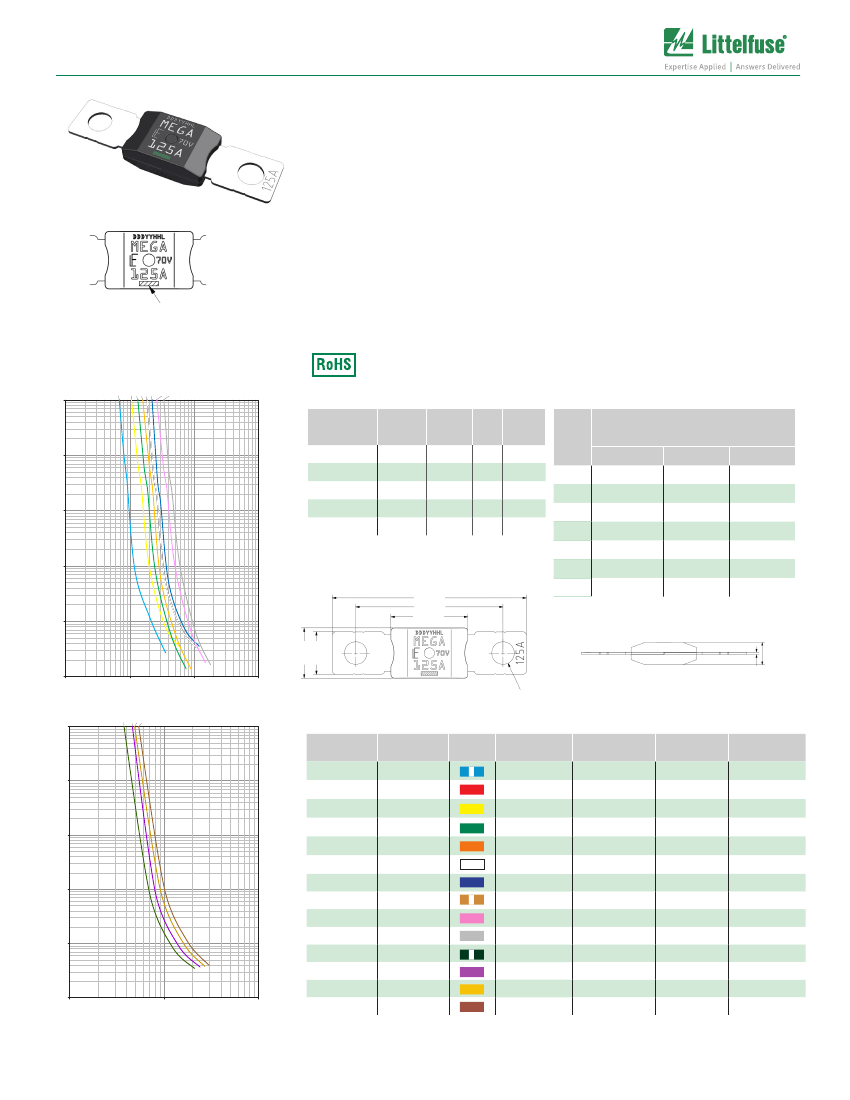

The MEGA
®
70V-SF56 High Performance (HP) Fuse is designed for high current circuit protection
up to 500A with “Diffusion Pill Technology.” The MEGA 70V HP features 1MOhm Open State
Resistance after fuse opening to guarantee safe interruption at any voltage up to 70V. The
MEGA
®
70V HP Fuse is ideal for battery and alternator protection application and other heavy
gauge cables requiring ultra-high current protection. The bigger pitch of 56mm serves as a
mechanical coding feature to avoid standard SF51 fuses being mounted.
Littelfuse products are not designed for, and shall not be used for, any purpose (including, without limitation, automotive, military, aerospace, medical, life-saving, life-sustaining or nuclear facility applications, devices intended for
surgical implant into the body, or any other application in which the failure or lack of desired operation of the product may result in personal injury, death, or property damage) other than those expressly set forth in applicable Littelfuse
product documentation. Warranties granted by Littelfuse shall be deemed void for products used for any purpose not expressly set forth in applicable Littelfuse documentation. Littelfuse shall not be liable for any claims or damages
arising out of products used in applications not expressly intended by Littelfuse as set forth in applicable Littelfuse documentation. The sale and use of Littelfuse products is subject to Littelfuse Terms and Conditions of Sale, unless
otherwise agreed by Littelfuse.
littelfuse.com
1.0
9.9
High Current Fuses
MEGA
®
High Performance Fuse Rated 70V-SF56
Typical Derating
Temperature Security Margin is 20%
Wire Cross Sections And Test Fixture acc. ISO 20934
Temperature Table
max. allowed current load [A] at ambient temperature
-20°C
60A
80A
100A
125A
150A
175A
200A
225A
250A
300A
350A
400A
450A
500A
111
134
158
168
195
217
253
287
293
330
347
361
105
127
150
159
185
205
240
272
278
313
329
342
99
119
141
149
174
193
227
256
262
295
310
322
83
100
118
126
147
162
192
216
221
248
261
271
75
90
107
113
133
146
175
195
200
225
236
245
70
85
100
107
125
137
165
184
188
212
222
231
66
79
94
100
117
128
155
172
176
198
208
216
55
66
78
84
98
107
132
145
148
167
175
181
69
0°C
65
20°C
61
65°C
52
85°C
46
95°C
44
105°C
41
125°C
34
Littelfuse products are not designed for, and shall not be used for, any purpose (including, without limitation, automotive, military, aerospace, medical, life-saving, life-sustaining or nuclear facility applications, devices intended for
surgical implant into the body, or any other application in which the failure or lack of desired operation of the product may result in personal injury, death, or property damage) other than those expressly set forth in applicable Littelfuse
product documentation. Warranties granted by Littelfuse shall be deemed void for products used for any purpose not expressly set forth in applicable Littelfuse documentation. Littelfuse shall not be liable for any claims or damages
arising out of products used in applications not expressly intended by Littelfuse as set forth in applicable Littelfuse documentation. The sale and use of Littelfuse products is subject to Littelfuse Terms and Conditions of Sale, unless
otherwise agreed by Littelfuse.
