PH9455.356NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> PH9455.356NL

PH9455.356NL: DescriptionCommon Mode Choke/Filter 4A 35mH NPB SRF .33MHz; CategoryAnalog mixed-signal IC filter; File Size532KB，4 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

PH9455.356NL Overview

Common Mode Choke/Filter 4A 35mH NPB SRF .33MHz

PH9455.356NL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Maximum DC resistance	0.08 Ω
filter type	DATA LINE FILTER
high	32 mm
inductance	35000 µH
length	30 mm
Installation type	THROUGH HOLE MOUNT
Number of functions	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output impedance	21000 OHM Ω
method of packing	TRAY
physical size	L30.0XB19.0XH32.0 (mm)/L1.181XB0.748XH1.26 (inch)
Rated current	4 A
Rated voltage	250 V
width	19 mm
Base Number Matches	1

Preview

Download Datasheet

View All

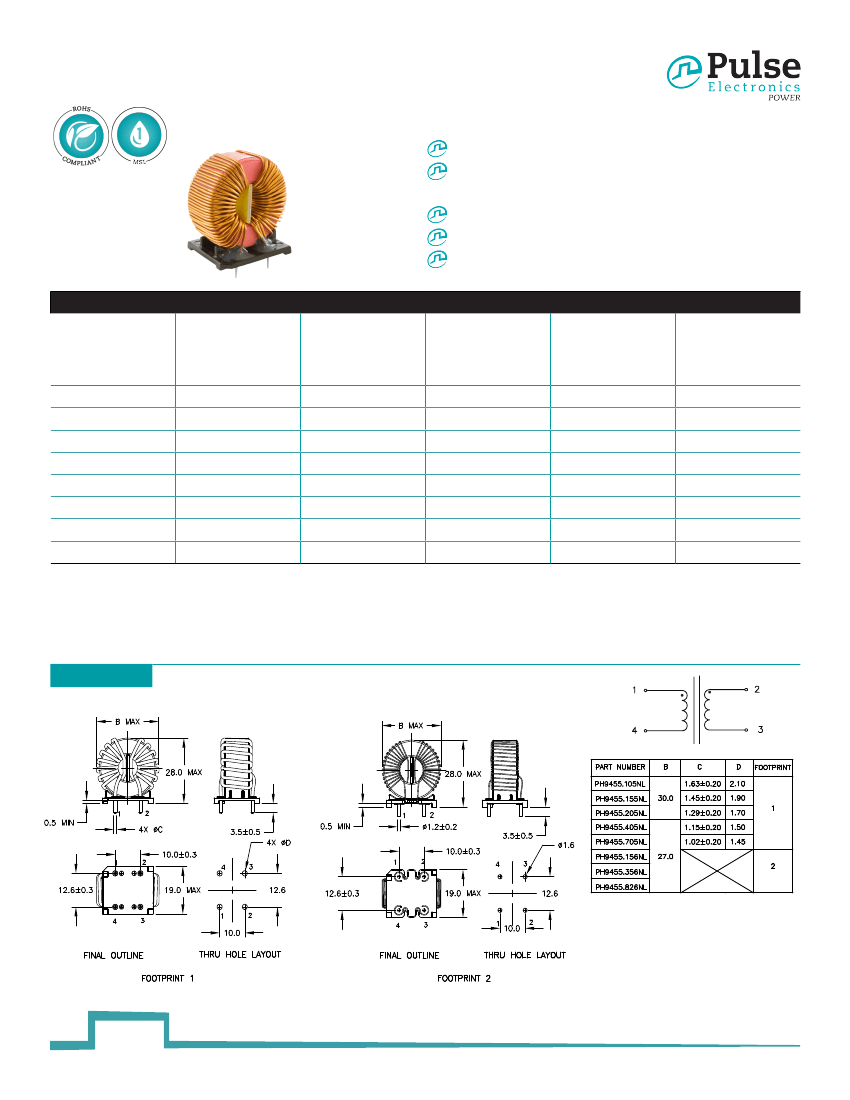

THT Common Mode Chokes

PH9455.XXXNL Series

Dielectric Strength:

1500Vrms

Inductance Range:

1.00mH (at 22.0A) to

82.0mH (at 3.0A)

Height:

28.0mm Max

Footprint:

12.6mm x 10.0mm

Voltage Rating:

250Vac Max

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Inductance

(1-4)=(2-3)

(mH +50%/-30%)

1.00

1.62

2.20

4.50

6.50

15.0

35.0

82.0

Current Rating

(1-4)=(2-3)

(A)

DCR

(1-4)=(2-3)

(mΩ Max)

2.10

3.20

4.50

8.50

14.0

30.0

80.0

150

Self Resonant

Frequency

(1-4)=(2-3)

(MHz Min)

15.94

10.00

8.39

4.00

1.52

0.76

0.33

0.13

Impedance

(kOhms Min at SRF)

1.5

1.8

2.6

4.4

6.4

Part Number

PH9455.105NL

PH9455.155NL

PH9455.205NL

PH9455.405NL

PH9455.705NL

PH9455.156NL

PH9455.356NL

PH9455.826NL

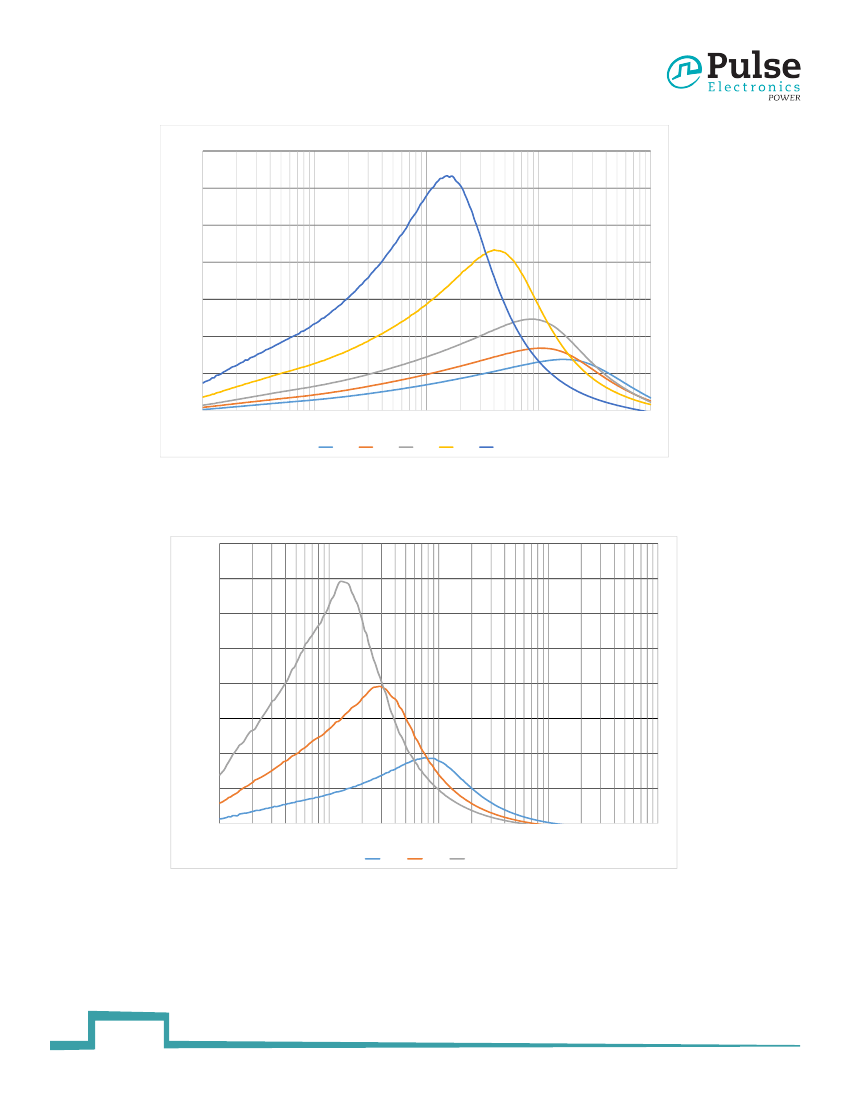

Notes:

1. The current rating (Irated) is based upon the temperature rise of the component and represents the rms current which will cause a typical temperature rise of 55½C.

Mechanical

PH9455.XXXNL

Schematic

Weight (TYP)

...................20grams

Tray

....................................45/tray

Dimensions: mm

Unless otherwise specified, all tolerance are ±0.25

power.pulseelectronics.com

P789.D (01/18)

http://www.power.pulseelectronics.com/contact

PH9455.356NL Related Products

	PH9455.356NL	PH9455.405NL	PH9455.155NL	PH9455.826NL	PH9455.705NL	PH9455.205NL	PH9455.105NL
Description	Common Mode Choke/Filter 4A 35mH NPB SRF .33MHz	Common Mode Choke/Filter 12A 4mH NPB SRF 4MHz	Common Mode Choke/Filter 19A 1.62mH NPB SRF 10MHz	Common Mode Choke/Filter 3A 82 mH NPB SRF .33MHz	Common Mode Choke/Filter 9A 7mH NPB SRF 1.52MHz	Common Mode Choke/Filter 16A 2.2mH NPB SRF 8.39MHz	Common Mode Choke/Filter 22A 1mH NPB SRF 15.94MHz
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC resistance	0.08 Ω	0.0085 Ω	0.0032 Ω	0.15 Ω	0.014 Ω	0.0045 Ω	0.0021 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	32 mm	32 mm	32 mm	32 mm	32 mm	32 mm	32 mm
inductance	35000 µH	4500 µH	1620 µH	82000 µH	6500 µH	2200 µH	1000 µH
length	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output impedance	21000 OHM Ω	4400 OHM Ω	1800 OHM Ω	37000 OHM Ω	6400 OHM Ω	2600 OHM Ω	1500 OHM Ω
method of packing	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY
physical size	L30.0XB19.0XH32.0 (mm)/L1.181XB0.748XH1.26 (inch)	L30.0XB19.0XH32.0 (mm)/L1.181XB0.748XH1.26 (inch)	L30.0XB19.0XH32.0 (mm)/L1.181XB0.748XH1.26 (inch)	L30.0XB19.0XH32.0 (mm)/L1.181XB0.748XH1.26 (inch)	L30.0XB19.0XH32.0 (mm)/L1.181XB0.748XH1.26 (inch)	L30.0XB19.0XH32.0 (mm)/L1.181XB0.748XH1.26 (inch)	L30.0XB19.0XH32.0 (mm)/L1.181XB0.748XH1.26 (inch)
Rated current	4 A	12 A	19 A	3 A	9 A	16 A	22 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V
width	19 mm	19 mm	19 mm	19 mm	19 mm	19 mm	19 mm
Factory Lead Time	8 weeks	10 weeks	10 weeks	-	10 weeks	10 weeks	10 weeks
Base Number Matches	1	1	1	-	1	1	1
Maker	-	Pulse Electronics	Pulse Electronics	Pulse Electronics	-	Pulse Electronics	Pulse Electronics
