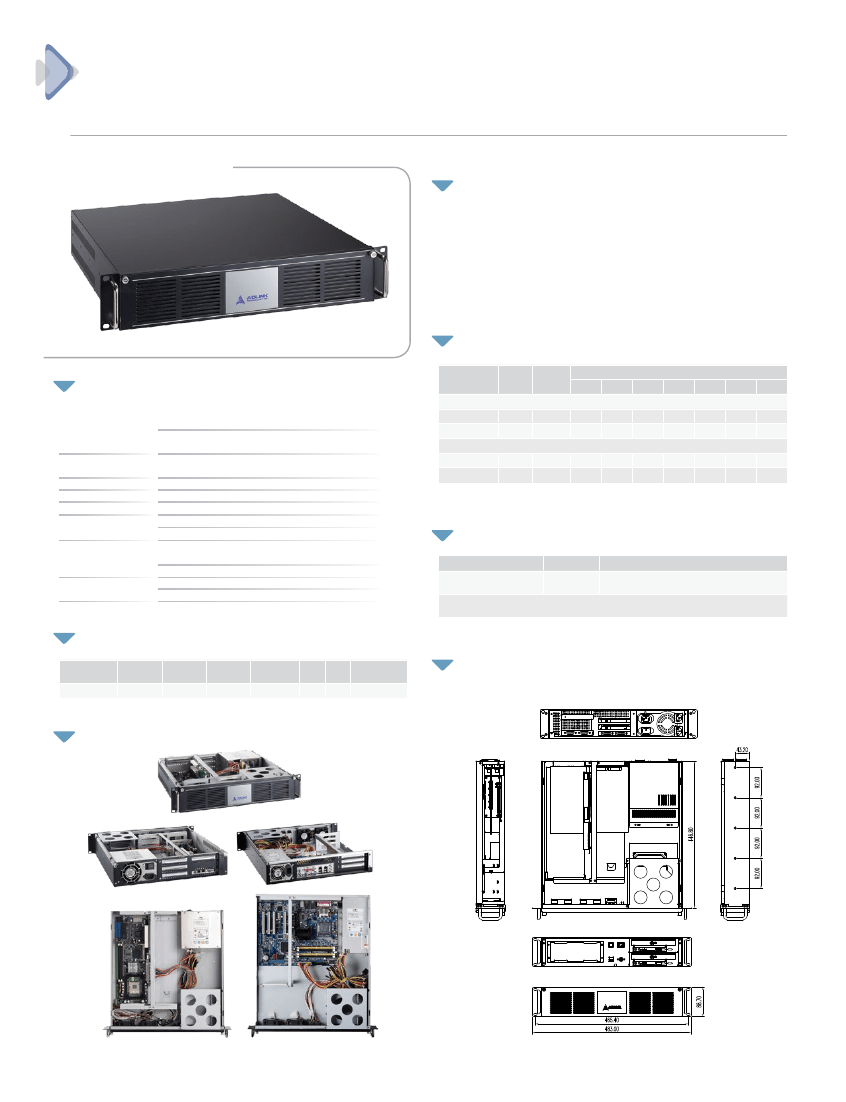

RK-260

2U Rackmount Industrial Chassis supports 5-slot Backplane and Motherboard

Features

■

EIA RS-310C 19” Rackmount Standard

Two 5.25” drive bays

■

PICMG 1.3 5-slot backplane versions (RK-260-E)

and ATX motherboard version (RK-260MB)

■

PS2 ATX or mini redundant power supply

■

PCIe/PCI riser card available for motherboard version

■

Replaceable and easy-to-clean air filter

■

Front mounted fan module for easy maintenance

Power Supply Options

Specifications

Dimensions

RK-260-E 16.8 x 3.5 x 18.1 in (427 x 88.7 x 450 mm)

(W x H x D)

RK-260MB: 16.8 x 3.5 x 19.7 in (427 x 88.7 x 500 mm)

(W x H x D)

Two 5.25” drive bays (with one slim optical drive + FDD

converter)

Heavy-duty steel

Black

Two 60 x 60 x 20 mm ball bearing fans (push cooling)

Two USB connectors

ATX power switch PS/2 keyboard connector

PS2 form factor ATX or mini redundant power supply

(RK-260-E only)

Industrial AC power supply 1U/2U form factor (RK-260MB only)

RK-260MB 24.2 x 22 x 9.1 in (615 x 560 x 232 mm)

RK-260-E 25.2 x 21.5 x 8.7 in (640 x 545 x 220 mm)

Net 15 kg (33 lb)

Model

Number

For RK-260-E

APS930XA-ATX12

APS-946XA-EPS12

For RK-260MB

APS-9235XU

APS-9130XU*

Watt

Input

Range

Universal

+5 V

16 A

20 A

25 A

16 A

+3.3 V

19 A

24 A

20 A

14 A

Output (Max.)

+12 V1 +12 V2 -12 V

17 A

16 A

28 A

16 A

17 A

16 A

0.5 A

-5 V

0.3 A

0.5 A

0.3 A

+5 Vsb

300 W

460 W

350 W

300 W

Drive Bays

Construction

Color

Cooling Fans

Front Panel

Power Supply

*Requires 1U-to-2U PSU adapter bracket (P/N: 58-80018-0000)

Ordering Information

Model Number

RK-260-E

RK-260MB

Color

Black

Description

2U rackmount industrial chassis supports

5-slot backplane

2U rackmount industrial chassis supporting

motherboard

Carton Size

Weight

Backplane Options

Model

Name

EBP-D5E2

PICMG

PCIe x1 PCIe x4 PCIe x16 PCI ISA

PSU

SBC

Connector

ATX

Dimensions

Units: mm

Mechanical Layout

Rear-side View

Top View

Left-side View

Right-side View

Front in-side View

RK-260-E

RK-260MB

Front out-side View
