Product Brief

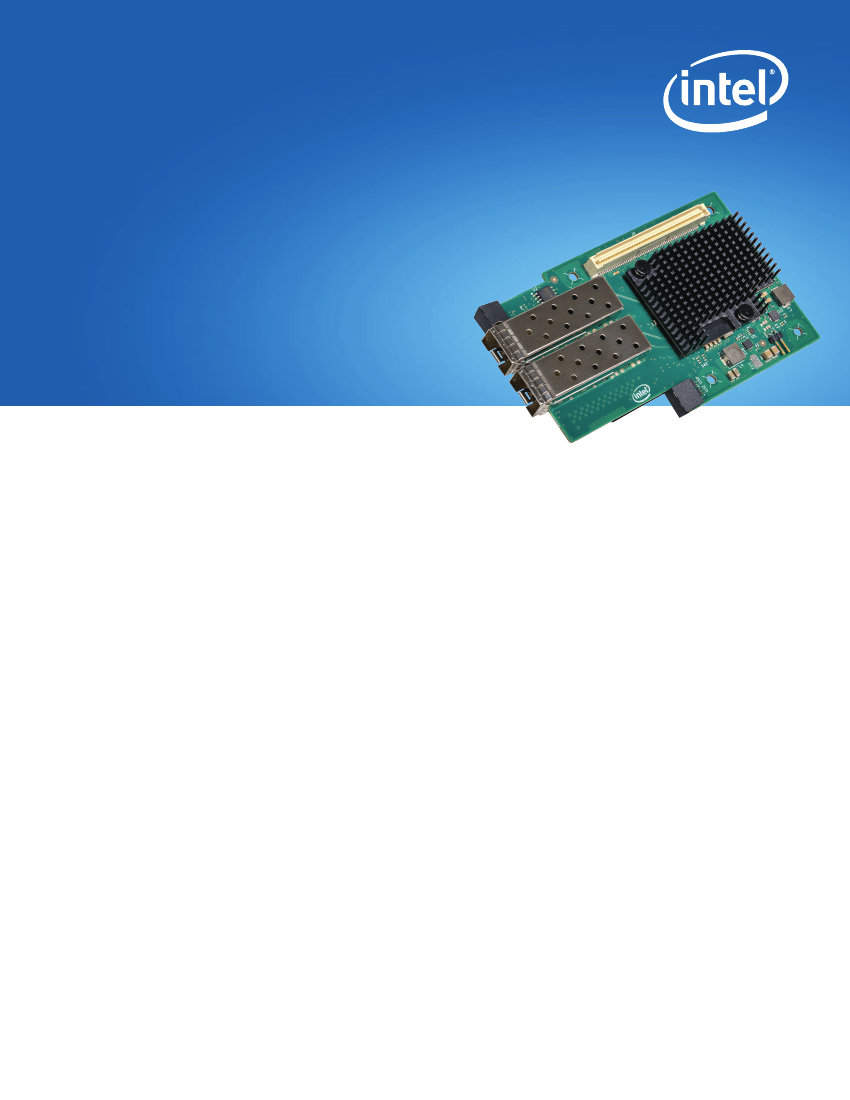

Intel® Ethernet Server Adapter
X710-DA2 for OCP
Driving innovation in the Open Compute Project
(OCP), Intel® Network Adapters are compatibility
tested for trouble-free interoperability with
network infrastructure elements.
Key Features
Overview
The Intel® Ethernet Server Adapter X710-DA2 for OCP is part of the
Intel® Ethernet 700 Series Network Adapters. These adapters are the
foundation for server connectivity, providing broad interoperability, critical
performance optimizations, and increased agility for Telecommunications,
Cloud, and Enterprise IT network solutions.
• Interoperability
- Multiple speeds and media types for broad compatibility
backed by extensive testing and validation.
• Optimization
- Intelligent offloads and accelerators to unlock network
performance in servers with Intel® Xeon® processors.
• Agility
- Both Kernel and Data Plane Development Kit (DPDK) drivers for
scalable packet processing.
Built on more than 35 years of continuous Ethernet innovations, the
Intel® Ethernet 700 Series delivers networking performance across a wide
range of network port speeds through intelligent offloads, sophisticated
packet processing, and quality open source drivers.
• OCP Spec. v2.0, Type 1 and
Type 2
• Dual-port 10GbE SFP+
• PCI Express* (PCIe) v3.0, x8
• Network Virtualization offloads
including VXLAN, GENEVE,
NVGRE, MPLS, and VXLAN-GPE
with Network Service
Headers (NSH)
• Intel® Ethernet Flow Director
for hardware based application
traffic steering
• Data Plane Development Kit
(DPDK) optimized for efficient
packet processing
• Excellent small packet
performance for network
appliances and Network
Functions Virtualization (NFV)
• Intelligent offloads to enable
high performance on servers
with Intel® Xeon® Processors
• I/O virtualization innovations for
maximum performance in a
virtualized server
All Intel® Ethernet 700 Series Network Adapters
include these feature-rich technologies:
Flexible and Scalable I/O for Virtualized
Infrastructures
Intel® Virtualization Technology (Intel® VT), delivers
outstanding I/O performance in virtualized server
environments.
I/O bottlenecks are reduced through intelligent offloads
such as Virtual Machine Device Queues (VMDq) and
Flexible Port Partitioning, using SR-IOV with a common
Virtual Function driver for networking traffic per Virtual
Machine (VM), enabling near-native performance and
VM scalability. Host-based features supported include:
VMDq for Emulated Path:
VMDq, enables a hypervisor
to represent a single network port as multiple network
ports that can be assigned to the individual VMs.
Traffic handling is offloaded to the network controller,
delivering the benefits of port partitioning with little to
no administrative overhead by the IT staff.
SR-IOV for Direct Assignment:
Adapter-based
isolation and switching for various virtual station
instances enables optimal CPU usage in virtualized
environments.
• Up to 128 VFs, each VF can support a unique and
separate data path for I/O related functions within the
PCI Express* hierarchy.
• Use of SR-IOV with a networking device, for example,
allows the bandwidth of a single port (function) to be
partitioned into smaller slices that can be allocated to
specific VMs or guests, via a standard interface.
Intel® Ethernet Adaptive Virtual Function (Intel®
Ethernet AVF):
A virtual function driver that eases
SR-IOV hardware upgrades or changes, and preserves
base mode functionality in hardware and software.
Customers deploying mass-scale VMs or containers
for their network infrastructure now have a common
Virtual Function (VF) driver. This driver supports a
Base Mode and advanced set of features on the Intel®
Ethernet 700 Series.
Flexible Port Partitioning (FPP)
FPP leverages the PCI-SIG SR-IOV specification. Virtual
controllers can be used by the Linux* host directly and/
or assigned to virtual machines.
• Assign up to 63 Linux host processes or virtual
machines per port to virtual functions.
• Control the partitioning of per port bandwidth across
multiple dedicated network resources, ensuring
balanced QoS by giving each assigned virtual controller
equal access to the ports bandwidth.
Network administrators can also rate limit each of
these services to control how much of the pipe is
available to each process.
Greater Intelligence and Performance for NFV
Dynamic Device Personalization (DDP) customizable
packet filtering, along with enhanced Data Plane
Development Kit (DPDK), support advanced packet
forwarding and high efficient packet processing for
both Cloud and Network Functions Virtualization (NFV)
workloads.
• DDP enables a method to change the packet
processing pipeline by applying a profile package to
the Intel® Ethernet 700 Series Network Adapter at
runtime—resulting in improvements in throughput,
latency and reduced CPU loads.
• DPDK provides a programming framework for Intel®
processors and enables faster development of high-
speed data packet networking applications.
Advanced Traffic Steering
Intel® Ethernet Flow Director (Intel® Ethernet FD) is
an advanced traffic steering capability built into the
adapter. It consists of a large number of flow affinity
filters that direct receive packets by their flows to
queues for classification, load balancing, and matching
between flows and CPU cores.
Steering traffic into specific queues can eliminate
context switching required within the CPU. As a result,
Intel® Ethernet FD significantly increases the number of
transactions per second and reduces latency for cloud
applications like memcached.
Enhanced Network Virtualization Overlays (NVO)
Network virtualization has changed the way networking
is done in the data center, delivering accelerations
across a wide range of tunneling methods.
VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE
with NSH Offloads: These stateless offloads preserve
application performance for overlay networks, and the
network traffic can be distributed across CPU cores,
increasing network throughput.
2
FEATURES
GENERAL
SFP+ Connectivity
Load balancing on multiple CPUs
Support for most network operating systems
RoHS-compliant
Time Sync (IEEE 1588*, 802.1as)
DESCRIPTION
• Supports SFP+ Direct Attach Copper Twinaxial or 10GBASE-SR physical media.
• Increases
performance on multi-processor systems by efficiently balancing network loads across CPU core when
used with Receive-Side Scaling (RSS) from Microsoft* or scalable I/O on Linux*.
•
Enables broad deployment for different applications.
• Complies with the European Union directive 2011/65/EU to reduce the use of hazardous materials.
• Enables networked Ethernet equipment to synchronize internal clocks according to a network master clock;
endpoint can then acquire an accurate estimate of the master time by compensating for link latency.
I/O FEATURES FOR MULTI-CORE PROCESSOR SERVERS
Intel® Ethernet Flow Director
(Intel® Ethernet FD)
MSI-X support
•
An advanced traffic steering capability increases the number of transactions per second and reduces latency for
cloud applications like Memcached.
• Minimizes the overhead of interrupts.
• Load-balancing of interrupt handling between multiple cores/CPUs.
Multiple Queues: 1,536 Tx and Rx queues
per device
•
Network packet handling without waiting for buffer overflow providing efficient packet prioritization.
• Actual number of queues will vary depending upon software implementation.
Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4,
• Lower processor usage.
IPv6) capabilities
• Checksum and segmentation capability extended to new standard packet type.
VIRTUALIZATION FEATURES
Next-Generation VMDq
• Up to 256 maximum VMDq VMs supported.
•
Offloads the data-sorting based on MAC addresses and VLAN tags, functionality from the Hypervisor to the network
silicon, improving data throughput and CPU usage.
PCI-SIG SR-IOV Implementation
(128 per device)
•
Provides an implementation of the PCI-SIG standard for I/O Virtualization. The physical configuration of each port is
divided into multiple virtual ports. Each virtual port is assigned to an individual VM directly by bypassing the virtual
switch in the Hypervisor, resulting in near-native performance.
• Integrated with Intel® VT for Directed I/O (Intel® VT-d) to provide data protection between VMs by assigning separate
physical addresses in the memory to each VM.
•
64/port for dual port.
Virtual Machine Load Balancing (VLMB)
Advanced Packet Filtering
•
VMLB provides traffic load balancing (Tx and Rx) across VMs bound to the team interface, as well as fault tolerance
in the event of switch, port, cable, or adapter failure.
• 1536 exact matched packets (unicast or multicast).
• 512 hash entries each for unicast and multicast.
• Lower processor usage.
• Promiscuous (unicast and multicast) transfer mode support.
•
Optional filtering of invalid frames.
VLAN support with VLAN tag insertion, stripping and
packet filtering for up to 4096 VLAN tags
VXLAN, NVGRE, GENEVE, VXLAN-GPE+NSH, MPLS
• Ability to create multiple VLAN segments.
• Preserves application performance in network virtualized environments.
MANAGEABILITY FEATURES
Preboot eXecution Environment (PXE) Support
•
Enables system boot up via the LAN (32-bit and 64-bit).
• Flash interface for PXE image.
Unified Extensible Firmware Interface (UEFI)
Simple Network Management Protocol (SNMP) and
Remote Network Monitoring (RMON) Statistic Counters
iSCSI Boot
• Enables new technologies during the pre-OS boot process and addresses legacy BIOS limitations on hardware.
• Easy system monitoring with industry-standard consoles.
• Enables system boot up via iSCSI.
• Provides additional network management capability.
Watchdog Timer
•
Gives an indication to the manageability firmware or external devices that the controller or the software device
driver is not functioning.
SPECIFICATIONS
GENERAL
Connections
Network Standard Physical Layer Interfaces
Dual SFP+ cages supporting Direct Attach Copper (DAC) Twinaxial cable and optical transceivers
10GBASE-SR and -LR optical transceivers
10GbE SFP+ DAC
3
TECHNICAL FEATURES
Operating Temperature
Air Flow for Type 1
0 °C to 65 °C (32 °F to 149 °F)
100 LFM with 55 °C or 350 LFM with 65 °C
required for CR (DAC)
150 LFM with 40 °C or 400 LFM with 50 °C
required with standard SR optics
250 LFM with 55 °C or 450 LFM with 65 °C
required with extended temp SR optics
150 LFM with 55 °C required for CR (DAC)
150 LFM with 55 °C or 500 LFM with 65 °C
required with extended temp SR optics
-40 °C to 70 °C (-40 °F to 158 °F )
Maximum: 90% non-condensing
relative humidity at 35 °C
LINK (solid) and ACTIVITY (blinking)
LINK SPEED (green = 10Gbps; yellow = 1Gbps)
PHYSICAL DIMENSIONS
Standard OCP v2.0 form factor, Type 1 and Type 2
PRODUCT ORDER CODES
Configuration
Dual port
Dual port
Product Code
X710DA2OCP1
X710DA2OCP
OCP Type
1
2
Air Flow for Type 2
Storage Temperature
Storage Humidity
LED Indicators
SUPPORTED OPERATING SYSTEMS
For a complete list of supported network operating systems for
Intel® Ethernet 700 Series Adapters visit:
intel.com/support/EthernetOS
INTEL® ETHERNET ACCESSORIES
ADAPTER FEATURES
Data Rate Supported
Per Port
Bus Type
Bus Width
Interrupt Levels
Hardware Certifications
Controller
• Optical: 1/10GbE
• Direct Attach: 10GbE
PCI Express v3.0 (8 GT/s)
PCI Express x8
INTA, MSI, MSI-X
FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
Intel® Ethernet Controller XL710-BM2
Intel® Ethernet Optics and Cables are proven, reliable solutions for
high-density Ethernet connections. Combine these accessories with
Intel® Ethernet 700 Series and 500 Series Network Adapters for
dependable interoperability and consistent performance across the
network. Learn more at
intel.com/ethernet
POWER CONSUMPTION
SKU
Dual-port 10GBASE-CR
Dual-port 10GBASE-SR
Typical Power
3.2 W
4.6 W
Maximum Power
4.3 W
6.0 W
Intel limited lifetime hardware warranty, 90-day money-back
guarantee (U.S. and Canada) and worldwide support.
Warranty
Product Information
For information about Intel® Ethernet Products, visit:
intel.com/ethernet
Customer Support
For customer support options in North America visit:
intel.com/content/www/us/en/support/contact-support.html
No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document. Intel disclaims all express and implied warranties, including without
limitation, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or
usage in trade.
This document contains information on products, services and/or processes in development. All information provided here is subject to change without notice. Contact your Intel
representative to obtain the latest forecast, schedule, specifications and roadmaps.
The products and services described may contain defects or errors which may cause deviations from published specifications.
Intel, the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
*Other names and brands maybe claimed as the property of others.
© Intel Corporation. All Rights Reserved.
Printed in USA
0318/ED/123E
Please Recycle
336188-005US
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Intel
:
X710DA2OCP
京公网安备 11010802033920号
EEWORLD
