EM278514

Description
Fixed terminal block 14P EM2785 Series
CategoryThe connector    connection terminal    Fixed terminal
File Size865KB,1 Pages
ManufacturerBussmann (Eaton)
Environmental Compliance
Download Datasheet Parametric View All

EM278514 Online Shopping

Suppliers Part Number Price MOQ In stock
EM278514 - - View Buy Now

EM278514 Overview

Fixed terminal block 14P EM2785 Series

EM278514 Parametric

Parameter NameAttribute value
MakerBussmann (Eaton)
Product CategoryFixed terminal block
Shipping restrictionsMouser does not currently sell this product.
Number of locations14 Position
Pitch5 mm
connection methodSpring Cage
Current rating8 A
Voltage rating300 V
Wire gauge range22 AWG to 14 AWG
seriesEM2785
EncapsulationBulk
Contact platingTin
productFixed Terminal Blocks
Termination typeThrough Hole
Contact materialBrass
Flammability ratingUL 94 V-0
Factory packaging quantity100

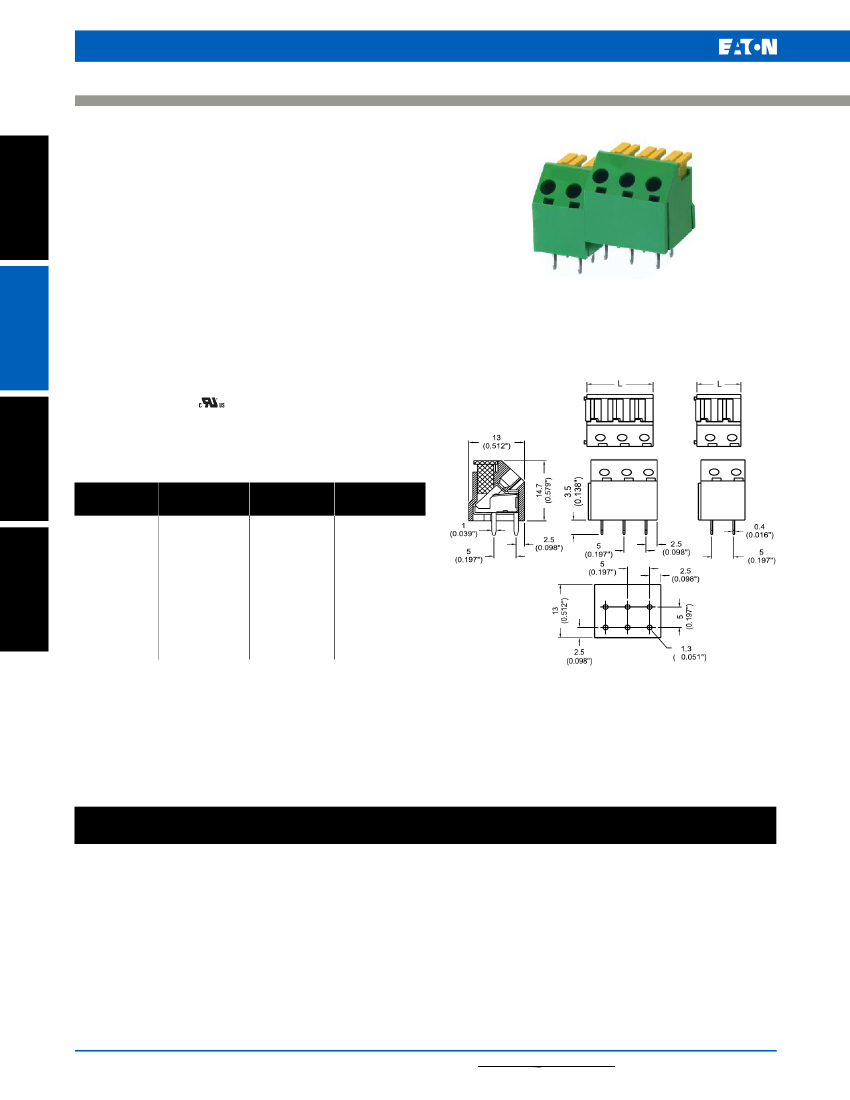

EuroMag Series PCB Mount Screwless Terminal Blocks
Terminal Blocks:
Single Row
EM2785 Series
EuroMag Terminal Blocks
45° Entry; Screwless; Modular; 5.00 Centers
SPECIFICATIONS
Rating:
8A,
300V
Center Spacing:
0.197” (5.00mm)
Wire Range:
#14-22 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Tin-Plated Brass
Spring Material:
Stainless Steel
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters:
0.051" (1.30mm)
Construction:
Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
EuroMag Series
EM278505
Screwless
Dimensions - mm (in)
Edge Connectors,
One-Sided Boards
Poles
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
Poles
14
15
16
17
18
19
20
21
22
23
24
L (mm)
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
Compliance
References
PCB Hole Layout
ø
ø
To convert to inches, divide by 25.4
Part Numbering System
EM2 78 5
nnnnnn nn
Series
02
to
24
# of Poles
For additional product information, visit
www.eaton.com/connectors
