Amphenol LTW
Innovation in Water proof Solution
CATALOGUE
http://www.amphenolltw.com
NMEA 2000 Connector
Unmated or Mated
IP 67 . 68
9
NMEA 2000 Connector
Range Overview
ALTW
ALTW

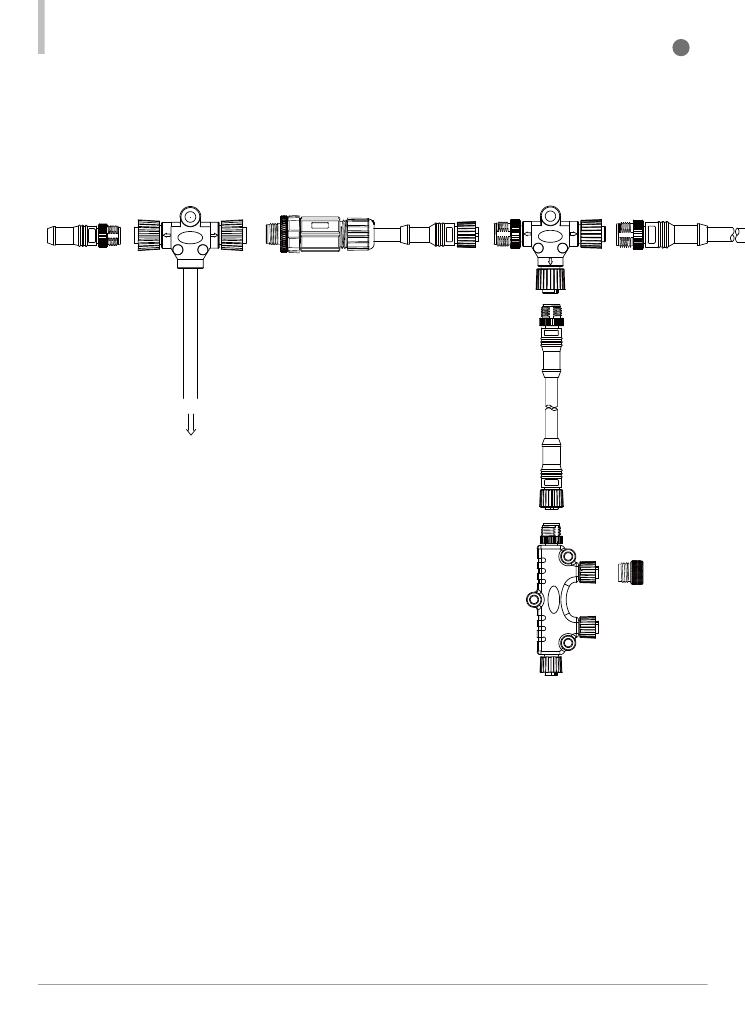

Terminator
○
○
P14-8 (Micro)
P14-16(Mini)
T-Cable
P14-8 (Micro)
○
P14-15 (Mini)
○
Field Installable
P14-7 (Micro)
○
P14-15 (Mini)
○
Drop Line
P14-6 (Micro)
○
P14-14 (Mini)
○
T-Adaptor
○
○
P14-9 (Micro)
P14-16 (Mini)
ALTW
To Power Source
ALTW
Multi-port
(Tee)
○
ALTW
Waterproof Cap
○
○
P14-11 (Micro)
P14-13 (Micro)
P14-18 (Mini)
About NMEA 2000
Amphenol LTW Technology expands its coverage
targeting the marine industry that features the
NMEA 2000 standard.
The NMEA 2000 standard contains the require-
ments of a serial data communications network to
inter-connect marine electronic equipment on
vessels. It is multi-master and self-configuring, and
there is no central network controller. Equipment
designed to this standard will have the ability to
share data, including commands and status with
other compatible equipment over a status with
other compatible equipment over a single channel.
14-1
Amphenol LTW Technology Co., Ltd.
ALTW
ALTW
ALTW
ALTW
NMEA 2000 Connector I Range Overview
ALTW
ALTW

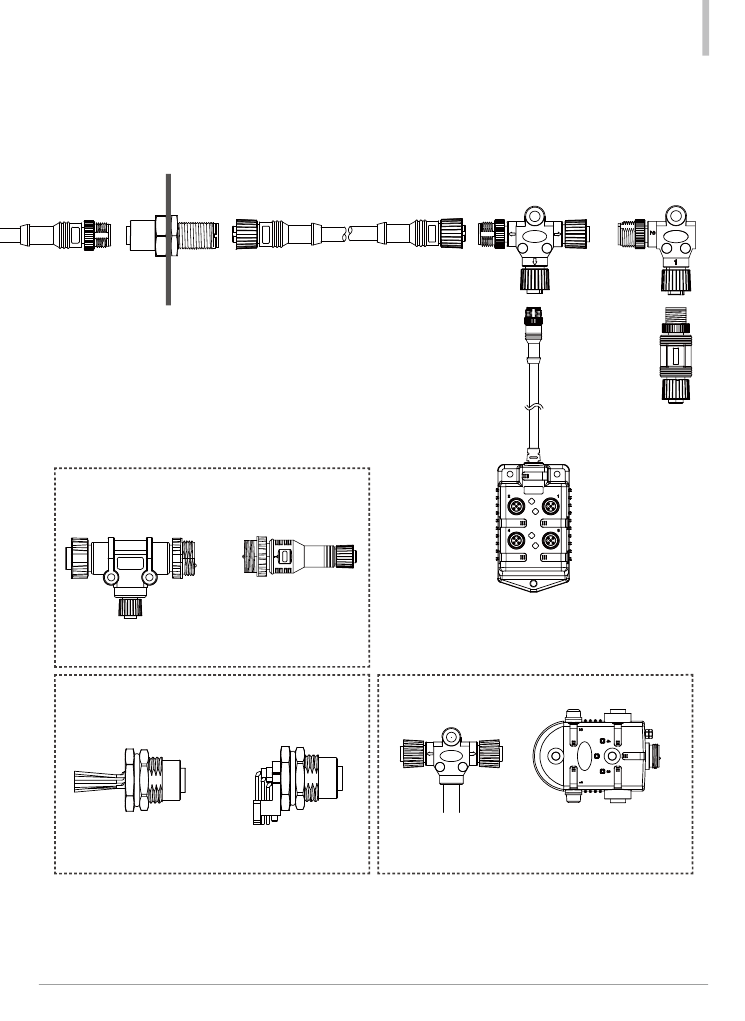

> Items (Micro to Mini)
ALTW
T-Adaptor
○
P14-18
I-Adaptor
○
P14-19
> Items for devices
ALTW
* Design and specification are subject to change without notice.
Innovation in Waterproof Solution
14-2
ALTW
ALTW
ALTW
Bulkhead
P14-5 (Micro)
○
P14-13 (Mini)
○
Double-ended Cordset
P14-7 (Micro)
○
P14-14 (Mini)
○
Elbow
○
○
P14-10 (Micro)
P14-17 (Mini)
Terminator
(In-Line)
○
ALTW
P14-9 (Micro)
ALTW
Multi-port
(Box)
○
P14-12 (Micro)
> Items for power source
ALTW
ALTW
Bulkhead
○
P14-5 (Micro)
Bulkhead (Right Angle)
○
P14-6 (Micro)
<Micro>
T-cable
○
P14-8
<Mini>
Power Tap Tee
○
P14-17
NMEA 2000 Connector I Specification
Unmated or Mated
IP 67 . 68
9
Specification
Identifications
Micro(AWG: 22 AWG, 24 AWG )
Mini(AWG: 18 AWG, 15 AWG )
Micro:
Bulkhead (With Wire / Double-ended / Right Angle)
Cable (Drop Line / Double-ended Cordset / Field
Installable / T-Cable)
Network Terminator (Single-ended / In-line)
Adaptor (T-Adaptor / Elbow)
Multi-port
Waterproof Cap
Mini:
Bulkhead (Double-ended)
Cable (Drop Line / Double-ended Cordset / Field
Installable / T-Cable)
Network Terminator (Single-ended)
Adaptor (T-Adaptor / Elbow)
Power Tap Tee
Waterproof Cap
Mini to Micro:
Adaptor (T-Adaptor / I-Adaptor)
Current Rating / Data
Material
Waterproof Rating
4A, 8A
Contacts: Copper Alloy, Gold Plated
Contacts Holder: PA
IP67~68
Receptacle: -40°C~85°C
Overmolded with Cable: -20°C~80°C
Field Installable: Nylon+GF: -40°C~105°C
PU: -20°C~85°C
* Higer working temperature upon request.
Description
Temperature Range
14-3
Amphenol LTW Technology Co., Ltd.
NMEA 2000 Connector I Specification
Contact Configuration
Micro-C Mini-C
4A
FF or MM
4A
8A
Number of Contacts:
Ex.2 contacts
(02)
Connector (Housing) Gender:
Male(M) or Female(F)
8A
FF or MM
4Pin
5Pin
Contact Gender:
Male(M) or Female(F)
More to Choose:
●
Solder
(S)
- Solder Cup
●
Screw
In
(B)

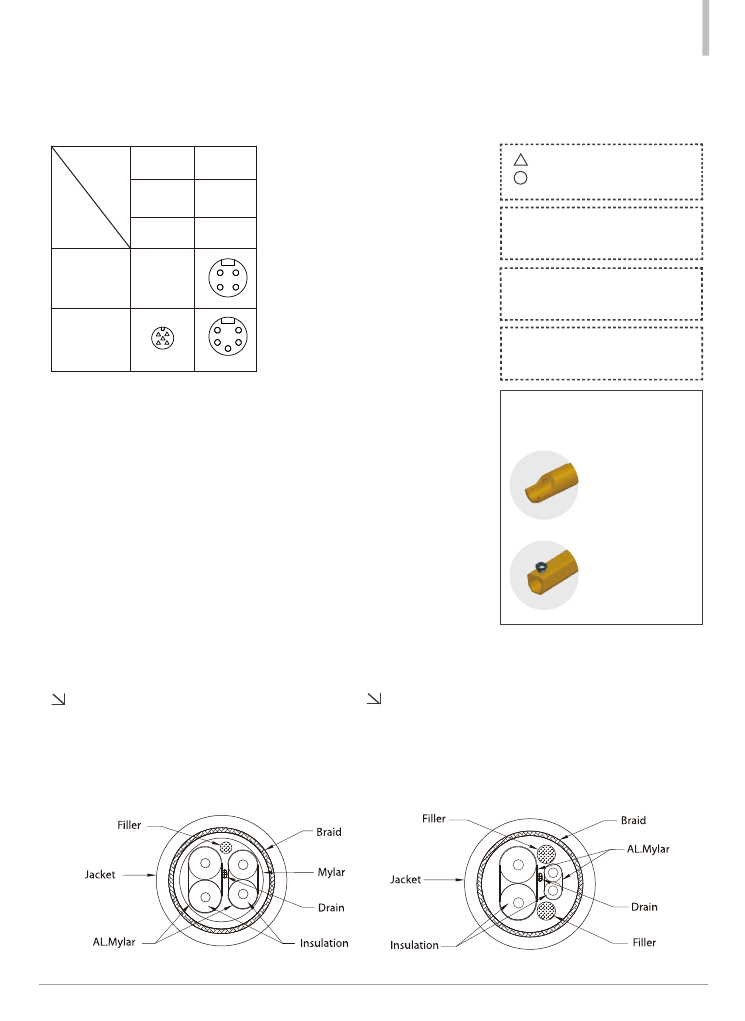

Cabling Information
NMEA Approved
(A):
(24#*1P+AL) + (22#*1P+AL) + Drain + Mylar + Braid
Conforming
(A):
(24#*1P+AL) + (22#*1P+AL) + Drain + AL + Braid
(B):
(22#*1P+AL) + (18#*1P+AL) + Drain + AL + Braid
Micro
NMEA Approved
(C): (18#*1P+AL) + (15#*1P+AL) + Drain + Braid
Conforming
(C): (18#*1P+AL) + (16#*1P+AL) + Drain + AL+Braid
Mini
* Design and specification are subject to change without notice.
Innovation in Waterproof Solution
14-4
