USER GUIDE TB-9079
WS Aware Monitor
Installation, Operation and Maintenance
Made in the
United States of America
The WS Aware Monitor is designed with digital signal
processing technology for true continuous monitoring
(versus pulsed or intermittent) of wrist strap functionality
(path-to-ground and presence of 1 megohm resistor)
and operator safety according to accepted industry
standards without capacitance variations from personnel
or environment. Digital signal processing technology
uses dual-wire wrist straps to apply an ultra-low test
voltage of 0.05V onto the operator for the handling of
sensitive components.
The WS Aware Monitor features operator body voltage
detection. It will alarm if the operator generates or
comes in contact with voltage that would be dangerous
to an ESD susceptible item.

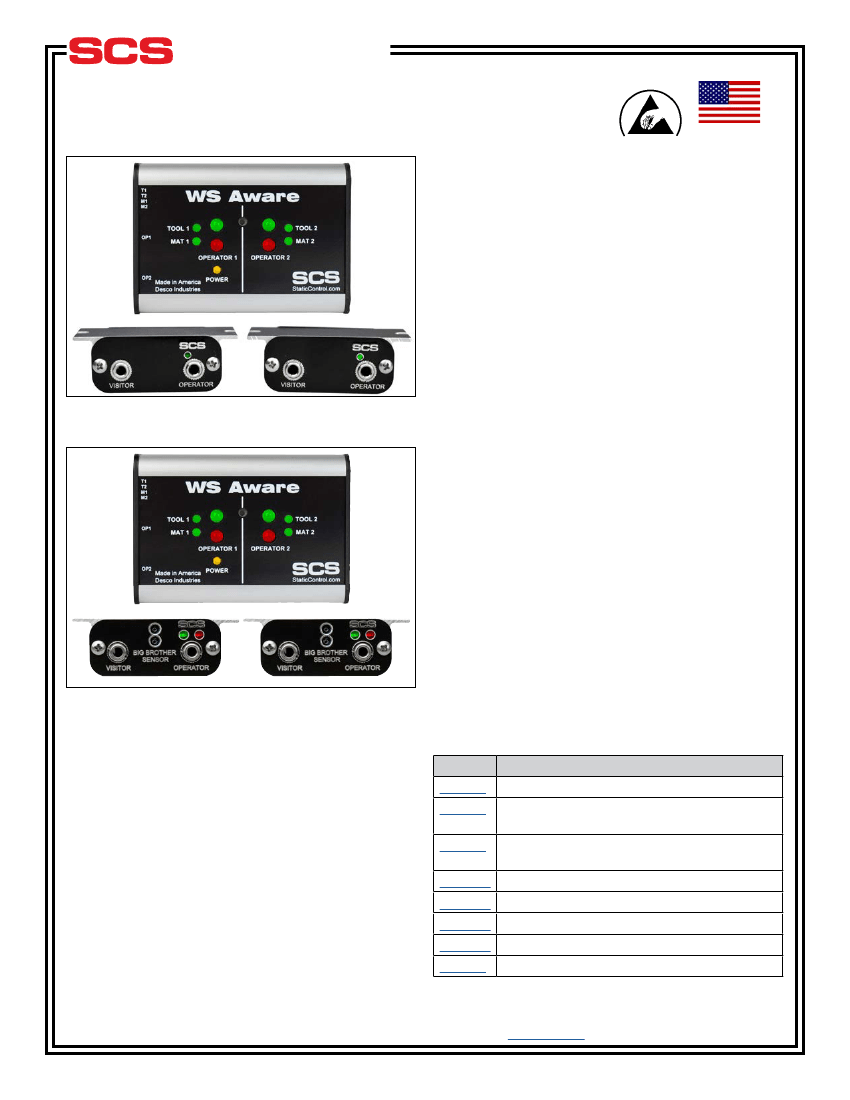

Figure 1. SCS 770061 WS Aware Monitor with Standard
Remotes
The WS Aware Monitor continuously monitors two metal
tools for electromagnetic interference (EMI). EMI can
cause equipment lockups and malfunction. The WS
Aware Monitor will alarm if EMI is detected. Each WS
Aware Monitor is calibrated with accepted procedures
and standards traceable to the National Institute of
Standards and Technology (NIST) and includes a
certificate of calibration.
ANSI/ESD S20.20 section 7.3 states “Compliance
verification records shall be established and maintained
to provide evidence of conformity to the technical
requirements.” Per ANSI/ESD S1.1 Annex A.3 Daily
(wrist strap system) testing may be omitted if constant
monitoring used.” Per ESD Handbook ESD TR 20.20
section 5.3.2.4.4 “Typical Test programs recommend
that wrist straps that are used daily should be tested
daily. However, if the products that are being produced
are of such value that knowledge of a continuous,
reliable ground is needed, and then continuous
monitoring should be considered or even required.”
The WS Aware Monitor and its accessories are
available as the following item numbers:
Item
770061
770062
770064
Description
WS Aware Monitor, with Standard Remotes
WS Aware Monitor, with Big Brother
Remotes
Power Adapter, 100-240VAC Input, 7.5VDC
1.5A Output, All Plugs
Figure 2. SCS 770062 WS Aware Monitor with Big
Brother Remotes
Description
The SCS WS Aware Monitor is a dual workstation
continuous monitor for operators, ESD worksurfaces
and metal tools. It continuously monitors the
path-to-ground integrity and body voltage of two
operators, as well as the path-to-ground integrity for two
conductive or dissipative worksurfaces and two metal
tools. It also continuously monitors for electromagnetic
interference (EMI) on two metal tools which may cause
electrical overstress (EOS) damage. The WS Aware
Monitor eliminates the need for periodic testing and
record keeping of wrist straps.
CTE701
Workstation Monitor Checker
CTA242
Operator Remote, Standard
CTA243
Operator Remote, Big Brother
CTA245
Replacement Wrist Strap Jack PCB
770055
SMP Software
SCS
- 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:
StaticControl.com
TB-9079
Page 1 of 18 July 2018
© 2018 DESCO INDUSTRIES INC
Employee Owned
Static Management Program
The SCS 770061 and 770062 WS Aware Monitors
are compatible with SCS Static Management Program
(SMP). SMP continuously monitors your ESD process
control system throughout all stages of manufacturing.
SMP captures data from SCS workstation, equipment
and ESD event continuous monitors and provides a
real-time picture of critical manufacturing processes. All
activity is stored into a database for on-going quality
control purposes. SMP allows you to pinpoint areas
of concern and prevent ESD events. Quantifiable
data allows you to see trends, become more proactive
and prove the efficiency of your ESD process control
system.
SMP is sold separately.
Click here
to learn more.
Features and Components
WS AWARE MONITOR
A
B
C
D
Packaging
1
2
2
2
1
2
1
1
1
1
WS Aware Monitor
Operator Remotes
Mini-DIN Operator Remote Cables
Mat Monitor Cords (White)
Monitor Ground Cord (Green and Yellow)
Push and Clinch Snaps
Ring Terminal
Screw, Pan-Head, 6-32 x 1/4"
Star Washer
Power Adapter, 7.5VDC, with interchangeable plugs
(North America, UK/Asia, Europe, China)
1 Certificate of Calibration
E
F
G
H
I
J
K
L
M
N
O
P
LEFT SIDE
Q
R
S
T
U
V
RIGHT SIDE

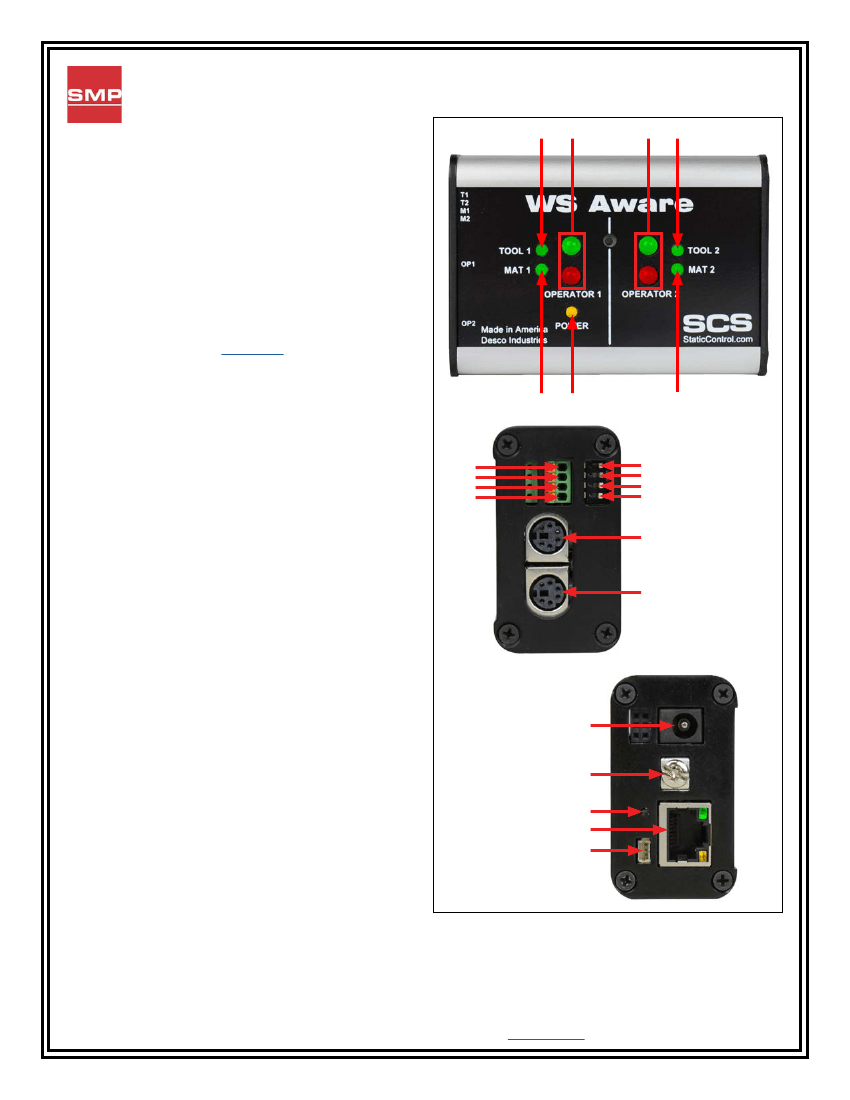

Figure 3. WS Aware Monitor features and components
SCS
- 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:
StaticControl.com
TB-9079
Page 2 of 18
© 2018 DESCO INDUSTRIES INC
Employee Owned
A. Tool 1 LED:
Illuminates green when tool 1 is
properly grounded and free of electromagnetic
interference (EMI). Illuminates red and audible alarm
sounds when tool 1 is not properly grounded or EMI is
detected.
B. Operator 1 LEDs:
Illuminates green when operator
1 is properly grounded and his/her body voltage level is
below the preset alarm level. Illuminates solid red and
audible alarm sounds when operator 1 is not properly
grounded. Blinks red and audible alarm sounds when
the body voltage on operator 1 is above the preset
alarm level.
C. Operator 2 LEDs:
Illuminates green when operator
2 is properly grounded and his/her body voltage level is
below the preset alarm level. Illuminates solid red and
audible alarm sounds when operator 2 is not properly
grounded. Blinks red and audible alarm sounds when
the body voltage on operator 2 is above the preset
alarm level.
D. Tool 2 LED:
Illuminates green when tool 2 is
properly grounded and free of electromagnetic
interference (EMI). Illuminates red and audible alarm
sounds when tool 2 is not properly grounded or EMI is
detected.
E. Mat 1 LED:
Illuminates green when mat 1 is properly
grounded. Illuminates red and audible alarm sounds
when mat 1 is not properly grounded.
F. Power LED:
Illuminates solid yellow when the
monitor is powered and not connected to a network.
Blinks yellow when the monitor is powered, connected
to a network and in communication with SMP Server.
Remains off when the monitor is connected to a network
but communication to SMP Server cannot be obtained.
G. Mat 2 LED:
Illuminates green when mat 2 is properly
grounded. Illuminates red and audible alarm sounds
when mat 2 is not properly grounded.
H. Monitored Tool 1 Terminal:
Monitors a metal tool
for proper conductive resistance and electromagnetic
interference (EMI). Use 25-28 AWG wire to connect the
metal tool to this terminal.
I. Monitored Tool 2 Terminal:
Monitors a metal tool
for proper conductive resistance and electromagnetic
interference (EMI). Use 25-28 AWG wire to connect the
metal tool to this terminal.
J. Monitored Mat 1 Terminal:
Monitors a worksurface
mat for proper dissipative resistance. Use one of
the included white mat monitor cords to connect the
worksurface mat to this terminal.
K. Monitored Mat 2 Terminal:
Monitors a worksurface
mat for proper dissipative resistance. Use one of
the included white mat monitor cords to connect the
worksurface mat to this terminal.
L. Tool 1 Monitor Switch:
Toggle the switch down to
enable the Tool 1 monitor circuit. Toggle the switch up
to disable the Tool 1 monitor circuit.
M. Tool 2 Monitor Switch:
Toggle the switch down to
enable the Tool 2 monitor circuit. Toggle the switch up
to disable the Tool 2 monitor circuit.
N. Mat 1 Monitor Switch:
Toggle the switch down to
enable the Mat 1 monitor circuit. Toggle the switch up
to disable the Mat 1 monitor circuit.
O. Mat 2 Monitor Switch:
Toggle the switch down to
enable the Mat 2 monitor circuit. Toggle the switch up
to disable the Mat 2 monitor circuit.
P. Operator 1 Remote Connector:
Use one of the
included mini-DIN operator remote cables to connect a
operator remote to this connector.
Q. Operator 2 Remote Connector:
Use one of the
included mini-DIN operator remote cables to connect a
operator remote to this connector.
R. Power Jack:
Connect the included 7.5VDC power
adapter here.
S. Ground Terminal:
Common ground point for the
monitor.
T. Audible Alarm Switch:
Enables and disables
the monitor's audible alarm. 5 different audible
alarm settings are available and may be toggled by
pressing this switch multiple times. The monitor can
be configured to alarm should either of its Operator
Remotes disconnect. See the table below for
descriptions of each setting.
Setting
1
2
3
4
5
Buzzer
Enabled
Disabled
Enabled
Enabled
Enabled
Operator 1
Remote Detection
Enabled
Disabled
Disabled
Enabled
Disabled
Operator 2
Remote Detection
Enabled
Disabled
Disabled
Disabled
Enabled
U. Ethernet Jack:
Provides network communication
between the WS Aware Monitor and
Static Management
Program (SMP).
V. Relay Terminal:
Integrates with electronic tools,
lights, buzzers, etc. Use the Molex #15134-0302
PicoBlade™ Cable Assembly to pair with this terminal's
male connector.
SCS
- 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:
StaticControl.com
TB-9079
Page 3 of 18
© 2018 DESCO INDUSTRIES INC
Employee Owned

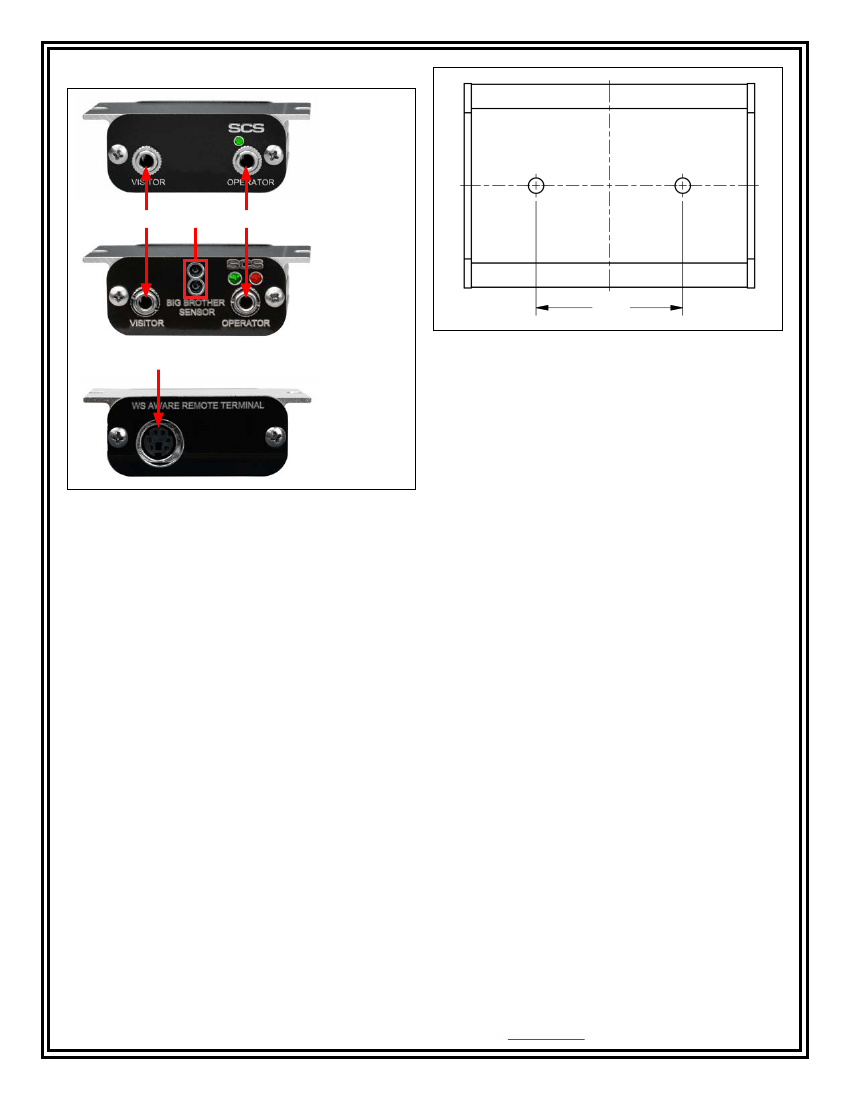

OPERATOR REMOTES
STANDARD
FRONT
A
B
C
BIG BROTHER
FRONT
1.60
Figure 5. Mounting hole locations on the back of the WS
Aware Monitor (all dimensions are in inches)
3. Determine the mounting locations of the two
operator remotes. Their jacks should be accessible
to the operators. Locate them within reach of the
included mini-DIN operator remote cables. Use the
operator remotes' mounting tabs to secure them
underneath table tops or equipment.
4. Connect the included mini-DIN operator remote
cables to the operator remote connectors located on
the left-side of the WS Aware Monitor.
5. Route the mini-DIN operator remote cables from the
left-side of the WS Aware Monitor to their respective
operator remotes. Connect the cables to the back
of the operator remotes.
6. Insert the tinned terminations of the mat monitor
cords into the mat 1 and mat 2 terminals located
on the left-side of the WS Aware Monitor. Use a
small screwdriver or probe to push down the orange
spring contacts and open their respective terminal
gates. Insert the tinned wire, and let go of the
spring contact to latch onto the wire. Ensure that
the mat monitor switches are enabled if using these
monitored mat circuits.
7. Route the mat monitor cords from the left-side of the
WS Aware Monitor to their respective worksurface
mats. Use the included push and clinch snaps to
secure the cords to the grounded mats.
8. Insert stripped terminations of tool monitor wires
(not included) into the tool 1 and tool 2 terminals
located on the left-side of the WS Aware Monitor.
25-28 AWG wire may be used. Use a small
screwdriver or probe to push down the orange
spring contacts and open their respective terminal
gates. Insert the tinned wire, and let go of the
spring contact to latch onto the wire. Ensure that
the tool monitor switches are enabled if using these
monitored tool circuits.
D
BACK
Figure 4. Operator Remote features and components
A. Visitor Jack:
Insert the dual-wire wrist cord of
a visitor here to connect him/her to ground. This
connection is not monitored, and it can only be used
when the operator jack is occupied. The WS Aware
Monitor will alarm if the visitor jack is used without an
occupied operator jack.
B. Big Brother Sensors:
Detects the presence of an
operator up to 12 inches away and alarms if a wrist
strap is not connected within 4 seconds to prevent
ungrounded handling of ESD susceptible items.
C. Monitored Operator Jack:
Insert the dual-wire wrist
cord of an operator here to monitor his/her body voltage
and connection to ground.
D. WS Aware Monitor Connector:
Use one of the
included mini-DIN operator remote cables to connect the
WS Aware Monitor to this connector.
Installation
Hardware Setup
1. Remove the WS Aware Monitor and its operator
remotes from the carton, and inspect for damage.
2. Determine the mounting location of the WS Aware
Monitor. Its display should be visible to the
operator(s). Use the two 4-40 threaded holes at the
back of its enclosure if desired.
SCS
- 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:
StaticControl.com
TB-9079
Page 4 of 18
© 2018 DESCO INDUSTRIES INC
Employee Owned
9. Route the tool monitor wires from the left-side of
the WS Aware Monitor to their respective grounded
metal tools, and secure them.
10. Secure one end of the included ground cord to the
ground terminal located on the right-side of the WS
Aware Monitor. Attach the other end of the cord to
a ground point. The face plate screw of a grounded
AC wall outlet may provide a convenient connection
point.
11. Connect an Ethernet cable to the Ethernet jack
located on the right-side of the WS Aware Monitor.
Verify that the cable is properly connected to a
network.
12. Connect the power adapter to the power jack
located on the right-side of the WS Aware Monitor.
Route the wire from the supply to a nearby AC
outlet and plug it into the outlet. Make sure the
voltage and frequency match those listed on the
power supply. The WS Aware Monitor is now
powered.
NOTE: Worksurface must have a conductive layer such
as Dual Layer Rubber or Dissipative 3-Layer Vinyl with
conductive buried layers. SCS workstation monitors are
not recommended for use with homogeneous matting.
WS Aware Monitor
Left-Side
Tool Monitor Wire
(not included)
WS Aware Monitor
Left-Side
Operator Remote
Cable
Operator Remote
Grounded Metal Tool

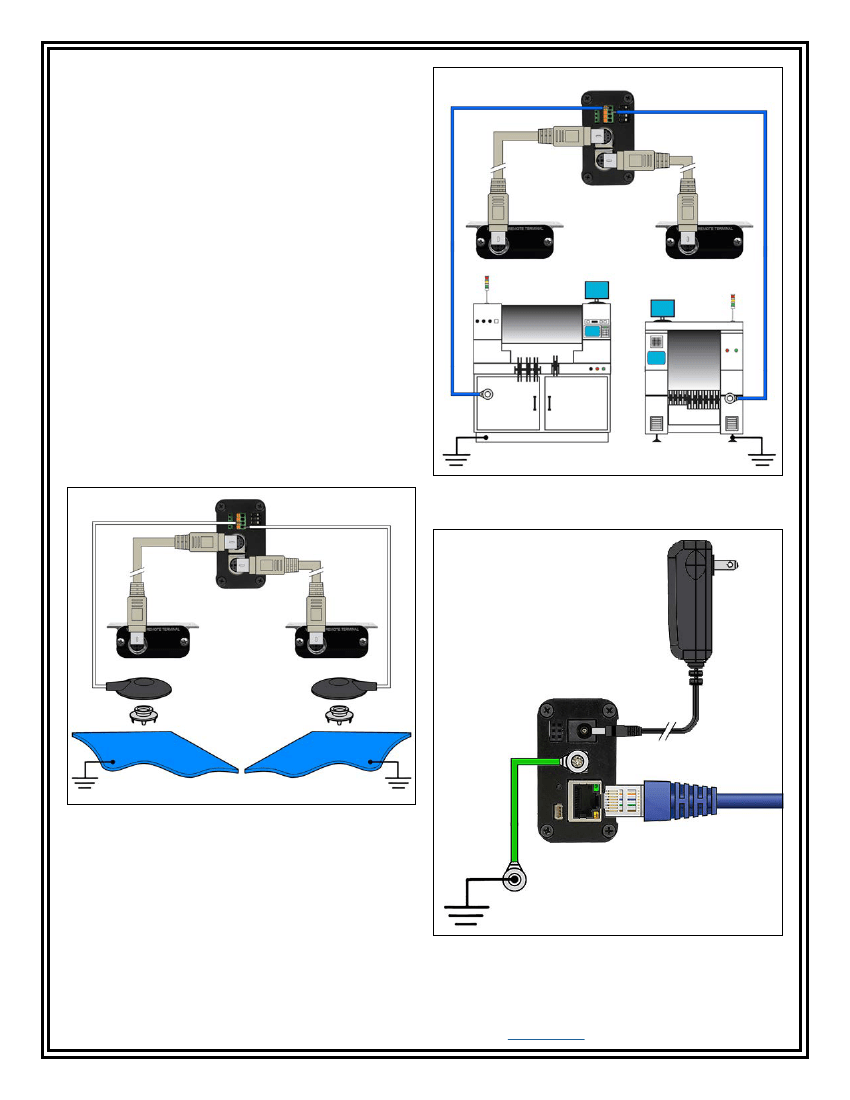

Figure 7. Wiring the WS Aware Monitor to two metal
tools
Operator Remote
Cable
Operator Remote
Power Adapter
Mat Monitor Cord
Push & Clinch Snap
WS Aware Monitor
Right-Side
Grounded Worksurface Mat
Figure 6. Wiring the WS Aware Monitor to two
workstations
Monitor Ground
Cord
Ethernet Network
Cable
Figure 8. Connecting the WS Aware Monitor to ground,
Ethernet and power.
SCS
- 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:
StaticControl.com
TB-9079
Page 5 of 18
© 2018 DESCO INDUSTRIES INC
Employee Owned
京公网安备 11010802033920号
EEWORLD
