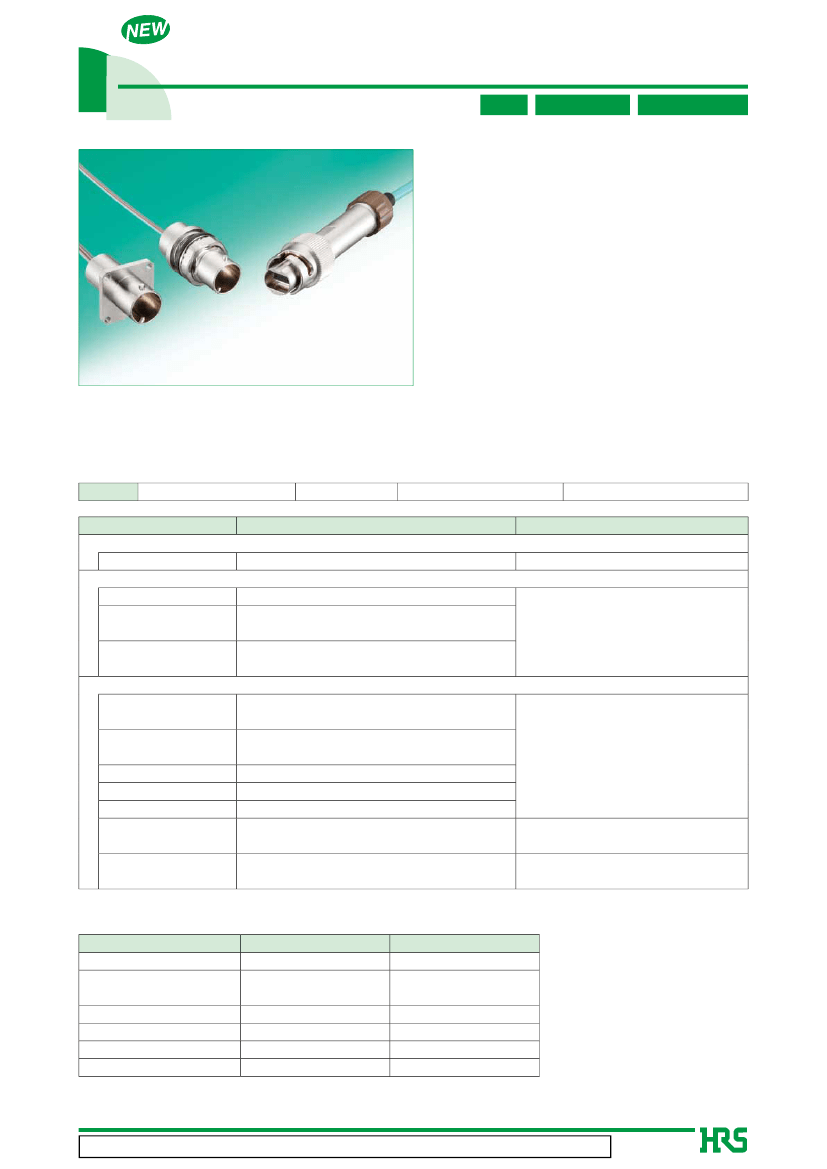

Water-Proof Optical Connector with MT Ferrule
MF11BMT Series
IP67
12, 24 pos.
Bayonet lock
■Features
1. Water-proof multi-pos. connector
MT Ferrule into waterproof metal shell.
2. Bayonet lock
Easy and secure installation and removal with
Bayonet lock design.
3. Harsh environments
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
IP67 water-proof compliant.
4. MPO cleaner can be used
Plug and receptacle can be cleaned with MPO
cleaner.
5. 5000 mating times
Robust metal shell enables 5000 insertion/extraction.
■Usage
Broadcasting camera etc.
■Product
Specifications
Ratings
Operating temperature range
-20
℃
to +60
℃
Storage temperature range
-40
℃
to +60
℃
packaged
）
（
Specifications
0.75dB or less (GI)
Item
Testing method
Optical performance
Insertion loss
Wavelength : 850
±
30nm (LED)
Mechanical characteristic
Insertion/extraction cycles 5,000 times
Vibration resistance
Shock resistance
Environmental performance
Temperature/
humidity cycles
Temperature cycles
Heat resistance
Cold-resistance
Humidity resistance
Salt spray
Waterproof
C
C,
-10
°
to +65
°
humidity : 90% to 96%,
168 hours (12 hours/cycle
×
14 cycles)
C
C,
-40
°
to +75
°
336 hours (8 hours/cycle
×
42 cycles)
Insertion loss after test : 0.75dB or less
(per each connection),
No damage, crack or loosened.
Frequency range : 10 to 55Hz, half amplitude : 0.75mm,
acceleration : 98.1m/s
2
, bidirection 2 hours each
Acceleration : 98.1m/s
2
, duration : 6ms
、
half-sin
wave in 2 axes, 3 cycles each
Insertion loss after test : 0.75dB or less
(per each connection),
No damage, crack or loosened.
+85
°
240 hours
C,
-40
°
240 hours
C,
75
°
95% for 168 hours
C,
Concentration : 5%, 240 hours
Add 4.9KPa for 1 minute. (IP67)
No corrosion which is effect
on the perfomance.
No leak of bubbles
■Materials/
Finish
Part name
Plug shell and receptacle
Crimp washer
Crimp ring
O-ring, rubber ring, gasket
Screw ring
Spring
Guide pin
Materials
Zinc diecast
Brass
Silicon rubber
PPS
Piano wire
Stainless steel
Finish
Nickel plated
Nickel plated
---------------
---------------
Zinc plated
---------------
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2016.12
1

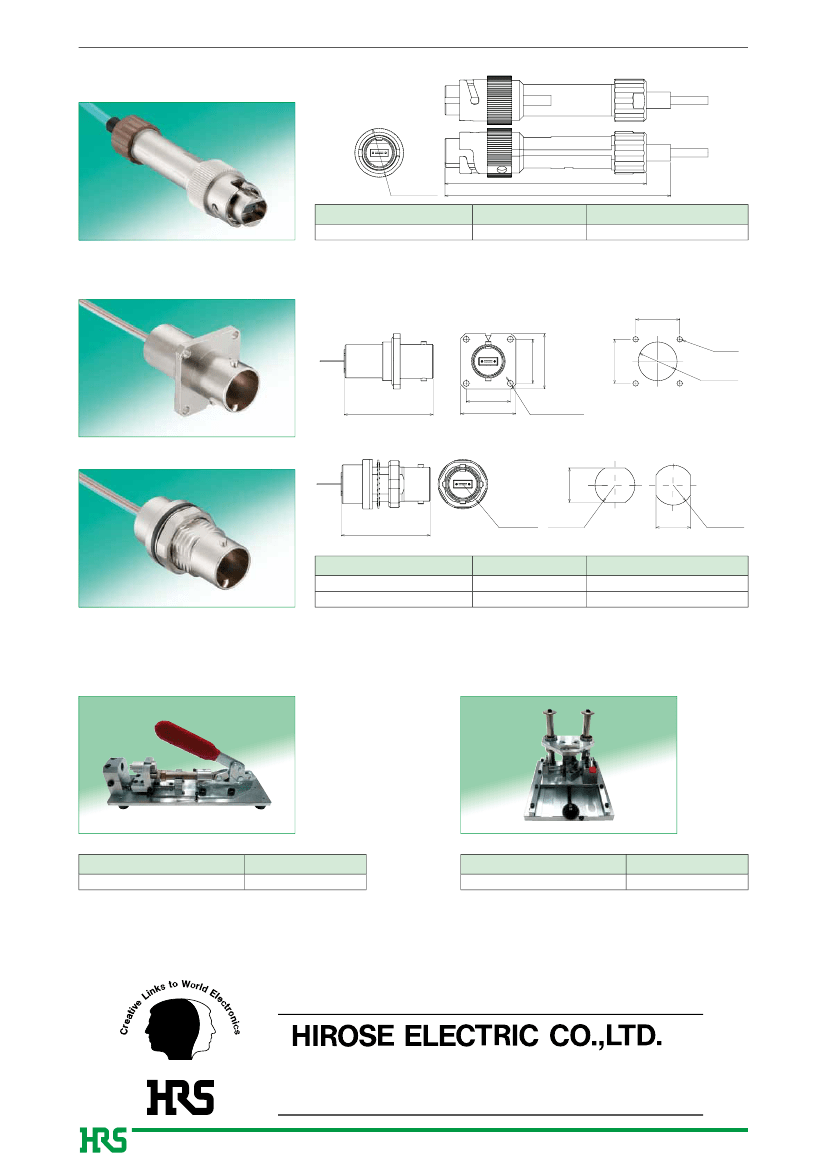

MF11BMT Series●Water-Proof Optical Connector with MT Ferrule
■Plug
Ø17.7±0.5
(73)
(82)
Part No.
MF11BMT-WP4CB01
HRS No.
709-7003-0 00
Specification
Ø
４
mm cable for 24 pos.
■Receptacle
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
●M2
screw
16±0.05
16±0.05
16±0.5
20±0.5
4×M2
Ø14.1
+0.5
0
32.3±0.5
16±0.5
20±0.5
4×Ø2.2±0.2
Recommended panel dimensions
●Bulkhead
screw type
12.5
+0.1
0
32.3±2
Ø18±0.2
Ø14.5
+0.1
0
12.5
+0.1
0
Ø14.5
+0.1
0
Recommended panel dimensions
Part No.
MF11BMT-WRFB01
MF11BMT-WRBB01
HRS No.
709-7001-0 00
709-7010-0 00
Specification
Square flange for 24 pos.
Bulk head for 24 pos.
BTooling
●Retention
plate installation tooling
For installing retention plate for the plug or receptacle.
●Crimp
tool
For crimping the plug retention ring.
Part No.
MF11BMT-W01/CV-MD
HRS No.
906-6075-0 00
Part No.
MF11BMT-WP01/CR-MP
HRS No.
906-6076-0 00
®
2-6-3,Nakagawa Chuoh,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN
TEL: +81-45-620-3526 Fax: +81-45-591-3726
http://www.hirose.com
http://www.hirose-connectors.com
2
Powered by TCPDF (www.tcpdf.org)
The characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use.
The contents of this catalog are current as of date of 12/2016. Contents are subject to change without notice for the purpose of improvements.
