3.13.026.016/0000

Description
Key lock switchLatching Gray 2keys 2x90 PCB IP54
CategoryMechanical and electronic products    switch    Key lock switch
File Size119KB,4 Pages
ManufacturerRAFI
Environmental Compliance
Download Datasheet Parametric View All

3.13.026.016/0000 Overview

Key lock switchLatching Gray 2keys 2x90 PCB IP54

3.13.026.016/0000 Parametric

Parameter NameAttribute value
MakerRAFI
Product Categorykey lock switch
Shipping restrictionsMouser does not currently sell this product.
illuminationNon-Illuminated
Lamp type-
seriesMICROMEC
Factory packaging quantity2
31.05.2018

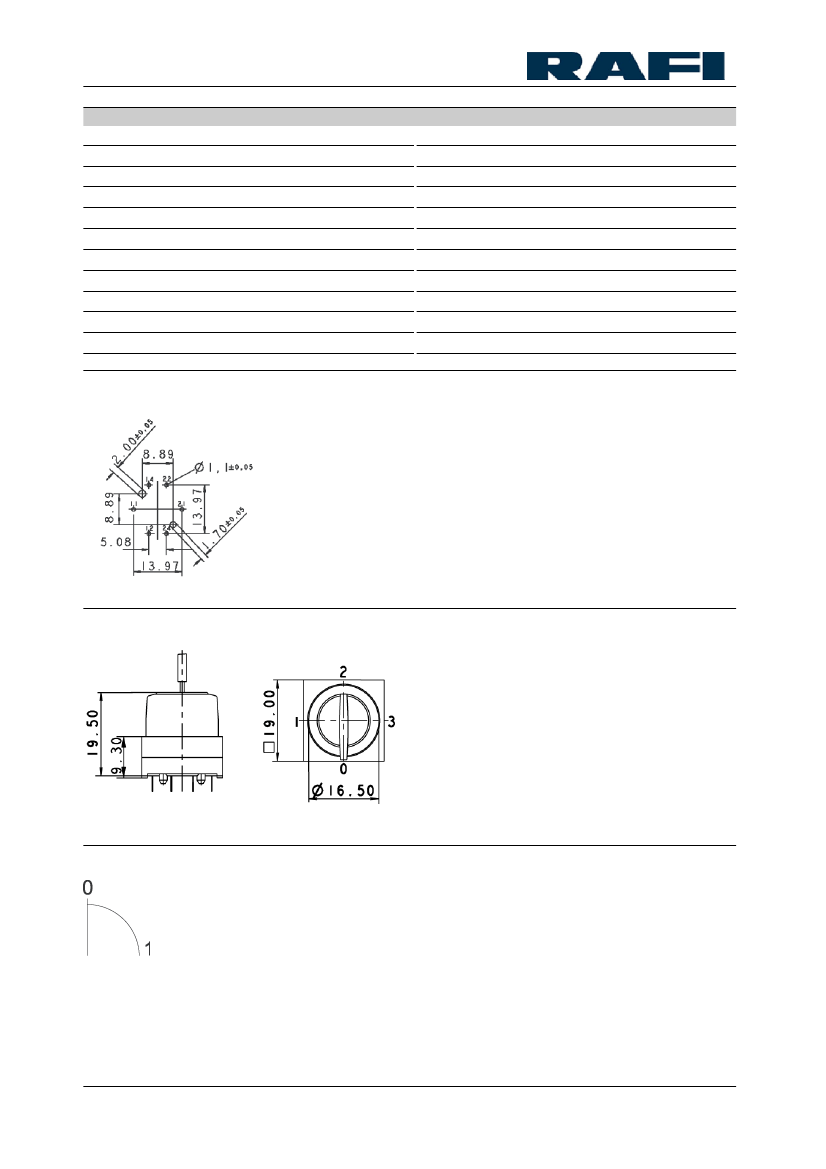

MICROMEC - Keylock switch IP54
3.13.026.016/0000
2 keys included.
Other lock variants available on request.
General information
Color
Form of collar
Dimensions
Length of collar
Width of collar
Overall height
Mechanical design
Mounting
Terminals
Contact system
Contact function
Contact materials
Illuminability
Lock
Wafers
Lock type
Number of locking positions
Main key
Key removal position
Mechanical characteristics
Switching torque
Robustness max.
Dielectric strength AC min.
Rated power max.
Electrical characteristics
Rated voltage
Rated current max.
Contact resistance when new max.
Contact resistance acc. to life max.
Insulation resistance
ESD strength max.
charcoal grey
square
19 mm
19 mm
19.5 mm
soldering
tin-plated
cross contact self cleaning
latching
Au alloy
no
Micromec
5
001
500
on request
0+1+2
0.04 ... 0.10 Nm
2 Nm
500 V
1W
2 ... 35 V
100 mA
100 mΩ
200 mΩ
10
9
Ω
8 kV
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
