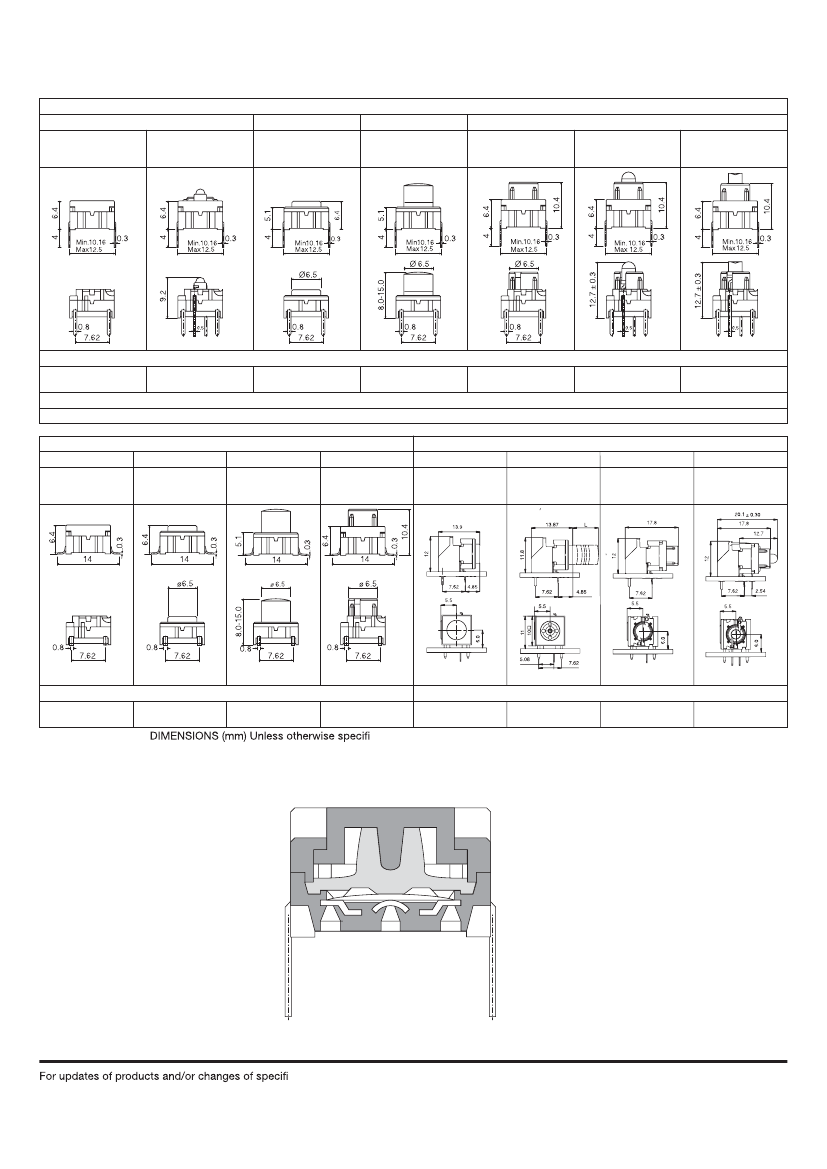

multimec
3A
For
1A/1B/1M/1ZA/1ZB
w/LED for
1C/1H
®
basic switch modules
Through-hole Versions
3E
For
3E actuators/Varimec
For 1D/1K/1N/1P/1S/1T/
1U/1V/1WA/1WD/1WG/
1WP/1X/1ZC/1GA/1GC
3C
3F
w/LED for
1D/1E/1F/1N/1Q/1R/
1S/1X
w/LED for
1K /1KB/1KC/1T/1U/1V/
1WA/1WD/1WP
Standard Versions
3ATL6
3ATH9
3ATL600/20/40/80
3CTL6/3CTL9
3CTH9
3ETLXX-H*
3ETHXX-H*
3FTL6
3FTH9
3FTL600/20/40/60/80/
2040/8020/8040
3FTL623/45/88
* 3E available in 6 standard heights: 08.0, 09.5, 10.4, 11.0, 12.0, 15.0 mm. Other heights between 08.0 and 15.0 mm are available upon request.
Specials: Gold contacts, quiet version and actuation force other than 3.0N
3A
For
1A/1B/1M/1ZA/1ZB
Surface Mount Versions
3C
3E
For 3E actuators/
Varimec
Right Angle Versions
3F
For 1D/1K/1N/1P/1S/1T/
1U/1V/WA/1WD/1WP/
1X/1ZC/1GA/1GC
3C
3E
For 3E actuators/
Varimec
3F
For 1D/1K/1N/1P/1S/1T/
1U/1V/1W/1WA/1WD/
1WP1X/1ZC/1GA/1GC
3F w/LED
For 1D/1E/1F/1N/1Q/
1R/1S/1X
Standard Versions
3ASH9/3ASH9R
Co-planarity = ≤ 0.05
3CSH9/3CSH9R
3ESH9/3ESH9R
3FSH9/3FSH9R
3CTL6RAS
Standard Versions
3ETXX-X.XRAS
3FTL6RAS
3FTL600/20/40/60/80/
2040/8020/8040RAS
ed, all tolerances ± 0.2
multimec
®
Cross Section
cations please see
www.mec.dk
0804
|
mec
|
www.mec.dk
27
multimec

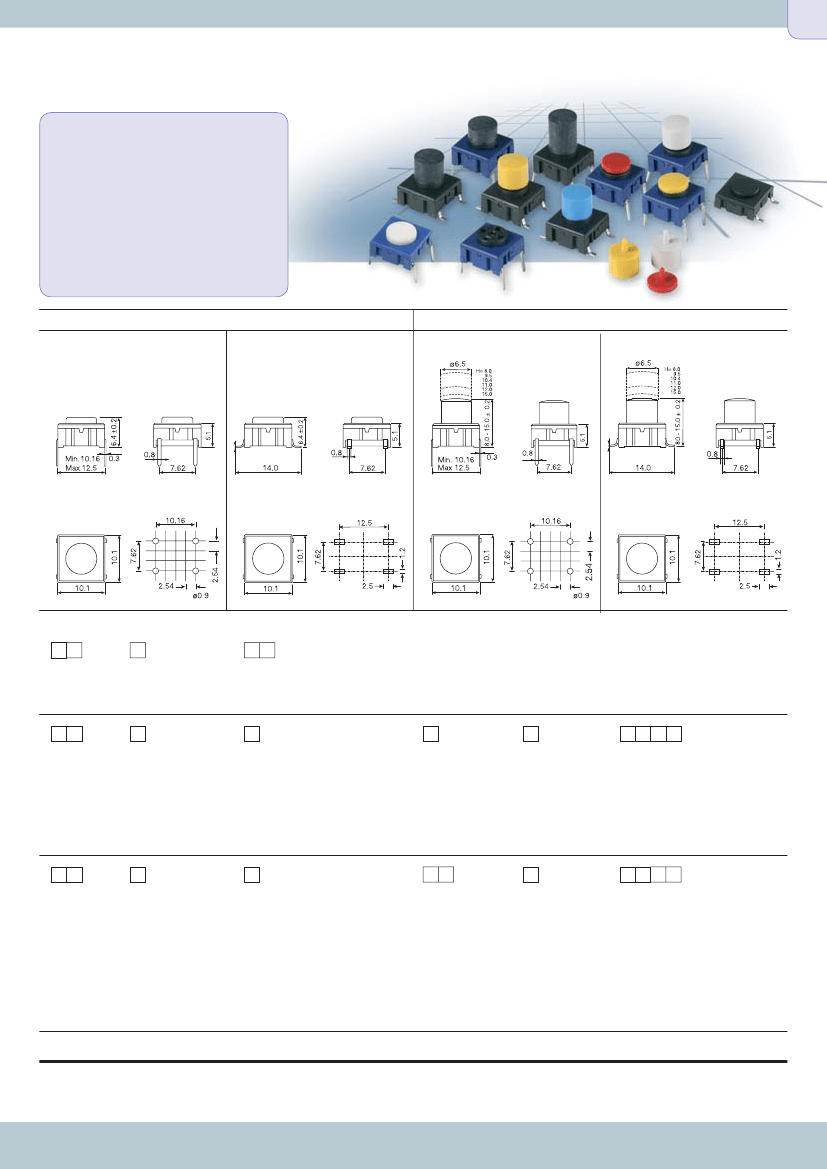

Technical Data
■
■
■
■
■
■
through-hole or SMD
50mA/24VDC
single pole/momentary
10.000.000 operations life time
IP67 sealing
temperature range:
low temp:
-40/+115°C
high temp:
-40/+160°C
actuator:
in PPS:
-40/+160°C
in polycarbonate: -40/+85°C
®
3C/3E
Standard 3C
Dimensions (through-hole)
Dimensions (SMD)
Variable heights 3E
Dimensions (through-hole)
Dimensions (SMD)
PCB layout
PCB layout
PCB layout
PCB layout
How to order
3 C
Switch
Mounting
T
through-hole
S
surface mount
L 6
low temp. white
L 9
low temp. black
H 9
high temp.
3 E
Switch
Mounting
T
through-hole
S
surface mount
L
low temp.
H
high temp.
9
-
.
Standard overall height
08.0
09.5
10.4
11.0
12.0
15.0
Black
Actuator made of PPS
Custom heights:
3E is available in any height from 08.0 to 15.0mm.
Min. order qty. for custom heights is 2.000 pcs.
3 E
Switch
T
Mounting
T
through-hole
L
L
low temp.
20
blue
23
grey
24
yellow
28
red
29
black
Actuator made of
polycarbonate
-
.
Standard overall height
08.0
09.5
10.4
11.0
12.0
15.0
Switch and 3E actuator can be delivered unassembled.
The actuators made of polycarbonate can also be used for high temperature switches,
however they must be mounted after soldering and the temp. range will be reduced to 85°C.
Ordering example:
3CTL6 and 3ETL9-09.5 or 3ETL23-08.0
For updates of products and/or changes of specifications please see
www.mec.dk

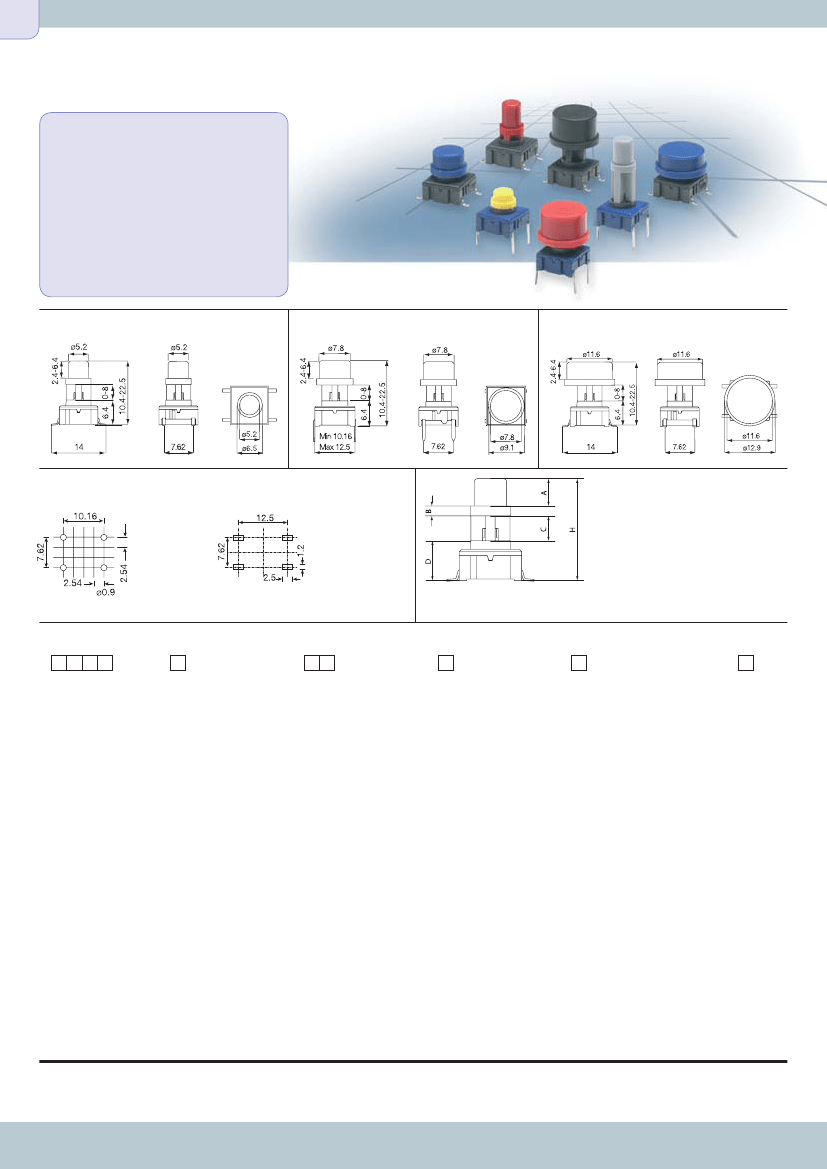

www.mec.dk
|
mec
28

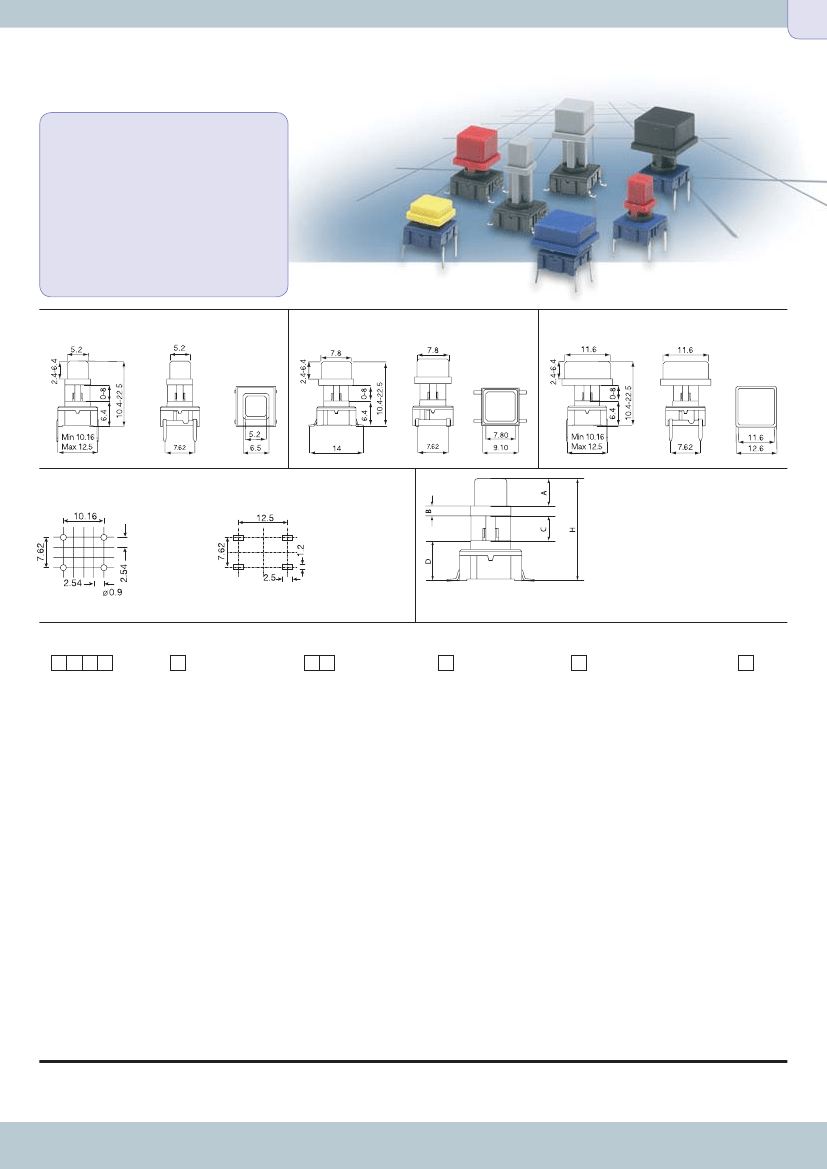

varimec
™
Technical Data
■
■
■
■
■
■
through-hole or SMD
50mA/24VDC
single pole/momentar y
10.000.000 operations life time
IP67 sealing
temperature range switch:
low temp: -40/+115ºC
high temp: -40/+160 ºC
■
temperature range cap:
-40/+160 ºC
double variability
Round ø5.2
Round ø7.8
Round ø11.6
PCB Layout
(through-hole)
PCB Layout
(SMD)
The Concept
H=
A=
B=
D=
C=
Overall heights from 10.4-22.5
Variable height from 2.4 to 6.4
A
cannot exceed
H
- 8.0
Fixed recess 1.6
Fixed switch 6.4
Variable from 0-8.1
C = H-A-B-D
All measurements in mm
How to order
Switch
3ETL
3ESH
3ETH
Shape and Size
A
5.2 Round
E
7.8 Round
K
11.6 Round
Colour Codes
60
63
64
68
69
blue
grey
yellow
red
black
Overall Height
H
A
10.4
B
11.0
C
12.0
D
12.5
E
13.0
F
14.0
G
15.0
H
16.0
J
19.0
K
22.5
Height above recess
A
A
2.4
B
3.0
C
3.5
D
4.0
E
4.5
F
5.0
G
5.6
H
6.4
Tape*
R
Cap alone:
Instead of part no. for switch please use 3E- and then same as above
Examples Switch and Cap:
3ETLE64CC = Switch 3ETL, 7.8 Round Cap, Yellow, Overall Height 12.0, Height above recess 3.5, (Height under recess 0.5).
Example Cap Alone:
3E-E63FF = Cap, 7.8 Round, Grey, Overall Height with switch 14.0, Height above recess 5.0, (Height under recess 1.0).
Min. order is 2.000 pcs. per shape, size and heights for parts mentioned above.
For heights not mentioned in the list a start-up fee will apply.
*Only overall height up to 12.5mm can be supplied on tape.
For updates of products and/or changes of specifications please see
www.mec.dk
mec
|
www.mec.dk
29
varimec
™
Technical Data
■
■
■
■
■
■
through-hole or SMD
50mA/24VDC
single pole/momentary
10.000.000 operations life time
IP67 sealing
temperature range switch:
low temp: -40/+115ºC
high temp: -40/+160ºC
■
temperature range cap:
-40/+160ºC
double variability
Square 5.2
Square 7.8
Square 11.6
PCB Layout
(through-hole)
PCB Layout
(SMD)
The Concept
H=
A=
B=
D=
C=
Overall heights from 10.4 - 22.5
Variable height from 2.4 to 6.4
A
cannot exceed
H
- 8.0
Fixed recess 1.6
Fixed switch 6.4
Variable from 0-8.1
C = H-A-B-D
All measurements in mm
How to order
Switch
3ETL
3ESH
3ETH
Shape and Size
B
5.2 Square
F
7.8 Square
L
11.6 Square
Colour Codes
60
63
64
68
69
blue
grey
yellow
red
black
Overall Height
H
A
10.4
B
11.0
C
12.0
D
12.5
E
13.0
F
14.0
G
15.0
H
16.0
J
19.0
K
22.5
Height above recess
A
A
2.4
B
3.0
C
3.5
D
4.0
E
4.5
F
5.0
G
5.6
H
6.4
Tape*
R
Cap alone:
Instead of part no. for switch please use 3E- and then same as above
Examples Switch and Cap:
3ESHB60AA = Switch 3ESH, 5.2 Square Cap, Blue, Overall Height 10.4, Height above recess 2.4, (Height under recess 0).
Example Cap Alone:
3E-E63FF = Cap, 7.8 Square, Grey, Overall Height with switch 14.0, Height above recess 5.0, (Height under recess 1.0).
Min. order is 2.000 pcs. per shape, size and heights for parts mentioned above.
For heights not mentioned in the list a start-up fee will apply.
*Only overall height up to 12.5 mm can be supplied on tape.
For updates of products and/or changes of specifications please see
www.mec.dk
www.mec.dk
|
mec
