FS5700SPMT2B2M1QE datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> Push button switch> FS5700SPMT2B2M1QE

FS5700SPMT2B2M1QE: Description按钮开关 High Actuation Foot Switch 10mm dia Actuator, 11.5mm Bushing, 1A 9VDC, Single Pole, 1000gf, Momentary, Solder Lug; CategoryMechanical and electronic products switch Push button switch; File Size724KB，6 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric Compare View All

FS5700SPMT2B2M1QE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FS5700SPMT2B2M1QE	-	-	View	Buy Now

FS5700SPMT2B2M1QE Overview

按钮开关 High Actuation Foot Switch 10mm dia Actuator, 11.5mm Bushing, 1A 9VDC, Single Pole, 1000gf, Momentary, Solder Lug

FS5700SPMT2B2M1QE Parametric

Parameter Name	Attribute value
Maker	E-Switch
Product Category	power switch button
Shipping restrictions	Mouser does not currently sell this product.
product	Foot Switches
type	Sealed
illumination	Non-Illuminated
Lamp type	-
Contact form	SPST
switch function	ON - (OFF)
Current rating	1 A
Voltage ratingDC	9 VDC
Installation style	Panel
Installation type	Bushing
Termination type	Solder Lug
Actuator	Round
Encapsulation	Bulk
series	FS5700
diameter	10 mm
high	13 mm
Material	Silver
width	12 mm
cover color	Silver
life	30000 Cycles
Maximum operating temperature	+ 70 C
Minimum operating temperature	- 10 C

Preview

Download Datasheet

View All

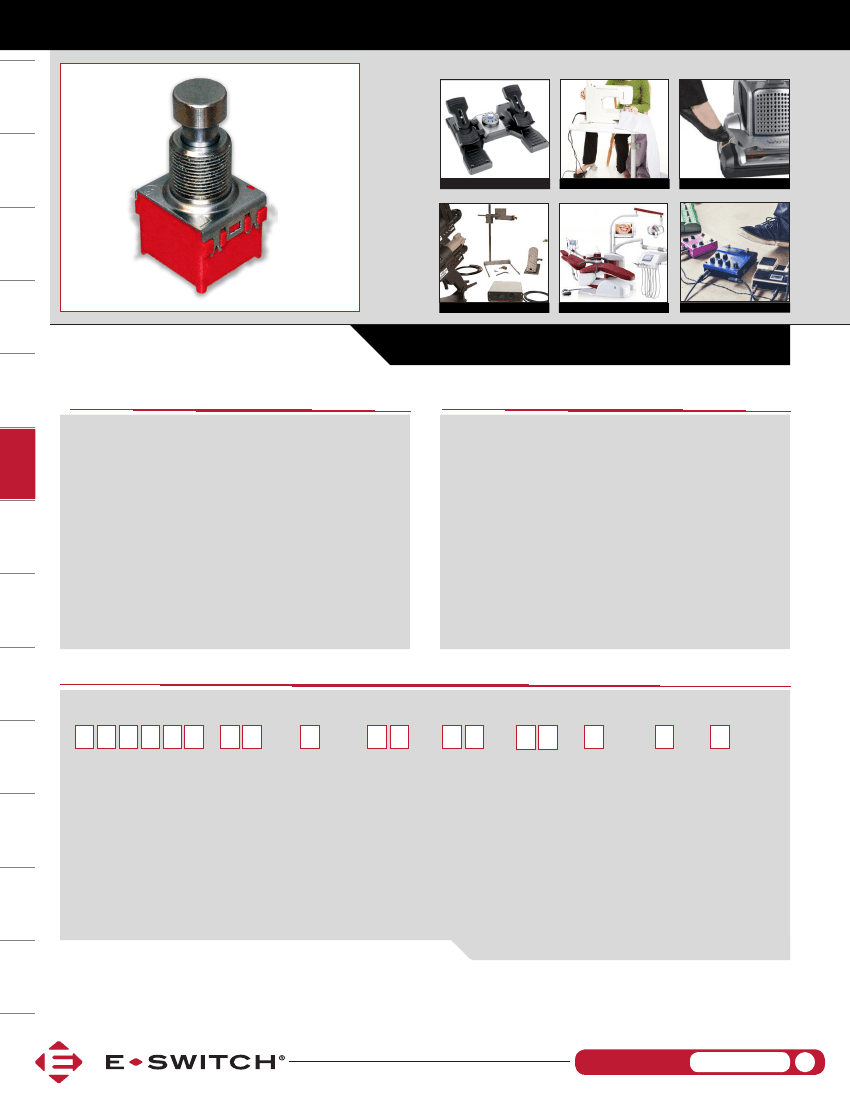

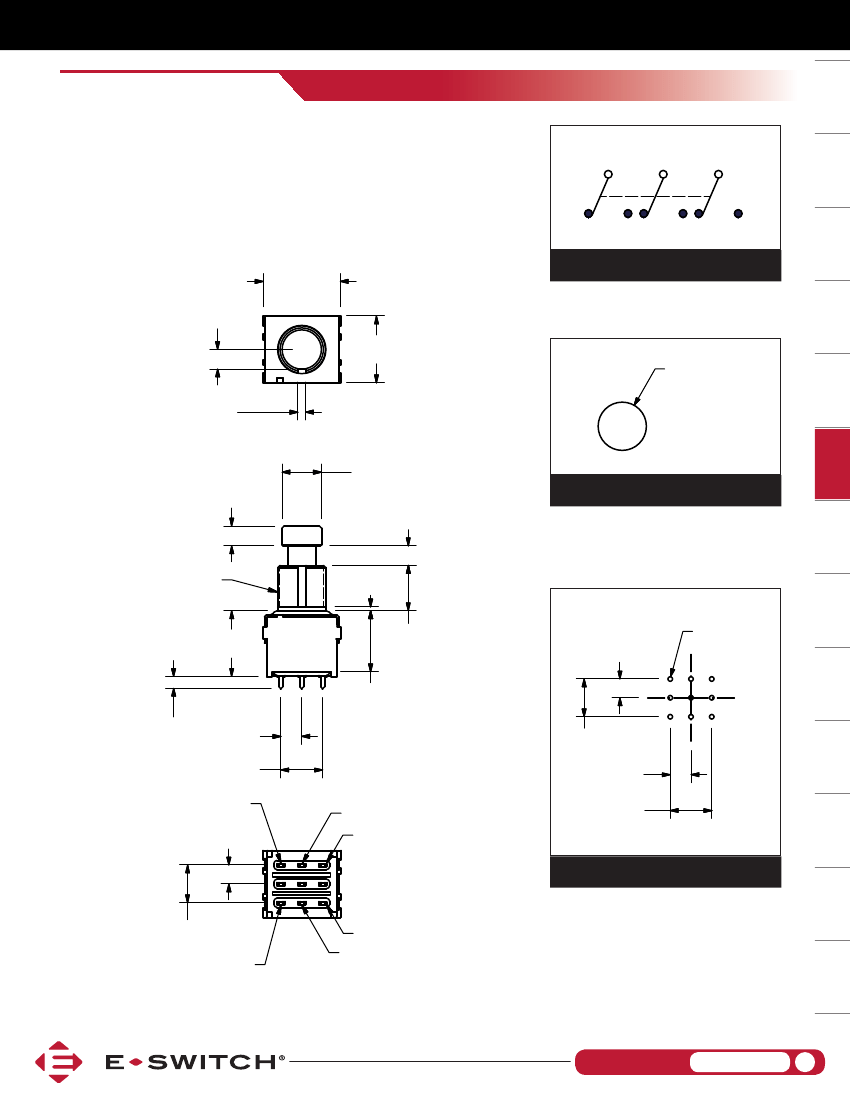

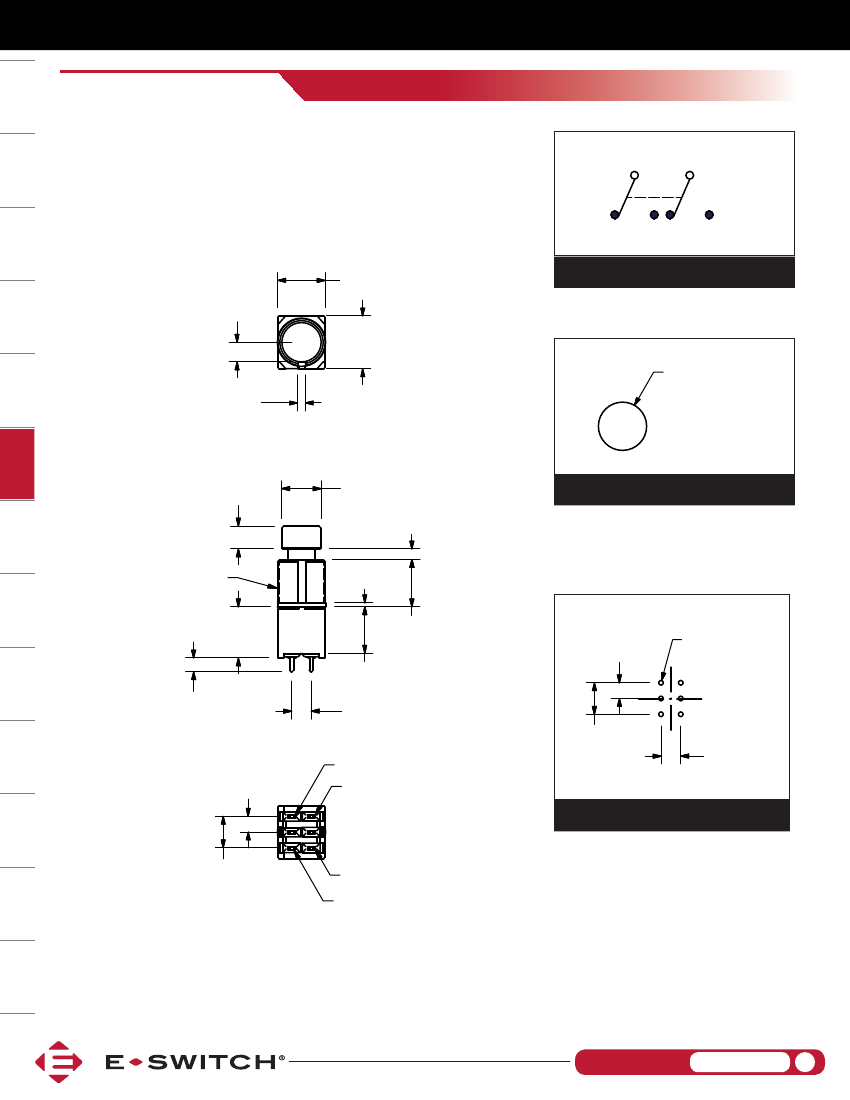

Fs5700 s

eries

ushButton

witch

ANTI-VANDAL

SWITCHES

PPliCatioNs

/ m

arkets

DETECTOR

SWITCHES

Gaming: Flight Simulation

Home Appliances

Floor Care Appliances

KEYLOCK

SWITCHES

DIP

SWITCHES

Industrial Controls

Medical / Dental

Foot Switch

NAVIGATION

SWITCHES

RoHS

peciFications

Contact Rating:

1A @ 9VDC

Electrical Life:

30,000 Cycles

Contact Resistance:

50mΩ Initial

Insulation Resistance:

100MΩ @ 500VDC

Dielectric Strength:

1000V RMS

Operating Temperature:

-10°C to 70°C

Storage Temperature:

-10°C to 70°C

Full Travel:

SP & DP: 2.7mm; 3P: 5.0mm

Contact Arrangement:

SPDT, DPDT or 3PDT

Actuation Force:

Single pole momentary: 1700gf

Single pole alternate action: 1000gf

Double pole momentary: 2500gf

Double pole alternate action: 1600gf

3 pole alternate action: 3000gf

Panel Thickness:

8mm Max.

eatures

& B

eneFits

•

SPDT, DPDT or 3PDT

Momentary or alternate action functions

High actuation force

PCB mount or panel mount option

SLIDE

SWITCHES

ROTARY

SWITCHES

ROCKER

SWITCHES

PUSHBUTTON

SWITCHES

art

umber

oNfigurator

Series

Circuit

Function

Actuator

Bushing

- 11.5 high

SNAP ACTION

SWITCHES

Terminal

Contact

Material

Sealing

- Epoxy

Hardware

H**

- Hardware

FS5700

SP -

Single Pole

- Alternate

-10mm dia.

DP -

Double Pole Action

3P* -

3 Pole

- Momentary

- Silver

- Solder

Lug

- PCB Pins

TOGGLE

SWITCHES

TACTILE

SWITCHES

*3P

only available in “L” function

**Hardware

only provided with “M1” termination

CAP

OPTIONS

Specifications subject to

subject to change without notice

Specifications

change without notice 4.2.2018

www.e-switch.com

800.867.2717

FS5700SPMT2B2M1QE Related Products

	FS5700SPMT2B2M1QE	FS5700DPLT2B2M1QE	FS5700SPLT2B2M1QE
Description	按钮开关 High Actuation Foot Switch 10mm dia Actuator, 11.5mm Bushing, 1A 9VDC, Single Pole, 1000gf, Momentary, Solder Lug	按钮开关 High Actuation Foot Switch 10mm dia Actuator, 11.5mm Bushing, 1A 9VDC, Double Pole, 1600gf, Alternate Action / Maintained, Solder Lug	按钮开关 High Actuation Foot Switch 10mm dia Actuator, 11.5mm Bushing, 1A 9VDC, Single Pole, 1000gf, Alternate Action / Maintained, Solder Lug
Maker	E-Switch	E-Switch	E-Switch
Product Category	power switch button	power switch button	power switch button
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
product	Foot Switches	Foot Switches	Foot Switches
type	Sealed	Sealed	Sealed
illumination	Non-Illuminated	Non-Illuminated	Non-Illuminated
Contact form	SPST	DPDT	SPST
switch function	ON - (OFF)	ON - ON	ON - ON
Current rating	1 A	1 A	1 A
Voltage ratingDC	9 VDC	9 VDC	9 VDC
Installation style	Panel	Panel	Panel
Installation type	Bushing	Bushing	Bushing
Termination type	Solder Lug	Solder Lug	Solder Lug
Actuator	Round	Round	Round
Encapsulation	Bulk	Bulk	Bulk
series	FS5700	FS5700	FS5700
diameter	10 mm	10 mm	10 mm
high	13 mm	13 mm	13 mm
Material	Silver	Silver	Silver
width	12 mm	12 mm	12 mm
cover color	Silver	Silver	Silver
life	30000 Cycles	30000 Cycles	30000 Cycles
Maximum operating temperature	+ 70 C	+ 70 C	+ 70 C
Minimum operating temperature	- 10 C	- 10 C	- 10 C
