Since 1984, Altech Corporation has grown to become a leading supplier of automation and industrial
control components. Headquartered in Flemington, NJ, Altech has an experienced staff of
engineering, manufacturing and sales personnel to provide the highest quality products with superior
service. This is the Altech Commitment!
With experienced Product Engineers and Customer Service personnel, Altech provides solutions to
your most pressing application challenges. All with one thought in mind -
to ensure that we solve
your problem the first time!
Altech’s Automation and Control components meet
applicable national and international standards, such as
UL, NEC, CSA, IEC and VDE. Altech provides these
products with superior customer service and delivery
through a ISO 9001 Quality Management system, which
stresses continuous process improvement. We perform
these services with honesty and integrity. All Altech
employees are trained in this Quality Management System
and are dedicated to achieve these goals. Altech’s quality
system has been ISO approved since 1999.
Altech’s Commitment
Table of Contents
Introduction..................................................................................................4
Technical Information ..................................................................................5
Lens with Integrated LED ............................................................................6
Lens with Built-In Buzzer .............................................................................7
Sound Module ..............................................................................................7
Accessories .................................................................................................8
Bases .......................................................................................................8-9
Tower Light Selection.................................................................................10
Standard Available Combinations ..............................................................10
Installation Instructions ...............................................................................11
Multi-Color LED Light .................................................................................12
Multi-Color LED Light for PLC Applications................................................13
LED Inspection Light ..................................................................................14
Index...........................................................................................................15
#
Altech Corp.
®
• t 908-806-9400 • f 908-806-9490 • www.altechcorp.com
3

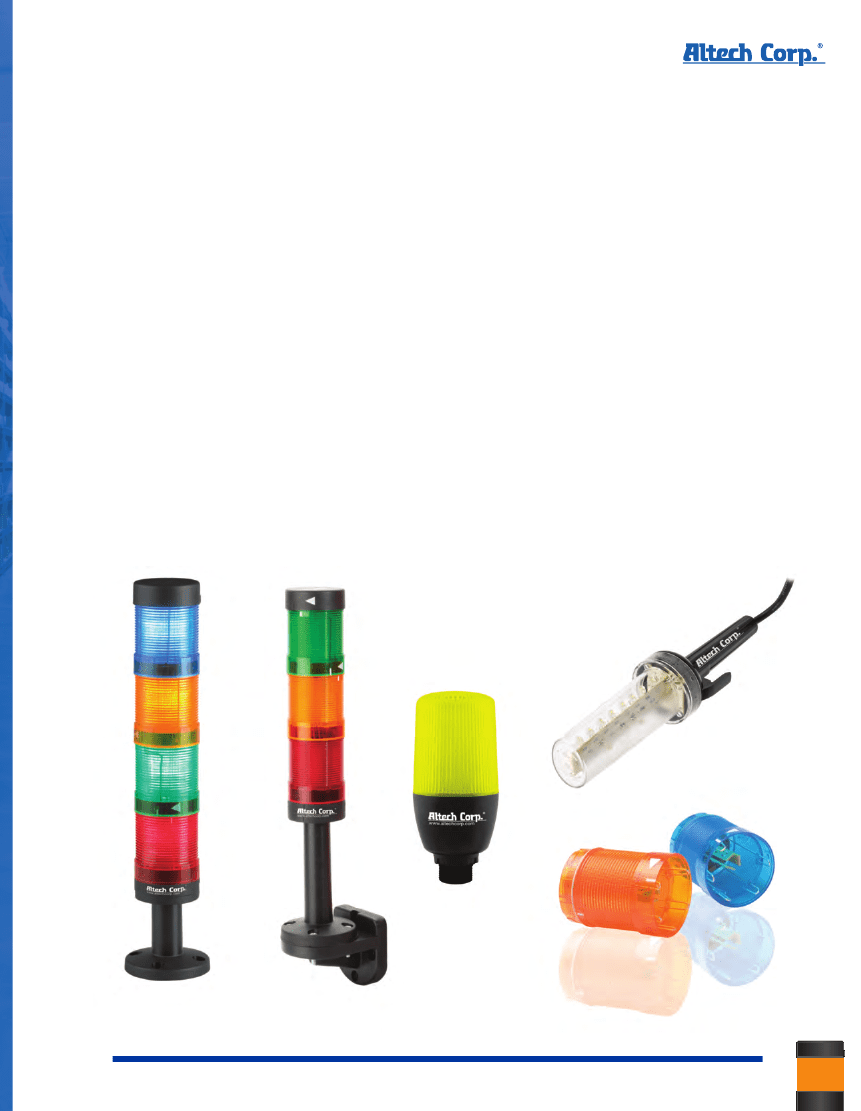

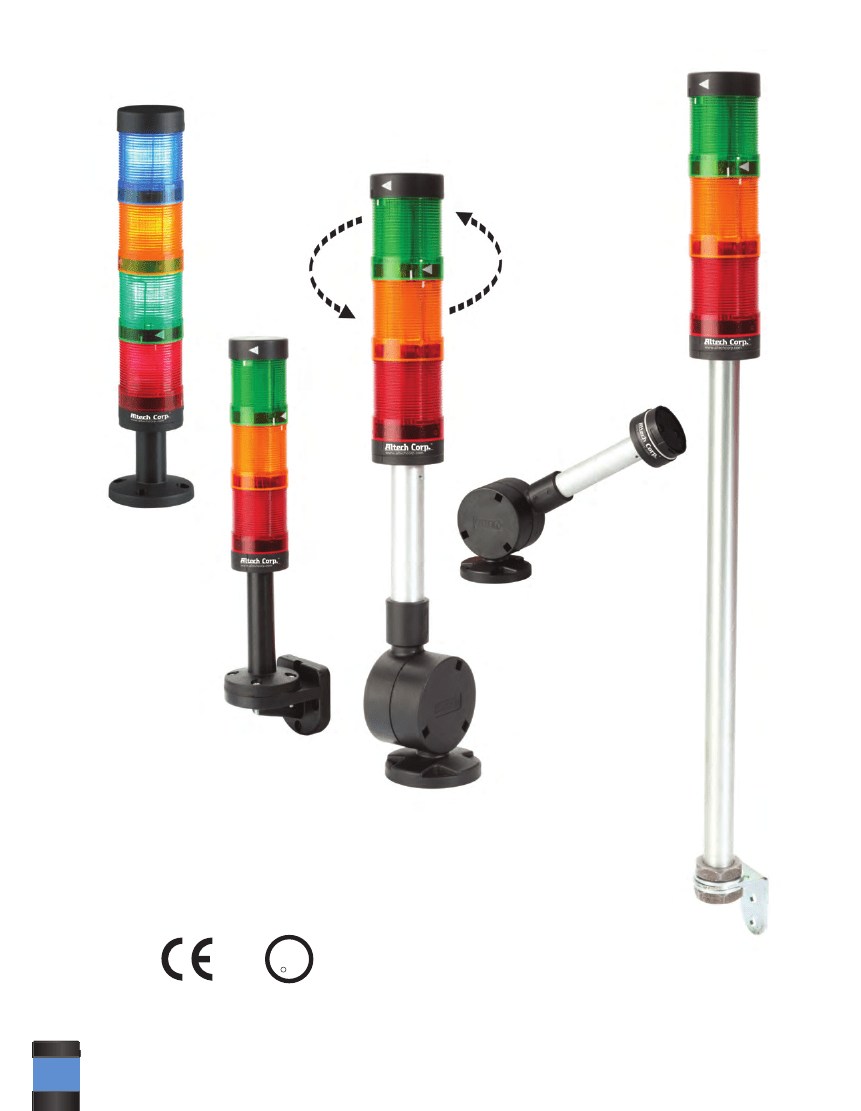

Switch Colors Easily and
Set Your Own Combination
•
•
•
•
•
•
•
•
Sleek & Stackable Design
SMD LED technology
Uniform & bright illumination
Continuous, Flashing and Rotary Integrated LED Light Modules available
Flexibility to upgrade from Single LED Unit to multiple LED Units
IP 65 protection
Wide voltage range from 12V AC/DC to 240V AC
Optional feature of Buzzer with dual sound mode - continuous or intermittent with 80 dB output.
The UL standard extends to: 1 | 2 | 3 | 3R | 4 | 4X | 12 | 13
Indoor or outdoor use primarily to provide a degree of protection against
corrosion, windblown dust and rain, splashing water, hose-directed water,
and damage from external ice formation.
C
UL
R
US
LISTED
4
Altech Corp.
®
• t 908-806-9400 • f 908-806-9490 • www.altechcorp.com/towerlights
TECHNICAL INFORMATION
Outer Diameter
Degree of Protection
LED Type
Unit Color
Unit Signalling Effect
Buzzer Color
Buzzer Mode
Sounding Mode
Available Voltages
Voltage Tolerance
Operating Temperature
Surge Test
HV Test for 60 Seconds
Current Rating
Ø50mm
IP65, NEMA Type 4X and 13, UL 508
SMD
Red / Green / Amber / Blue / White
Continuous, Blinking & Revolving
Black
80dB ± 5dB
Continuous or Intermittent
12V AC/DC; 24V AC/DC
120V AC; 240V AC
±10% of rated voltage
-30°C to 60°C
2 KV
1.5 KV
20-40mA for 12V AC/DC; 24V AC/DC
10-20mA for 120V AC & 240V AC

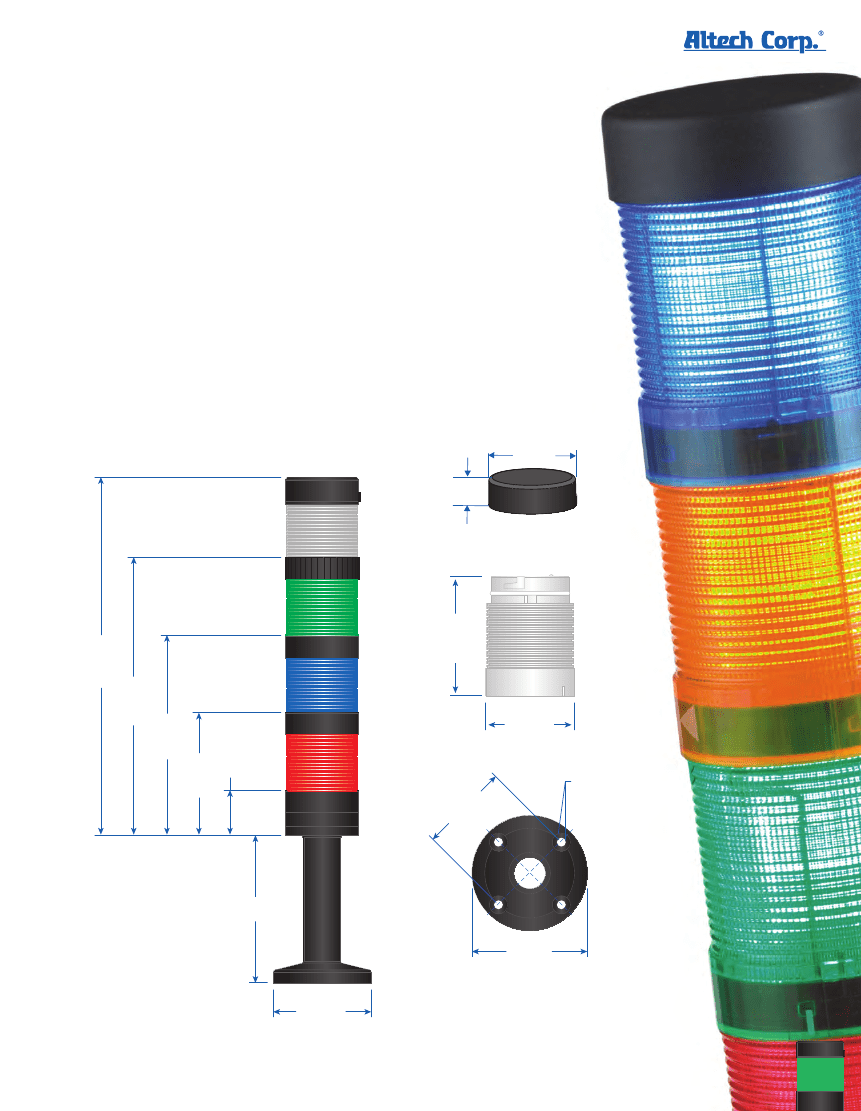

DIMENSIONS
UPPER CAP
17 mm
(0.67 in)
52 mm
(2.1 in)
LENS
254 mm
(10.00 in)
197 mm
(7.76 in)
142 mm
(5.59 in)
BASE
32 mm
(1.26 in)
68 mm
(2.68 in)
54 mm
(2.13 in)
87 mm
(3.43 in)
XX
5
(2 4 m
.1 m
3
in
)
COUNTER BORE
Ø11.0/Ø5.2, (4X)
SCREW SIZE - M5
70 mm
(2.75 in)
70 mm
(2.75 in)
Altech Corp.
®
• t 908-806-9400 • f 908-806-9490 • www.altechcorp.com/towerlights
