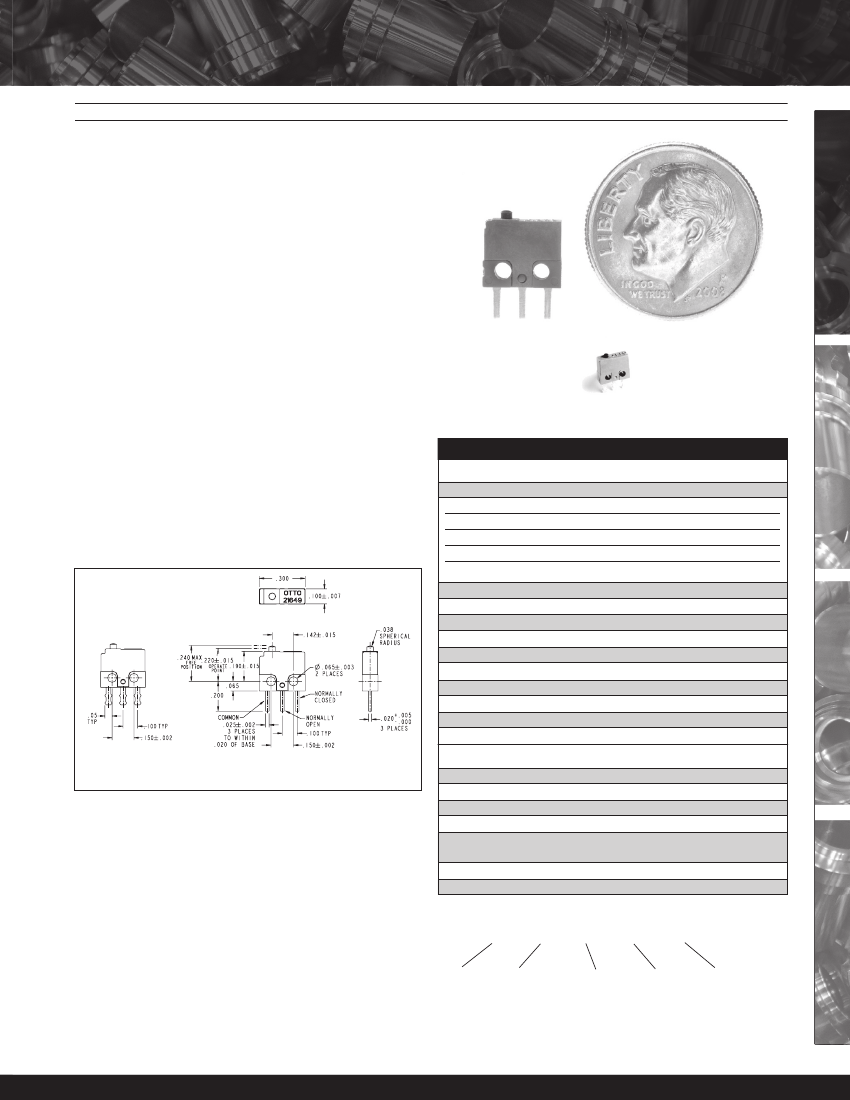

ULTRA SMALL SUBMINIATURE BASICS
SINGLE BREAK, SNAP-ACTION, COMMERCIAL & MILITARY GRADES, ULTRA SMALL SUBMINIATURE
BASIC
SWITCHES
B1
The B1 series basic switches are ultra-subminiature in
size, designed to reliably switch low level signals as
well as up to 2 amps switching capacity for a minimum of
25,000 cycles. Mechanical life expectancy is in excess of
one million cycles.
The molded housing is rugged and structurally stable.
The terminals are molded-in and sealed against solder flux
entering the switch. The terminals are available in a choice
of double turret solder style and 0.020” x 0.025” PC pins.
The B1 series is also available with integral lever actuators
as B1-5 series.
BASIC SWITCHES
Features:
•
•
•
•
•
•
•
•
Ultra-compact: only 0.300” w x 0.255” h x 0.100” thick
1 million cycle life, B1-5 Series
Low level or logic level switching capability
Designed in accordance with MIL-PRF-8805/94
Available in Commercial & Military grades
Choice of solder or PC molded-in terminals
Precision operating points
RoHS/WEEE/Reach compliant
Actual Size
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive*
DWV
Low Level
*L/R = 0.026
Electrical Life:
Mechanical Life:
Seal:
Operating Force:
Release Force:
Operate Point:
Overtravel:
Pretravel:
25,000 cycles
B1 Series is 100,000 cycles (B1-5 Series is 1,000,000 cycles)
Unsealed
6 oz max
0.7 oz min
0.220 +/- 0.015 inches from mounting holes
0.003 inches min
0.015 inches max
Sea Level @ 28VDC or 115VAC, 60Hz
2A
0.5A
1000Vrms
30mVDC max and 10mA max
50,000 feet @ 28VDC
2A
0.2A
400Vrms
30mVDC and 10mA max
Operating Temp Range:
-55°C to +125°C
Movement Differential:
0.002 inches nominal, 0.005 inches max
Double Turret Terminals
Style Code 2
PC Pins Terminals
Style Code 3
MATERIALS:
Case:
Cover:
Button:
Terminals:
Contacts:
Terminal Hardware:
Mounting Hardware:
Thermoset, blue
Thermoplastic, blue
Thermoplastic, black
Brass, gold over nickel
Stationary: Silver with gold
Moveable: Silver with gold
None provided
None provided
ORDERING INFORMATION:
B1 Basic
Select the OTTO B1 basic switch to match your specific circuit and
mechanical requirements. To order, specify your requirement using
the OTTO Part Number Code shown below.
Example:
B1-12111 specifies Military grade construction, double
turret terminals, 6 oz max operating force and silver/gold high
current contacts.
B1
–
X
B1 PART NUMBER CODE
X
X
X
Operating
Force
1.
6 oz max
X
Contact
Material
1.
Silver/Gold – High Current
3.
Silver/Gold – Low Current
Construction
Grade
1.
Military
2.
Commercial
Terminal
Style*
2.
Double Turret
3.
PC Pins
Movement
Differential
1.
0.005” max
* Wire leads available, contact factory.
Specifications Subject To Change Without Notice
www.ottoexcellence.com
5
