Relay base - EMG 22-RELS/K1-G 24 - 2950394
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Relay module, with plug-in base for KAMMRELAIS® size 1, contact: B 104, 2 PDT, input voltage 24-48 V DC,
with light indicator, damping and polarity protection diode

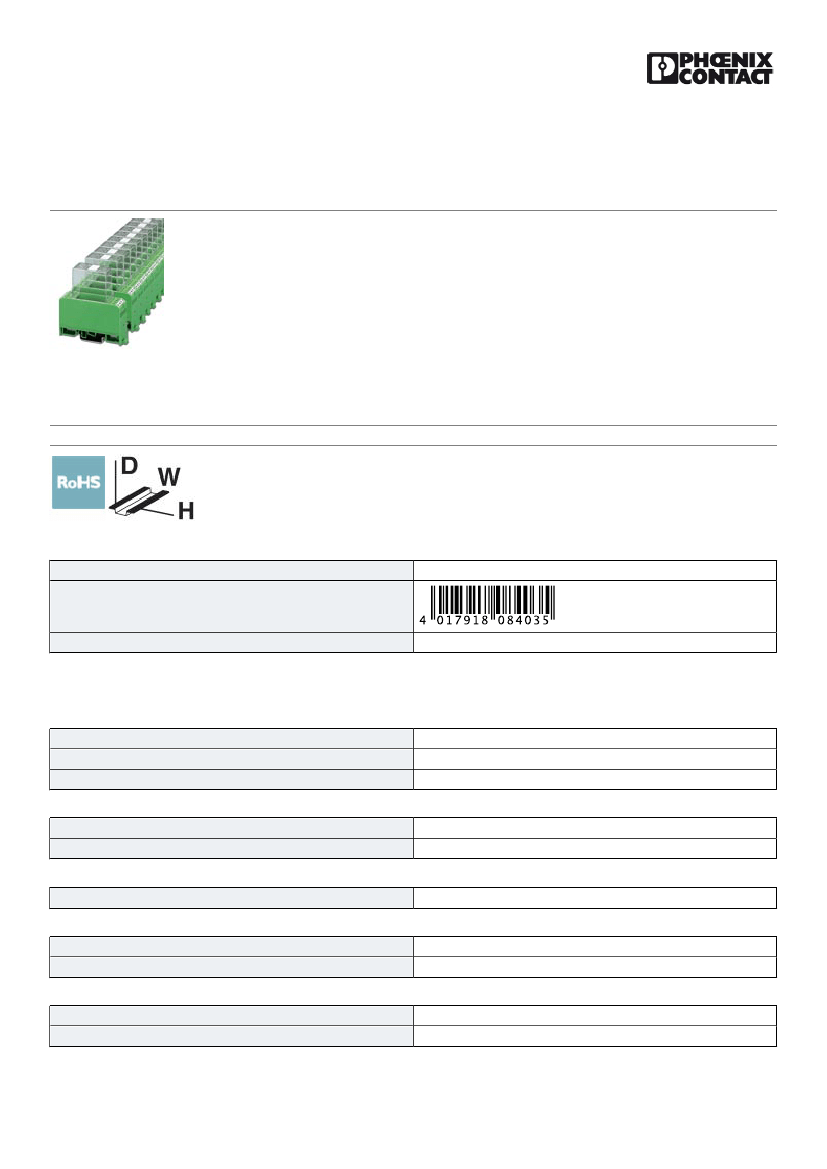

The figure shows version EMG 22-
RELS, with plug-in socket for cradle
relay, size 1
Key Commercial Data
Packing unit
GTIN
GTIN
4017918084035
10 pc
Technical data
Dimensions
Width
Height
Depth
22.5 mm
75 mm
82.5 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
Input data
Nominal input voltage U
N
24 V DC
General
Mounting position
Assembly instructions
any
In rows with zero spacing
Connection data input side
Connection name
Connection method
Input side
Screw connection
11/05/2018 Page 1 / 2
https://www.phoenixcontact.com/pi/products/2950394
Relay base - EMG 22-RELS/K1-G 24 - 2950394
Technical data
Connection data input side
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
8 mm
M3
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
Connection data output side
Connection name
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Output side
Screw connection
8 mm
M3
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
Standards and Regulations
Standards/regulations
DIN VDE 0110b, Gr. C for 250 V DC
DIN VDE 0160 (in relevant parts)
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/05/2018 Page 2 / 2
