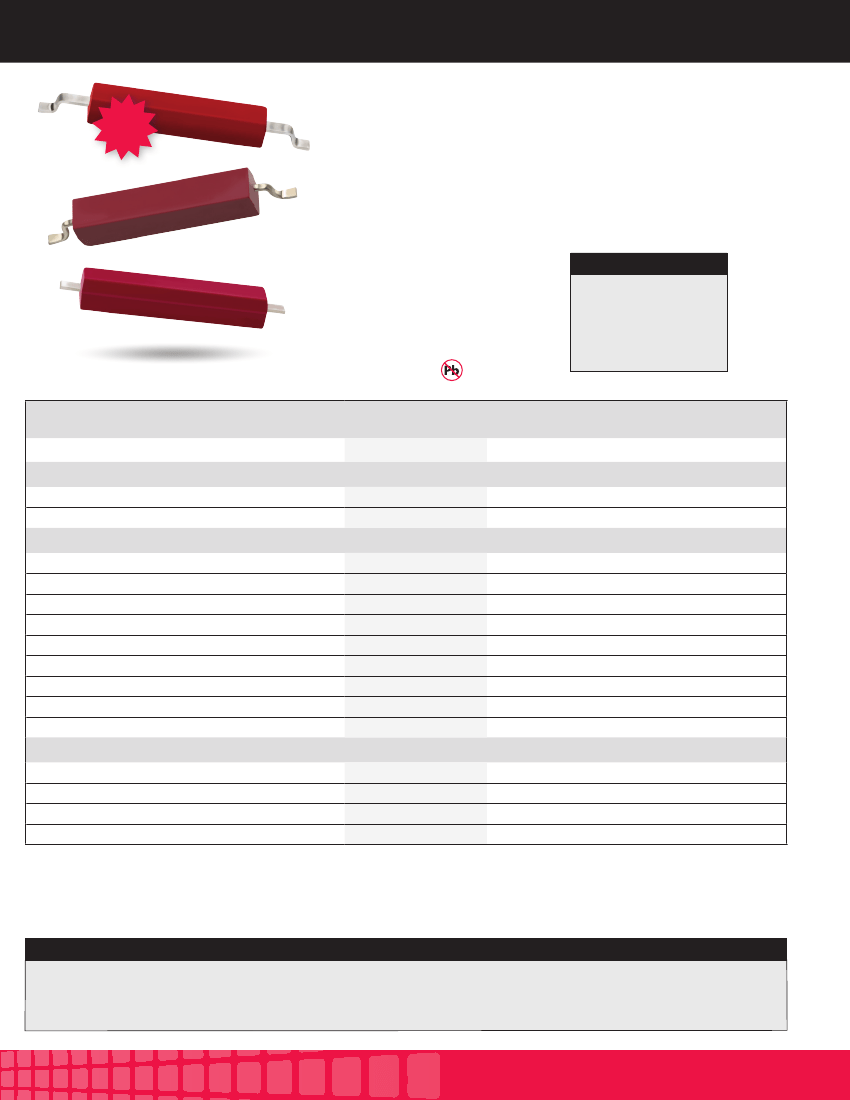

CT10 SERIES ENCAPSULATED MOLDED SWITCH
NEW!
CT10 -G2
CT10 Series
The CT10 is an encapsulated molded dry reed switch. It is single-pole, single throw
(SPST) type, having normally open ruthenium contacts.
The sensor is a double-ended type and may be actuated with an electromagnet, a per-
manent magnet or a combination of both.
The device is designed for SMD mounting and is available in three lead configura-
tions.
* NEW CT10-G2 now 260
º
C process temperature hardy.
CT10 Series Features
u
Ideal for SMD pick and place
u
Tape and reel packaging
u
10W rating
u
Rugged encapsulation
u
Excellent life and reliability
u
RoHS compliant
APPLICATIONS
u
Proximity Sensing
u
Security Alarm Sensor
u
Level Sensor
u
Flow Sensor
u
Pulse Counter
MODEL NUMBER
Parameters
OPERATING CHARACTERISTICS
Operate Range
Release Range
CT10-XXXX-YY
Units
AT
AT
W
V
V
mA
mA
A
V
mΩ
MΩ
ºC
ºC
G
G
10-40
3-35
10
200
140
500
500
0.5
230
200
10
6
-40 to + 125
-40 to + 125
10
100
ELECTRICAL CHARACTERISTICS
Switched Power (max)
Switched Voltage DC (max)
Switched Voltage AC, RMS value (max)
Switched Current DC (max)
Switched Current AC, RMS value (max)
Carry Current DC (max)
Breakdown Voltage (min)
Contact Resistance (initial max)
Insulation Resistance (min)
ENVIRONMENTAL RATINGS
Storage Temperature
Operating Temperature
Vibration Resistance
Shock Resistance
NOTES
AT values measured using a Philips 10JK coil.
Surface mount component processing temperature Model G1 & G2: 500°F(260°C) max for 1 minute dwell time; Model G4 & A2:
439°F(226°C) max for 1 minute dwell time.
u
Temperature measured on leads where lead exits molded package.
u
u
06242015
tel: (401) 943.2686
|
fax: (401) 942.0920
DIMENSIONS
in Inches (Millimeters)
CT10-XXXX-G1
.635/.645 (16.13/16.38mm)
.458 (11.6mm) Max.
.115 (2.92mm) Max.
.025 (.63mm) Max.
.010±.002
.035/.045 (.89/1.14mm)
.035/.045 (.89/1.14mm)
.095 (2.41mm) Max.
.030 (.76mm) Max.
.030 (.76mm) Max.
.040 (1.02mm) Max.
.765/.775 (19.43/19.68mm)
0.012±0.003 STRESS RELIEF
.115 (2.92mm) Max.
.458 (11.63mm) Max.
CT10-XXXX-G2
.040 (1.02mm) Max.
.025 (.63mm)
.095 (2.41mm) Max.
CT10-XXXX-G4
105º Ref.
.765-.775 (19.4-19.7mm)
.505 (12.8mm)
.505 (12.8mm)
(SIDE VIEW)
.057 (1.45mm)
.609/.619 (15.47/15.72mm)
CT10-XXXX-A2
.095 (2.41mm)
.010 (0.25mm)
.045 (1.1mm) intersection
.035 (0.9)
.015 (0.38mm)
.005±.005 (0.127±0.127mm)
Below Stando Surface
.250 (6.35mm)
Ø.040 (1.02mm)
(BOTTOM VIEW)
.045 (1.14mm) Max.
.045 (1.14mm)
.045 (1.14mm)
.095 (2.41mm) Max.
.040 (1.01mm)
.095 (2.4mm)
ORDERING INFORMATION
A complete part number is represented by the digits to the right of the
CT10 series prefix followed by a suffix as shown below.
CT10-XXXX-YY
Series
CT10
EXAMPLE:
CT10-1030-G1 is
a CT10 sensor (10mm encapsulated switch)
with a sensitivity range from 10 to 30AT
lead ends are formed according to the G1 version
Lead Configuration Subset:
G1
for Gull Wing Version 1 (16.4mm)
G2/G4
for Gull Wing Version 2 (19.6mm)
A2
for Axial
AT Range
(measured after mold & lead form)
10-30; 10-40
06242015
For most recent data visit www.cotorelay.com
COTO TECHNOLOGY, INC.
