Data Sheet
FUJITSU Component Thermal Printer
FTP-63GMCL153/453
FUJITSU Component Thermal Printer
FTP-63GMCL153/453 series
Fujitsu 3” high speed (up to 200mm/s) thermal printer mechanism with cutter option
Overview
The FTP-63GMCL series thermal printer driven by 24VDC provides high speed
printing (up to 200mm/s) for 3-inch wide paper.
The series is suitable for a variety of applications, such as POS/ECR, kiosk
terminals, ticket machines, label printers, banking machines, measuring
devices, medical equipment, etc.
Features
■
High-speed printing
It can print up to 200mm/s (1600 dotlines/s) maximum by using Fujitsu
Components’ unique head drive control
■
Rear paper insertion mechanism with lock type
Fujitsu Components’ unique platen release mechanism allows for a straight
paper path and easy head maintenance
■
Auto Cutter
Optional ultra-low profile auto cutter (full/partial cut) comes mounted from
the factory.
■
Multi-feature diecast frame
The rugged die-cast frame provides excellent ESD performance, is shock/
vibration resistant and the heat-sink allows for continuous printing
■
Compact size
Depth: 20.4mm, width: 96.2mm, height: 36.3mm (FTP-63GMCL153)
Depth: 32.4mm, width: 100.5mm, height: 45.6mm (FTP-63GMCL453)
■
High resolution
8 dots/mm head provides clear print
■
Paper width
80mm
■
RoHS compliant
■
UL recognized. File number E171434

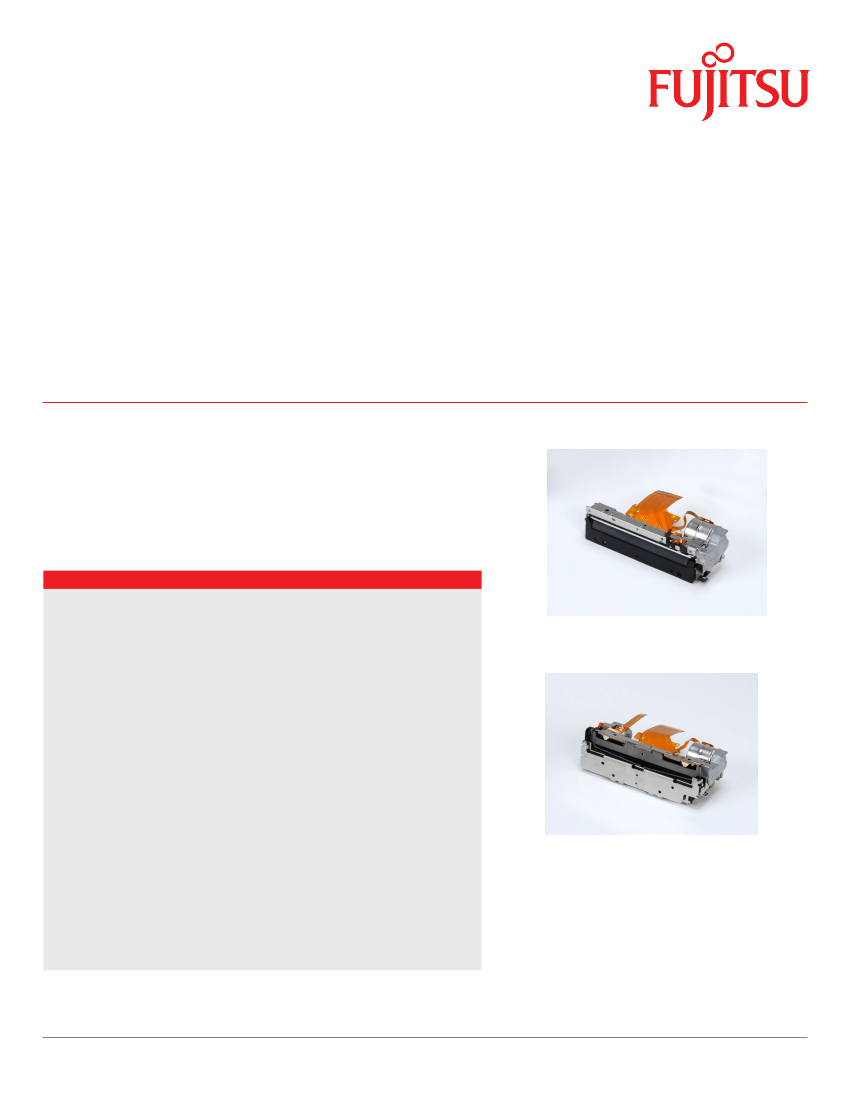

FTP-63GMCL153
FTP-63GMCL453
Page 1 of 7
http://us.fujitsu.com/thermal-printers
Data Sheet
FUJITSU Component Thermal Printer
FTP-63GMCL153/453
■
Part numbers
Part Numbers
Back insertion
Rear insertion
Serial (RS232C/USB)
Serial (RS232C/USB)
Serial
USB
Logic, head, motor
FTP-63GMCL153
FTP-63GMCL453
Under development
FTP-62GDSL001#01 (Japanese font)
FTP-62GDSL001#02 (Traditional Chinese font)
FTP-62GY302
FTP-62GY301
FTP-62GY601
Item
Printer mechanism
Mechanism with cutter
LSI for driving
Interface board
Interface cable
Power supply cable
■
Specifications
Item
Part number
Printing method
Dot structure
Dot pitch (horizontal)
Dot pitch (vertical)
Effective printing area
Number of columns
Paper width
Paper thickness
Cutting type
Printing speed
Character types
Alphanumeric KANA
International and special
OCRI
OCRIII
OCRIV
Extended numeric
JIS KANJI level 1, 2, non-Kanji
Traditional Chinese
Specifications
FTP-63GMCL153
Thermal sensitive line dot method
576 dots/lines
0.125mm (8 dots/mm) - Dot density
0.125mm (8 dots/mm) - Line feed pitch
72mm
ANK 48 columns/line (12 x 24 x dot font), OCD 24 columns (24 x 40)
80mm +0/-1
60-150µm*
1
---
200mm/s (1600 dot lines/s)
159 types
195 types
103 types
23 types
103 types
12 types
JIS KANJI: approx. 6800
13, 503
8 x 16 dots, 72 columns, ANK
12 x 24 dots, 48 columns, ANK
16 x 16 dots, 36 columns, ANK
24 x 24 dots, 24 columns, ANK
24 x 40 dots, 24 columns, OCRI
24 x 48 dots, 24 columns, OCRII
36 x 60 dots, 16 columns, OCRIV
24 x 48 dots, 24 columns, extended numeric
60-100µm*
1
Full or partial
FTP-63GMCL453
Character dimensions (W x H),
number of characters
*
1
: there may be exceptions
Page 2 of 7
http://us.fujitsu.com/thermal-printers
Data Sheet
FUJITSU Component Thermal Printer
FTP-63GMCL153/453
Item
Part number
Power
For head
For printer motor
For logic
Dimensions
(WxDxH)
Printer mechanism
Printer mechanism w/ cutter
Interface board (DCL/DSL)
Weight
Printer mechanism
Printer mechanism w/ cutter
Interface board (DCL/DSL)
Expected life
Head
Cutter
Environmental
conditions
Operating temperature
Operating humidity
Storage temperature
Storage humidity
Detection functions
Head temperature
Paper out/Mark detect
Head release
Recommended
thermal sensitive
paper
High sensitive paper
Standard paper
Medium term paper
Specifications
FTP-63GMCL153
24VDC ±10% 0.6A maximum
3.3 or 5 VDC±5% 0.1A maximum
96.2 x 20.4 x 36.3mm
---
70 x 35mm
79g
---
15g
Pulse durability: 100 million pulse/dot (using Fujitsu Components’ standard driving method)
Wear resistance: 100km (at 12.5% print ratio)
---
+5°C to +40°C (guarantee)
20 to 85% RH (no condensation)
-20°C to +60°C (excluding paper)
5 to 95% RH (no condensation)
By thermistor
By photointerrupter
By slide switch
TF50KS-E45 (Nippon paper)
TF-60KS-E (Nippon paper)
PD150R (Oji paper)
TF-60KS-F1 (Nippon paper)
PD170R (Oji paper)
P220VBB-1 (Mitsubishi paper)
PD160R-N (Oji paper)
500,000 cuts min.
---
155g
---
100.5 x 32.6 x 45.6mm
FTP-63GMCL453
24VDC ±10% 3A (24V, 1500 Ω, +25°C, concurrent applied dot number: 192 dots)
Long term paper
Page 3 of 7
http://us.fujitsu.com/thermal-printers
Data Sheet
FUJITSU Component Thermal Printer
FTP-63GMCL153/453
■
•
Dimensions

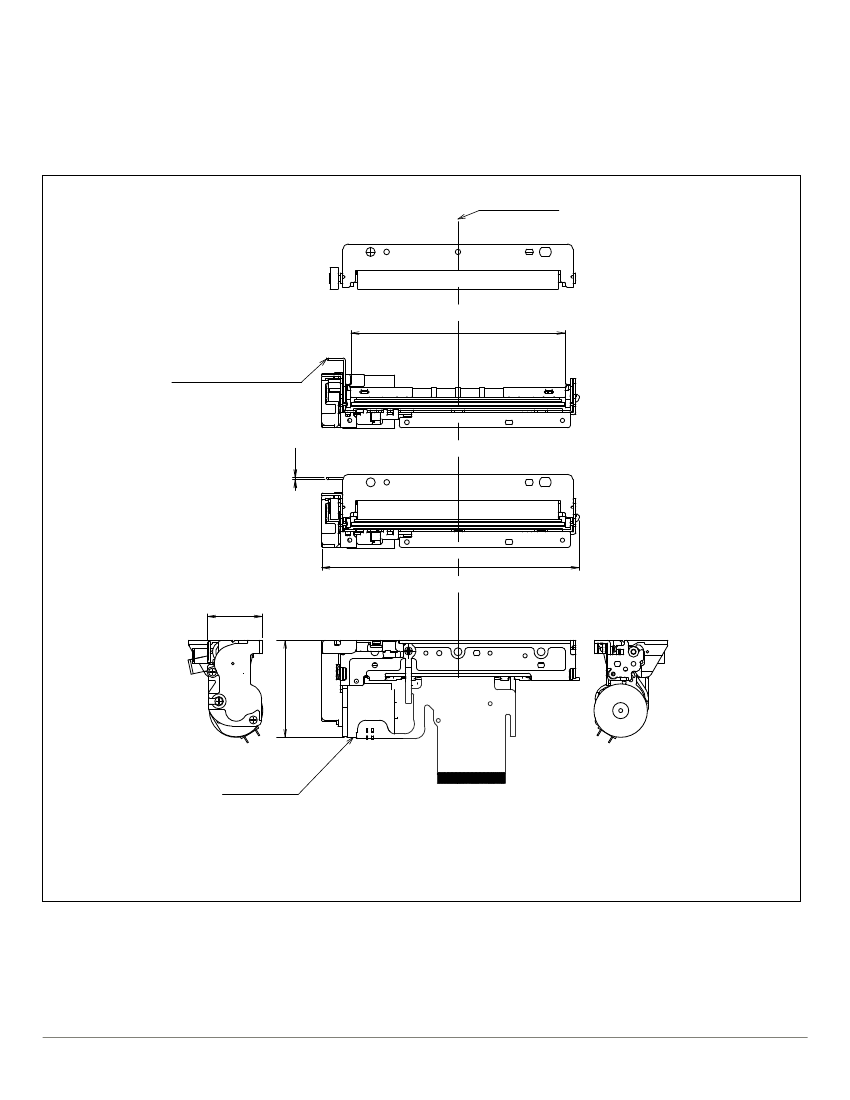

Printer mechanism 3-inch
FTP-63GMCL153
Paper center
(Platen unit)
(At platen release)
Platen release lever
80mm
(Paper width)
0.8
96.2
20.4
Feed motor
Note:
1. Dimensions are nominal value )tolerance ±0.5mm unless otherwise specified.
2. Dimensions in ( ) is reference value.
36.3
Page 4 of 7
http://us.fujitsu.com/thermal-printers
Data Sheet
FUJITSU Component Thermal Printer
FTP-63GMCL153/453
•

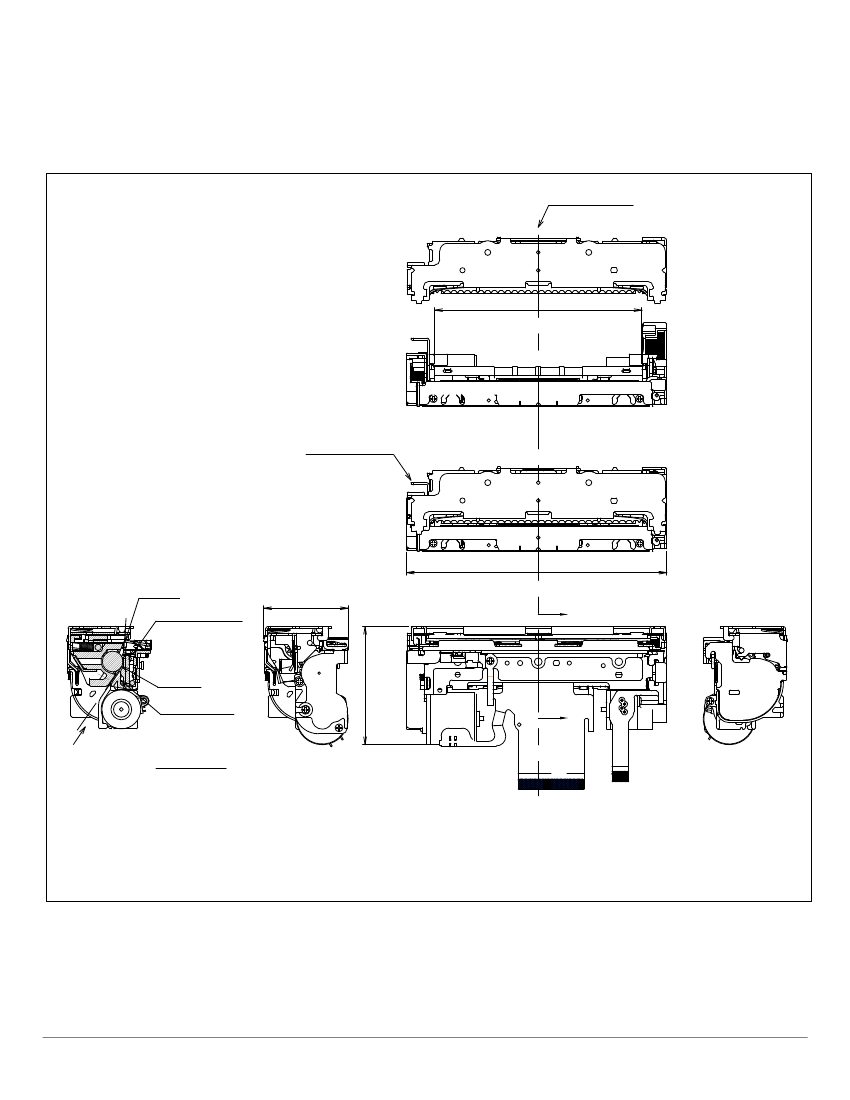

Printer mechanism / cutter 3-inch
FTP-63GMCL453
Paper center
80mm (Paper width)
Platen
release lever
100.5
Cutter
Thermal head
32.6
A
Platen
Paper guide
Paper root
45.6
A
SECTION A-A
Note:
1. Dimensions are nominal value )tolerance ±0.5mm unless otherwise specified.
2. Dimensions in ( ) is reference value.
Page 5 of 7
http://us.fujitsu.com/thermal-printers
