5311R2KL.5ST: DescriptionPrecision Potentiometer 2K ohm Stop Single-Turn; CategoryPassive components Potentiometer, the spinner and rheostat Precision potentiometer; File Size677KB，3 Pages; ManufacturerTT Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

5311R2KL.5ST Overview

Precision Potentiometer 2K ohm Stop Single-Turn

5311R2KL.5ST Parametric

Parameter Name	Attribute value
Maker	TT Electronics
Product Category	Precision potentiometer
series	5311
Termination type	Turret
product	Single Turn Precision Potentiometer
Installation style	Panel Mount
Linear	0.5 %
Number of revolutions	1 Turn
Number of linkages	1 Gang
resistance	2 kOhms
Shaft diameter	6.342 mm
Shaft length	12.67 mm
Voltage rating	400 V
Component type	Wirewound
Shaft type	Round / Plain
Tolerance	3 %
Minimum operating temperature	- 25 C
Maximum operating temperature	+ 85 C
Encapsulation	Bulk
Power rating	2 W
Factory packaging quantity	10

Preview

Download Datasheet

View All

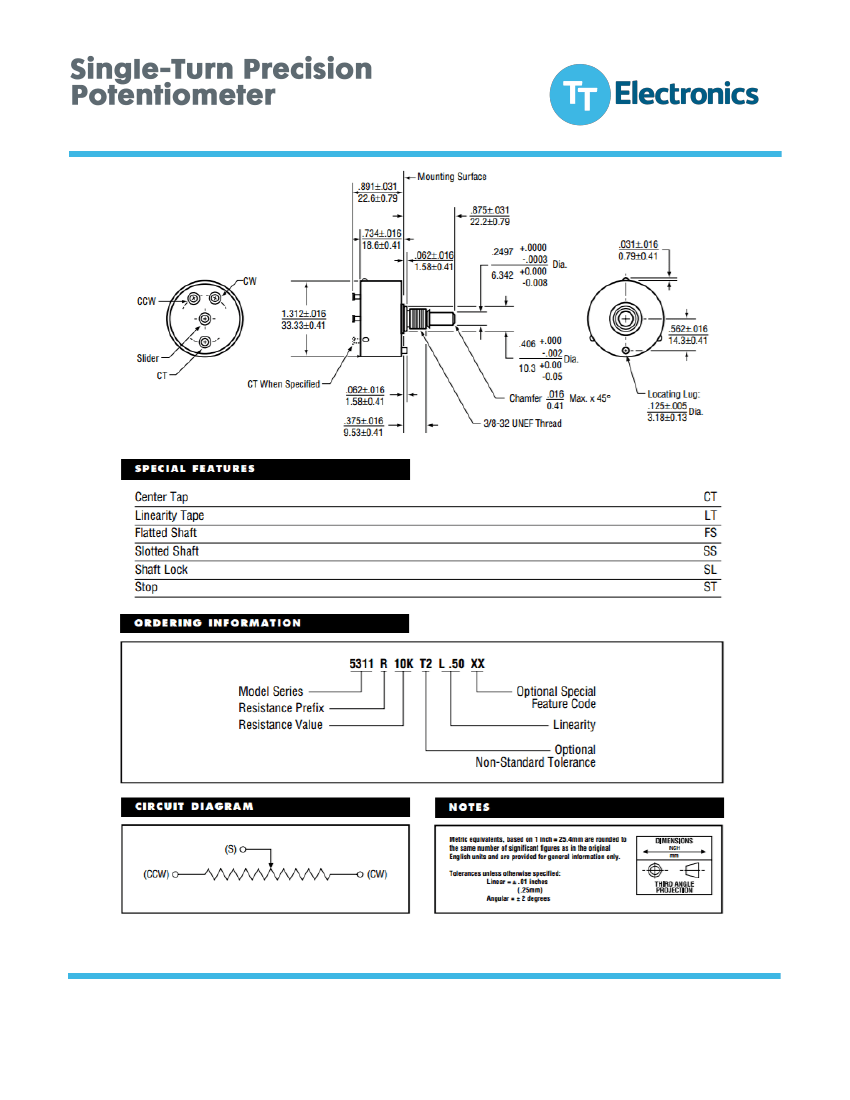

Model 5311

Features:



1-5/16” diameter



Wirewound

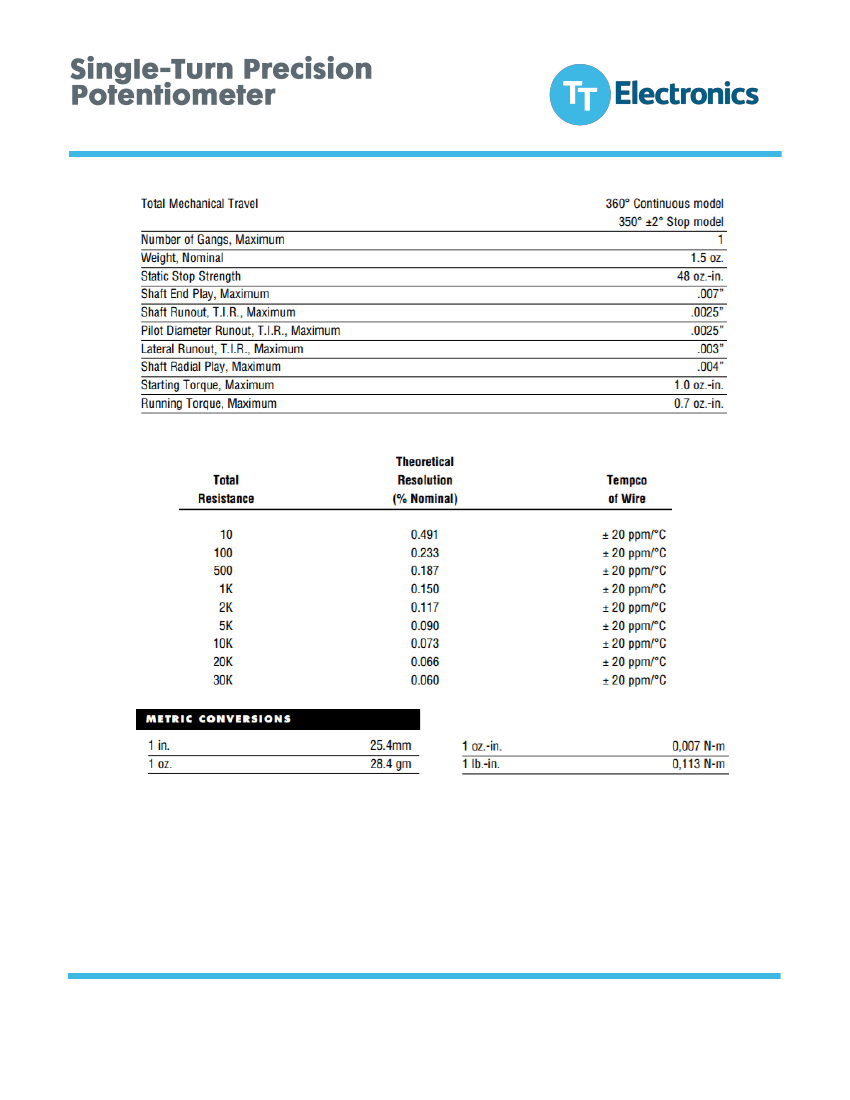

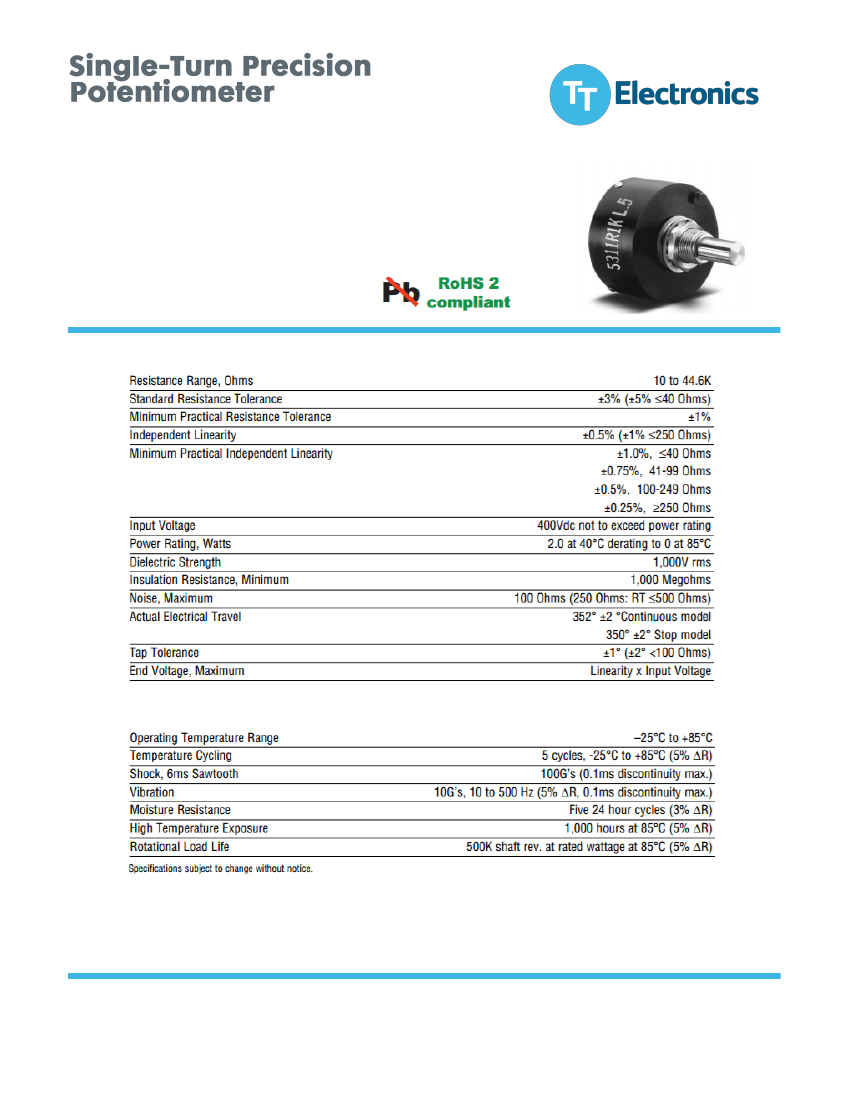

Electrical

Environmental

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

BI Technologies

4200 Bonita Place, Fullerton, CA 92835 |Ph: +1 714 447 2300

www.bitechnologies.com | www.ttelectronics.com

Issue B

02/2015

Page 1

5311R2KL.5ST Related Products

	5311R2KL.5ST	5311R10KL.5ST	5311R1KL.5	5311R1KL.5SS	5311R1KL.5ST	5311R500L.5ST	5311R10KL.5CT
Description	Precision Potentiometer 2K ohm Stop Single-Turn	Precision Potentiometer 10K ohm 3% Single Turn	Precision Potentiometer 1K ohm 3% Single Turn	Precision Potentiometer 1K ohm 3% Single Turn	Precision Potentiometer 1K ohm 3% Single Turn	Precision Potentiometer 500 ohm Stop Single-Turn	Precision Potentiometer 10K ohm Stop Single-Turn
Maker	TT Electronics	TT Electronics	TT Electronics	TT Electronics	TT Electronics	TT Electronics	TT Electronics
Product Category	Precision potentiometer	Precision potentiometer	Precision potentiometer	Precision potentiometer	Precision potentiometer	Precision potentiometer	Precision potentiometer
series	5311	5311	5311	5311	5311	5311	5311
Termination type	Turret	Turret	Turret	Turret	Turret	Turret	Turret
product	Single Turn Precision Potentiometer	Single Turn Precision Potentiometer	Single Turn Precision Potentiometer	Single Turn Precision Potentiometer	Single Turn Precision Potentiometer	Single Turn Precision Potentiometer	Single Turn Precision Potentiometer
Installation style	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount
Linear	0.5 %	0.5 %	0.5 %	0.5 %	0.5 %	0.5 %	0.5 %
Number of revolutions	1 Turn	1 Turn	1 Turn	1 Turn	1 Turn	1 Turn	1 Turn
Number of linkages	1 Gang	1 Gang	1 Gang	1 Gang	1 Gang	1 Gang	1 Gang
resistance	2 kOhms	10 kOhms	1 kOhms	1 kOhms	1 kOhms	500 Ohms	10 kOhms
Shaft diameter	6.342 mm	6.342 mm	6.342 mm	6.342 mm	6.342 mm	6.342 mm	6.342 mm
Shaft length	12.67 mm	12.67 mm	12.67 mm	12.67 mm	12.67 mm	12.67 mm	12.67 mm
Voltage rating	400 V	400 V	400 V	400 V	400 V	400 V	400 V
Component type	Wirewound	Wirewound	Wirewound	Wirewound	Wirewound	Wirewound	Wirewound
Shaft type	Round / Plain	Round / Plain	Round / Plain	Slotted	Round / Plain	Round / Plain	Round / Plain
Tolerance	3 %	3 %	3 %	3 %	3 %	3 %	3 %
Minimum operating temperature	- 25 C	- 25 C	- 25 C	- 25 C	- 25 C	- 25 C	- 25 C
Maximum operating temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C
Encapsulation	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Power rating	2 W	2 W	2 W	2 W	2 W	2 W	2 W
Factory packaging quantity	10	10	10	10	10	10	10
Shipping restrictions	-	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
