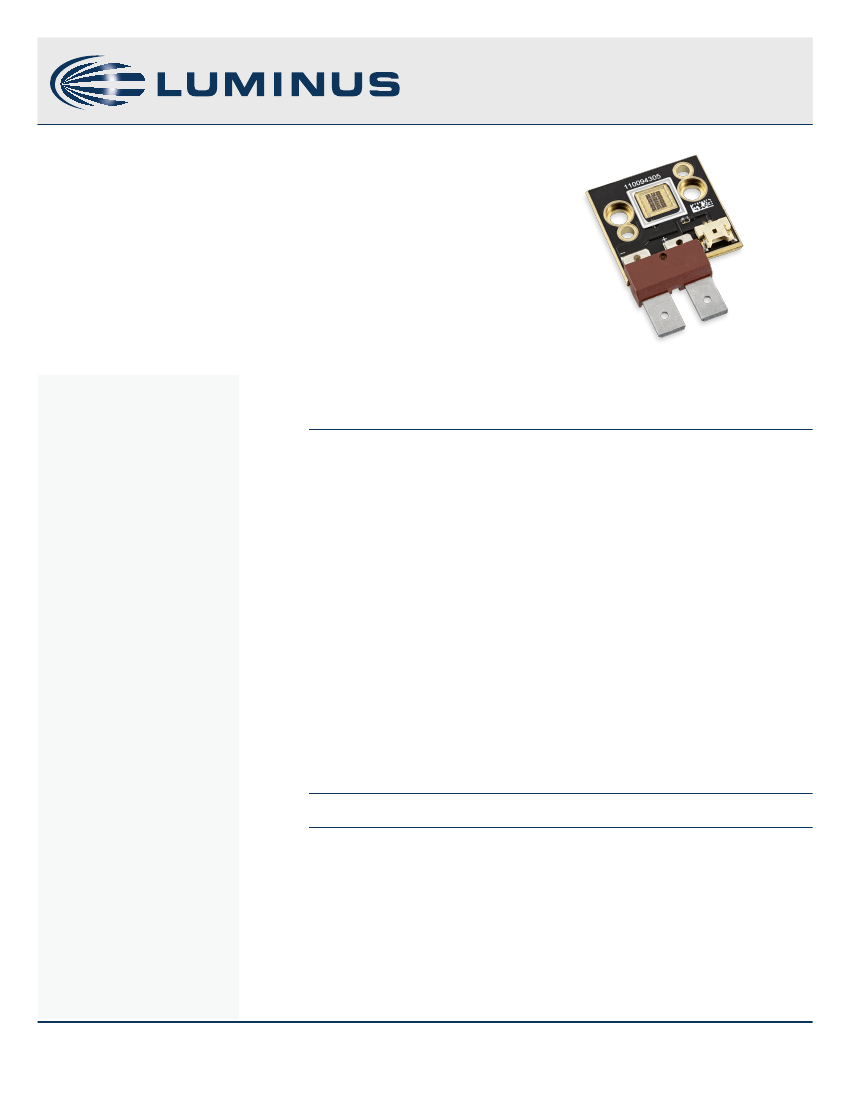

CBM-120-FR Product Datasheet
CBT-120 Product Datasheet
CBM-120
Mosaic Array Series
Far Red Chip On Board LEDs
Features:
•
Mosaic Array Far Red LED chipset with surface emitting area of 12 mm
2
, 4:3 aspect
ratio
•
Vertical chip LED technology for high power density and uniform emission
•
High thermal conductivity copper coreboard package
•
Can be operated at variable drive currents up to 18A
Table of Contents
Technology Overview . . . . . .2
Binning Structure . . . . . . . . . .3
Ordering Information . . . . . .4
Optical & Electrical
Characteristics . . . . . . . . . . . . .5
Thermal Resistance . . . . . . . .8
Electrical Pinout . . . . . . . . . . .8
Mechanical Dimensions . . . .9
Packaging Information . . . 10
Revision History . . . . . . . . . . 12
Applications:
•
Inspection
•
Machine Vision
•
Fiber-coupled illumination
•
Medical and Scientific
Instrumentation
1
PDS-002546 Rev 02
© 2016 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
CBM-120-FR Product Datasheet
Technology Overview
Luminus LEDs benefit from innovations in device technology, chip packaging and thermal management. This suite of technologies give
engineers and system designers the freedom to develop solutions both high in power and efficiency.
Luminus Mosaic Array LED Technology
Luminus’ Devices vertical chip technology enables LED chips
with uniform brightness over the entire chip surface. The optical
power and brightness produced by these densely packed arrays
of devices enable solutions not possible with single chip
packages that be used to replace arc and halogen lamps.
Reliability
With designs based on years of chip and packaging
development experience, Luminus LEDs are one of the most
reliable light sources in the world today. Luminus LEDs pass a
rigorous suite of environmental and mechanical stress tests,
including mechanical shock, vibration, temperature cycling and
humidity, and have been fully qualified for use in extreme high
power and high current applications.
Packaging Technology
Thermal management is critical in high power LED applications.
With a thermal resistance from junction to heat sink of 0.6 ºC/W,
Luminus CBM-120 LEDs have the lowest thermal resistance of
any packaged LED on the market. This will allow the LEDs to be
driven at higher current densities while maintaining a low
junction temperature, thereby resulting in brighter solutions
and longer lifetimes.
Environmental Benefits
Luminus LEDs help reduce power consumption and the amount
of hazardous waste entering the environment. All LED products
manufactured by Luminus are RoHS and Halogen compliant
and free of hazardous materials, including lead and mercury.
Understanding Mosaic Array LED Test Specifications
Every Luminus LED is fully tested to ensure that it meets the high quality standards expected from Luminus’ products.
Testing Temperature
Luminus core board products are typically measured in such a
way that the characteristics reported agree with how the
devices will actually perform when incorporated into a system.
This method of measurement ensures that Luminus LEDs
perform in the field just as they are specified.
Multiple Operating Points
The tables on the following pages provide typical optical and
electrical characteristics for the standard drive conditions. Since
the LEDs can be operated over a wide range of drive conditions
and duty cycles from <1% to 100% there are many other
potential values attainable. Driving devices beyond
recommended driving conditions shortens lifetime.
2
PDS-002546 Rev 02
© 2016 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
CBM-120-FR Product Datasheet
CBM-120-FR Binning Structure
All CBM-120-FR LEDs are tested for radiometric power / peak wavelength and placed into one of the following flux / wavelength bins.
Color
Radiometric Power Bin
(FF)
RA
RB
Min Radiometric
Power (Watts) @ 9A
4.6
5 .8
7 .0
8 .2
9.4
Max Radiometric
Power (Watts) @ 9A
5 .8
7 .0
8 .2
9.4
10.6
Far Red (Radiometric Power)
RC
RD
RE
Note: Luminus maintains a +/-6% tolerance in flux measurements.
Color
Far Red (Peak Wavelength)
Peak Wavelength Bin
P730
P735
Min Peak Wavelength
@ 9A
730
735
Max Peak Wavelength
@ 9A
735
740
3
PDS-002546 Rev 01
© 2016 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
CBM-120-FR Product Datasheet
Ordering Information
Products
CBM-120-FR
Ordering Part Number
CBM-120-FR-C15-FF###
Description
CBM-120 Mosaic Array chipset consisting of 12x1mm2 Far Red LEDs, a
thermistor, connectors, and a square copper-core PCB.
Part Number Nomenclature
CBM
Product Family
CBM: Copper-
core PCB, Multi
Chip Array, No
Encapsulation
120
Chip Area
CC
Color
C##
Package Configuration
C15: 28 mm x 26.75 mm - Common
Anode Package
See Mechanical Drawing section
FF###
Bin Kit
1,2
120: 12 mm
2
FR= Far Red
See page 3
for complete bin
definition table
Note 1:
Note 2:
A Bin Kit represents a group of individual flux or power bins that are shippable for a given ordering part number. Individual flux bins are not orderable.
Flux Bin listed is minimum bin shipped - higher bins may be included at Luminus’ discretion
CBM-120-FR Orderable Bin Kits
Color
Far Red
Radiometric Power
Min. Flux Bin
RA
Min Power
4.6W
Max Power
10.6W
Peak Wavelength Bins
P730, P735
Kit Number
RA100
4
PDS-002546 Rev 02
© 2016 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
CBT-120 Product Datasheet
CBM-120-FR Product Datasheet
Reference Optical & Electrical Characteristics (T
hs
= 40°C)
FAR RED
Parameter
Drive Conditions
2
Peak Wavelength Typ.
Current Density
Forward Voltage
Radiometric Flux
FWHM- Spectral bandwidth at 50% of Φv
3
Symbol
I
λ
p
j
V
F min
V
F
V
F max
Φ
typ
Values
1
9
735
0 .75
2 .0
2.4
2.8
6.3
32
Unit
A
nm
A/mm
2
V
V
V
W
nm
Parameter
Absolute Minimum Current (CW or Pulsed)
3
Absolute Maximum Current (CW)
4
Symbol
Values
0 .2
18 .0
Unit
A
A
°C
°C
mm
2
mm × mm
Maximum Junction Temperature
5
Storage Temperature Range
Emitting Area
Emitting Area Dimensions
T
jmax
110
-40 to +100
13.5
4.4 × 3.3
Note 1:
Note 2:
Unless otherwise noted, values listed are typical. Devices are production tested and specified at 9 A.
Listed drive conditions are typical for common applications. CBM120-FR devices can be driven at currents ranging from 200 mA to 18 A and at duty
cycles ranging from 1% to 100%. Drive current and duty cycle should be adjusted as necessary to maintain the junction temperature desired to meet
application lifetime requirements.
Special design considerations must be observed for operation under 1 A. Please contact Luminus for further information.
CBM-120-FR LEDs are designed for operation to an absolute maximum current as specified above. Sustained operation at or beyond absolute
maximum currents will result in a reduction of device life time compared to recommended forward drive currents. Actual device lifetimes will also
depend on junction temperature. In pulsed operation, rise time from 10-90% of forward current should be longer than 0.5 μseconds.
Lifetime dependent on LED junction temperature. Input power and thermal system must be properly managed to ensure lifetime.
Note 3:
Note 4:
Note 5:
5
PDS-002546 Rev 02 © 2016 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc.
•
T
978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801
