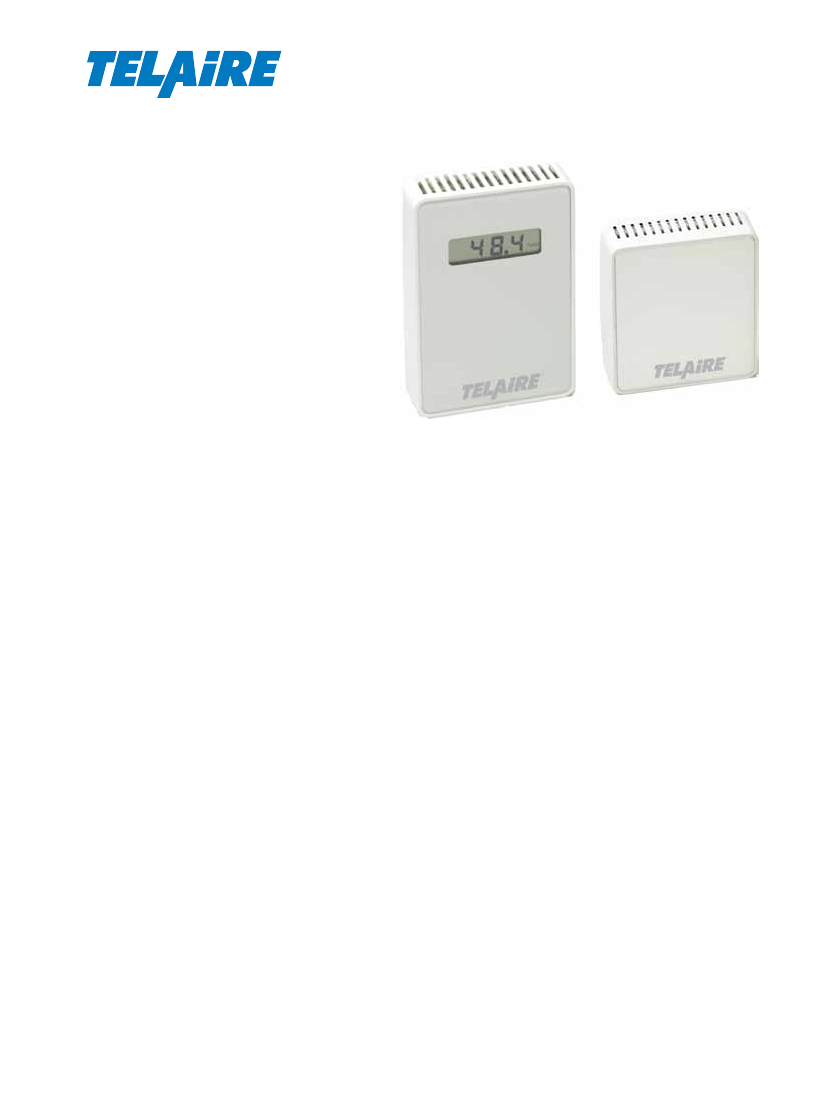

T8700
Wall Mount
Telaire Wall Mount
Humidity and
Temperature Transmitters
Features:
• Precision humidity and temperature transmitter
for HVAC control applications
• Mounting plate with two-piece terminal blocks
provide quick, easy wiring.
• Gas permeable, water resistant humidity
sensor filter prevents particulate and water
contamination of the sensor.
• Field replaceable humidity sensor
• Locking screw secures cover and sensor to the
mounting bracket for tamper resistance.
• Analog outputs 0-5, 0-10V, 4-20 mA
• Display and non-display versions
• Sensors are shipped factory calibrated.
• Active and passive temperature sensor outputs
on all models.
• Modern enclosure with customized branding
available.
• Two available sizes
Amphenol
Advanced Sensors
Humidity
Output
Part
Number
T8700-E
T8700-E-D
T8700
T8700-D
Size
Euro
Euro
US
US
Display
No
Yes
No
Yes
4-20 mA
•
•
•
•
0-5 V
•
•
•
•
0-10 V
•
•
•
•
Temp Output
0-50 °C
4-20 mA
•
•
•
•
0-5 V
•
•
•
•
0-10 V
•
•
•
•
Thermistor 10k II
•
•
•
•
Note: Custom branding is available on request (subject to quantity); contact your local Telaire representative or distributor.
Unsurpassed Sensor Performance
Telaire T8700 utilizes a rugged capacitive sensor that
provides full-scale 0-100% RH measurement with
unsurpassed response times, linearity and stability.
Recovery to condensation and chemicals is excellent
and an integrated filter helps ensure long life. All
sensors undergo intensive digital calibration, certified
against a primary **NIST reference standard. NIST
certificate is available at additional cost (part no.
3PTCERT).
Rugged, Attractive Enclosures
All Telaire T8700 feature rugged flame retardant,
UL-94V ABS plastic. Special care has been taken in
the design of the wall mount enclosure to provide
enhanced airflow, increasing sensor response time
and virtually eliminating the potential of "self-heating"
by transmitter electronics that can lead to decreased
accuracy measurements.
Simple, Fast Installation
All Telaire T8700 models feature a two piece enclosure
with the back plate including terminal blocks
eliminating the need to wire in a confined space and
allow the unit to be pre-wired separate from the
electronics. This is an especially attractive feature in
unfinished construction, where exposed sensors and
electronics could be damaged by moisture, drywall dust
and paint.
Maximum Flexibility
Telaire T8700 is designed to be highly configurable
in the field or in your warehouse. By minimizing the
necessary number of configurations, Telaire reduces
distributor inventory costs and provides maximum
flexibility to the installer. All versions feature field-
selectable outputs (0 to 5V, 0 to 10V, 4 to 20mA) and a
passive and 10K Type II thermistor. Signal-conditioned
temperature is scaled from 32°F to 122°F (0°C to 50°C)
and Relative Humidity is scaled over 0-100%.
Lowest Cost of Ownership
With a two-year warranty*, simplified inventory
management, reduced installation times and field-
serviceability, Telaire T8700 is a standard in reduced
cost of ownership and performance-to-price ratio.
*Transmitter only, one year warranty on replaceable sensor.
*NIST/NPL certificate available on complete transmitter at
extra cost.
Multi Measurement

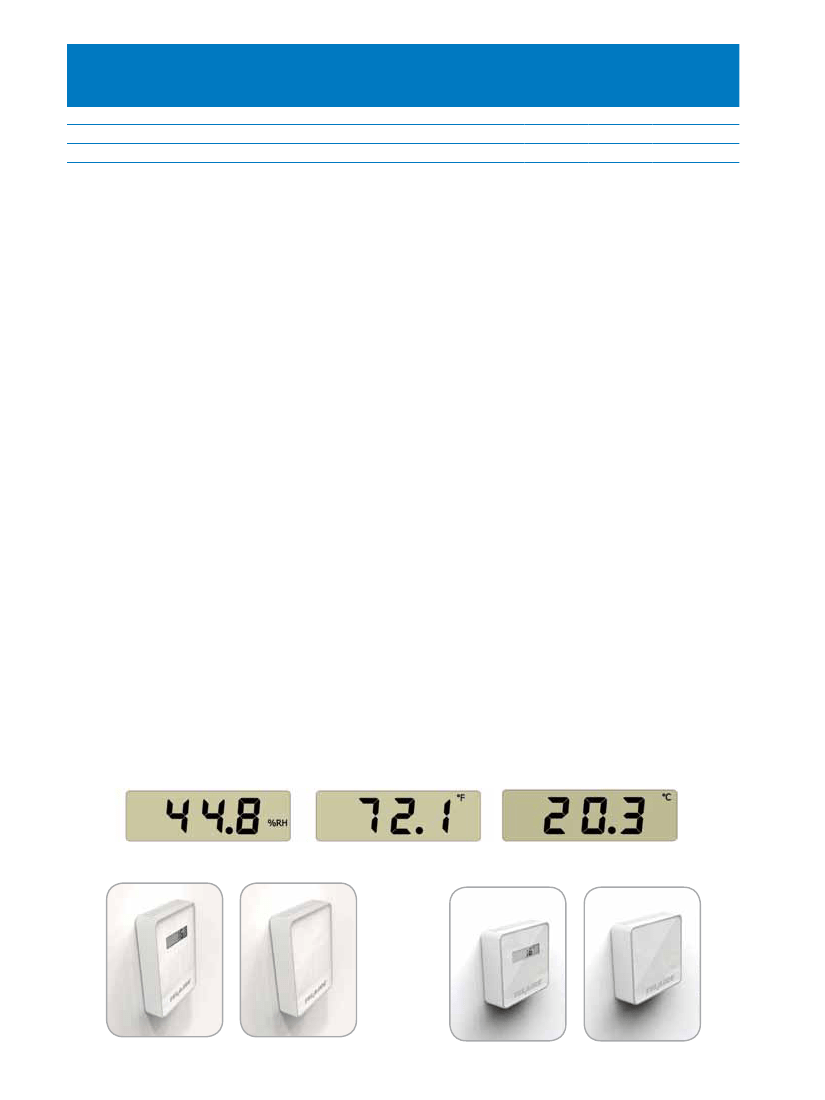

Display versions scroll between % Relative Humidity and Temperature (°C or °F)..
US sizes, both display and non-display
European sizes (shows temperature in °C)

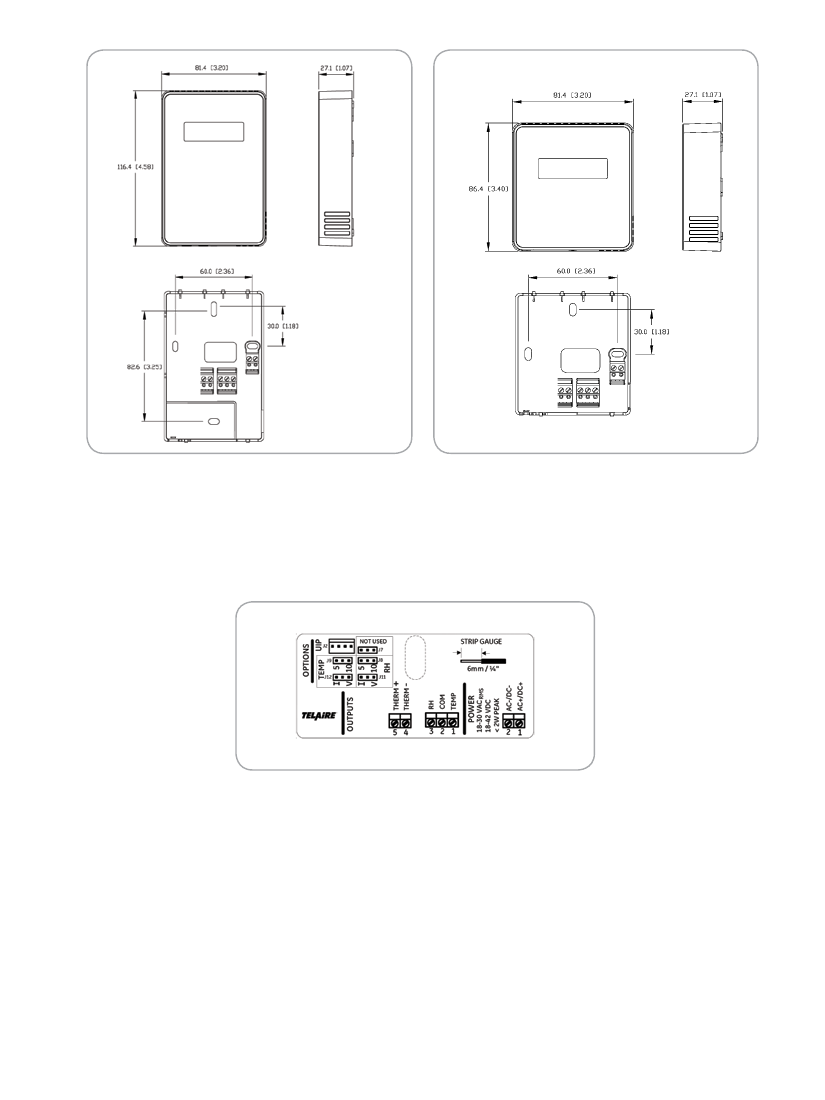

US wall mount dimensions
European wall mount dimensions
Wiring Features
Telaire T8700 is fast and simple to install; the wiring diagram label shown is fixed to the inside of the back plate,
making it easy to read and reducing the risk of miswiring. After wiring is complete, the front part of the enclosure,
including the electronics, can be simply snapped on and held with a single safety screw.
Wall Mount Specifications
Sensing Method
RH Accuracy (25°C)
Fully integrated humidity and temperature
±2.5% RH (20 to 80% RH)
±3.5% RH (<20% and >80% RH)
Power Supply Requirements
18-30 VAC RMS, 50/60 Hz, or 18 to 42 VDC,
polarity protected
Active Temperature Range
0 to 50°C
Power Consumption
Typical 0.7 W at nominal voltage of 24V AC RMS
Active Temperature Accuracy
±0.8°C @ 22°C
Temperature Dependence
Warranty
Two years
0.2% FS per °C (±0.11% per °F)
Output
• 0 to 10 V (100 W output impedance) and
• to 20mA (R
L
maximum 500 W) available
4
simultaneously
• igital to Analog Error ±1%
D
Analog
Certifications
CE and RoHS compliant
Operating Conditions
• 32°F to 122°F (0°C to 50°C)
• 0 to 95% RH, non-condensing

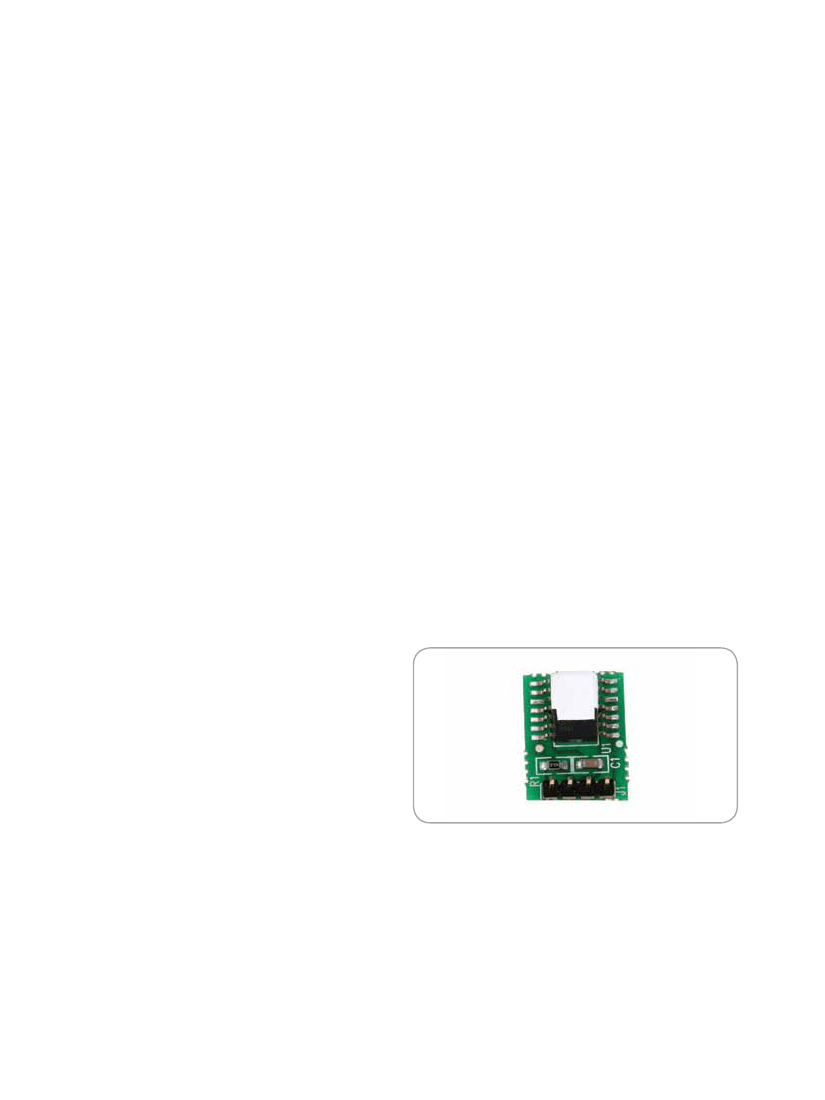

Enhanced Field Serviceability
The T8700 series features a field-replaceable Relative
Humidity (RH) sensor tip module that allows the end
user to replace the sensor on-site while maintaining
±2.5% RH accuracy. The user simply powers off the
unit, installs the new sensor module and powers
back the unit. This virtually eliminates the need for
time consuming and costly factory calibration, while
reducing downtime during service intervals to near
zero.
Storage Conditions
-40°F to 158°F (-40°C to 70°C)
Flammability Classification
UL94 5VA
Thermistor Type
NTC 10 K W thermistor (passive)
datasheet available on request.
Thermistor Accuracy
±1°C (15° to 35°C)
RH Sensing Element
RH Range
Capacitive polymer sensor
0% to 99% RH (non-condensing)
Replaceable,humidity sensor. Specially designed hydrophobic filter to prolong
sensor calibration life.
Amphenol
Advanced Sensors
www.telaire.com
www.amphenol-sensors.com
© 2014 Amphenol Corporation. All Rights Reserved. Specifications are subject to change without notice.
Other company names and product names used in this document are the registered trademarks or
trademarks of their respective owners.
AAS-920-543C-03/2014
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Amphenol
:
T8700 T8700-D
