REVISIONS
REV
DESCRIPTION, ECN, EAR NO.
H
DATE
APP'D
A
PROPOSAL DRAWING (EAR 14408)
PROPOSAL DRAWING (EAR 14408)
MAY24/16
FEB28/17
K.L.
K.L.

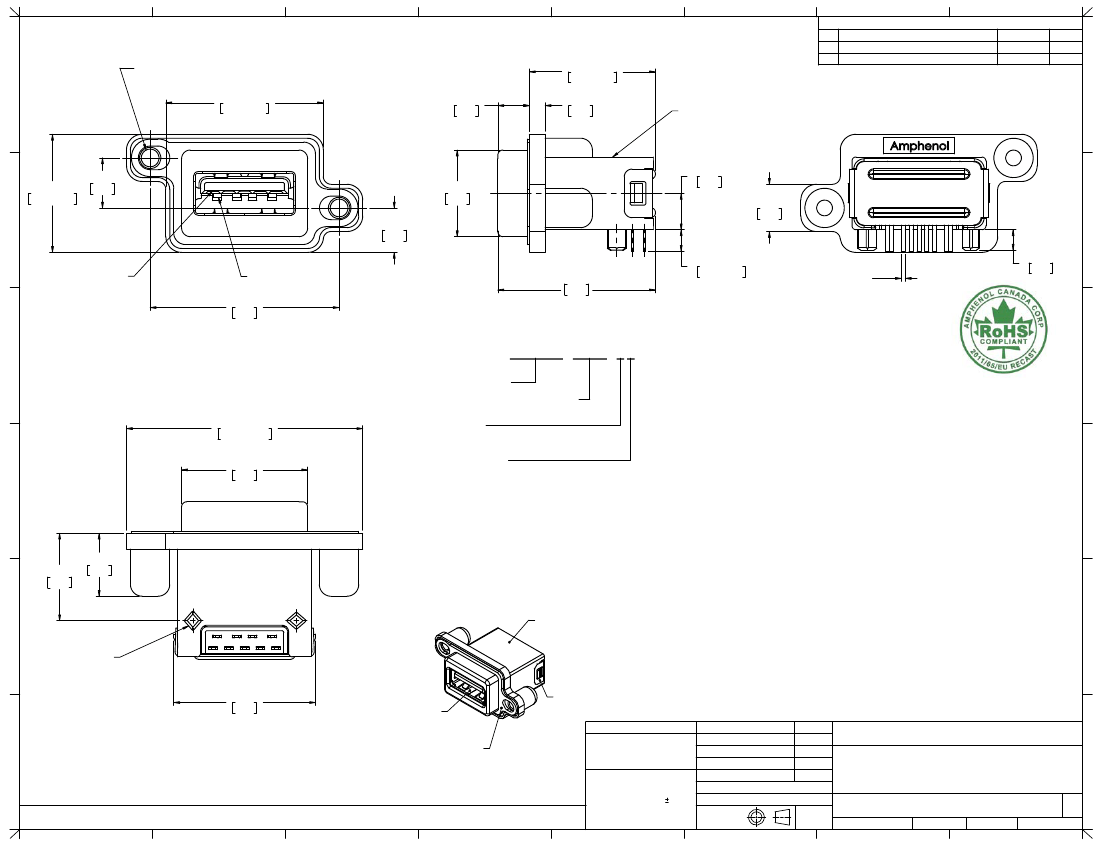

1
5.50 [.217] DEEP THREADED
HOLES, SEE ORDERING
CODE THREAD OPTION
1
16.00±0.30
.630±.012
4.00
.157
2.00
.079
B
20.00±0.25
.787±.010
DATE CODE
INK MARKING
15.00±0.25
.591±.010
2
6.35
.250
11.00
.433
5.65
.222
4.62
.182
6.00
.236
2
CONTACT
POSITION #9
CONTACT
POSITION #1
24.00
.945
20.00
.787
REF
2.75±0.30
.108±.012
0.50 [.020] x
0.25 [.010]
PCB TAIL
2.60
.102
3
ORDERING CODE: M U S B R - 3 1 9 3 - X X
SERIES, RUGGED USB
USB 3.0 STANDARD 'A' RECEPTACLE,
RIGHT ANGLE PCB TAIL
30.00±0.25
1.181±.010
16.00
.630
THREAD OPTION
3 = #4-40 UNC THREAD
M = M3 x 0.5 THREAD
DUST COVER OPTION
0 = NO DUST COVER SUPPLIED
1 = WITH GREY DUST COVER SUPPLIED
5 = WITH BLACK DUST COVER SUPPLIED
SPECIAL CONNECTORS:
MANY UNIQUE FEATURES ARE READILY
AVAILABLE TO SUIT CUSTOMER
REQUIREMENTS. CONSULT WITH
AMPHENOL CANADA FOR DETAILS.
3
NOTES:
1.
MATERIAL:
•
ALL MATERIALS ARE RoHS COMPLIANT PER EU DIRECTIVE 2011/65/EU AND
AMENDMENTS
•
OUTER SHELL - DIECAST ZINC ALLOY, MATTE TIN OVER NICKEL PLATED
•
CONTACTS - PHOSPHOR BRONZE & COPPER ALLOY, PLATED WITH 0.76 µm (30 µ")
GOLD OVER 1.27 µm (50 µ") MINIMUM NICKEL ON THE MATING AREA WITH MATTE
TIN PLATING ON THE TAILS.
•
HOUSINGS - ENGINEERING THERMOPLASTIC, HIGH TEMPERATURE RESISTANT,
FLAMMABILITY RATING UL94V-0, MATING AREA - BLUE, OTHERS - BLACK
•
USB SHIELD & REAR COVER - STAINLESS STEEL, PASSIVATED
•
PANEL GASKET - CONDUCTIVE SILICONE RUBBER, BLACK
•
DUST COVER - SILICONE RUBBER WITH NICKEL PLATED BRASS BUSHING. SEE
ORDERING CODE FOR DUST COVER COLOUR OPTIONS. SEE SHEET 2 FOR DUST
COVER VIEWS.
ENVIRONMENTAL PERFORMANCE PER IEC 60529 CODE IP67 FOR SEAL BETWEEN
MATING AREA AND PCB SIDE OF CONNECTOR. GASKET PROVIDES SEAL TO INSIDE
FACE OF ENCLOSURE PANEL. AVAILABLE DUST COVERS PROVIDE ADDED
PROTECTION.
CURRENT RATING: 1.8A MAX. FOR POSITIONS 1 & 4, 0.25A MAX. FOR REMAINING
POSITIONS
CONTACT RESISTANCE: 30 MILLIOHMS MAX. FOR POSITIONS 1 & 4, 50 MILLIOHMS MAX.
FOR REMAINING POSITIONS
OPERATING TEMPERATURE: -40°C TO +105°C.
DUST COVERS MAY BE ORDERED SEPARATELY. SPECIFY
•
PART NUMBER MUSB-2A111-014BP FOR THE GREY COVER OR
•
PART NUMBER MUSB-2A111-024BP FOR THE BLACK COVER.
B.COPPING MAY24/16
K.LAMBIE MAY24/16
4
4
11.10
.437
8.00
.315
2.
3.
5
DIECAST SHELL
4.
2.38 [.094] MAJOR
DIAGONAL DIAMOND
PEGS MAY BE USED FOR
A) ASSEMBLY FRICTION
FIT IN PCB HOLES.
B) GROUND CONNECTION
TO PCB WHEN SOLDERED
5.
18.00
.709
6.
REAR COVER
USB 3.0 STANDARD
'A' RECEPTACLE
CONDUCTIVE
PANEL GASKET
PRIMARY UNITS
SECONDARY
5
UNLESS SPECIFIED OTHERWISE DRAWN
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
Amphenol Canada Corp.
www.amphenolcanada.com
6
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
ENG. REL. NO.
EAR 14408
MUSBR RUGGED USB CONNECTOR,
3.0 STANDARD 'A' RECEPTACLE, RIGHT
ANGLE PCB TAIL, THREAD & DUST
COVER OPTIONS, RoHS COMPLIANT
DWG.
NO.
REV
6
0.15
REF.
THIRD
ANGLE
PROJECTION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR
ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-MUSBR-3193-XX
03554
DWG SIZE:
X
SCALE:
B
SHEET
4:1
H
1
OF
2
E
F
G
A
B
C
D
E
F
G
REVISIONS
H

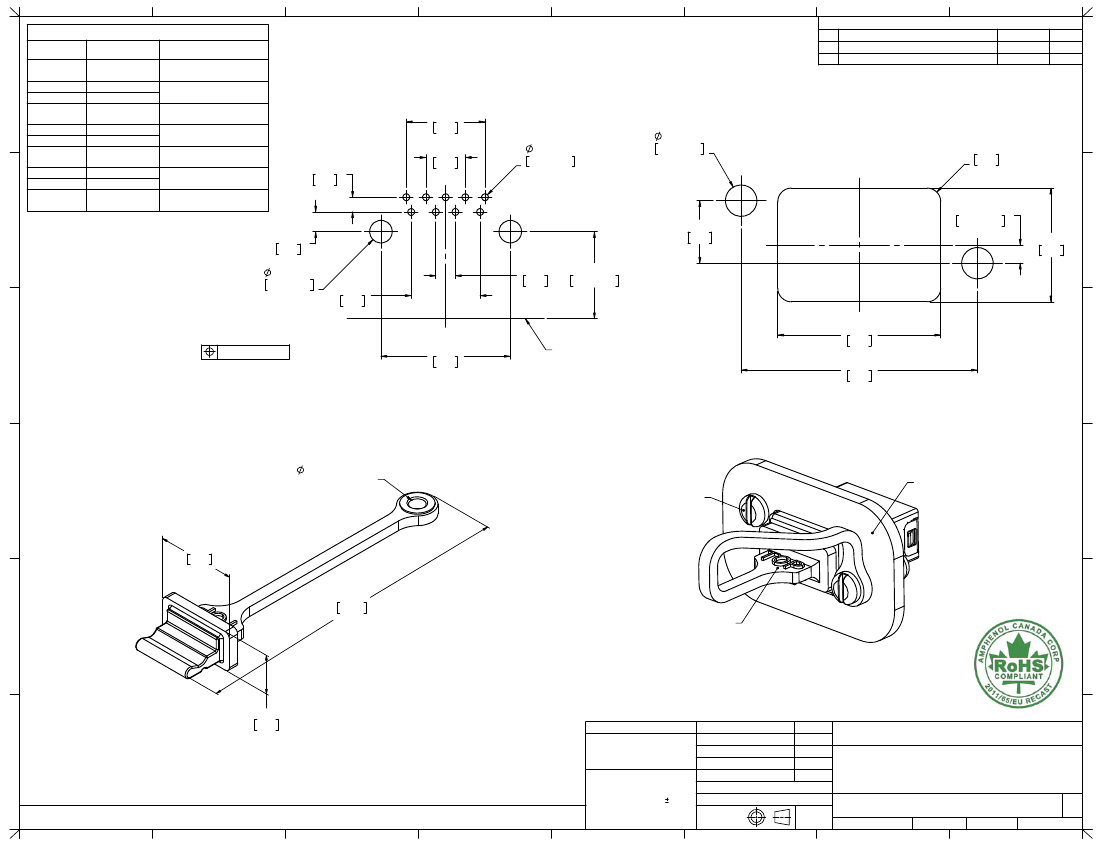

PIN ASSIGNMENT CHART
POSITION # SIGNAL NAME
1
1
REV
DESCRIPTION, ECN, EAR NO.
DATE
APP'D
DESCRIPTION
POWER
USB 2.0
DIFFERENTIAL PAIR
GROUND FOR POWER
RETURN
SS RECEIVER
DIFFERENTIAL PAIR
GROUND FOR SIGNAL
RETURN
SS TRANSMITTER
DIFFERENTIAL PAIR
CONNECTOR METAL
SHELL
2.00
.079
2.30±0.05
.091±.002
2 PLCS
2.00
.079
8.85 MAX
.348 MAX
A
B
PROPOSAL DRAWING (EAR 14408)
PROPOSAL DRAWING (EAR 14408)
MAY24/16
FEB28/17
K.L.
K.L.
1
VBUS
D-
D+
GND
STDA_SSRX-
STDA_SSRX+
GND_DRAIN
STDA_SSTX-
STDA_SSTX+
SHIELD
2
3
4
5
6
7
8
9
SHELL
8.00
.315
4.00
.157
0.70±0.05
.028±.002
9 PLCS
6
3
4
5
1.50
.059
9
1
8
2
3.20±0.08
.126±.003
2 PLCS
R1.38
.054
TYP
7
2
6.35
.250
1.85±0.08
.073±.003
11.55
.455
2
7.00
.276
3
LOCATE HOLES
0.13 [.005] DIA
POSITION DIMENSIONS
ARE BASIC
13.14
.517
16.55
.652
EDGE OF
PCB
3
24.00
.945
RECOMMENDED PCB LAYOUT
COMPONENT SIDE OF BOARD
RECOMMENDED PANEL CUTOUT
OUTSIDE VIEW OF PANEL
3.05 [.120]
MOUNTING HOLE
4
ENCLOSURE PANEL
MOUNTING SCREWS
(NOT SUPPLIED)
4
16.00
.630
REF
65.00
2.559
REF
5
COVER HANDLE
WITH MARK "TOP"
5
DUST COVER APPLICATION VIEW
8.00
.315
REF
6
DUST COVER OPTION
SEE ORDERING CODE
UNLESS SPECIFIED OTHERWISE DRAWN
PRIMARY UNITS
SECONDARY
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
B.COPPING MAY24/16
K.LAMBIE MAY24/16
Amphenol Canada Corp.
www.amphenolcanada.com
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
ENG. REL. NO.
EAR 14408
MUSBR RUGGED USB CONNECTOR,
3.0 STANDARD 'A' RECEPTACLE, RIGHT
ANGLE PCB TAIL, THREAD & DUST
COVER OPTIONS, RoHS COMPLIANT
DWG.
NO.
REV
6
0.15
REF.
THIRD
ANGLE
PROJECTION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR
ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-MUSBR-3193-XX
03554
DWG SIZE:
X
SCALE:
B
SHEET
5:1
H
2
OF
2
E
F
G
