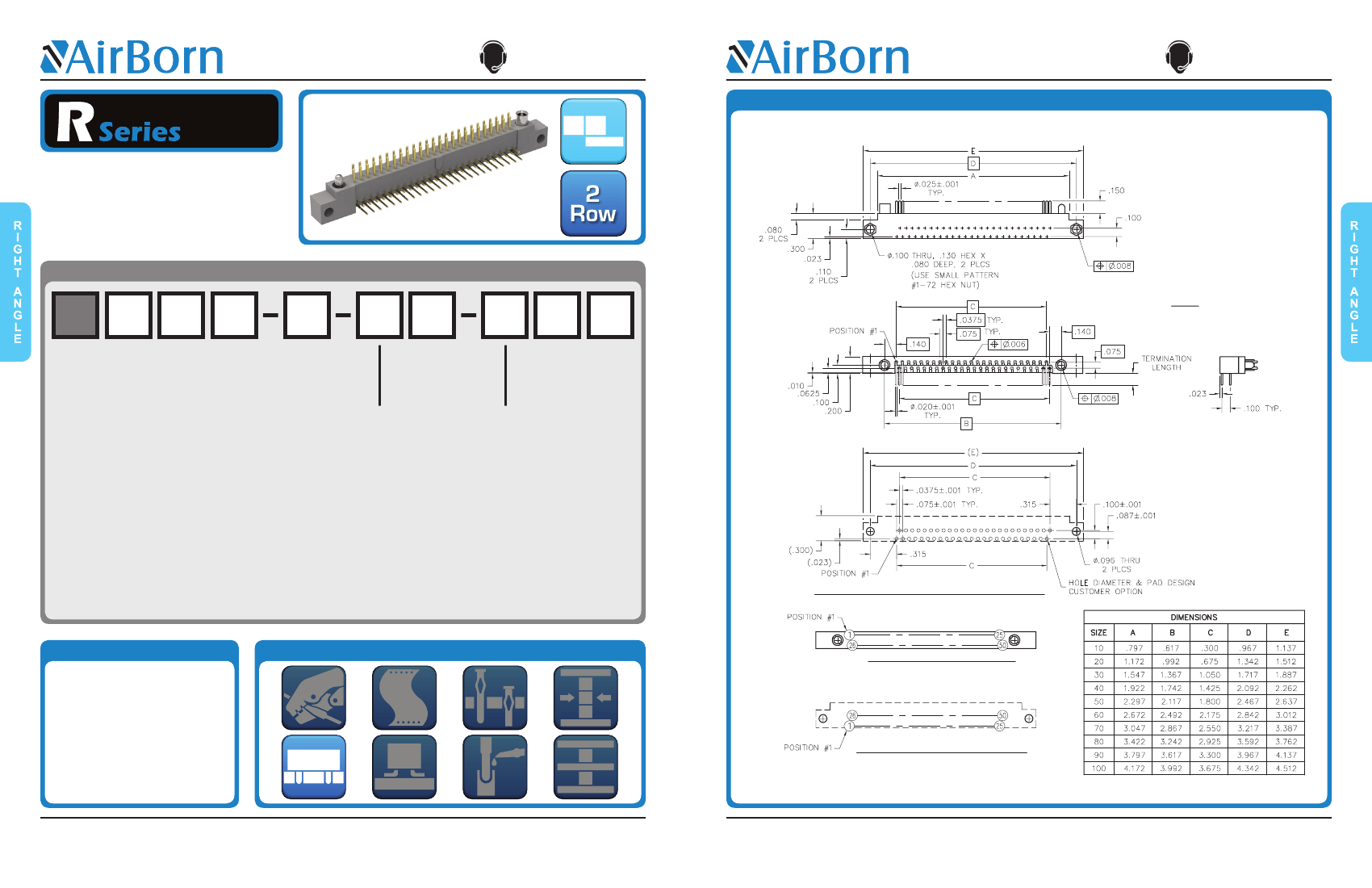

RM – Two-Row, Right-Angle, Board-Mount Plug
CONTACT CUSTOMER SERVICE
High-Density
0.075"
(1.905mm)
RM – Two-Row, Right-Angle,
Board-Mount Plug
Contact Spacing: 0.075" (1.91 mm)
R-Series products are high-density, plastic
connectors commonly used in board-to-board
applications. Approved to MIL-55302 standard.
Plastic ▪ 2-Row ▪ 10-100 Contacts
Sample Part Number Format: RM252-100-312-5500
RM
SERIES
0.075" Plastic
Rectangular
Connector
(Plug)
2
ROWS
2 – 2-Row
(10-100
contacts)
2
STYLE
BODY MATERIAL
5 – Plug, right- 2 – Polyphenylene
angle with
sulfide (PPS)
mounting ears
7 – Plug, right-
angle without
mounting ears
SIZE
010 – 10 contacts
020 – 20 contacts
030 – 30 contacts
040 – 40 contacts
050 – 50 contacts
060 – 60 contacts
070 – 70 contacts
080 – 80 contacts
090 – 90 contacts
100 – 100 contacts
PLATING
1 – Gold
2 – Pre-tinned,
SnPb alloy ‡
3 – Pre-tinned,
SAC305 alloy
TERMINATION
31 – Plated thru-hole, 0.109" x 0.020" Ø
32 – Plated thru-hole, 0.140" x 0.020" Ø
33 – Plated thru-hole, 0.172" x 0.020" Ø
34 – Plated thru-hole, 0.109" x 0.016" Ø
35 – Plated thru-hole, 0.140" x 0.016" Ø
36 – Plated thru-hole, 0.172" x 0.016" Ø
37 – Plated thru-hole, 0.250" x 0.020" Ø
POLARIZA-
OPTIONS
TION
BN – Bond #1-
00 – None
72, small
XX – See page
patern hex
140 for
nuts into
codes
mounting
70 – Same as
ears
above, but
without
HARDWARE
Loctite®
0256 – None
(customer-
55 – Guide set
keyed)
57 – Two guide pins
58 – Two guide sockets
29 – Fixed jackset
30 – Fixed jackset, reversed
19 – Two fixed jackscrews
20 – Two fixed jacksockets
59 – Hex turning jackset, 0.200"
60 – Hex turning jackset reversed, 0.200"
61 – Two hex turning jackscrews, 0.200"
62 – Two hex turning jacksockets, 0.200"
64 – Turning jackset, 0.490"
PLUG
Notes:
‡ Not RoHS-compliant
PCB LAYOUT VIEWED FROM COMPONENT SIDE
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
Mates with
RM222 & RM242 — Two-row,
straight receptacle
RM262 & RM282 — Two-row,
right-angle receptacle
RM222 — Two-row, I/O receptacle
Terminations
PIN IDENTIFICATION PATTERN
VIEWED FROM TERMINATION SIDE
(EXAMPLE: 50 POSITION CONNECTOR)
PCB PIN IDENTIFICATION PATTERN
VIEWED FROM COMPONENT SIDE
(EXAMPLE: 50 POSITION CONNECTOR)
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
RM252-PNB-1
(CTR515, REV. 1)
www.airborn.com
(512 ) 863-5585
RM252-DIM-1
(CTR515, REV. 1)
www.airborn.com
( 512 ) 863-5585
