SS-39500-004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Modular connectors/Ethernet connector> SS-39500-004

SS-39500-004: DescriptionModular Connector/Ethernet Connector Strn Rlf Bt Cat6/ Cat5E Plug Pck= 100; CategoryThe connector Modular connectors/Ethernet connector; File Size719KB，2 Pages; ManufacturerBel; Websitehttp://www.belfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SS-39500-004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SS-39500-004	-	-	View	Buy Now

SS-39500-004 Overview

Modular Connector/Ethernet Connector Strn Rlf Bt Cat6/ Cat5E Plug Pck= 100

SS-39500-004 Parametric

Parameter Name	Attribute value
Maker	Bel
Product Category	Modular Connector/Ethernet Connector
product	Accessories
USOC code	-
Number of locations	-
Number of ports	-
performance category	Cat 6, Cat 5e
Installation style	-
Termination type	-
shield	Unshielded
Current rating	-
Voltage rating	-
color	Clear
Attachment type	Strain Relief
series	QWIK
Contact plating	-
Type	-
Shell material	Polycarbonate (PC)
Installation angle	-
Number of contacts	-
Contact material	-
Flammability rating	-
Factory packaging quantity	1

Preview

Download Datasheet

View All

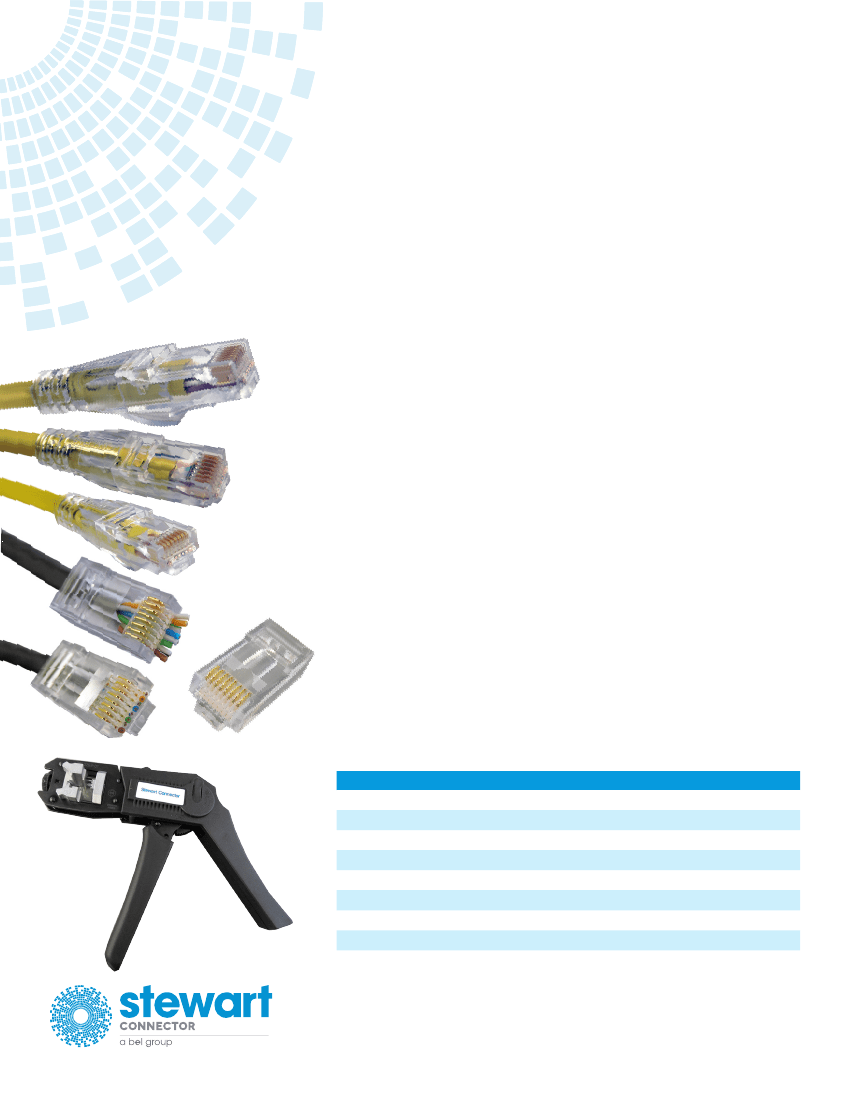

Qwik RJ45

Cat6/Cat5E

Modular Plugs

Stewart Connector’s Qwik RJ45

CAT6/CAT5E Modular Plugs are

designed to be terminated to industry standard CAT5E and CAT6 cables

while reducing assembly time and improving termination quality in the field.

Qwik RJ45

CAT6/CAT5E Modular Plugs allow the installer to insert the

cable into the connector prior to trimming conductors to required

length. Stewart Connector’s 2940263-02 termination tool trims the cable

conductors to required length while terminating the plug contacts. The

Qwik RJ45

Modular Plug eliminates the pre-trim step needed to assemble

traditional RJ45 Modular Plugs reducing termination time.

Features & Benefits

•

Designed for quick and easy field termination

CAT5E and CAT6 performance rated

50 micro inches of gold plating on contacts

Contact designed for use on solid or stranded conductor cable

Terminates to cable diameter of up to .235”

Accommodates conductor diameters of .037” to .042”

Designed to terminate 24AWG and 26AWG conductors

Optional snagless slimline strain relief boot available

Capable of field or factory termination with Stewart Connector

2940263-02 or other available quick termination tools

Description

Qwik RJ45

CAT6/CAT5E Plug Pack of 50

Qwik RJ45

CAT6/CAT5E Plug Pack of 100

Strain Relief Boot CAT6/CAT5E, Pack of 50

Strain Relief Boot CAT6/CAT5E, Pack of 100

Qwik RJ45

CAT6/CAT5E Plug With boot, Pack of 50

Qwik RJ45

CAT6/CAT5E Plug With boot, Pack of 100

Qwik RJ45

Termination Tool

Qwik RJ45™ Replacement Trim Blades for Termination Tool

Part Number

SS-39500-001

SS-39500-002

SS-39500-003

SS-39500-004

SS-39500-005

SS-39500-006

2940263-01

2940263-02

Stewart Connector

11118 Susquehanna Trail South

Glen Rock, PA 17327-9199

+1 717.235.7512

techhelp@belf.com

belfuse.com/stewart-connector

ds-stw-qwik-cat6-cat5e-rj45-modular-plugs

SS-39500-004 Related Products

	SS-39500-004	SS-39500-001	SS-39500-002	SS-39500-003	SS-39500-005
Description	Modular Connector/Ethernet Connector Strn Rlf Bt Cat6/ Cat5E Plug Pck= 100	Modular Connector/Ethernet Connector Cat6/Cat5E Plug Pack of 50	Modular Connector/Ethernet Connector Cat6/Cat5E Plug Pack of 100	Modular Connector/Ethernet Connector Strn Rlf Bt Cat6/ Cat5E Plug Pck= 50	Modular Connector/Ethernet Connector Cat6/Cat5E Plug w Boot Pack of 50
Maker	Bel	Bel	Bel	Bel	Bel
Product Category	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector	Modular Connector/Ethernet Connector
product	Accessories	Modular Plug	Modular Plug	Accessories	Modular Plug
USOC code	-	RJ45	RJ45	-	RJ45
Number of locations	-	8 Position	8 Position	-	8 Position
Number of ports	-	1 Port	1 Port	-	1 Port
performance category	Cat 6, Cat 5e	Cat 6, Cat 5e	Cat 6, Cat 5e	Cat 6, Cat 5e	Cat 6, Cat 5e
shield	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
color	Clear	Clear	Clear	Clear	Clear
series	QWIK	QWIK	QWIK	QWIK	QWIK
Contact plating	-	Gold	Gold	-	Gold
Type	-	Male	Male	-	Male
Shell material	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)
Installation angle	-	Straight	Straight	-	Straight
Number of contacts	-	8 Contact	8 Contact	-	8 Contact
Contact material	-	Phosphor Bronze	Phosphor Bronze	-	Copper Alloy
Factory packaging quantity	1	1	1	1	1
