VC-480-DAD-155A-FREQ datasheet, PDF

Datasheet> All Categories > oscillator> VC-480-DAD-155A-FREQ

VC-480-DAD-155A-FREQ: DescriptionHCMOS Output Clock Oscillator, 2MHz Min, 51.84MHz Max; Categoryoscillator; File Size127KB，2 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric Compare View All

VC-480-DAD-155A-FREQ Overview

HCMOS Output Clock Oscillator, 2MHz Min, 51.84MHz Max

VC-480-DAD-155A-FREQ Parametric

Parameter Name	Attribute value
Maker	Vectron International, Inc.
Reach Compliance Code	unknown
Is Samacsys	N
Other features	LVHCMOS OUTPUT AVAILABLE
Maximum control voltage	3 V
Minimum control voltage
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	15%
linearity	10%
Manufacturer's serial number	VC-480
Installation features	SURFACE MOUNT
Maximum operating frequency	51.84 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
physical size	14mm x 9.27mm x 4.98mm
longest rise time	5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

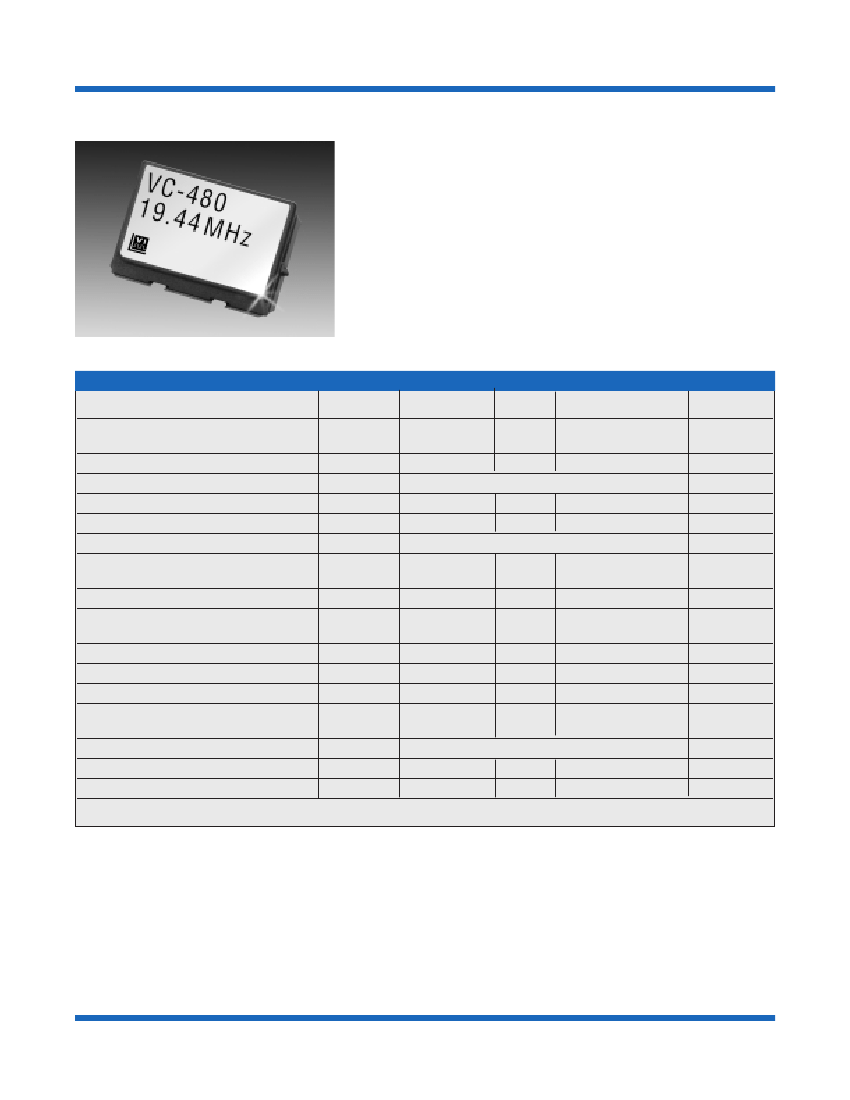

Voltage Controlled Crystal Oscillators (VCXO’s)

VC-480

Description:

Precision 14 x 9 mm VCXO with packaged crystal.

Standard footprint.

Features:

•

Small SMD standard VCXO

2.0MHz to 51.84 MHz

-20°C to +70°C /-40°C to +85°C

5V and 3.3V supply

• HCMOS / LVHCMOS output

Performance Characteristics

Parameter

Frequency:

Supply Voltage option

option

Current:

Output:

Rise/Fall Time tr/tf:

Symmetry (Duty/Cycle):

Temperature Range:

Temp. stab.

D - 155

-20 to +70°C:

F - 205

-40 to +85°C:

Accuracy @ +25C after reflow:

Aging first year:

Aging per year thereafter:

Freq. vs. supply for 5% changes.:

Freq. vs. load for 20% change:

Deviation:

Control Voltage opt.

(3.3V sup.)

opt.

(5.0V sup.)

Transfer Function:

Linearity:

Storage Temperature:

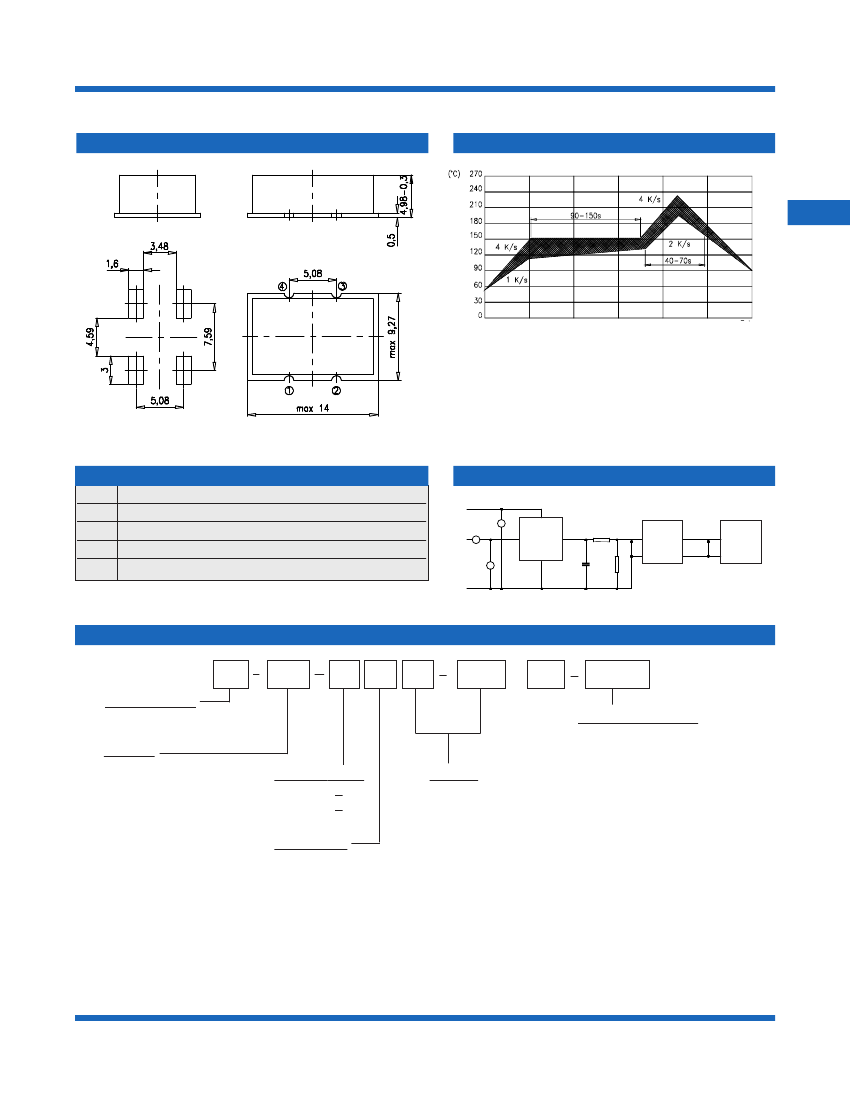

Package Size:

Lin

-40

14.0x9.27x4.98 mm

/ t

SYM

TEMP

CAL

FIRST

AGING

SUP

LOAD

PULL

-15.0

20.0

-10.0

-3.0

-1.0

-5.0

-2.0

-100

0.0

0.5

positive

+105

°C

-20/70, -40/85

+15.0

+20.0

+10.0

+3.0

+1.0

+5.0

+2.0

+100

3.0

4.5

Symbol

Minimum

2.0

3.135

4.75

Typical

3.3

5.0

Maximum

51.84

3.465

5.25

40.0

Units

MHz

°C

ppm

HCMOS / LVHCMOS

5.0

Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • Web: www.vectron.com

VC-480-DAD-155A-FREQ Related Products

	VC-480-DAD-155A-FREQ	VC-480-CAD-155A-FREQ	VC-480-CAF-205A-FREQ
Description	HCMOS Output Clock Oscillator, 2MHz Min, 51.84MHz Max	HCMOS Output Clock Oscillator, 2MHz Min, 51.84MHz Max	HCMOS Output Clock Oscillator, 2MHz Min, 51.84MHz Max
Reach Compliance Code	unknown	unknown	unknown
Other features	LVHCMOS OUTPUT AVAILABLE	LVHCMOS OUTPUT AVAILABLE	LVHCMOS OUTPUT AVAILABLE
Maximum control voltage	3 V	4.5 V	4.5 V
Minimum control voltage	-	0.5 V	0.5 V
maximum descent time	5 ns	5 ns	5 ns
Frequency Adjustment - Mechanical	NO	NO	NO
Frequency offset/pull rate	100 ppm	100 ppm	100 ppm
frequency stability	15%	15%	20%
linearity	10%	10%	10%
Manufacturer's serial number	VC-480	VC-480	VC-480
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	51.84 MHz	51.84 MHz	51.84 MHz
Minimum operating frequency	2 MHz	2 MHz	2 MHz
Maximum operating temperature	70 °C	70 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-40 °C
Oscillator type	HCMOS	HCMOS	HCMOS
physical size	14mm x 9.27mm x 4.98mm	14mm x 9.27mm x 4.98mm	14mm x 9.27mm x 4.98mm
longest rise time	5 ns	5 ns	5 ns
Maximum supply voltage	3.465 V	5.25 V	5.25 V
Minimum supply voltage	3.135 V	4.75 V	4.75 V
Nominal supply voltage	3.3 V	5 V	5 V
surface mount	YES	YES	YES
maximum symmetry	60/40 %	60/40 %	60/40 %
Base Number Matches	1	1	1
Maker	Vectron International, Inc.	Vectron International, Inc.	-
Is Samacsys	N	N	-
