19-5616; Rev 11/10
DS1265Y/AB
8M Nonvolatile SRAM
www.maxim-ic.com
FEATURES
10 years minimum data retention in the
absence of external power
Data is automatically protected during power
loss
Unlimited write cycles
Low-power CMOS operation
Read and write access times of 70 ns
Lithium energy source is electrically
disconnected to retain freshness until power is
applied for the first time
Full
±10%
V
CC
operating range (DS1265Y)
Optional
±5%
V
CC
operating range
(DS1265AB)
Optional industrial temperature range of
-40°C to +85°C, designated IND
PIN ASSIGNMENT
NC
NC
A18
A16
A14
A12
A7
A6
A5
A4
A3
A2
A1
A0
DQ0
DQ1
DQ2
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
V
CC
A19
NC
A15
A17
WE
A13
A8
A9
A11
OE
A10
CE
DQ7
DQ6
DQ5
DQ4
DQ3
36-Pin ENCAPSULATED PACKAGE
740-mil EXTENDED
PIN DESCRIPTION
A0 - A19
DQ0 - DQ7
CE
WE
OE
V
CC
GND
NC
- Address Inputs
- Data In/Data Out
- Chip Enable
- Write Enable
- Output Enable
- Power (+5V)
- Ground
- No Connect
DESCRIPTION
The DS1265 8M Nonvolatile SRAMs are 8,388,608-bit, fully static nonvolatile SRAMs organized as
1,048,576 words by 8 bits. Each NV SRAM has a self-contained lithium energy source and control
circuitry which constantly monitors V
CC
for an out-of-tolerance condition. When such a condition occurs,
the lithium energy source is automatically switched on and write protection is unconditionally enabled to
prevent data corruption. There is no limit on the number of write cycles which can be executed and no
additional support circuitry is required for microprocessor interfacing.
1 of 8
DS1265Y/AB
READ MODE
The DS1265 devices execute a read cycle whenever
WE
(Write Enable) is inactive (high) and
CE
(Chip
Enable) and
OE
(Output Enable) are active (low). The unique address specified by the 20 address inputs
(A
0
- A
19
) defines which of the 1,048,576 bytes of data is accessed. Valid data will be available to the
eight data output drivers within t
ACC
(Access Time) after the last address input signal is stable, providing
that
CE
and
OE
(Output Enable) access times are also satisfied. If
OE
and
CE
access times are not
satisfied, then data access must be measured from the later-occurring signal (
CE
or
OE
) and the limiting
parameter is either t
CO
for
CE
or t
OE
for
OE
rather than t
ACC
.

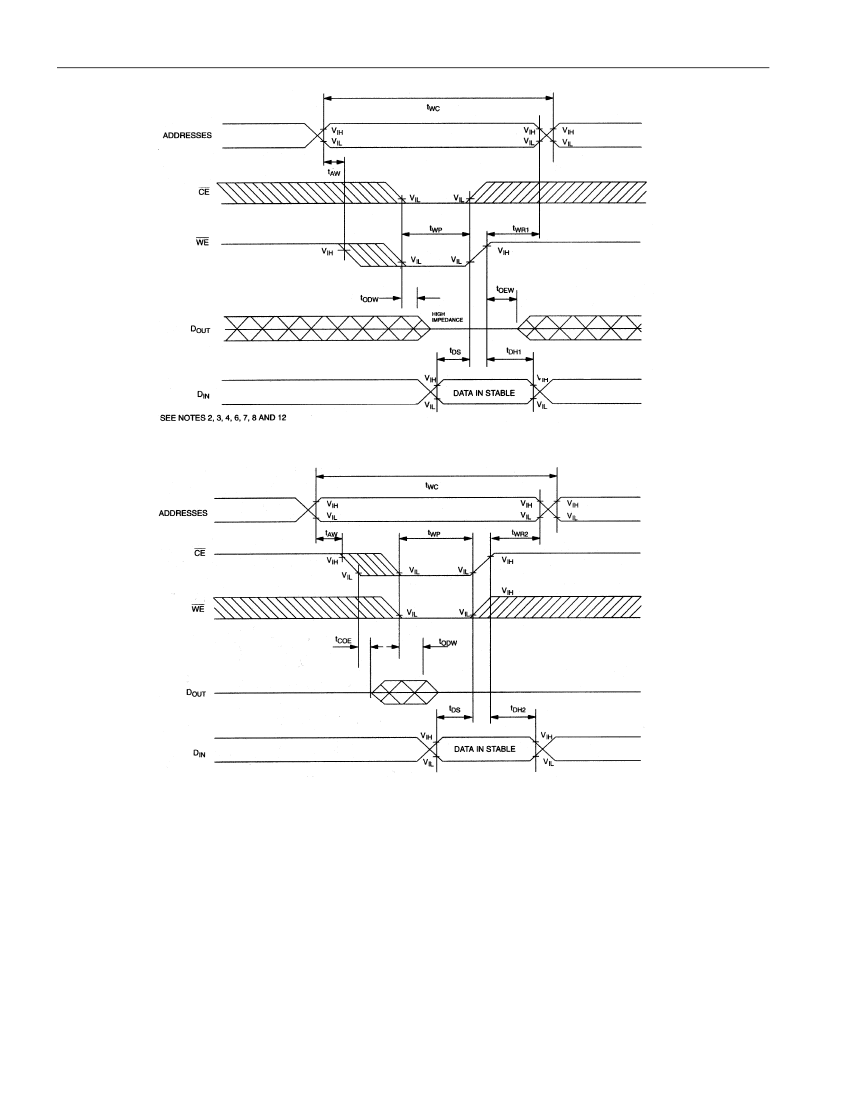

WRITE MODE
The DS1265 devices execute a write cycle whenever
WE
and
CE
signals are active (low) after address
inputs are stable. The later-occurring falling edge of
CE
or
WE
will determine the start of the write cycle.
The write cycle is terminated by the earlier rising edge of
CE
or
WE
. All address inputs must be kept
valid throughout the write cycle.
WE
must return to the high state for a minimum recovery time (t
WR
)
before another cycle can be initiated. The
OE
control signal should be kept inactive (high) during write
cycles to avoid bus contention. However, if the output drivers are enabled (
CE
and
OE
active) then
WE
will disable the outputs in t
ODW
from its falling edge.
DATA RETENTION MODE
The DS1265AB provides full functional capability for V
CC
greater than 4.75 volts and write protects by
4.5 volts. The DS1265Y provides full functional capability for V
CC
greater than 4.5 volts and write
protects by 4.25 volts. Data is maintained in the absence of V
CC
without any additional support circuitry.
The nonvolatile static RAMs constantly monitor V
CC
. Should the supply voltage decay, the NV SRAMs
automatically write protect themselves, all inputs become don’t care, and all outputs become high-
impedance. As V
CC
falls below approximately 3.0 volts, a power switching circuit connects the lithium
energy source to RAM to retain data. During power-up, when V
CC
rises above approximately 3.0 volts,
the power switching circuit connects external V
CC
to RAM and disconnects the lithium energy source.
Normal RAM operation can resume after V
CC
exceeds 4.75 volts for the DS1265AB and 4.5 volts for the
DS1265Y.
FRESHNESS SEAL
Each DS1265 device is shipped from Dallas Semiconductor with its lithium energy source disconnected,
guaranteeing full energy capacity. When V
CC
is first applied at a level greater than V
TP
, the lithium
energy source is enabled for battery backup operation.
2 of 8
DS1265Y/AB
ABSOLUTE MAXIMUM RATINGS
Voltage on Any Pin Relative to Ground
Operating Temperature Range
Commercial:
Industrial:
Storage Temperature
Lead Temperature (soldering, 10s)
Note:
EDIP is wave or hand soldered only.
-0.3V to +6.0V
0°C to +70°C
-40°C to +85°C
-40°C to +85°C
+260°C
This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operation
sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect
reliability.
RECOMMENDED DC OPERATING CONDITIONS
PARAMETER
DS1265AB Power Supply Voltage
DS1265Y Power Supply Voltage
Logic 1 Input Voltage
Logic 0 Input Voltage
SYMBOL
V
CC
V
CC
V
IH
V
IL
MIN
4.75
4.5
2.2
0
TYP
5.0
5.0
MAX
5.25
5.5
V
CC
+0.8
(T
A
: See Note 10)
UNITS
V
V
V
V
NOTES
DC E L E C T R IC A L C HA R A C T E R IS T IC S
(V
CC
=5V ±5% for DS1265AB)
(T
A
: See Note 10) (V
CC
=5V ±10% for DS1265Y)
PARAMETER
Input Leakage Current
I/O Leakage Current
Output Current @ 2.4V
Output Current @ 0.4V
Standby Current
CE
=2.2V
Standby Current
CE
=V
CC
-0.5V
Operating Current
Write Protection Voltage (DS1265AB)
Write Protection Voltage (DS1265Y)
SYMBOL
I
IL
I
IO
I
OH
I
OL
I
CCS1
I
CCS2
I
CCO1
V
TP
V
TP
4.50
4.25
4.62
4.37
MIN
-2.0
-2.0
-1.0
2.0
1.0
100
1.5
200
85
4.75
4.5
TYP
MAX
+2.0
+2.0
UNITS
µA
µA
mA
mA
mA
µA
mA
V
V
NOTES
CAPACITANCE
PARAMETER
Input Capacitance
Output Capacitance
SYMBOL
C
IN
C
I/O
MIN
TYP
10
10
MAX
20
20
(T
A
= +25°C)
UNITS
pF
pF
NOTES
3 of 8
