Data Sheet
Flexible RF cable
EZ_47_TP_M17
Description

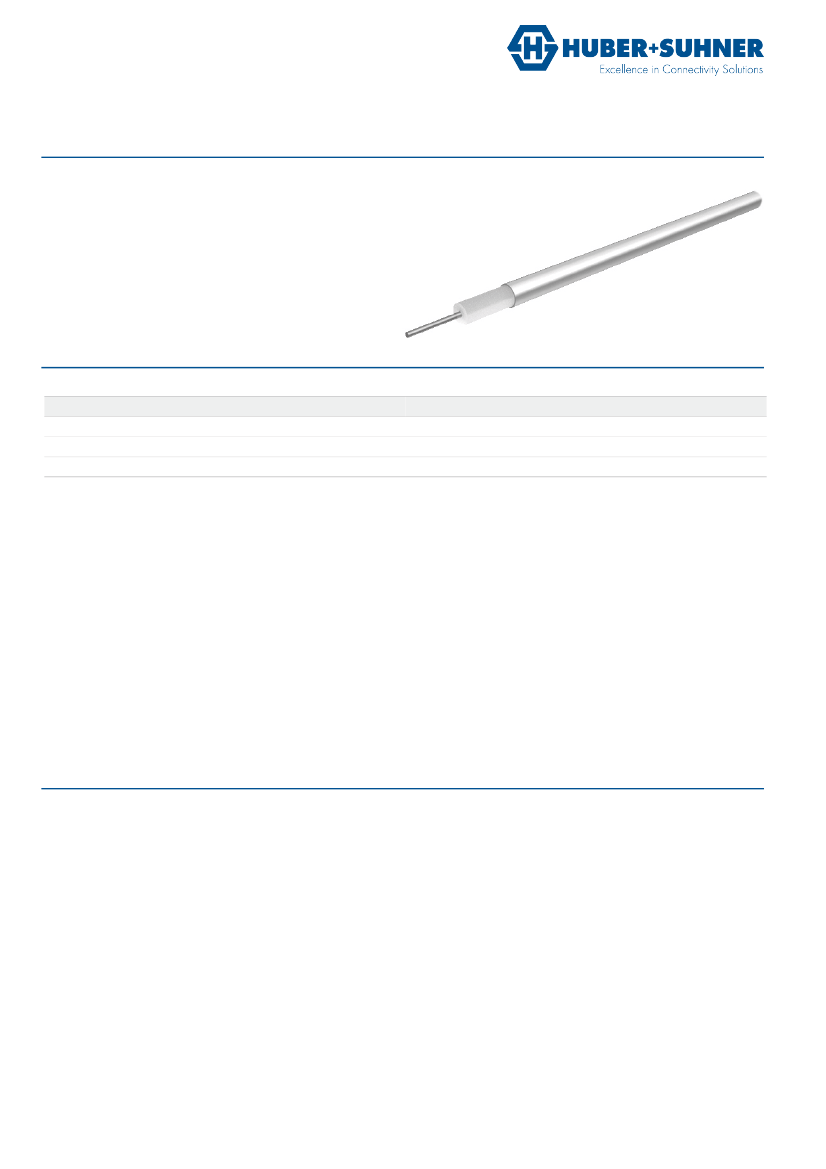

Semi-rigid: Semi-rigid, formable microwave cables
MIL style, 50 Ohm, 107 GHz, 100°C, ø1.19 mm, no jacket
Technical Data
Construction
Material
Centre conductor
Dielectric
Outer conductor
Steel, Copper+Silver plated
PTFE (Polytetrafluoroethylene)
Copper, Tin plated
Tube, 100%
Detail
Wire
Diameter
0.29 mm
0.93 mm
1.19 mm
Electrical Data
Impedance
Operating Frequency
Capacitance
Velocity of signal propagation
Signal delay
Insulation resistance
Min. screening effectiveness
Max. operating voltage
50 Ω +/- 2.5
107 GHz
105 pF/m
69.5 %
4.8 ns/m
≥ 1 x 10
8
MΩm
≥ 120 dB (up to 18 GHz)
≤ 1 kV
rms
(at sea level)
Mechanical Data
Weight
Min. bending radius
static
0.71 kg/100 m
3.18 mm
Environmental Data
Temperature range
Installation temperature
2011/65/EU (RoHS)
-55 °C... +100 °C
-20 °C... +60 °C
compliant
Additional Information
Ordering Information
Order as
EZ_47_TP_M17
Remarks
(For details refer to the HUBER+SUHNER RF CABLES GENERAL CATALOGUE or contact your nearest HUBER+SUHNER partner)
Suitable Connectors
Cable group
Y15 1 mm / 50 Ohm
Document: DOC-0000177966 AI / PDO J / date of publication: 11.12.2018 17:42:24 / uncontrolled copy
Page 1/2
Data Sheet
Flexible RF cable
EZ_47_TP_M17
Matrix
Coefficients:
typical Attenuation [ formula: (a*f^0.5 + b*f) ] and maximum Power CW [ formula: (p/f^0.5) ]
a = 1.04044
b = 0.03967
f
max
= 107
P at 1GHz = 32
Frequency
(GHz)
Nom. attenuation
(dB / m)
sea level 25° C
ambient
temperature
Nom. attenuation
(dB / ft)
sea level 25° C
ambient
temperature
Max. CW power
(watt)
sea level 40° C
ambient
temperature
5,35
10,7
16,05
21,4
26,75
32,1
37,45
42,8
48,15
53,5
58,85
64,2
69,55
74,9
80,25
85,6
90,95
96,3
101,65
107,0
2,62
3,83
4,8
5,66
6,44
7,17
7,85
8,5
9,13
9,73
10,32
10,88
11,44
11,98
12,5
13,02
13,53
14,03
14,52
15,01
0,798
1,167
1,464
1,726
1,964
2,185
2,393
2,592
2,783
2,966
3,144
3,317
3,486
3,650
3,811
3,969
4,124
4,276
4,426
4,574
14
10
8
7
6
6
5
5
5
4
4
4
4
4
4
3
3
3
3
3
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000177966 AI / PDO J / date of publication: 11.12.2018 17:42:24 / uncontrolled copy
Page 2/2
