SC628ANPR: DescriptionAudio Indicators and Alarms FAST PULSE, 6-28VAC XLOUD, CUL APPRVD; CategoryMechanical and electronic products Audio equipment Audio indicator and alarm; File Size79KB，2 Pages; ManufacturerMallory Sonalert; Environmental Compliance

Download Datasheet Parametric View All

SC628ANPR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SC628ANPR	-	-	View	Buy Now

SC628ANPR Overview

Audio Indicators and Alarms FAST PULSE, 6-28VAC XLOUD, CUL APPRVD

SC628ANPR Parametric

Parameter Name	Attribute value
Maker	Mallory Sonalert
Product Category	Audio indicators and sirens
product	Buzzers
sound pressure level	95 dBA
tone	Pulse
frequency	2.9 kHz
Voltage rating	28 V
Current rating	30 mA
Termination type	Screw
IP rating	-
diameter	43 mm
size	1.69 in L x 1.69 in W x 1.41 in H
Install	Flush
high	1.41 in
length	1.69 in
series	SC
width	1.69 in
Factory packaging quantity	1
unit weight	45 g

Preview

Download Datasheet

View All

Mallory Sonalert Products,Inc.

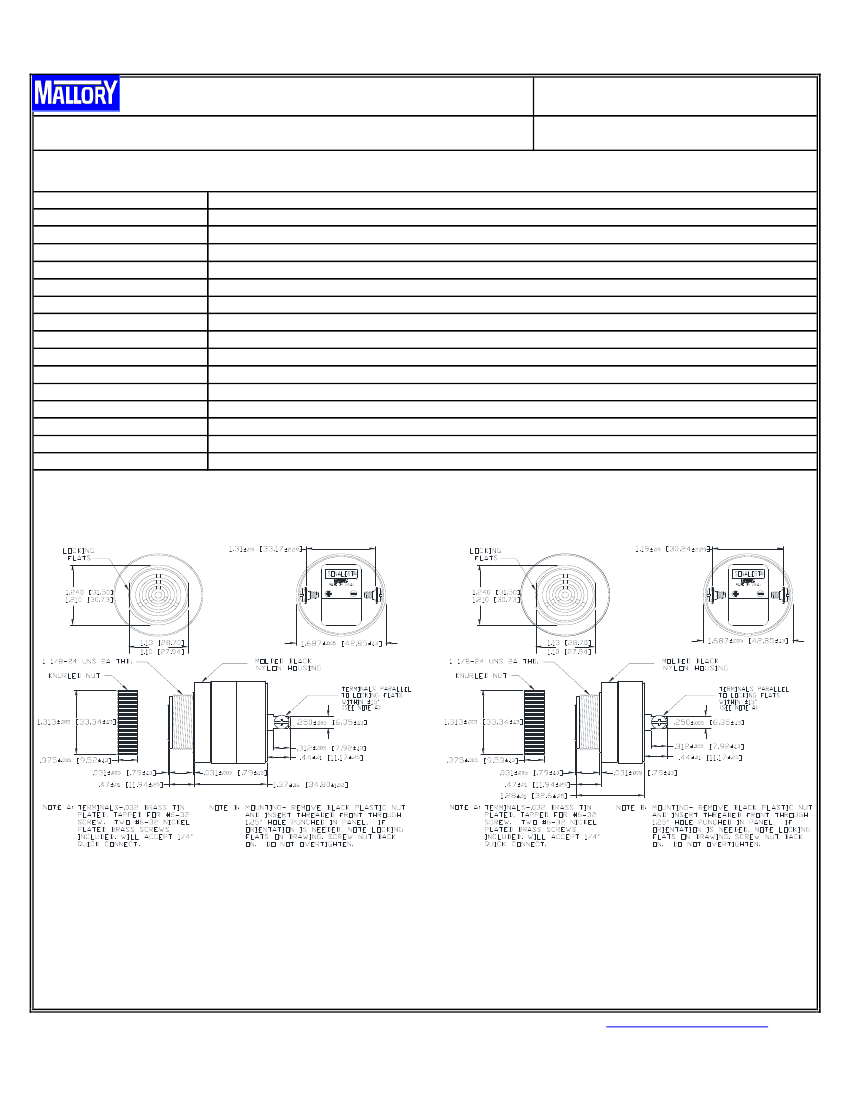

Sales Outline Drawing

Specifications:

Sound Level Category

Mode of Operation

Voltage Rating

Frequency

Loudness @ 2 FT

Loudness @ Min V

Loudness @ Max V

Current Draw

Housing Material

Storage Temperature

Operating Temperature

Panel Mounting

Knurled Nut

Weight (Typical)

NEMA 3R,4X, & 12

Options

Part #:

Revision:

SC628ANPR

F

Loud

Fast Pulse @ 2 - 9 PPS

6 to 28 VAC/DC

2900 ± 500 Hz

88 to 103 dB(A) Typ.

80 dB(A) @ 2 Feet and 7.5 Vac/dc

95 dB(A) @ 2 Feet and 28 Vac/dc

4-30mA

6/6 Nylon, Color: Black

-40° to +85° C

-30° to +65° C

Recommended hole size is 1.25"(31.75mm). Thread front will fit standard 30mm(1.181") hole.

Used to attach part to panel. The max recommended torque is 10 in-lbs.

1.6 oz (45g)

Approved with use of ACC03.

Please contact factory.

Dimensions:

Inches (mm)

cUL Recognized

ROHS Compliant

PART DIMENSIONS BEFORE CODE DATE:

0810 5

PART DIMENSIONS AFTER CODE DATE:

0811 1
