3-1445099-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1445099-1

3-1445099-1: DescriptionPin and socket connectorMICRO MNL HDR ASSY; CategoryThe connector The connector; File Size176KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1445099-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1445099-1	-	-	View	Buy Now

3-1445099-1 Overview

Pin and socket connectorMICRO MNL HDR ASSY

3-1445099-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	MATE-N-LOK, POLARIZED
Board mount options	SPLIT BOARD LOCK
body width	0.223 inch
subject depth	0.439 inch
body length	1.457 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	1-1445022-1
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	NYLON
Terminal pitch	2.9972 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2011

LOC

DIST

2011

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-16-011506

23JUN2017

DIM W # 0.39

1.30

HOUSING

HOLDDOWN

MATERIAL:

CONTACTS - BRASS

HOUSING - UL 94V-O RATED HIGH TEMP NYLON, COLOR BLACK.

HOLDDOWNS: - PHOSPHOR BRONZE.

CIRCUIT 1

3.86

7.25

REF

CONTACT

PLATING:

0.51

CONTACTS - 0.76µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM TIN LEAD ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

HOLDDOWNS: 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

RECOMMENDED PC BOARD THICKNESS OF 1.57.

PLATING:

CONTACTS - 0.76µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM MATTE TIN ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

HOLDDOWNS: 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM

NICKEL.

INCLUDES CONTACT TAILS

AND HOUSING STANDOFFS

11.16

REF

3.00

REF

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

DWN

CHK

37.43

34.43

31.43

28.43

25.43

22.43

19.43

16.43

13.43

10.43

7.43

37.43

34.43

31.43

28.43

25.43

22.43

19.43

16.43

13.43

10.43

7.43

DIM V

09OCT2000

NAME

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

DIM W

NO. OF

POSN

3-1445099-2

3-1445099-1

3-1445099-0

2-1445099-9

2-1445099-8

2-1445099-7

2-1445099-6

2-1445099-5

2-1445099-4

2-1445099-3

2-1445099-2

1-1445099-2

1-1445099-1

1-1445099-0

1445099-9

1445099-8

1445099-7

1445099-6

1445099-5

1445099-4

1445099-3

1445099-2

PART NUMBER

TE Connectivity

DIM Z

SUPERSEDED BY 3-1445099-2

SUPERSEDED BY 3-1445099-1

3.00

SUPERSEDED BY 3-1445099-0

SUPERSEDED BY 2-1445099-9

SUPERSEDED BY 2-1445099-8

2.92

0.08

SUPERSEDED BY 2-1445099-7

SUPERSEDED BY 2-1445099-6

SUPERSEDED BY 2-1445099-5

TYP

FINISH

1.27

0.08

TYP

5.48

CIRCUIT 1

SUPERSEDED BY 2-1445099-4

SUPERSEDED BY 2-1445099-3

SUPERSEDED BY 2-1445099-2

2.41

0.08

TYP

2.15

DIM V

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

PCB LAYOUT COMPONENT SIDE

1471-9 (3/11)

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

17-APR-2001

K. WHITAKER

APVD

17-APR-2001

C. JONES

PRODUCT SPEC

APPLICATION SPEC

J.ROOT

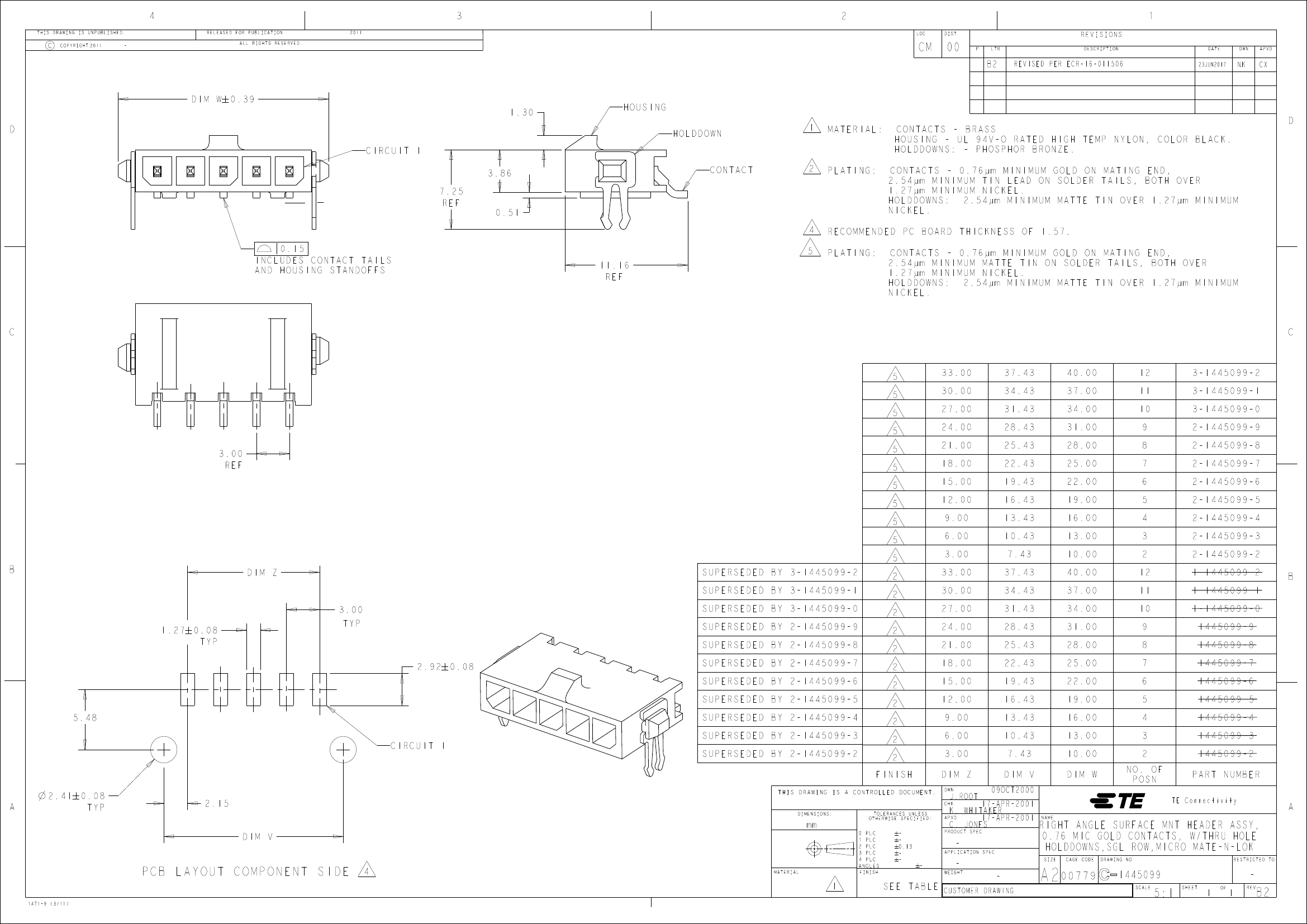

RIGHT ANGLE SURFACE MNT HEADER ASSY,

0.76 MIC GOLD CONTACTS, W/THRU HOLE

HOLDDOWNS,SGL ROW,MICRO MATE-N-LOK

WEIGHT

SEE TABLE

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

1445099

SCALE

5:1

SHEET

REV
