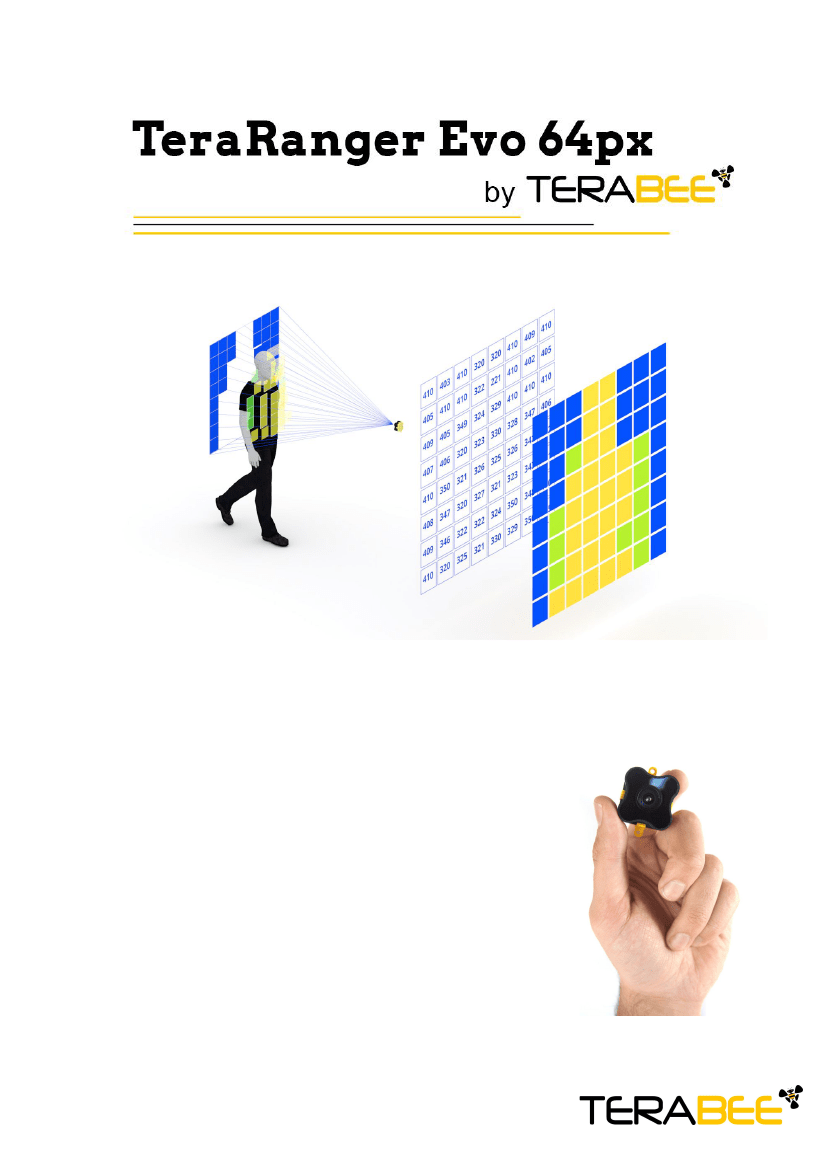

The multi-pixel sensor of the TeraRanger Evo family!
Benefit from an 8x8 matrix of high-speed distance readings in a small
and lightweight form-factor!
Key features
●
●
●
●
●
●
●
●
64 pixel 3D depth map
Compact and lightweight design (from 12 grams)
Capture fast-moving objects (up to 130 fps sampling rates)
Start measuring from just 10 centimeters
USB and UART interfaces. Other interfaces possible
Immune to low light and darkness
Eye-safe in all conditions
ROS ready
Copyright
©
Terabee 2018
Terabee, 90 Rue Henri Fabre
01630, St Genis-Pouilly, France (next to CERN)

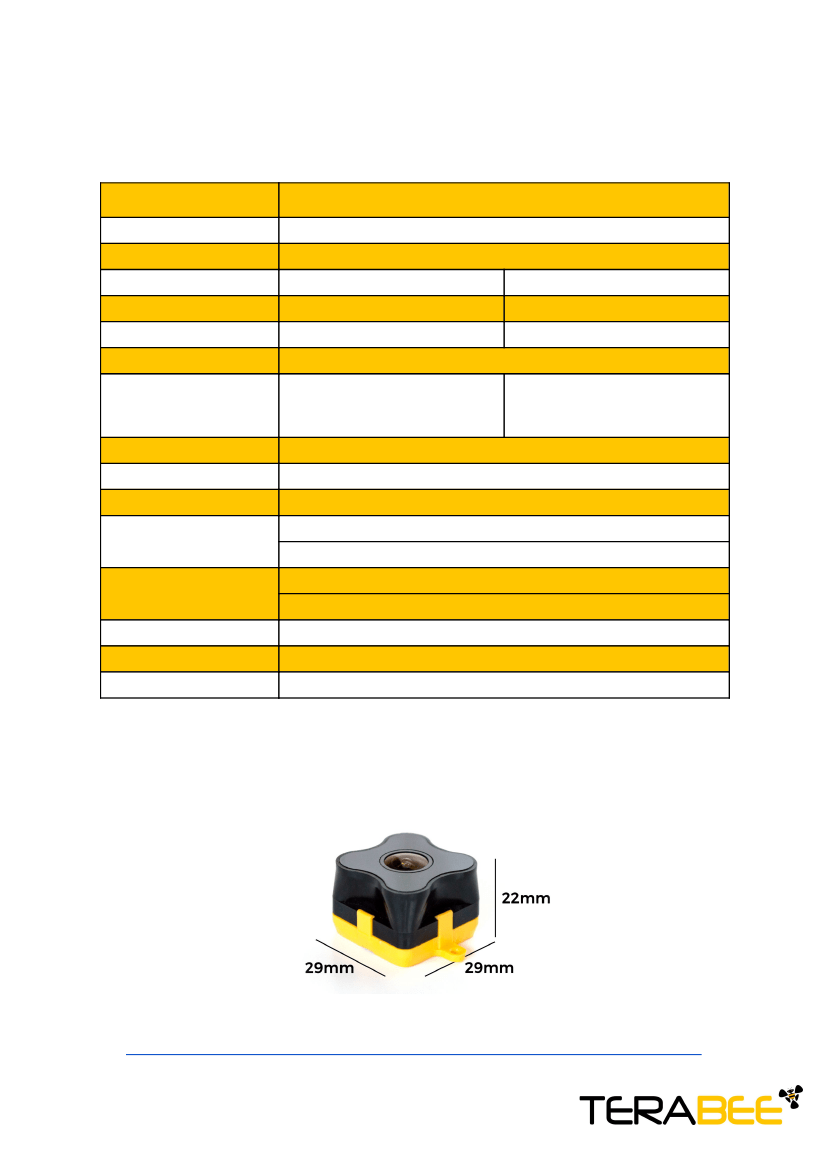

Technical Specifications
TeraRanger Evo 64px
Principle:
Resolution:
Operating mode:
Range:
Update rate:
Output resolution:
Accuracy:
Field of view:
Supply voltage:
Supply current (min-max):
Interfaces:
+/- 5cm 0.1m to 1m
+/- 10cm 1m to 3m
+/- 15cm > 3m+
15°
5V DC ±5%
80mA - 250mA
USB 2.0 Micro-B
UART, +3.3V level, 3 Mbaud
Single 9 pin Hirose DF13 (UART Backboard)
Micro USB (USB Backboard)
12g (sensor) + 3g (backboard)
Approx. 29x29x22mm (sensor + backboard)
Yes (IEC 62471:2006 certified)
Close-range
*0.1m up to 5m
*up to 80 fps
0.5cm
+/- 10cm < 3m
+/- 15cm > 3m
Infrared Time-of-Flight (ToF)
64 pixels (8x8 matrix)
Fast
*0.5m up to 5m
*up to 130 fps
Connectors:
Weight:
Dimensions:
Eye safety:
*
Specifications are derived from tests in controlled indoor conditions. Please be advised that performance
outdoors can be reduced. Sunlight, low reflectivity targets (such as grass) and other variables will affect
sensor performance, including maximum range, frame rate and accuracy.
Compact design
The TeraRanger Evo 64px can be purchased via our online store
https://www.terabee.com/portfolio-item/teraranger-evo-64px-multi-pixel-sensor/
Copyright
©
Terabee 2018
Terabee, 90 Rue Henri Fabre
01630, St Genis-Pouilly, France (next to CERN)

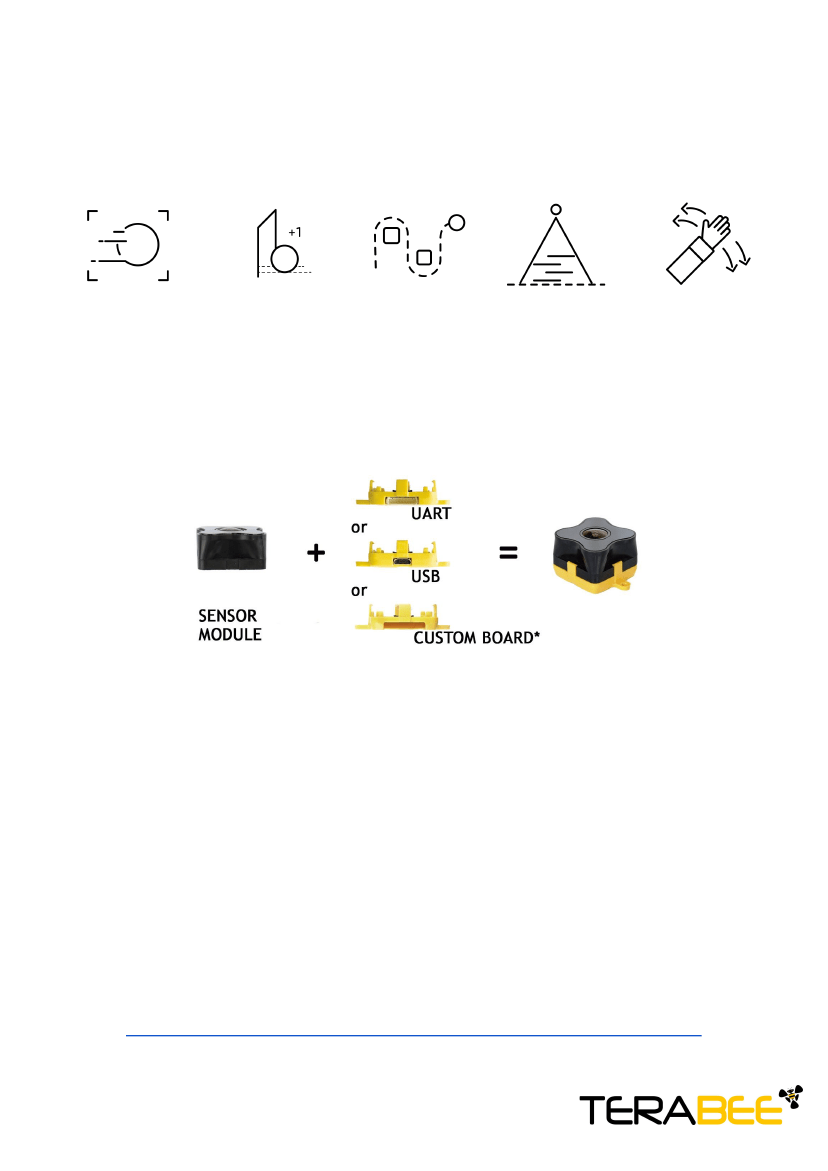

Applications
Motion tracking
Monitor
and count
Detect & avoid
obstacles
Multi-point
level sensing
Gesture
recognition
Modular Evo Design
TeraRanger Evo 64px consists of an optoelectronic sensing device (black module, 12g) and
a choice of backboard (yellow module, 3g), which simply plugs-in to provide the sensor
with a communication link and power management capabilities, without the need for
adaptors, converters or complex wiring. You simply choose the backboard that best suits
your application and communication protocol! USB and UART backboards are available.
*
Custom backboards
such as LoRa/Sigfox, Ethernet, RS485, Profibus, CAN, etc. can be
made to support mass production needs.
The TeraRanger Evo 64px can be purchased via our online store at:
https://www.terabee.com/portfolio-item/teraranger-evo-64px-multi-pixel-sensor/
Copyright
©
Terabee 2018
Terabee, 90 Rue Henri Fabre
01630, St Genis-Pouilly, France (next to CERN)
