33_NEX10-716-50-X1/133_WE

Description
RF Adapter - Series NEX10 to 7/16 plug(M)/jack(F)
CategoryThe connector    Rf interconnection    Rf adapter    Rf adapter - series2
File Size139KB，2 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

33_NEX10-716-50-X1/133_WE Overview

RF Adapter - Series NEX10 to 7/16 plug(M)/jack(F)

33_NEX10-716-50-X1/133_WE Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
Product CategoryRF Adapters - Between Series
Side 1 RF SeriesNEX10
side 1 sexPlug (Male)
Side 2 RF Series7/16
side 2 sexJack (Female)
impedance50 Ohms
minimum frequency-
maximum frequency7.5 GHz
Frequency Range2 GHz
Main materialBrass
Contact platingGold
Connector typeNEX10 7/16
directionStraight
Contact materialCopper Alloy
Installation styleFree Hanging
Factory packaging quantity1

Preview

Download Datasheet

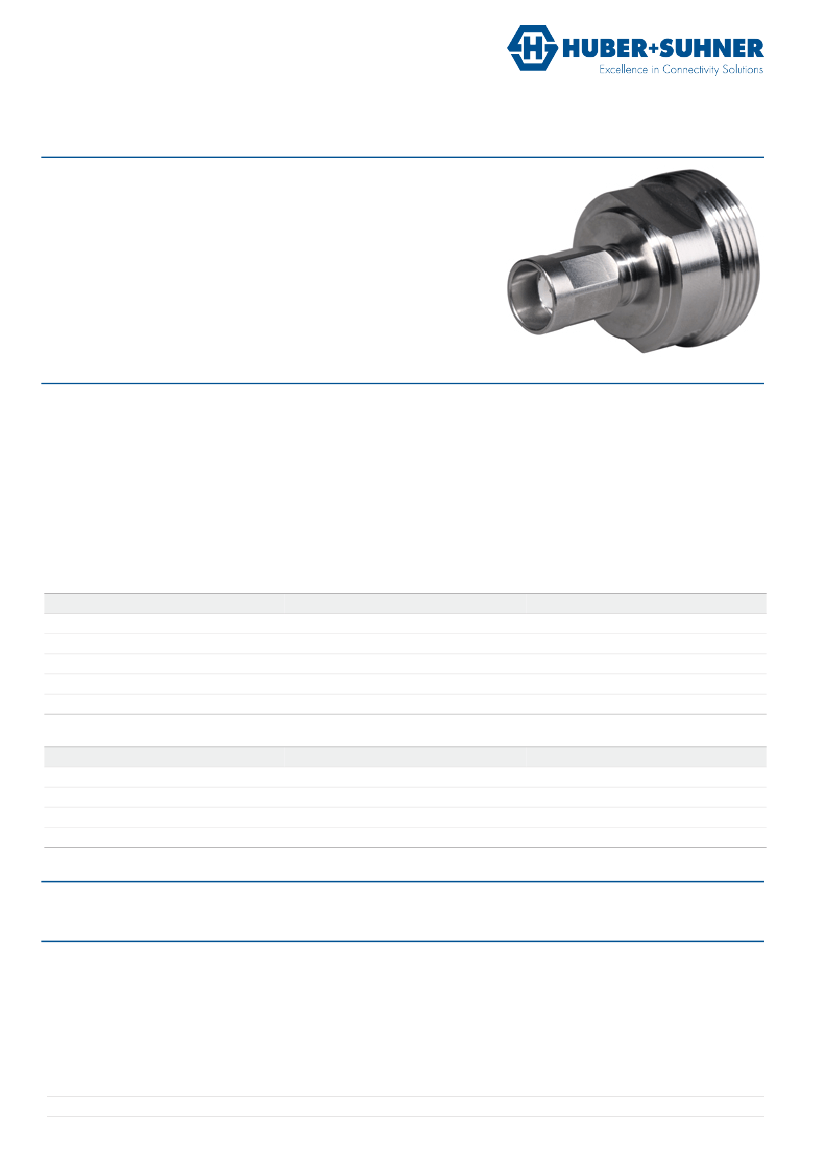

Data Sheet
Between Series Adaptor
33_NEX10-716-50-X1/133_W
Description
Adaptor plug/jack
NEX10 plug (male) / 7/16 jack (female)
Low passive intermodulation (PIM) adaptor
Interface standards
Series NEX10 - Standard
Series 7/16 - IEC 61169-4_CECC 22190_DIN 47223_VG 95250
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
Intermodulation
50 Ω
7.5 GHz
DC to 2 GHz
≥ 30 dB
Static -166 dBc (2 x 43 dBm carrier)
2 to 6 GHz
≥ 25 dB
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-55 °C to 100 °C
compliant
Material Data
Interface - NEX10 plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Bronze
Brass
PTFE (Polytetrafluoroethylene)
Brass
SUCOPLATE (R) Plating
Surface Plating
SUCOPRO Plating
Silver Plating
SUCOPLATE (R) Plating
Interface - 7/16 jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PTFE (Polytetrafluoroethylene)
Surface Plating
SUCOPRO Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
DOU-00338260
Ordering Information
Single package
33_NEX10-716-50-X1/133_WE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000796049 G / PDO C / date of publication: 24.08.2018 17:16:29 / uncontrolled copy
Page 1/1
