59S22B-40MT5-B datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Rf interconnection> RF connector/coaxial connector> 59S22B-40MT5-B

Preview

59S22B-40MT5-B: DescriptionRF Connector/Coaxial Connector Plug PC-Board SMD Right Angle B White; CategoryThe connector Rf interconnection RF connector/coaxial connector; File Size157KB，3 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

59S22B-40MT5-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59S22B-40MT5-B	-	-	View	Buy Now

59S22B-40MT5-B Overview

RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle B White

59S22B-40MT5-B Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Product Category	RF Connector/Coaxial Connector
product	PCB Connectors
RF series	FAKRA
Type	Plug
impedance	50 Ohms
minimum frequency	-
maximum frequency	6 GHz
Termination type	PCB - Through Hole
direction	Right Angle
Installation type	PCB Mount
Subject type	Right Angle
Contact termination	-
Contact type	Pin (Male)
series	FAKRA
Voltage rating	335 V
Contact material	Brass
Insulation resistance	1000 MOhms
Operation cycle	25
Maximum operating temperature	+ 105 C
Minimum operating temperature	- 40 C
Factory packaging quantity	400

Preview

Download Datasheet

View All

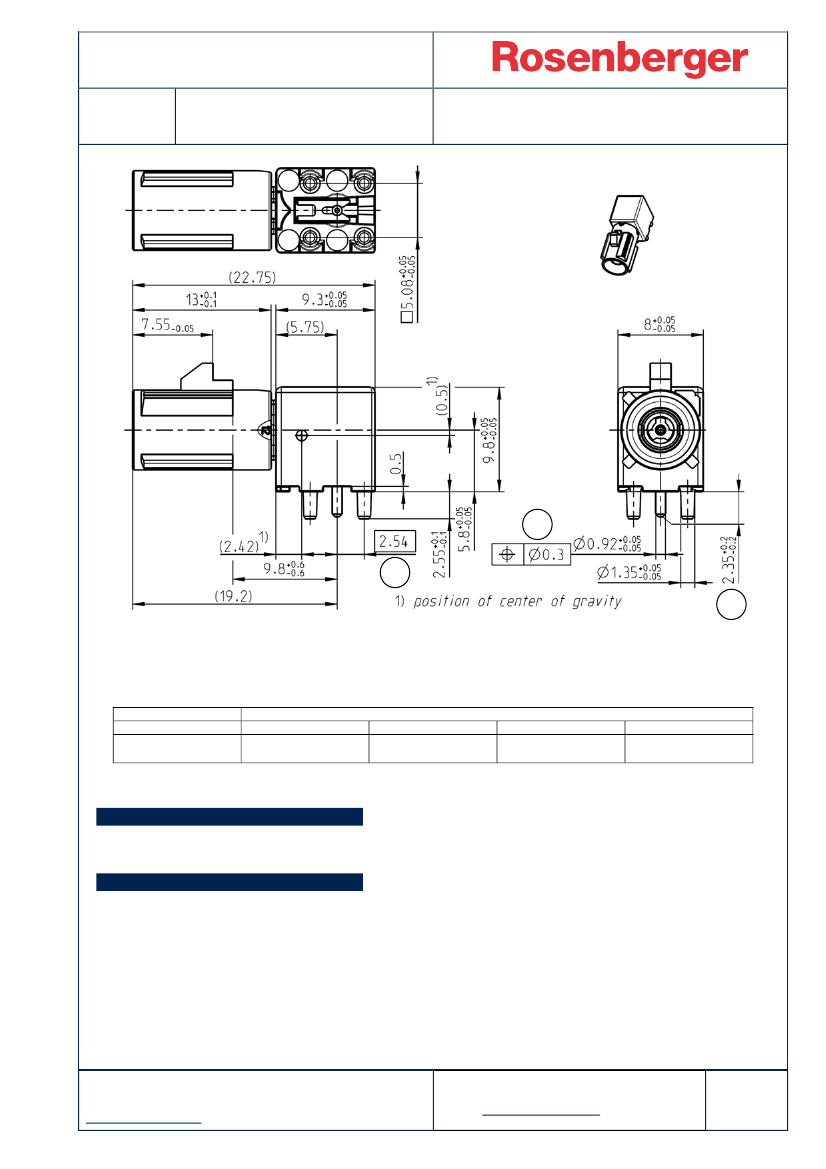

Technical Data Sheet

FAKRA -

HF

RIGHT ANGLE PLUG

FOR PCB

59S22B-40MT5-Y

Dieses Dokument ist urheberrechtlich geschützt

●

This document is protected by copyright

●

Rosenberger Hochfrequenztechnik GmbH & Co. KG

e

d

All dimensions are in mm; tolerances according to ISO 2768 m-H

Y = Part number has to be accomplished by codification

Masse

/ dimensions

(mm)

Bereich

/ range

0 bis/to 0.5

0.5 bis/to 3

3 bis/to 6

Toleranz

/

± 0.05 *)

± 0.1

Tolerance

(mm)

*) Angabe abweichend zu /

Indication deviant to

DIN ISO 2768 m-H

6 bis/to 30

± 0.2

Interface

According to

DIN 72594-1, USCAR 17

Documents

PCB layout

Tape and reel packaging

MB_281

VG 179.28800

VG 179.40000

RF_35/09.14/6.2

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel. : +49 8684 18-0

Email : info@rosenberger.de

Page

1/3

59S22B-40MT5-B Related Products

	59S22B-40MT5-B	59S22B-40MT5-Z	59S22B-40MT5-I	59S22B-40MT5-H	59S22B-40MT5-G	59S22B-40MT5-C	59S22B-40MT5-D	59S22B-40MT5-A
Description	RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle B White	RF Connectors / Coaxial Connectors Plug PC-Board SMD Right AngleZWatrBlue	RF Connectors / Coaxial Connectors Plug PC-Board SMD Right Angle I Beige	RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle H Violet	RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle G Gray	RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle C Blue	RF Connector/Coaxial Connector Plug PC-Board SMD Right AngleD BViolet	RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle A Black
Product Category	RF Connector/Coaxial Connector	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector
Maker	Rosenberger	-	-	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger
product	PCB Connectors	-	-	PCB Connectors	PCB Connectors	PCB Connectors	PCB Connectors	PCB Connectors
RF series	FAKRA	-	-	FAKRA	FAKRA	FAKRA	FAKRA	FAKRA
Type	Plug	-	-	Plug	Plug	Plug	Plug	Plug
impedance	50 Ohms	-	-	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
maximum frequency	6 GHz	-	-	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz
Termination type	PCB - Through Hole	-	-	Solder Pin	PCB - Through Hole	PCB - Through Hole	PCB - Through Hole	PCB - Through Hole
direction	Right Angle	-	-	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Installation type	PCB Mount	-	-	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Subject type	Right Angle	-	-	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Contact type	Pin (Male)	-	-	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)
series	FAKRA	-	-	FAKRA	FAKRA	FAKRA	FAKRA	FAKRA
Voltage rating	335 V	-	-	335 V	335 V	335 V	335 V	335 V
Contact material	Brass	-	-	Brass	Brass	Brass	Brass	Brass
Insulation resistance	1000 MOhms	-	-	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms
Operation cycle	25	-	-	25	25	25	25	25
Maximum operating temperature	+ 105 C	-	-	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C
Minimum operating temperature	- 40 C	-	-	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Factory packaging quantity	400	-	-	400	400	400	400	400
