3403.26.0002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Surge suppressor> 3403.26.0002

3403.26.0002: DescriptionSurge Suppressors GDT TNC jack(f) to TNC jack(f), 800-2500MHz; CategoryCircuit protection Surge suppressor; File Size238KB，2 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

3403.26.0002 Overview

Surge Suppressors GDT TNC jack(f) to TNC jack(f), 800-2500MHz

3403.26.0002 Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
Product Category	surge suppressor
Factory packaging quantity	1
unit weight	86 g

Preview

Download Datasheet

View All

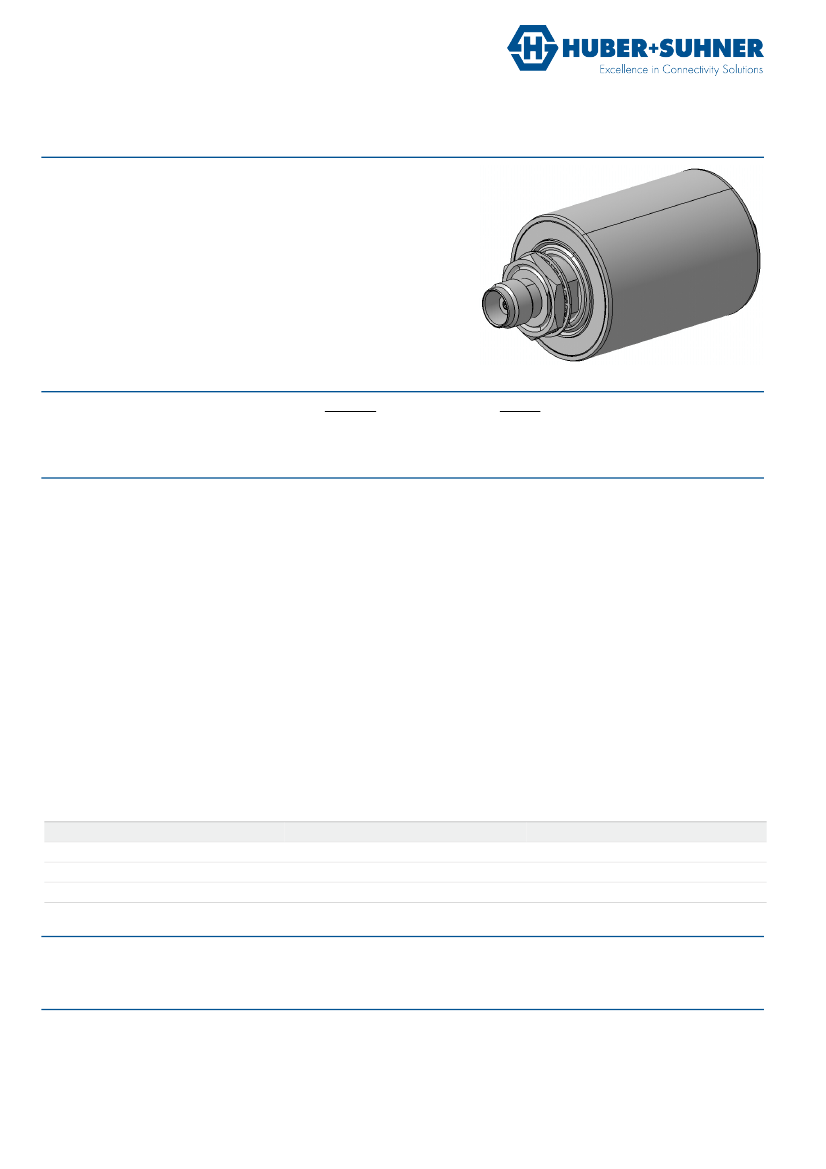

Data Sheet

EMP Protector

3403.26.0002

Description

Fine protector hybrid technology

Benefits

Broad-band design

DC continuity for remote powering

Fix installed GDT, static sparkover-voltage nom. 200 V

Compliant to IEC 61643-21

Product Configuration

Main path connectors

Mounting and grounding

Side of bulkhead

Port 1: unprotected, TNC jack (female) - Port 2: protected, TNC jack (female)

MH119 (bulkhead mounting), brk (bracket)

protected side

Technical Data

Electrical Data

Impedance

Frequency range

Return loss

Insertion loss

RF CW power

PIM 3rd order

DC supply voltage

DC current

Surge current handling capability

Residual pulse energy

50 Ω

800 - 2500 MHz

≥ 23 dB

≤ 0.3 dB

≤ 50 W

not specified

1500 - 1700 MHz

≥ 26.44 dB

≤ 0.3 dB

≤6V

≤3A

20 single kA (test pulse 8/20 µs)

6 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side

Mechanical Data

Number of matings

Weight

100

90 g

Environmental Data

Operating temperature

Waterproof degree

2011/65/EU (RoHS)

-40 °C to +85 °C

IP67 (according to IEC 60529, data refer to the coupled state)

compliant acc. Annex III

Material Data

Piece Parts

Housing

Port 1 center contact

Port 2 center contact

Material

Aluminium

Copper Beryllium Alloy

Surface Plating

Chromatized

Gold Plating (without Nickel underplating)
