1N6864/TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> Diode rectifier with> Schottky diode rectifier> 1N6864/TR

Preview

1N6864/TR: DescriptionSchottky diodes and rectifiers; Categorysemiconductor Discrete semiconductor Diode rectifier with Schottky diode rectifier; File Size1MB，9 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

1N6864/TR Overview

Schottky diodes and rectifiers

1N6864/TR Parametric

Parameter Name	Attribute value
Maker	Microsemi
Product Category	Schottky diodes and rectifiers
RoHS	N
product	Schottky Rectifiers
Installation style	Through Hole
Package/box	B-Package-2
If - forward current	3 A
Vrrm - Repetitive reverse voltage	80 V
Vf - forward voltage	0.7 V at 3 A
Ifsm - Forward surge current	80 A
Configuration	Single
technology	Si
Ir - 反向电流	0.15 mA
Minimum operating temperature	- 65 C
Maximum operating temperature	+ 125 C
Encapsulation	Reel
Factory packaging quantity	100
Vr - 反向电压	80 V

Preview

Download Datasheet

View All

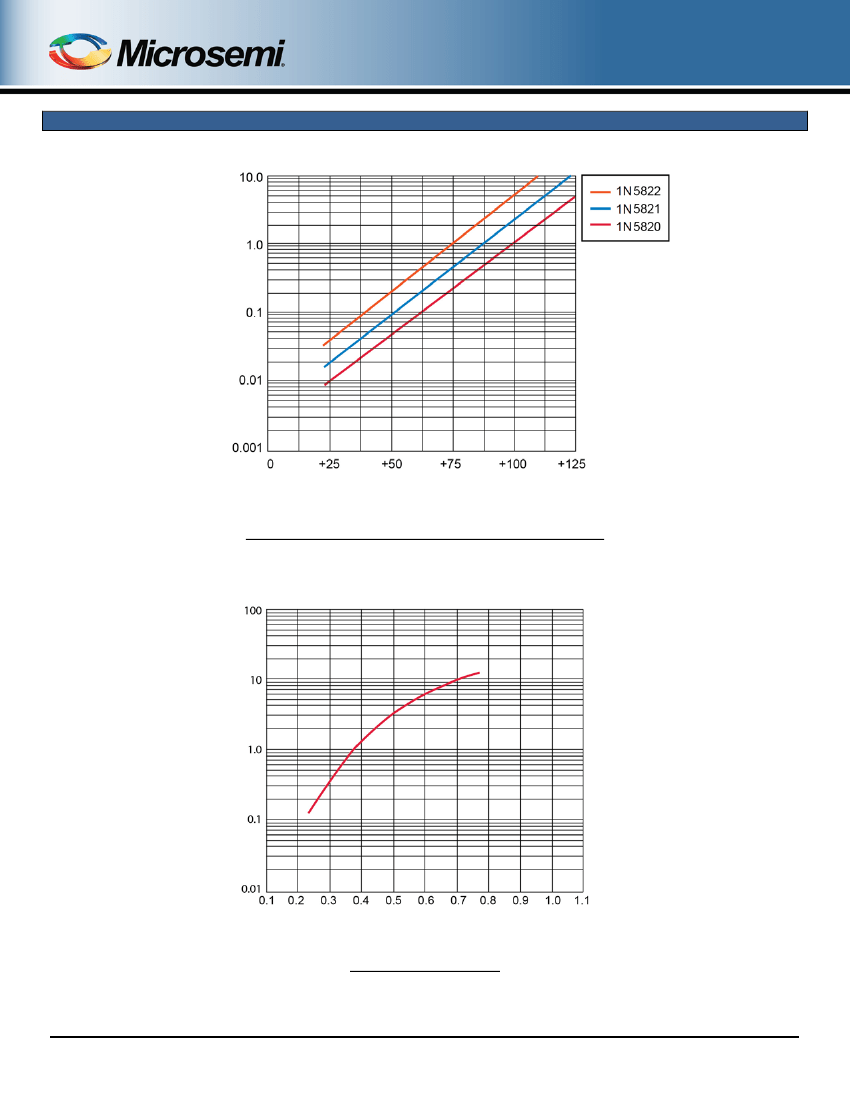

1N5820 – 1N5822 and 1N6864

Qualified Levels*:

JAN, JANTX,

JANTXV and JANS

Available on

commercial

versions

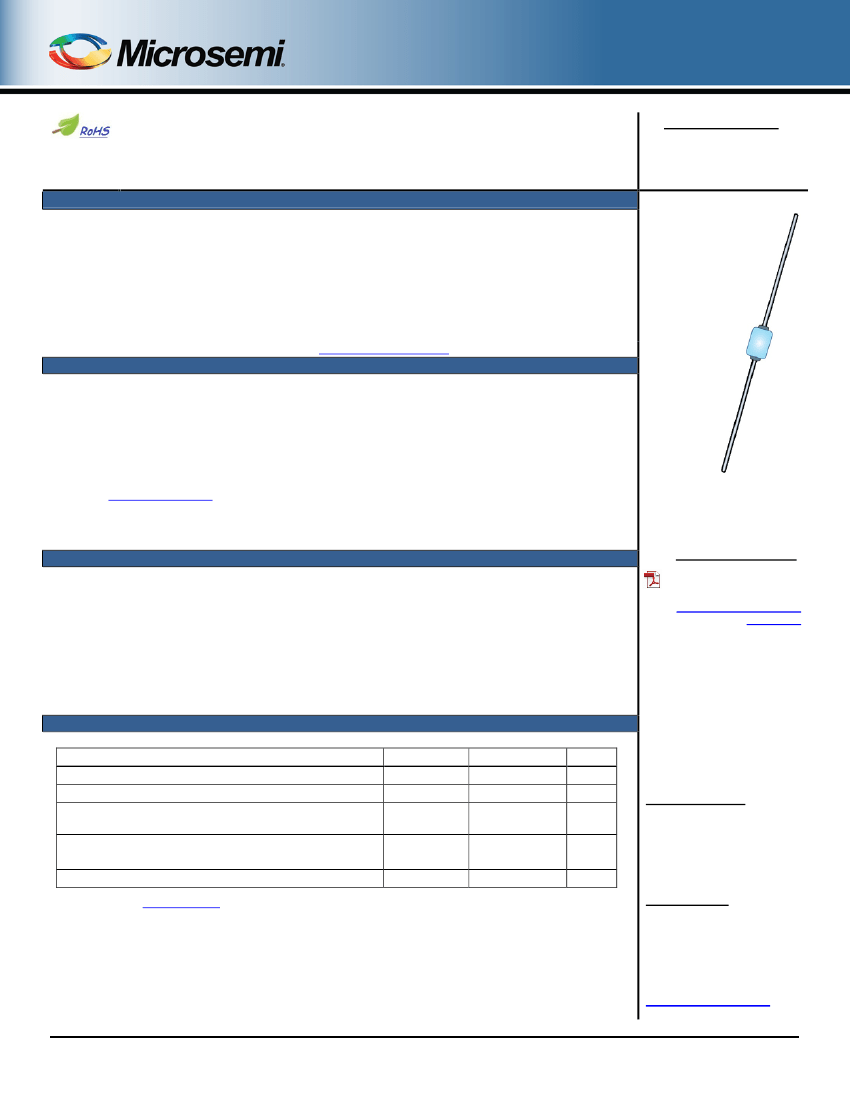

3 Amp Axial Schottky Barrier Rectifiers

Qualified per MIL-PRF-19500/620

DESCRIPTION

This series of 3 amp Schottky rectifiers in their axial-leaded “B” packaging offer flexible thru-

hole mounting. The 1N5822 and 1N6864 are military qualified for high-reliability applications.

Important:

For the latest information, visit our website

http://www.microsemi.com.

FEATURES

•

JEDEC registered 1N5820 – 1N5822 and 1N6864 numbers.

Hermetically sealed.

Metallurgically bonded.

Double plug construction.

*JAN, JANTX, JANTXV and JANS qualifications are available per MIL-PRF-19500/620 for 1N6822

and 1N6864 only.

(See

Part Nomenclature

for all available options.)

RoHS compliant devices available (commercial grade only).

“B” Package

Also available in:

“B” MELF Package

(surface mount)

1N5820US – 1N5822US,

1N6864US

•

APPLICATIONS / BENEFITS

•

Flexible axial leads for thru-hole mounting (see package illustration).

Non-sensitive to ESD per MIL-STD-750 method 1020.

MAXIMUM RATINGS

@ T

= +25 C unless otherwise noted.

Parameters/Test Conditions

Junction Temperature

Storage Temperature

Thermal Resistance Junction-to-Lead @ .375 inch

(9.52 mm) lead length

Surge Peak Forward Current @ T

= +25 C

(Test pulse = 8.3 ms, half-sine wave.)

(1)

Average Rectified Output Current @ T

= +55 C

Symbol

STG

ӨJL

FSM

Value

-65 to +125

-65 to +150

Unit

C/W

MSC – Lawrence

6 Lake Street,

Lawrence, MA 01841

1-800-446-1158

Tel: (978) 620-2600

Fax: (978) 689-0803

MSC – Ireland

Gort Road Business Park,

Ennis, Co. Clare, Ireland

Tel: +353 (0) 65 6840044

Fax: +353 (0) 65 6822298

Website:

www.microsemi.com

NOTES:

1. See

Figures 3 and 4

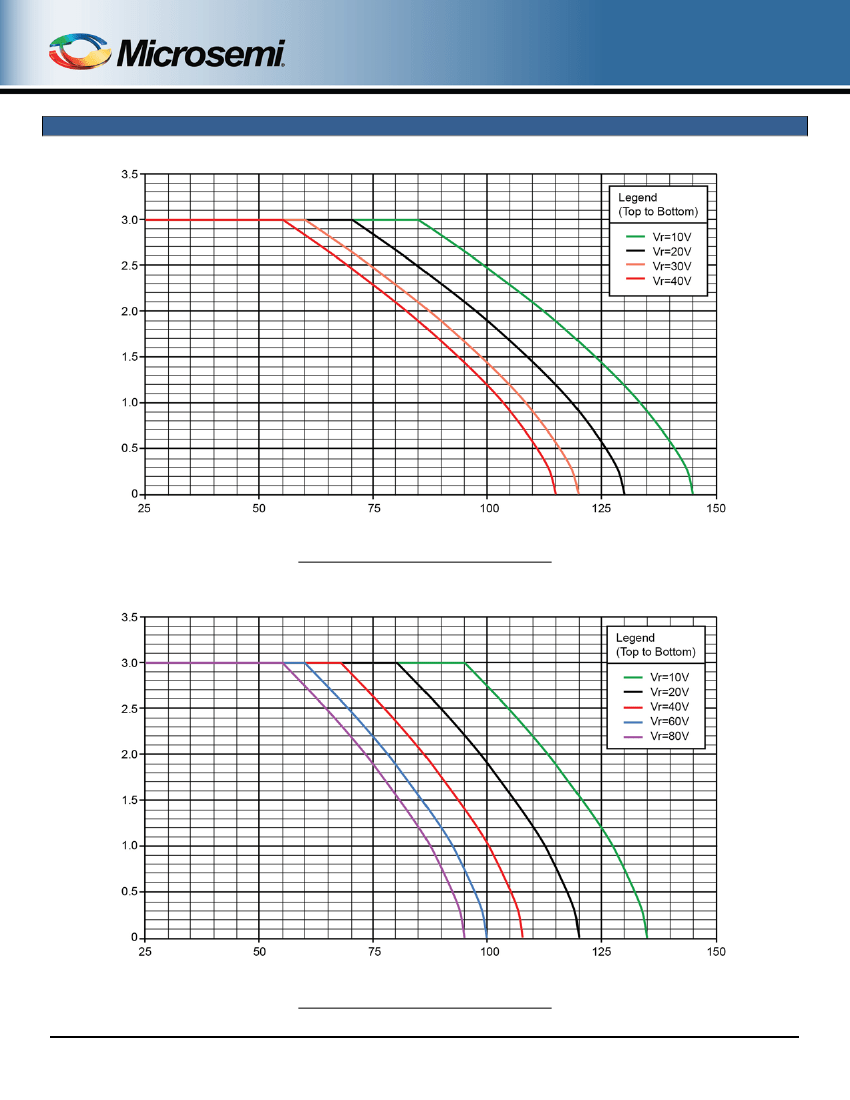

for derating curves and for effects of V

on T

The maximum T

depends on the

voltage applied.

T4-LDS-0303, Rev. 1 (6/14/13)

Page 1 of 8

1N6864/TR Related Products

	1N6864/TR	JANTX1N5822/TR	JANTXV1N5822/TR	JAN1N5822/TR
Description	Schottky diodes and rectifiers	Schottky diodes and rectifiers	Schottky diodes and rectifiers	Schottky diodes and rectifiers
Maker	Microsemi	Microsemi	Microsemi	Microsemi
Product Category	Schottky diodes and rectifiers	Schottky diodes and rectifiers	Schottky diodes and rectifiers	Schottky diodes and rectifiers
RoHS	N	N	N	N
product	Schottky Rectifiers	Schottky Rectifiers	Schottky Rectifiers	Schottky Rectifiers
Installation style	Through Hole	Through Hole	Through Hole	Through Hole
Package/box	B-Package-2	B-Package-2	B-Package-2	B-Package-2
If - forward current	3 A	3 A	3 A	3 A
Vf - forward voltage	0.7 V at 3 A	0.5 V at 3 A	0.5 V at 3 A	0.5 V at 3 A
Ifsm - Forward surge current	80 A	80 A	80 A	80 A
Configuration	Single	Single	Single	Single
technology	Si	Si	Si	Si
Ir - 反向电流	0.15 mA	0.1 mA	0.1 mA	0.1 mA
Minimum operating temperature	- 65 C	- 65 C	- 65 C	- 65 C
Maximum operating temperature	+ 125 C	+ 125 C	+ 125 C	+ 125 C
Encapsulation	Reel	Reel	Reel	Reel
Factory packaging quantity	100	100	100	100
Vr - 反向电压	80 V	40 V	40 V	40 V
Vrrm - Repetitive reverse voltage	80 V	-	40 V	40 V
