Single Event and Total Dose Hardened, High-Speed,
Dual Output PWMs
IS-1825ASRH, IS-1825ASEH,
ISL71823ASRH
The single event and total dose hardened IS-1825ASRH,
IS-1825ASEH and ISL71823ASRH pulse width modulators are
designed to be used in high frequency, switching power
supplies in either voltage or current-mode configurations. Both
designs include a precision voltage reference, a low power
start-up circuit, a high frequency oscillator, a wide-band error
amplifier and a fast current-limit comparator.
The IS-1825ASRH, IS-1825ASEH features dual, alternating
outputs operating from zero to less than 50% duty-cycle, while
the ISL71823ASRH features dual, in-phase outputs operating
from zero to less than 100% duty cycle.
Constructed with the Intersil Rad-hard Silicon Gate (RSG)
dielectrically isolated BiCMOS process, these devices are
immune to single event latch-up and have been specifically
designed to provide a high level of immunity to single event
transients. All specified parameters are guaranteed and tested
for 300krad(Si) total dose performance.
Detailed Electrical Specifications for these devices are
contained in SMD 5962-02511. A “hot-link” is provided on our
website for downloading the SMD.
Features
• Electrically Screened to DLA
SMD # 5962-02511
• QML Qualified per MIL-PRF-38535 Requirements
• Radiation Environment
- Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . 300krad(SI) (max)
- Latch-up Immune. . . . . . . . . . . . . . . . Dielectrically Isolated
- SEU immune . . . . . . . . . . . . . . LET = 35MeV/mg/cm
2
(max)
• Oscillator Frequency . . . . . . . . . . . . . . . . . . . . . . . . 1MHz(max)
• High Output Drive Current . . . . . . . . . . . . . . . . . . .1A peak(typ)
• Low Start-up Current . . . . . . . . . . . . . . . . . . . . . . . 300µA(max)
• Undervoltage Lockout
- Start Threshold. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.8V(max)
- Stop Threshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.6V(min)
- Hysteresis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mV(min)
• Improved Soft-Start Function Compared with Commercial
1825A/1823A Types
• Pulse-by-Pulse Current Limiting
• Latched Overcurrent Comparator with Full Cycle Restart
• Programmable Leading Edge Blanking
Applications
• Voltage or Current-Mode Switching Power Supplies
• Control of High Current MOSFET Drivers
• Motor Speed and Direction Control
Pin Configurations
IS1-1825ASRH, IS1-1825ASEH, ISL71823ASRHQD
(CDIP2-T16 SBDIP)
TOP VIEW
INV 1
NON-INV 2
E/A OUT 3
CLK/LEB 4
RT 5
CT 6
RAMP 7
SS 8
16 VREF
15 VCC
14 OUT B
13 VC
12 PGND
11 OUT A
10 GND
9 ILIM/SD
IS9-1825ASRH, IS9-1825ASEH, ISL71823ASRHQF
(CDFP4-F20 FLATPACK)
TOP VIEW
NC
INV
NON-INV
E/A OUT
CLK/LEB
RT
CT
RAMP
SS
NC
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VREF
VCC
OUT B
PGND
VC
VC
PGND
OUT A
GND
ILIM/SD
April 5, 2012
FN9065.4
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
|
Copyright Intersil Americas Inc. 2002, 2005, 2008, 2012. All Rights Reserved
Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.
All other trademarks mentioned are the property of their respective owners.

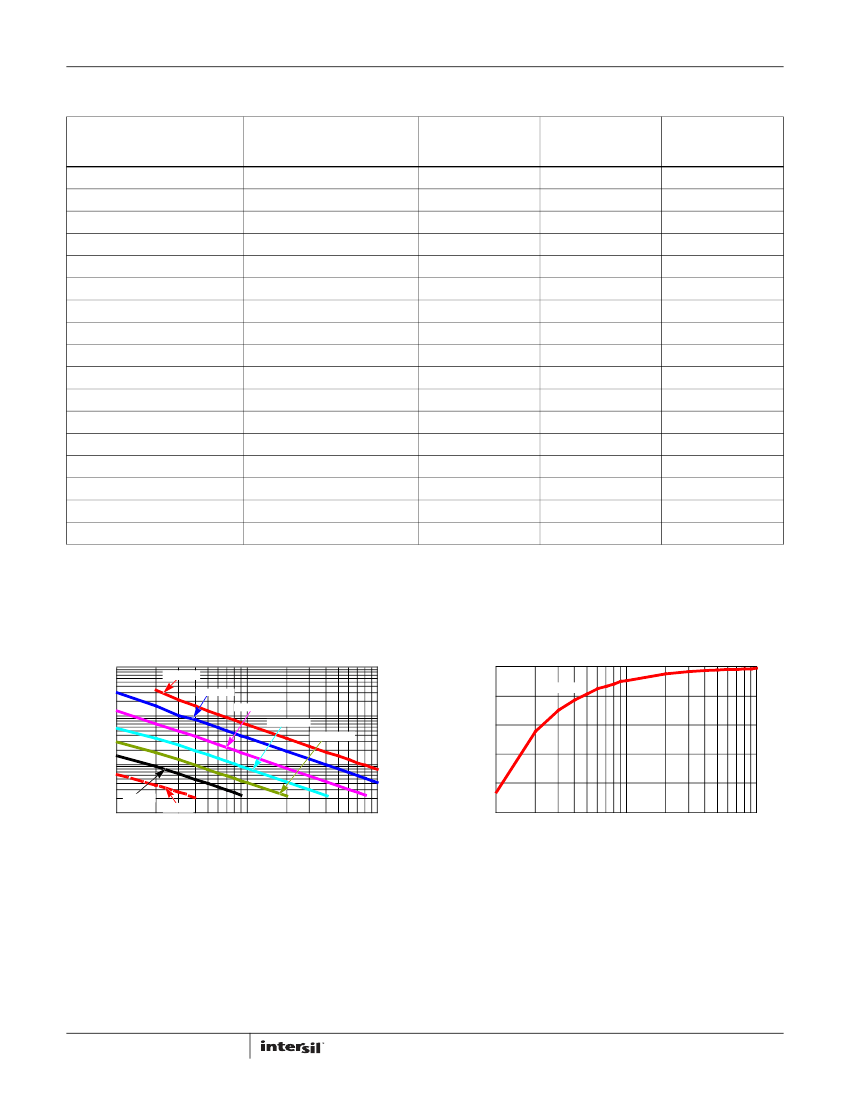

IS-1825ASRH, IS-1825ASEH, ISL71823ASRH
Die Characteristics
DIE DIMENSIONS:
4310µm x 5840µm (170 mils x 230 mils)
Thickness: 483µm ± 25.4µm (19 mils ± 1 mil)
Substrate:
Radiation Hardened Silicon Gate,
Dielectric Isolation
Backside Finish:
Silicon
INTERFACE MATERIALS
Glassivation
Type: Phosphorus Silicon Glass (PSG)
Thickness: 8.0kA ± 1.0kA
Top Metallization
Type: AlSiCu
Thickness: 16.0kA ± 2kA
ASSEMBLY RELATED INFORMATION
Substrate Potential:
Unbiased (DI)
ADDITIONAL INFORMATION
Worst Case Current Density:
<2.0 x 10
5
A/cm
2
Transistor Count:
585

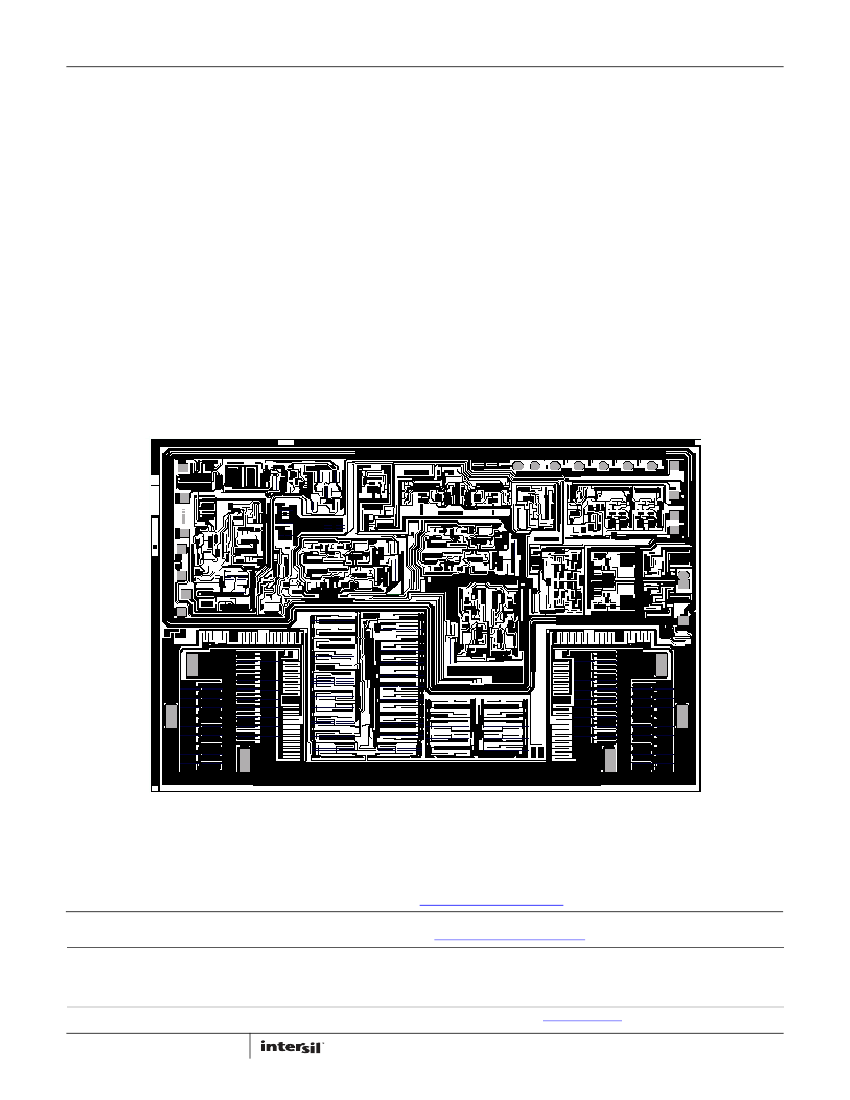

Metallization Mask Layout
IS-1825ASRH, IS-1825ASEH, ISL71823ASRH
RT
CT
CLK/LEB
E/A OUT
NON-INV
INV
RT
RAMP
SS
ILIM/SD
OGND
GND
VREF
VCC
OUT A
OUT B
PGND
VC
VC
PGND
Notes:
1. Both the OGND (oscillator ground) and the GND (control circuit ground) pads must be bonded to ground.
These pads are both bonded to the GND pin on the packaged devices.
2. All double-sized bond pads must be double bonded for current sharing purposes.
