MT46V32M16CY-5B IT:J TR datasheet, PDF

Datasheet> All Categories > semiconductor> Memory IC> Dynamic random access memory> MT46V32M16CY-5B IT:J TR

MT46V32M16CY-5B IT:J TR: DescriptionDynamic Random Access Memory DDR 512M 32MX16 FBGA; Categorysemiconductor Memory IC Dynamic random access memory; File Size2MB，95 Pages; ManufacturerMicron; Websitehttp://www.micron.com/; Environmental Compliance

Download Datasheet Parametric View All

MT46V32M16CY-5B IT:J TR Overview

Dynamic Random Access Memory DDR 512M 32MX16 FBGA

MT46V32M16CY-5B IT:J TR Parametric

Parameter Name	Attribute value
Maker	Micron
Product Category	dynamic random access memory
type	SDRAM - DDR1
Data bus width	16 bit
organize	32 M x 16
Package/box	FBGA-60
storage	512 Mbit
maximum clock frequency	200 MHz
Supply voltage - max.	2.7 V
Supply voltage - min.	2.5 V
Supply current—max.	85 mA
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
series	MT46V
Encapsulation	Cut Tape
Encapsulation	MouseReel
Encapsulation	Reel
Installation style	SMD/SMT
Factory packaging quantity	2000

Preview

Download Datasheet

View All

512Mb: x4, x8, x16 DDR SDRAM

Features

Double Data Rate (DDR) SDRAM

MT46V128M4 – 32 Meg x 4 x 4 banks

MT46V64M8 – 16 Meg x 8 x 4 banks

MT46V32M16 – 8 Meg x 16 x 4 banks

Features

• V

= 2.5V ±0.2V, V

DDQ

= 2.5V ±0.2V

= 2.6V ±0.1V, V

DDQ

= 2.6V ±0.1V (DDR400)

• Bidirectional data strobe (DQS) transmitted/

received with data, i.e., source-synchronous data

capture (x16 has two – one per byte)

• Internal, pipelined double-data-rate (DDR)

architecture; two data accesses per clock cycle

• Differential clock inputs (CK and CK#)

• Commands entered on each positive CK edge

• DQS edge-aligned with data for READs; center-

aligned with data for WRITEs

• DLL to align DQ and DQS transitions with CK

• Four internal banks for concurrent operation

• Data mask (DM) for masking write data

(x16 has two – one per byte)

• Programmable burst lengths: 2, 4, or 8

• Auto refresh

–

64ms, 8192-cycle

• Longer-lead TSOP for improved reliability (OCPL)

• 2.5V I/O (SSTL_2 compatible)

• Concurrent auto precharge option is supported

•

RAS lockout supported (

RAP =

RCD)

Options

• Configuration

–

128 Meg x 4 (32 Meg x 4 x 4 banks)

–

64 Meg x 8 (16 Meg x 8 x 4 banks)

–

32 Meg x 16 (8 Meg x 16 x 4 banks)

• Plastic package

–

66-pin TSOP

–

66-pin TSOP (Pb-free)

–

60-ball FBGA (10mm x 12.5mm)

–

60-ball FBGA (10mm x 12.5mm) (Pb-free)

–

60-ball FBGA (8mm x 12.5mm)

–

60-ball FBGA (8mm x 12.5mm) (Pb-free)

• Timing – cycle time

–

5ns @ CL = 3 (DDR400)

–

6ns @ CL = 2.5 (DDR333) (FBGA only)

–

6ns @ CL = 2.5 (DDR333) (TSOP only)

• Self refresh

–

Standard

–

Low-power self refresh

• Temperature rating

–

Commercial (0°C to +70°C)

–

Industrial (–40°C to +85°C)

• Revision

–

x4, x8, x16

–

x4, x8, x16

Marking

128M4

64M8

32M16

-5B

-6

-6T

None

Notes: 1. DDR400 devices operating at < DDR333

conditions can use V

DDQ

= 2.5V +0.2V.

2. Available only on Revision F.

3. Available only on Revision J.

Table 1:

Key Timing Parameters

CL = CAS (READ) latency; data-out window is MIN clock rate with 50% duty cycle at CL = 2, CL = 2.5, or CL = 3

Speed

Grade

-5B

-6

-75E/-75Z

-75

Clock Rate (MHz)

CL = 2

133

100

CL = 2.5

167

133

CL = 3

200

n/a

Data-Out

Window

1.6ns

2.1ns

2.0ns

2.5ns

Access

Window

±0.70ns

±0.75ns

DQS–DQ

Skew

0.40ns

0.45ns

0.50ns

PDF: 09005aef80a1d9d4/Source: 09005aef82a95a3a

512Mb_DDR_x4x8x16_D1.fm - 512Mb DDR: Rev. Q; Core DDR Rev. E 7/11 EN

Micron Technology, Inc., reserves the right to change products or specifications without notice.

512Mb: x4, x8, x16 DDR SDRAM

Table of Contents

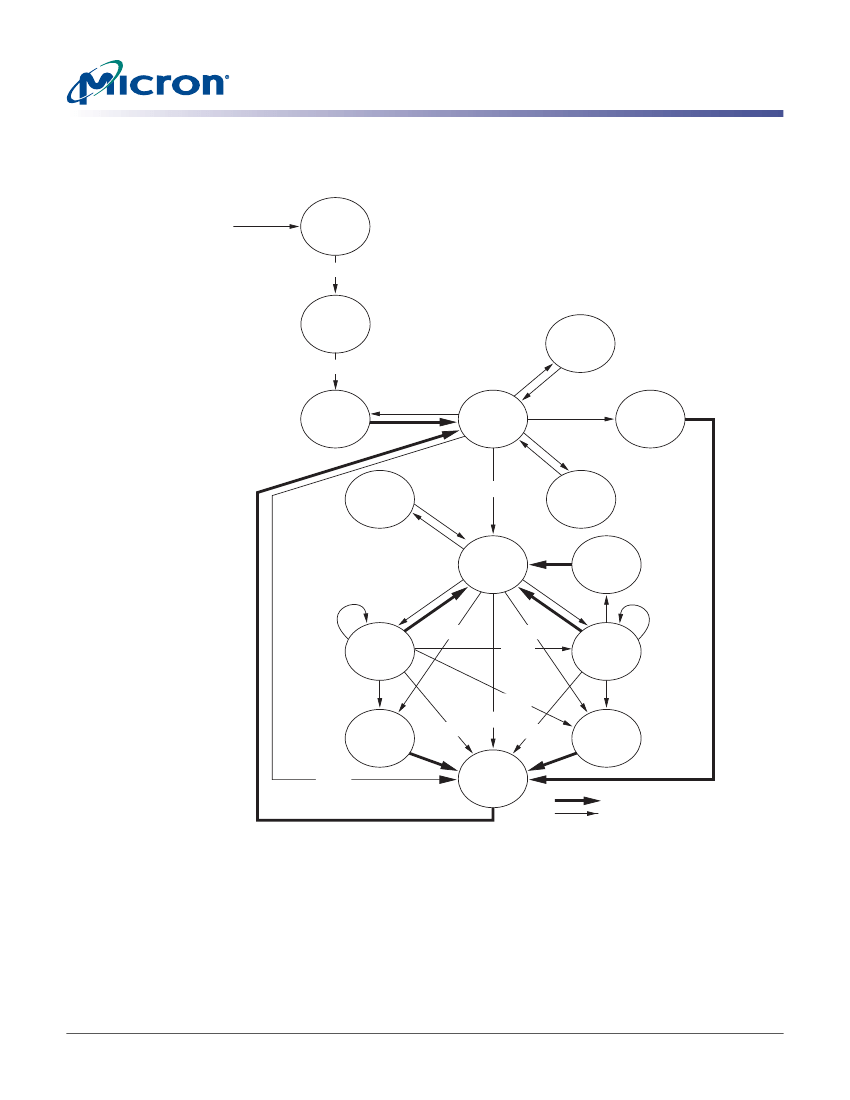

State Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

General Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Functional Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Pin and Ball Assignments and Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Package Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Electrical Specifications – I

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Electrical Specifications – DC and AC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

DESELECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

NO OPERATION (NOP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

LOAD MODE REGISTER (LMR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

ACTIVE (ACT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

READ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

WRITE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

PRECHARGE (PRE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

BURST TERMINATE (BST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

AUTO REFRESH (AR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

SELF REFRESH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

INITIALIZATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

REGISTER DEFINITION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

ACTIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

READ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

WRITE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

PRECHARGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

AUTO REFRESH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

SELF REFRESH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Power-down (CKE Not Active) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
