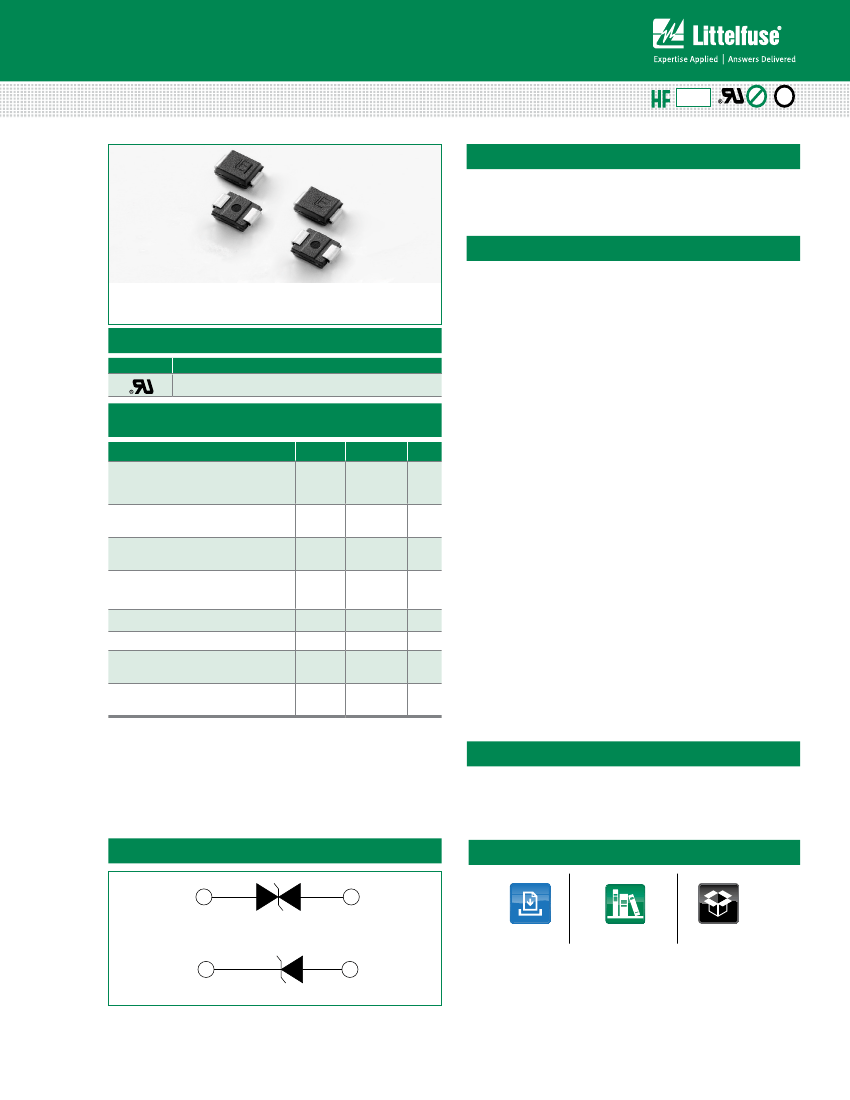

Transient Voltage Suppression Diodes
Surface Mount – 600W > SMBJ series
SMBJ Series
Uni-directional
Bi-directional
Description
RoHS
Pb
e3
The SMBJ is designed specifically to protect sensitive
electronic equipment from voltage transients induced by
lightning and other transient voltage events.
Features
• 600W peak pulse power
capability at 10/1000μs
waveform, repetition rate
(duty cycles):0.01%
• Excellent clamping
capability
• Low incremental surge
resistance
• Typical I
R
less than 1μA
when V
BR
min>12V
• For surface mounted
applications to optimize
board space
• Low profile package
• Typical failure mode is a
short circuit condition for
current events exceeding
component rating
• Whisker test is conducted
based on JEDEC
JESD201A per its table 4a
and 4c
• IEC-61000-4-2 ESD
30kV(Air), 30kV (Contact)
• EFT protection of data
lines in accordance with
IEC 61000-4-4
• Built-in strain relief
• Fast response time:
typically less than 1.0ps
from 0V to BV min
• High temperature
to reflow soldering
guaranteed: 260°C/40sec
• V
BR
@ T
J
= V
BR
@25°C
x (1+
α
T x (T
J
- 25))
(
α
T:Temperature
Coefficient, typical value
is 0.1%)
• Plastic package is
flammability rated V-0 per
UL
-94
• Meet MSL level1, per
J-STD-020, lead-frame
maximun peak of 260
°
C
• Matte tin lead–free plated
• Halogen free and RoHS
compliant
• Pb-free E3 means 2nd
level interconnect is
Pb-free and the terminal
finish material is tin(Sn)
(IPC/JEDEC J-STD-
609A.01)
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation at
T
A
=25ºC by 10/1000µs Waveform
(Fig.2)(Note 1), (Note 2), (Note 5)
Power Dissipation on Infinite Heat
Sink at T
L
=50
O
C
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward
Voltage at 50A for Unidirectional
Only (Note 4)
Operating Temperature Range
Storage Temperature Range
Typical Thermal Resistance Junction
to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
D
I
FSM
V
F
T
J
T
STG
R
θJL
R
θJA
Value
600
5.0
100
3.5/5.0
-65 to 150
-65 to 175
20
100
Unit
W
W
A
V
°C
°C
°C/W
°C/W
Notes:
1. Non-repetitive current pulse , per Fig. 4 and derated above T
J
(initial) =25
O
C per Fig. 3.
2. Mounted on copper pad area of 0.2x0.2” (5.0 x 5.0mm) to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only, duty cycle=4 per minute maximum.
4. V
F
< 3.5V for single die parts and V
F
< 5.0V for stacked-die parts.
5. The P
PPM
of stacked-die parts is 800W; please contact Littelfuse for details on the
stacked-die components.
Applications
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic
applications.
Additional Infomarion
Functional Diagram
®
Bi-directional
Datasheet
Anode
Resources
Samples
Cathode
Uni-directional
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 06/07/17
Transient Voltage Suppression Diodes
Surface Mount – 600W > SMBJ series
Electrical Characteristics
(T =25°C unless otherwise noted)
A
Part
Number
(Uni)
SMBJ5.0A
SMBJ6.0A
SMBJ6.5A
SMBJ7
.0A
SMBJ7
.5A
SMBJ8.0A
SMBJ8.5A
SMBJ9.0A
SMBJ10A
SMBJ11A
SMBJ12A
SMBJ13A
SMBJ14A
SMBJ15A
SMBJ16A
SMBJ17A
SMBJ18A
SMBJ20A
SMBJ22A
SMBJ24A
SMBJ26A
SMBJ28A
SMBJ30A
SMBJ33A
SMBJ36A
SMBJ40A
SMBJ43A
SMBJ45A
SMBJ48A
SMBJ51A
SMBJ54A
SMBJ58A
SMBJ60A
SMBJ64A
SMBJ70A
SMBJ75A
SMBJ78A
SMBJ85A
SMBJ90A
SMBJ100A
SMBJ110A
SMBJ120A
SMBJ130A
SMBJ150A
SMBJ160A
SMBJ170A
SMBJ180A
SMBJ188A
SMBJ200A
SMBJ220A
SMBJ250A
SMBJ300A*
SMBJ350A*
SMBJ400A*
SMBJ440A*
Part
Number
(Bi)
SMBJ5.0CA
SMBJ6.0CA
SMBJ6.5CA
SMBJ7
.0CA
SMBJ7
.5CA
SMBJ8.0CA
SMBJ8.5CA
SMBJ9.0CA
SMBJ10CA
SMBJ11CA
SMBJ12CA
SMBJ13CA
SMBJ14CA
SMBJ15CA
SMBJ16CA
SMBJ17CA
SMBJ18CA
SMBJ20CA
SMBJ22CA
SMBJ24CA
SMBJ26CA
SMBJ28CA
SMBJ30CA
SMBJ33CA
SMBJ36CA
SMBJ40CA
SMBJ43CA
SMBJ45CA
SMBJ48CA
SMBJ51CA
SMBJ54CA
SMBJ58CA
SMBJ60CA
SMBJ64CA
SMBJ70CA
SMBJ75CA
SMBJ78CA
SMBJ85CA
SMBJ90CA
SMBJ100CA
SMBJ110CA
SMBJ120CA
SMBJ130CA
SMBJ150CA
SMBJ160CA
SMBJ170CA
SMBJ180CA
SMBJ188CA
SMBJ200CA
SMBJ220CA
SMBJ250CA
SMBJ300CA*
SMBJ350CA*
SMBJ400CA*
SMBJ440CA*
Marking
UNI
KE
KG
KK
KM
KP
KR
KT
KV
KX
KZ
LE
LG
LK
LM
LP
LR
LT
LV
LX
LZ
ME
MG
MK
MM
MP
MR
MT
MV
MX
MZ
NE
NG
NK
NM
NP
NR
NT
NV
NX
NZ
PE
PG
PK
PM
PP
PR
PT
PB
PV
PX
PZ
QE
QG
QK
QM
BI
AE
AG
AK
AM
AP
AR
AT
AV
AX
AZ
BE
BG
BK
BM
BP
BR
BT
BV
BX
BZ
CE
CG
CK
CM
CP
CR
CT
CV
CX
CZ
DE
DG
DK
DM
DP
DR
DT
DV
DX
DZ
EE
EG
EK
EM
EP
ER
ET
EB
EV
EX
EZ
FE
FG
FK
FM
Reverse
Stand off
Voltage V
R
(Volts)
5.0
6.0
6.5
7
.0
7
.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17
.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
180.0
188.0
200.0
220.0
250.0
300.0
350.0
400.0
440.0
Breakdown
Voltage V
BR
(Volts) @ I
T
MIN
6.40
6.67
7
.22
7
.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17
.80
18.90
20.00
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47
.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77
.80
83.30
86.70
94.40
100.00
111.00
122.00
133.00
144.00
167
.00
178.00
189.00
201.00
209.00
224.00
246.00
279.00
335.00
391.00
447
.00
492.00
MAX
7
.00
7
.37
7
.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17
.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147
.00
159.00
185.00
197
.00
209.00
222.00
231.00
247
.00
272.00
309.00
371.00
432.00
494.00
543.00
Test
Current
I
T
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Maximum
Clamping
Peak
Voltage V
C
Pulse Current
@ I
pp
I
pp
(A) at
(V) at 10/1000
10/1000
9.2
65.3
10.3
58.3
11.2
53.6
12.0
50.0
12.9
46.6
13.6
44.2
14.4
41.7
15.4
39.0
17
.0
35.3
18.2
33.0
19.9
30.2
21.5
28.0
23.2
25.9
24.4
24.6
26.0
23.1
27
.6
21.8
29.2
20.6
32.4
18.6
35.5
16.9
38.9
15.5
42.1
14.3
45.4
13.3
48.4
12.4
53.3
11.3
58.1
10.4
64.5
9.3
69.4
8.7
72.7
8.3
77
.4
7
.8
82.4
7
.3
87
.1
93.6
96.8
103.0
113.0
121.0
126.0
137
.0
146.0
162.0
177
.0
193.0
209.0
243.0
259.0
275.0
292.0
304.0
324.0
356.0
405.0
486.0
567
.0
648.0
713.0
6.9
6.5
6.2
5.9
5.3
5.0
4.8
4.4
4.1
3.7
3.4
3.1
2.9
2.5
2.3
2.2
2.1
2.0
1.9
1.7
1.5
1.3
1.1
0.9
0.9
Maximum
Agency
Maximum
Reverse
Temperature Recognition
Leakage I
R
coefficient of
@ V
R
V
BR
(%/C)
(µA)
800
0.041
X
800
0.046
X
500
0.052
X
200
0.058
X
100
0.061
X
50
0.064
X
20
0.066
X
10
0.069
X
5
0.071
X
1
0.074
X
1
0.075
X
1
0.076
X
1
0.08
X
1
0.083
X
1
0.084
X
1
0.085
X
1
0.088
X
1
0.091
X
1
0.092
X
1
0.092
X
1
0.093
X
1
0.094
X
1
0.096
X
1
0.097
X
1
0.098
X
1
0.099
X
1
0.1
X
1
0.101
X
1
0.101
X
1
0.101
X
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0.102
0.103
0.103
0.104
0.105
0.106
0.106
0.106
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
0.108
0.11
0.11
0.11
0.11
0.112
0.112
0.112
0.112
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
For bidirectional type having V
R
of 10 volts and less, the I
R
limit is double.
Components marked with “*” use stacked-die, therefore they have a higher surge capability (typical 1.8*I
PP
).
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 06/07/17
Transient Voltage Suppression Diodes
Surface Mount – 600W > SMBJ series

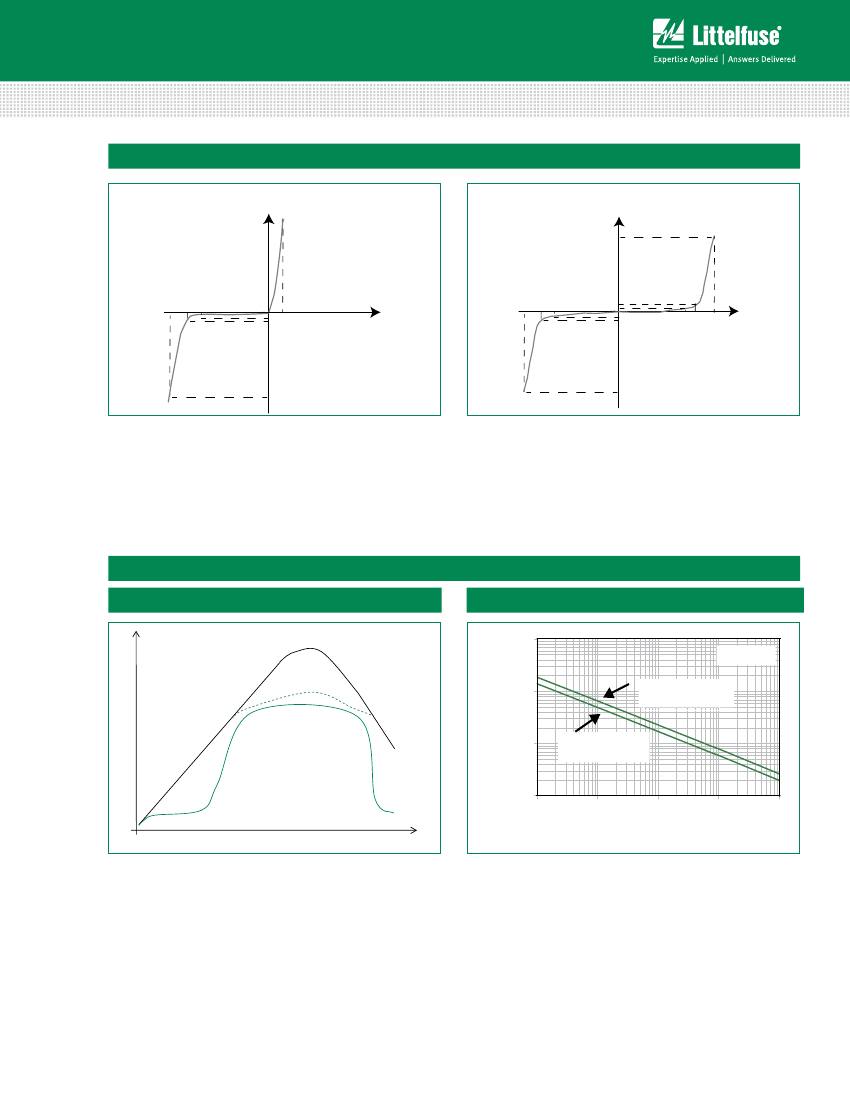

I-V Curve Characteristics
Uni-directional
Bi-directional
I
pp
Vc V
BR
V
R
I
R
V
F
I
T
V
Vc V
BR
V
R
I
T
I
R
I
R
I
T
V
R
V
BR
Vc
V
I
pp
I
pp
P
PPM
V
R
V
BR
V
C
I
R
V
F
Peak Pulse Power Dissipation
-- Max power dissipation
Stand-off Voltage
-- Maximum voltage that can be applied to the TVS without operation
Breakdown Voltage
-- Maximum voltage that flows though the TVS at a specified test current (I
T
)
Clamping Voltage
-- Peak voltage measured across the TVS at a specified I
PPM
(peak impulse current)
Reverse Leakage Current
-- Current measured at V
R
Forward Voltage Drop for Uni-directional
Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
A
Figure 1 - TVS Transients Clamping Waveform
Voltage Transients
Figure 2 - Peak Pulse Power Rating
100
Voltage Across TVS
Voltage or Current
P
PPM
-Peak Pulse Power (kW)
TJ initial = T
AMB
10
stacked-die, 800W
at 10/1000µs, 25°C
Current Through TVS
1
Single die,600W
at 10/1000µs, 25°C
0.1
0.001
0.01
0.1
1
10
Time
t
d
-Pulse Width (ms)
continues on next page.
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 06/07/17
Transient Voltage Suppression Diodes
Surface Mount – 600W > SMBJ series
Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
(Continued)
A

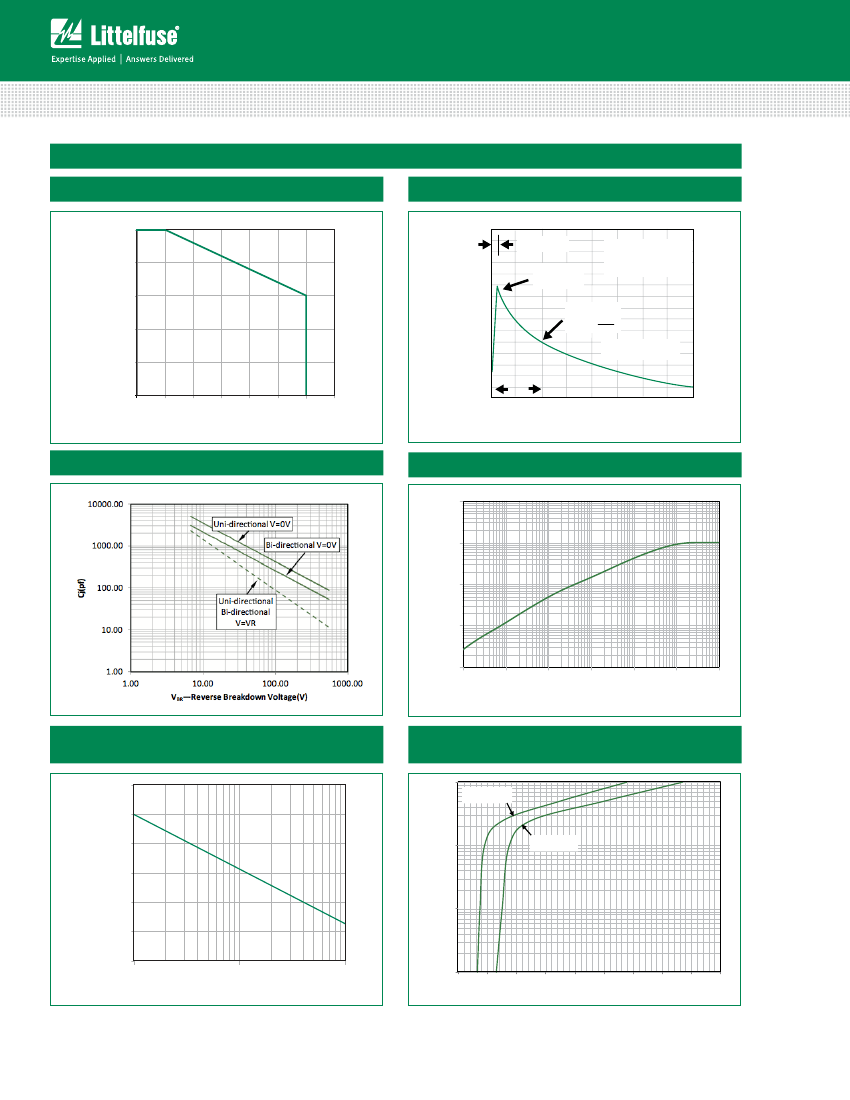

Figure 3 - Peak Pulse Power Derating Curve
100
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
80
60
40
20
0
Figure 4 - Pulse Waveform
150
I
PPM
- Peak Pulse Current, % I
RSM
tr=10µsec
Peak Value
IPPM
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of IPPM
100
Half Value
IPPM
IPPM
2
( )
10/1000µsec. Waveform
as defined by R.E.A
50
0
25
50
75
100
125 150
T
J
- Initial Junction Temperature (ºC)
175
0
td
0
1.0
2.0
t-Time (ms)
3.0
4.0
Figure 5 - Typical Junction Capacitance
Figure 6 - Typical Transient Thermal Impedance
1000
Transient Thermal Impedance (°C/W)
100
10
1
0.1
0.001
0.01
0.1
1
10
100
1000
T
P
- Pulse Duration (s)
Figure 7 - Maximum Non-Repetitive Peak Forward
Surge Current Uni-Directional Only
120
Figure 8 - Peak Forward Voltage Drop vs Peak Forward
Current (Typical Values)
100.0
I
FSM
- Peak Forward Surge Current (A)
Single die
100
80
60
40
20
0
1
10
Number of Cycles at 60 Hz
100
0.1
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
V
F
-
Peak Forward Voltage(V)
I
F
-
Peak Forward Current(A)
10.0
Stacked-die
1.0
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 06/07/17
Transient Voltage Suppression Diodes
Surface Mount – 600W > SMBJ series
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus Temp (T
A
)
to peak
T
S(max)
to T
A
- Ramp-up Rate
Reflow
- Temperature (T
A
) (Liquidus)
- Time (min to max) (t
s
)
Lead–free
assembly
150°C
200°C
60 – 180 secs
3°C/second max
3°C/second max
217°C
60 – 150 seconds
260
+0/-5
°C
20 – 40 seconds
6°C/second max
8 minutes Max.
260°C
Temperature (T)
T
P
Ramp-up
t
p
Critical Zone
T
L
to T
P
T
L
T
s(max)
t
L
T
s(min)
Ramp-down
Preheat
t
s
25˚C
t 25˚C to Peak
Time (t)
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
Environmental Specifications
High Temp. Storage
HTRB
JESD22-A103
JESD22-A108
JESD22-A104
JEDEC-J-STD-020, Level 1
JESD22-A101
JESD22-A111
Physical Specifications
Weight
Case
Polarity
Terminal
0.003 ounce, 0.093 grams
JEDEC DO214AA. Molded plastic body
over glass passivated junction
Color band denotes cathode except
Bidirectional
Matte Tin-plated leads, Solderable per
JESD22-B102
Temperature Cycling
MSL
H3TRB
RSH
Dimensions
DO-214AA (SMB J-Bend)
Cathode Band
(for Uni-directional products only)
Dimensions
A
B
C
D
Inches
Min
0.076
0.160
0.130
0.078
0.030
-
0.205
0.006
0.089
0.085
-
0.085
Max
0.086
0.187
0.155
0.103
0.060
0.008
0.220
0.012
-
-
0.107
-
Millimeters
Min
1.930
4.060
3.300
1.990
0.760
-
5.210
0.152
2.260
2.160
-
2.160
Max
2.200
4.750
3.940
2.610
1.520
0.203
5.590
0.305
-
-
2.740
-
A
B
H
D
F
G
C
E
F
G
H
I
J
K
L
E
J
K
L
I
Solder Pads
(all dimensions in mm)
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 06/07/17
京公网安备 11010802033920号
EEWORLD
