BSR20-T

Description
TRANSISTOR 300 mA, 120 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, SOT-23, 4 PIN, BIP General Purpose Small Signal
CategoryThe transistor
File Size62KB,2 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

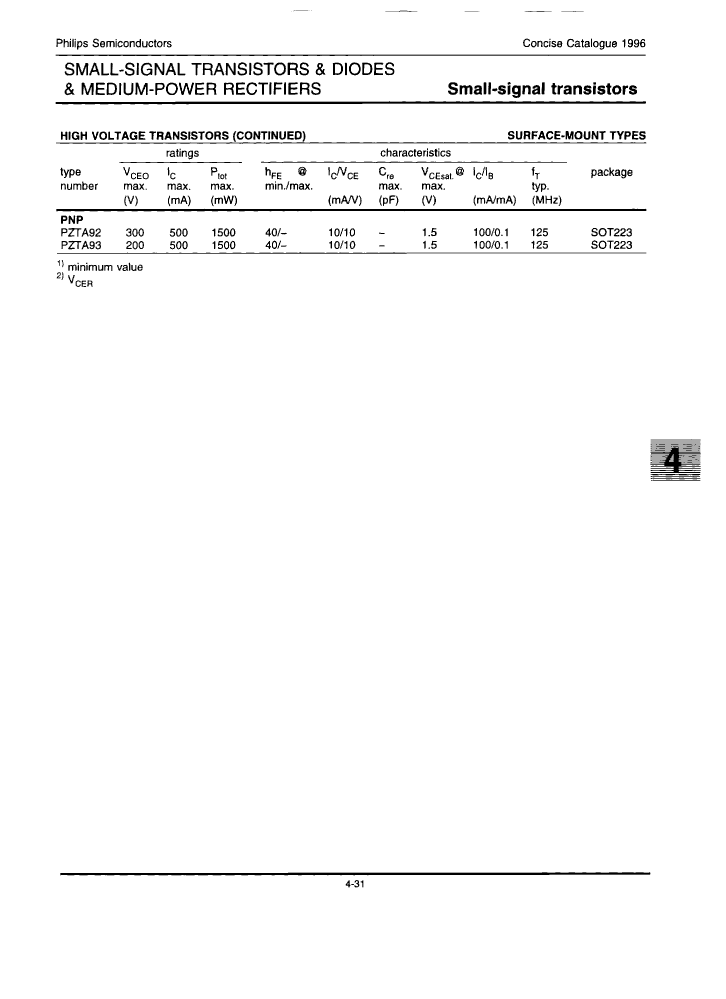

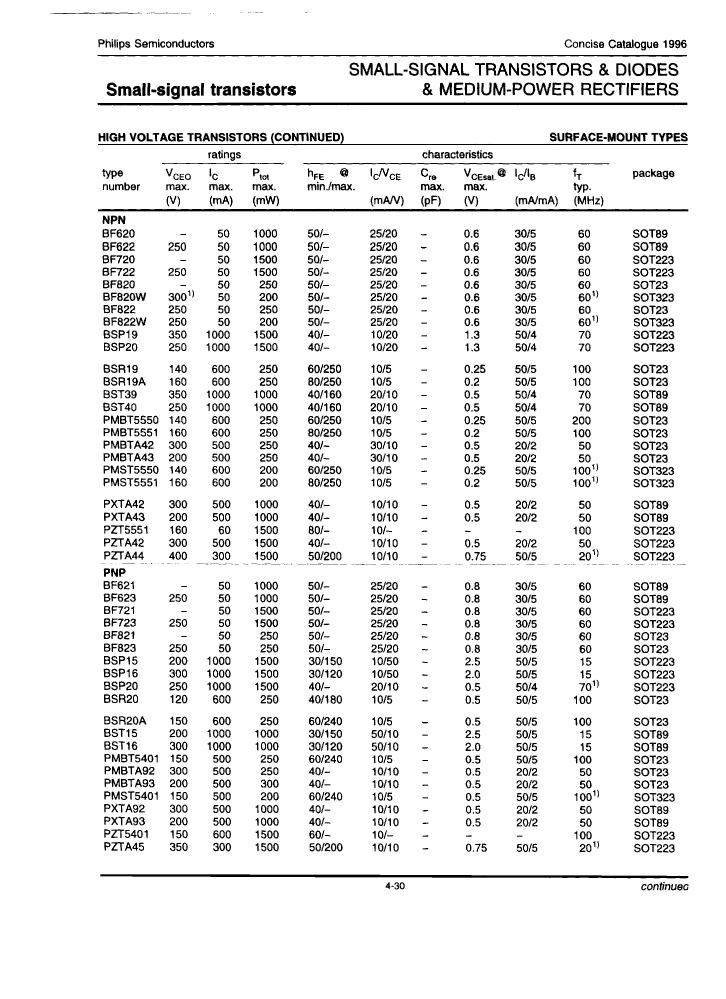

BSR20-T Overview

TRANSISTOR 300 mA, 120 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, SOT-23, 4 PIN, BIP General Purpose Small Signal

BSR20-T Parametric

Parameter NameAttribute value
MakerNXP
Parts packaging codeSOT-23
package instructionSMALL OUTLINE, R-PDSO-G3
Contacts4
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Maximum collector current (IC)0.3 A
Collector-based maximum capacity6 pF
Collector-emitter maximum voltage120 V
ConfigurationSINGLE
Minimum DC current gain (hFE)40
JEDEC-95 codeTO-236AB
JESD-30 codeR-PDSO-G3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typePNP
Certification statusNot Qualified
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)100 MHz
VCEsat-Max0.5 V
Base Number Matches1
