BSR20T/R datasheet, PDF - EEWORLD Datasheet

BSR20T/R: DescriptionTRANSISTOR 300 mA, 120 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, BIP General Purpose Small Signal; CategoryThe transistor; File Size106KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

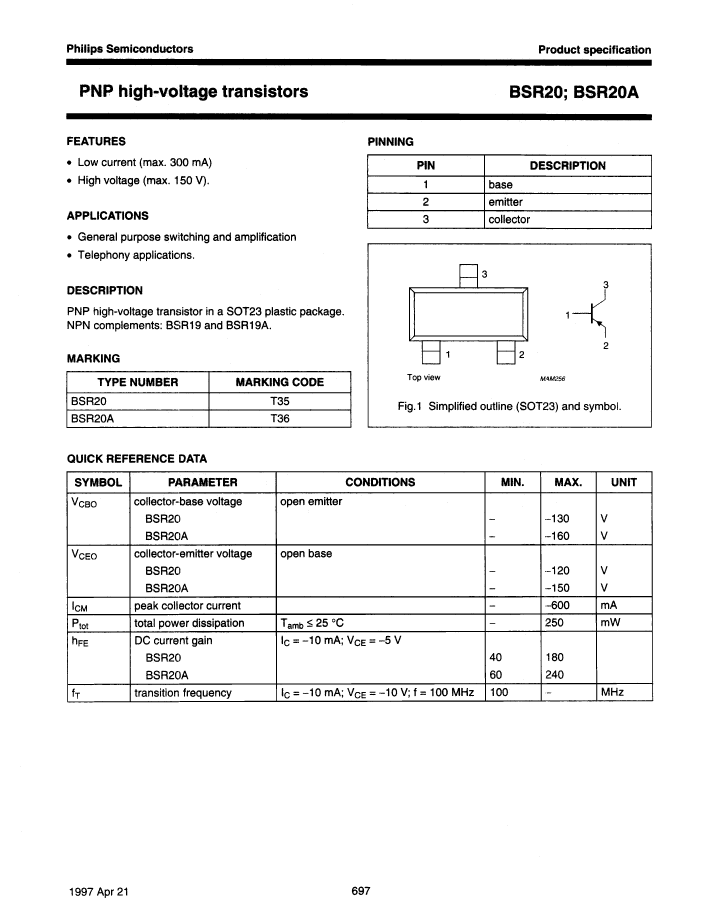

BSR20T/R Overview

TRANSISTOR 300 mA, 120 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, BIP General Purpose Small Signal

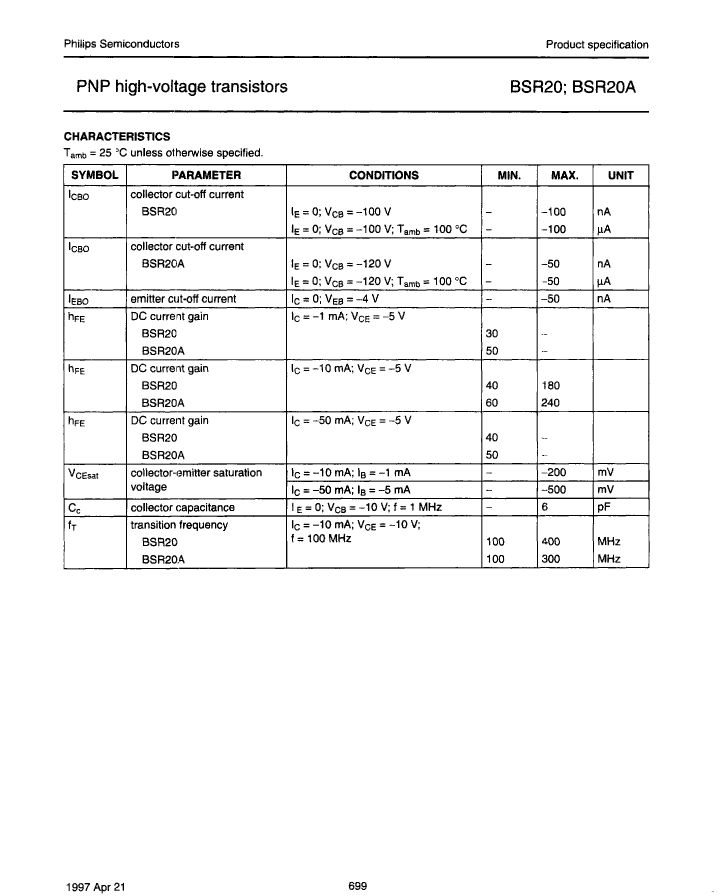

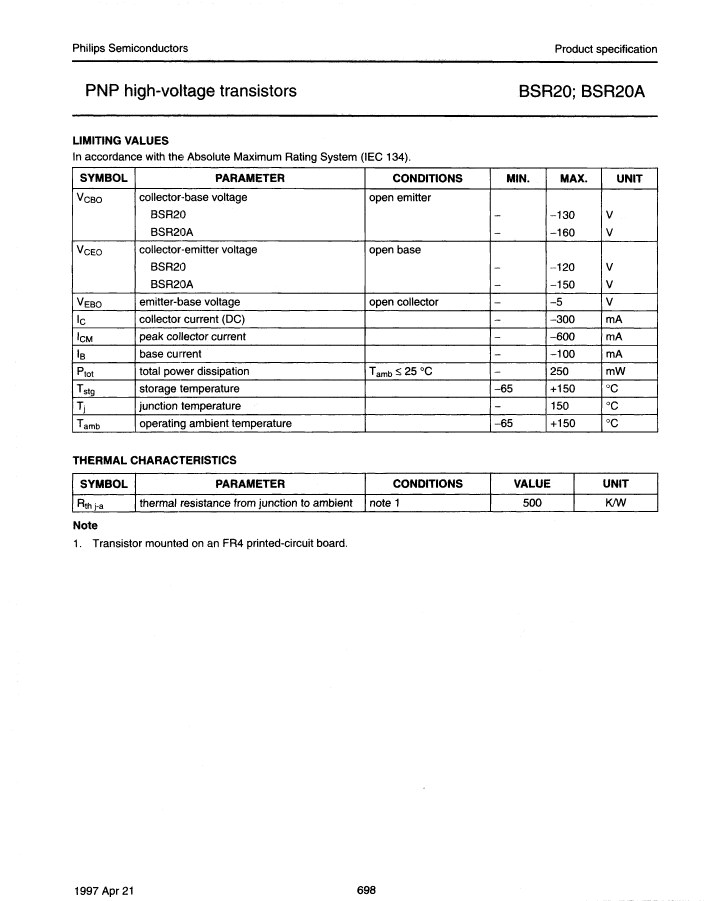

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Maximum collector current (IC)	0.3 A
Collector-based maximum capacity	6 pF
Collector-emitter maximum voltage	120 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-236AB
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
VCEsat-Max	0.5 V
Base Number Matches	1

	BSR20T/R	BSR20AT/R
Description	TRANSISTOR 300 mA, 120 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, BIP General Purpose Small Signal	TRANSISTOR 300 mA, 150 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, BIP General Purpose Small Signal
Maker	NXP	NXP
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum collector current (IC)	0.3 A	0.3 A
Collector-based maximum capacity	6 pF	6 pF
Collector-emitter maximum voltage	120 V	150 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	40	50
JEDEC-95 code	TO-236AB	TO-236AB
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz
VCEsat-Max	0.5 V	0.5 V
