DS2505P+T&R: DescriptionErasable Programmable ROM 16Kb Add-Only Memory; Categorystorage storage; File Size589KB，25 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

DS2505P+T&R Overview

Erasable Programmable ROM 16Kb Add-Only Memory

DS2505P+T&R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	SOC, SOC6,.17
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Maximum access time	15000 ns
Other features	MICROLAN COMPATIBLE
I/O type	COMMON
JESD-30 code	R-PDSO-C6
JESD-609 code	e3
length	3.94 mm
memory density	16384 bit
Memory IC Type	OTP ROM
memory width	1
Humidity sensitivity level	1
Number of functions	1
Number of terminals	6
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	16KX1
Package body material	PLASTIC/EPOXY
encapsulated code	SOC
Encapsulate equivalent code	SOC6,.17
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	260
power supply	3/5 V
Certification status	Not Qualified
Maximum seat height	1.5 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2.8 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	MOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.76 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DS2505

16Kb Add-Only Memory

www.maxim-ic.com

FEATURES



16384 bits Electrically Programmable Read

Only Memory (EPROM) communicates with

the economy of one signal plus ground

Unique, factory-lasered and tested 64-bit

registration number (8-bit family code +

48-bit serial number + 8-bit CRC tester)

assures absolute traceability because no two

parts are alike

Built-in

multidrop

controller

ensures

compatibility with other 1-Wire Net

products

EPROM partitioned into sixty-four 256-bit

pages for randomly accessing packetized data

records

Each memory page can be permanently write-

protected to prevent tampering

Device is an “add only” memory where

additional data can be programmed into

EPROM without disturbing existing data

Architecture allows software to patch data by

superseding an old page in favor of a newly

programmed page

Reduces control, address, data, power, and

programming signals to a single data pin

Directly connects to a single port pin of a

microprocessor and communicates at up to

16.3 kbits per second

8-bit family code specifies DS2505

communications requirements to reader

Presence detector acknowledges when the

reader first applies voltage

Low cost TO-92 or 6-pin TSOC surface

mount package

Reads over a wide voltage range of 2.8V to

6.0V from -40°C to +85°C; programs at

11.5V to 12.0V from -40°C to +50°C

PIN ASSIGNMENT

TO-92

DALLAS

DS2505

TSOC PACKAGE

GND

DATA

Top View

3.7 X 4.0 X 1.5 mm



Side View

See Mech.

Drawing Section

GND

DATA

1 2 3

Bottom View

NOTE:

The leads of TO-92 packages on tape-

and-reel are formed to approximately 100 mil

(2.54 mm) spacing. For details see the

Package

Information

section.

ORDERING INFORMATION

DS2505

DS2505/T&R

DS2505P

DS2505P/T&R

DS2505+

DS2505+T&R

DS2505P+

DS2505P+T&R

TO-92 Package

TO-92 Package, Tape & Reel

TSOC Package

TSOC Package, Tape & Reel

TO-92 Package

TO-92 Package, Tape & Reel

TSOC Package

TSOC Package, Tape & Reel

+ Denotes a lead(Pb)-free/RoHS-compliant

package.

1-Wire is a registered trademark of Maxim Integrated Products, Inc.

1 of 24

071107

DS2505

SILICON LABEL DESCRIPTION

The DS2505 16Kb Add–Only Memory identifies and stores relevant information about the product to

which it is associated. This lot or product specific information can be accessed with minimal interface,

for example a single port pin of a microcontroller. The DS2505 consists of a factory-lasered registration

number that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit Family Code (0BH) plus

16Kb of user-programmable EPROM. The power to program and read the DS2505 is derived entirely

from the 1-Wire

communication line. Data is transferred serially via the 1-Wire protocol which requires

only a single data lead and a ground return. The entire device can be programmed and then write-

protected if desired. Alternatively, the part may be programmed multiple times with new data being

appended to, but not overwriting, existing data with each subsequent programming of the device. Note:

Individual bits can be changed only from a logical 1 to a logical 0, never from a logical 0 to a logical 1.

A provision is also included for indicating that a certain page or pages of data are no longer valid and

have been replaced with new or updated data that is now residing at an alternate page address. This page

address redirection allows software to patch data and enhance the flexibility of the device as a standalone

database. The 48-bit serial number that is factory-lasered into each DS2505 provides a guaranteed-

unique identity which allows for absolute traceability. The TO-92 and TSOC packages provide a

compact enclosure that allows standard assembly equipment to handle the device easily for attachment to

printed circuit boards or wiring. Typical applications include storage of calibration constants,

maintenance records, asset tracking, product revision status and access codes.

OVERVIEW

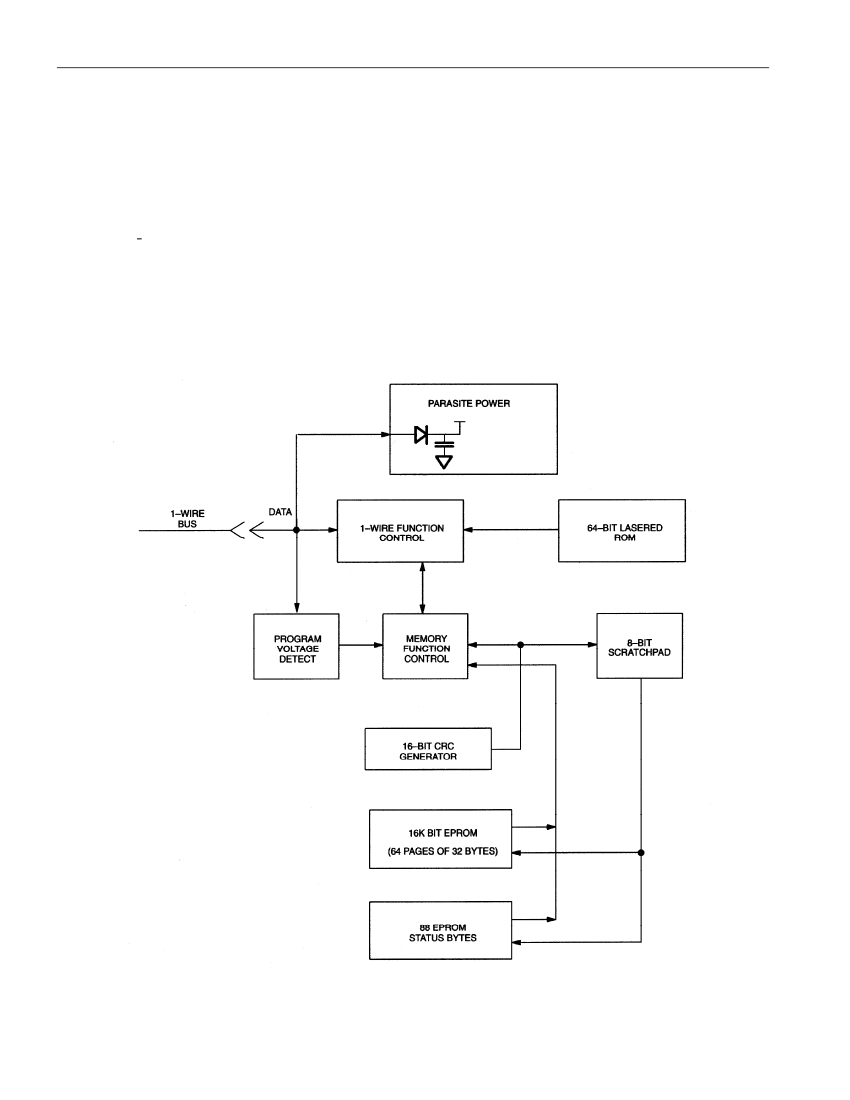

The block diagram in Figure 1 shows the relationships between the major control and memory sections of

the DS2505. The DS2505 has three main data components: 1) 64-bit lasered ROM, 2) 16384-bits

EPROM Data Memory, and 3) 704 bits EPROM Status Memory. The device derives its power for read

operations entirely from the 1-Wire communication line by storing energy on an internal capacitor during

periods of time when the signal line is high and continues to operate off of this “parasite” power source

during the low times of the 1-Wire line until it returns high to replenish the parasite (capacitor) supply.

During programming, 1-Wire communication occurs at normal voltage levels and then is pulsed

momentarily to the programming voltage to cause the selected EPROM bits to be programmed. The

1-Wire line must be able to provide 12 volts and 10 milliamperes to adequately program the EPROM

portions of the part. Whenever programming voltages are present on the 1-Wire line a special high

voltage detect circuit within the DS2505 generates an internal logic signal to indicate this condition. The

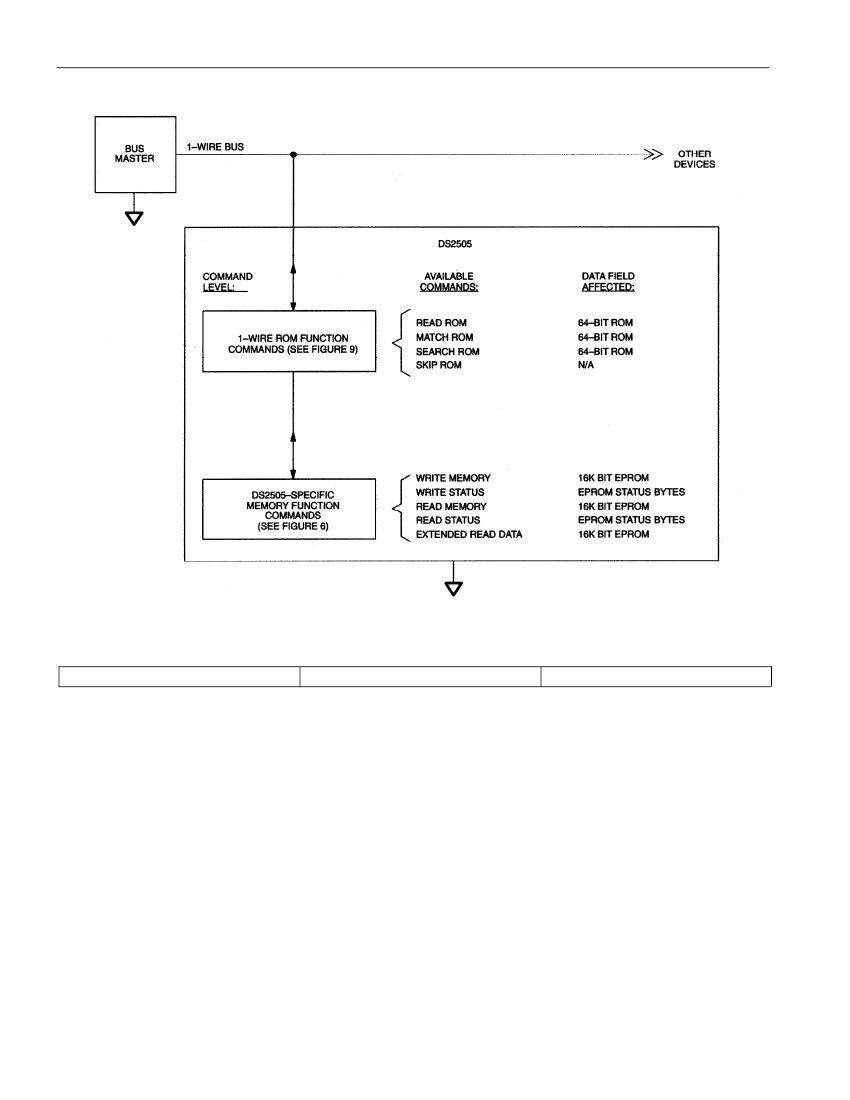

hierarchical structure of the 1-Wire protocol is shown in Figure 2. The bus master must first provide one

of the four ROM Function Commands: 1) Read ROM, 2) Match ROM, 3) Search ROM, 4) Skip ROM.

These commands operate on the 64-bit lasered ROM portion of each device and can singulate a specific

device if many are present on the 1-Wire line as well as indicate to the bus master how many and what

types of devices are present. The protocol required for these ROM Function Commands is described in

Figure 8. After a ROM Function Command is successfully executed, the memory functions that operate

on the EPROM portions of the DS2505 become accessible and the bus master may issue any one of the

five Memory Function Commands specific to the DS2505 to read or program the various data fields. The

protocol for these Memory Function Commands is described in Figure 5. All data is read and written

least significant bit first.

64-BIT LASERED ROM

Each DS2505 contains a unique ROM code that is 64 bits long. The first 8 bits are a 1-Wire family code.

The next 48 bits are a unique serial number. The last 8 bits are a CRC of the first 56 bits. (See Figure 3.)

The 64-bit ROM and ROM Function Control section allow the DS2505 to operate as a 1-Wire device and

follow the 1-Wire protocol detailed in the section “1-Wire Bus System.” The memory functions required

to read and program the EPROM sections of the DS2505 are not accessible until the ROM function

2 of 24

DS2505

EPROM STATUS BYTES

In addition to the 16384 bits of data memory the DS2505 provides 704 bits of Status Memory accessible

with separate commands.

The EPROM Status Bytes can be read or programmed to indicate various conditions to the software

interrogating the DS2505. The first 8 bytes of the EPROM Status Memory (addresses 000 to 007H)

contain the Write Protect Page bits which inhibit programming of the corresponding page in the 16384-bit

main memory area if the appropriate write protection bit is programmed. Once a bit has been

programmed in the Write Protect Page section of the Status Memory, the entire 32-byte page that

corresponds to that bit can no longer be altered but may still be read.

The next 8 bytes of the EPROM Status Memory (addresses 020 to 027H) contain the Write Protect bits

which inhibit altering the Page Address Redirection Byte corresponding to each page in the 16384-bit

main memory area.

The following 8 bytes within the EPROM Status Memory (addresses 040 to 047H) are reserved for use

by the iButton operating software TMEX. Their purpose is to indicate which memory pages are already

in use. Originally, all of these bits are unprogrammed, indicating that the device does not store any data.

As soon as data is written to any page of the device under control of TMEX, the bit inside this bitmap

corresponding to that page will be programmed to 0, marking this page as used. These bits are

application flags only and have no impact on the internal logic of the DS2505.

The next 64 bytes of the EPROM Status Memory (addresses 100H to 13FH) contain the Page Address

Redirection Bytes which indicate if one or more of the pages of data in the 16384-bit EPROM section

have been invalidated by software and redirected to the page address contained in the appropriate

redirection byte. The hardware of the DS2505 makes no decisions based on the contents of the Page

Address Redirection Bytes. These additional bytes of Status EPROM allow for the redirection of an

entire page to another page address, indicating that the data in the original page is no longer considered

relevant or valid. With EPROM technology, bits within a page can be changed from a logical 1 to a

logical 0 by programming, but cannot be changed back. Therefore, it is not possible to simply rewrite a

page if the data requires changing or updating, but with space permitting, an entire page of data can be

redirected to another page within the DS2505 by writing the one’s complement of the new page address

into the Page Address Redirection Byte that corresponds to the original (replaced) page.

This architecture allows the user’s software to make a “data patch” to the EPROM by indicating that a

particular page or pages should be replaced with those indicated in the Page Address Redirection Bytes.

To leave an authentic audit trail of data patches, it is recommended to also program the write protect bit

of the Page Address Redirection Byte, after the page redirection is programmed. Without this protection,

it is still possible to modify the Page Address Redirection Byte, making it point to a different memory

page than the true one.

If a Page Address Redirection Byte has a FFH value, the data in the main memory that corresponds to

that page is valid. If a Page Address Redirection Byte has some other hex value, the data in the page

corresponding to that redirection byte is invalid, and the valid data can now be found at the one’s

complement of the page address indicated by the hex value stored in the associated Page Address

Redirection Byte. A value of FDH in the redirection byte for page 1, for example, would indicate that the

updated data is now in page 2. The details for reading and programming the EPROM status memory

portion of the DS2505 are given in the Memory Function Commands section.

5 of 24

DS2505P+T&R Related Products

	DS2505P+T&R	DS2505+T&R	DS2505+	DS2505P+
Description	Erasable Programmable ROM 16Kb Add-Only Memory	Erasable Programmable ROM 16Kb Add-Only Memory	Erasable Programmable ROM 16Kb Add-Only Memory	Erasable Programmable ROM 16Kb Add-Only Memory
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	TO-92	TO-92	SOIC
package instruction	SOC, SOC6,.17	TO-92, SIP3,.1	TO-92, SIP3,.1	SOC, SOC6,.17
Contacts	6	3	3	6
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	6 weeks	14 weeks	14 weeks	6 weeks
Maximum access time	15000 ns	15000 ns	15000 ns	15000 ns
Other features	MICROLAN COMPATIBLE	MICROLAN COMPATIBLE	MICROLAN COMPATIBLE	MICROLAN COMPATIBLE
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-C6	O-PBCY-T3	O-PBCY-T3	R-PDSO-C6
JESD-609 code	e3	e3	e3	e3
memory density	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	OTP ROM	OTP ROM	OTP ROM	OTP ROM
memory width	1	1	1	1
Number of functions	1	1	1	1
Number of terminals	6	3	3	6
word count	16384 words	16384 words	16384 words	16384 words
character code	16000	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
organize	16KX1	16KX1	16KX1	16KX1
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOC	TO-92	TO-92	SOC
Encapsulate equivalent code	SOC6,.17	SIP3,.1	SIP3,.1	SOC6,.17
Package shape	RECTANGULAR	ROUND	ROUND	RECTANGULAR
Package form	SMALL OUTLINE	CYLINDRICAL	CYLINDRICAL	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	260	260	260	260
power supply	3/5 V	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2.8 V	2.8 V	2.8 V	2.8 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES
technology	MOS	MOS	MOS	MOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	C BEND	THROUGH-HOLE	THROUGH-HOLE	C BEND
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	BOTTOM	BOTTOM	DUAL
Maximum time at peak reflow temperature	30	30	30	30
Base Number Matches	1	1	1	1

Recommended Resources

TDA7230A SD power amplifier circuit diagram

LA4575 power amplifier circuit diagram

Function generator circuit with exponential digital control

Photosensitive light release relay

uPC1277H power amplifier circuit

Grating circuit using integrated circuit

DirectDraw Sample fails to run under WinCE 6.0. Why?: Run the program in the directory public\directx\sdk\samples\ddraw\src\DDex1, and the result is that Display driver doesn't support flipping surfaces, and it prompts GWES Hook fails surface creation. I...; zxg1986516 Embedded System

Free application evaluation: Defining the next industry standard for humidity sensing - SHT31 Smart Gadget: The SHT31 Smart Gadget is a simple reference design board and development kit that demonstrates the superior performance and ease of use of Sensirion temperature and humidity sensors. The Smart Gadget...; okhxyyo Special Edition for Assessment Centres

Altium cannot call the package in the integrated library: [size=5]Altium cannot call the package in the integrated library. I don’t know what’s going on. For example, I placed a resistor in the diagram in the courtyard. Now I want to change the package of th...; 背着氧气的鱼 PCB Design

The "JD.com Shopping Button" is expected to become the next disassembly tool: A few months ago, the forum was popular with the disassembly of the artifact POS, but POS is a gray product. Even if you buy it and don't use it, people often call to harass you, so it's better to sta...; dcexpert Making friends through disassembly

Qorvo's high-performance BAW filters support Band 41 5G base station deployment: Qorvo's high-performance n41 sub-band 5G bulk acoustic wave (BAW) filters are ideal for applications such as base station infrastructure, small cells and repeaters. Qorvo's latest BAW filters combine ...; Jacktang RF/Wirelessly

FPGA employment prospects: I would like to ask what the future employment prospects are for FPGA. I am a beginner, please give me some advice~~...; gwqnet Embedded System

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
