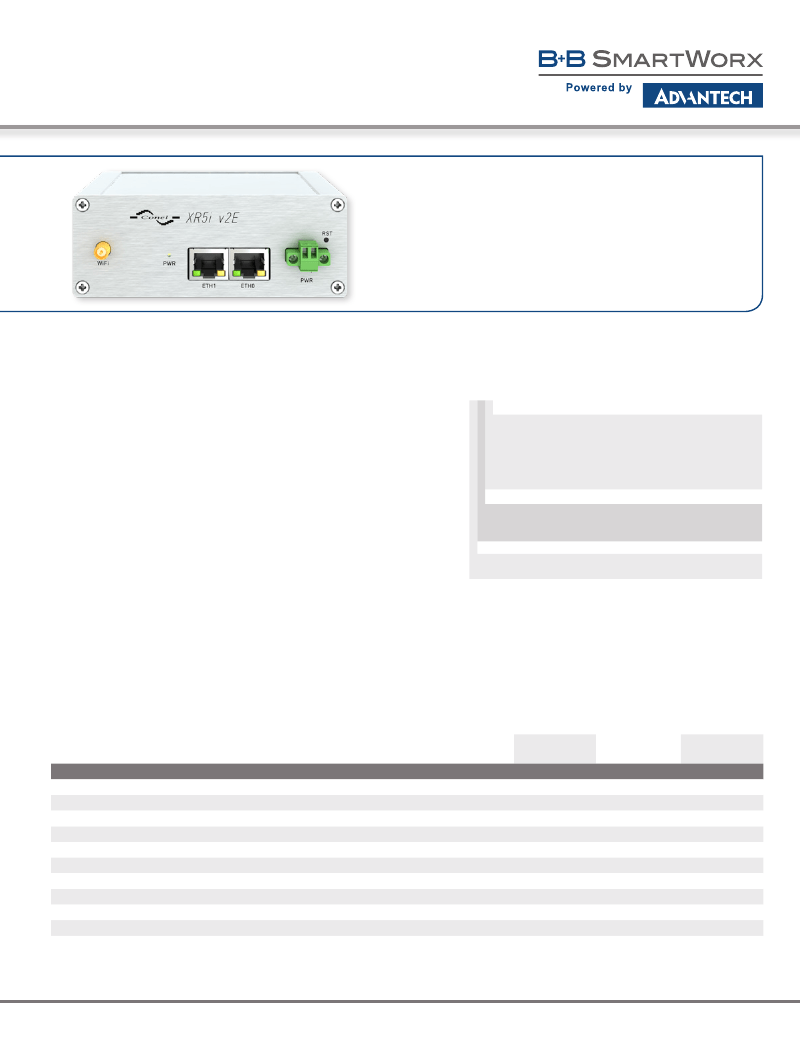

Industrial Routers
LAN ROUTER
XR5i v2E Series
PRODUCT FEATURES
•
•
•
•
•
Modular design to fit application requirements
Provided secure connection between two networks
SNMP protocol for remote management
2x ETH, Optional WiFi
VPN support
The XR5i v2E industrial router secures connections between two
local networks (LAN) via two Ethernet interfaces 10/100.
WiFi model is available.
Coonfiguration is password protected, via web interface. The router
supports creation of VPN tunnels using IPsec, OpenVPN and L2TP
to ensure safe communication. Web interface provides detail
statistics about router activities.
ORDERING INFORMATION
Note: Check with your local distributor for availability and options. Contact
Advantech B+B SmartWorx distributors.
Europe, Middle East, Africa, Asia, South America, Latin America.
BB - XR 2 L000 X X X
Accessories
0
1
2
3
4
Enclosure
1
2
0
7
No Accessories
Accessories with EU power supply
Accessories with UK power supply
Accessories with Australia power supply
Accessories with US power supply
SELECTED APPLICATIONS
Transportation and security
IT and communication
Self-service terminals
Energy and power industry
Metrology, alarm and warning systems
Plastic enclosure
Metal enclosure
No WiFi
WiFi
ACCESSORIES
ORDER CODE
BB-SBD40
BB-CPD2-G
BB-AW-A24G-M5SRP
BB-KD-ETH
BB-CON-WR2
BB-RPS-v2-WR2-EU
BB-RPS-v2-WR2-US
BB-RPS-v2-WR2-UK
BB-RPS-v2-WR2-AUS
BB-KN-WR2-3
Quick Start Guide
INCLUDED IN
PACKAGE
a
a
INCLUDED IN SET
PACKAGE
a
a
a
a
SOLD SEPARATELY
DESCRIPTION
Metal DIN holder for Metal versions of routers v2
Plastic DIN holder for Plastic versions of routers v2
Antenna WiFi stick 5dB, SMA-RP connector
Ethernet cross cable 1,5m
2-pin Terminal block for Power Supply
Power supply with WR connector (2 pins) - 12V/1A - EU plug
Power supply with WR connector (2 pins) - 12V/1A - US plug
Power supply with WR connector (2 pins) - 12V/1A - UK plug
Power supply with WR connector (2 pins) - 12V/1A - AUS plug
Power supply cable 2-wire, 3m
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
www.advantech-bb.com
/
Enabling an Intelligent Planet
All product specifications are subject to change without notice.
DS_XR5iv2E_December 12, 2017 10:46 AM
Industrial Routers
LAN ROUTER
XR5i v2E Series
SPECIFICATIONS
FIXED INTERFACES
2× Ethernet
10/100 Mbits, independent or bridged
SOFTWARE FEATURES
Linux based, possibility to program your own application
NTP client, NTP Server – time synchronization
M-RAM memory inside – router statistic´s saving into memory
9 - 36 VDC
Idle - 1.6 W
WiFi Com. to 1.9 W
Full Com. to 2.5 W
51 x 87 x 116mm
IP30
-40 to +75°C
-40° to +85°C
Operating - 0 to 95% relative humidity non condensing
Storage - 0 to 95% relative humidity non condensing
NETWORKING
DHCP – automatic IP addressing in LAN network
NAT/PAT – IP address and ports translation between inside/outside network
VRRP – virtual backup router function
DynDNS client – access to the router with a dynamic IP address
PPPoE Bridge – PPP frames encapsulation inside ETH frames
VPN TUNNELING
IPsec, OpenVPN, L2TP – secure encrypted tunnels
CONFIGURATION AND DIAGNOSTIC
HTTP server – configuration via web server
Telnet – configuration and access to the file system
SNMP – router diagnostics, communication with I/O and M-Bus
Remote router group configuration change, switching among configuration profiles
R-SMA – 50 Ohms
2.4 GHz
802.11b, 802.11g, 802.11n
SSH – encrypted configuration and access to the file system
POWER
Source
Consumption
MECHANICAL
Dimension Plastic version
Protection
Dimension Metallic version 42 x 87 x 113mm
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Humidity
WIFI
*optional
Antenna connector
Supported WiFi band
Standards
STANDARDS/REGULATION
EMC
Safety
ETSI EN 301 489-1 V2.1.1, ETSI EN 301 489-17 V3.1.1
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
+ AC:2011
2.4 GHz supported channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
11b, 11 Mbps: typ. -85 dBm
11g, 54 Mbps: typ. -70 dBm
RX Sensitivity
(HT20) 11n, MSC7: typ. -66 dBm
(HT40) 11n, MSC7: typ. -62 dBm
11b, 11 Mbps: min. 18, typ. 19, max. 20 dBm
11g, 54 Mbps: min. 14.5, typ. 16, max. 17.5 dBm
TX Output Power
802.11n (HT20): min. 13.5, typ. 15, max. 16.5 dBm
802.11n (HT40): min. 13.5, typ. 15, max. 16.5 dBm
Type of device
Access point, station
CPU & MEMORY
CPU
Flash memory
RAM
M-RAM
32b ARM microprocessor, 0.25 DMIPS per MHz
16 MB DDR SDRAM
64 MB
128 kB
Router Management Software consisting of two parts:
R-SeeNet Server
application can be programmed to automatically send SNMP
queries (Simple Network Management Protocol) to each router defined in the
network. The application retrieves status information from the routers and
records it in the SQL database.
R-SeeNet PHP
is a web-based application that accesses the SQL database and
provides the network administrator detailed information on individual routers
and network health.
SmartWorx HUB
takes management of your devices to new levels of flexibility and
efficiency. Giving you a complete view of your installed device population, SmartWorx
Hub delivers invaluable configuration, diagnostic and management facilities directly to
your desktop, wherever you are.
Manage a single device or your entire device population at the same time. Whether you
need to modify configuration parameters, download or upgrade installed firmware and
applications or view detailed information regarding network statistics, you can do it all
from any location.
