Cellular Routers
LTE
LR77 v2 Series
PRODUCT FEATURES
•
•
•
•
•
•
•
Designed for M2M applications
WiFi, M-BUS and Modbus TCP / Modbus RTU
Modular design to fit application requirements
Single or dual SIM cards for redundant backhaul
LTE up to 50 Mbps upload to 100 Mbps download
Open LINUX platform & advanced networking functions
Advanced security features

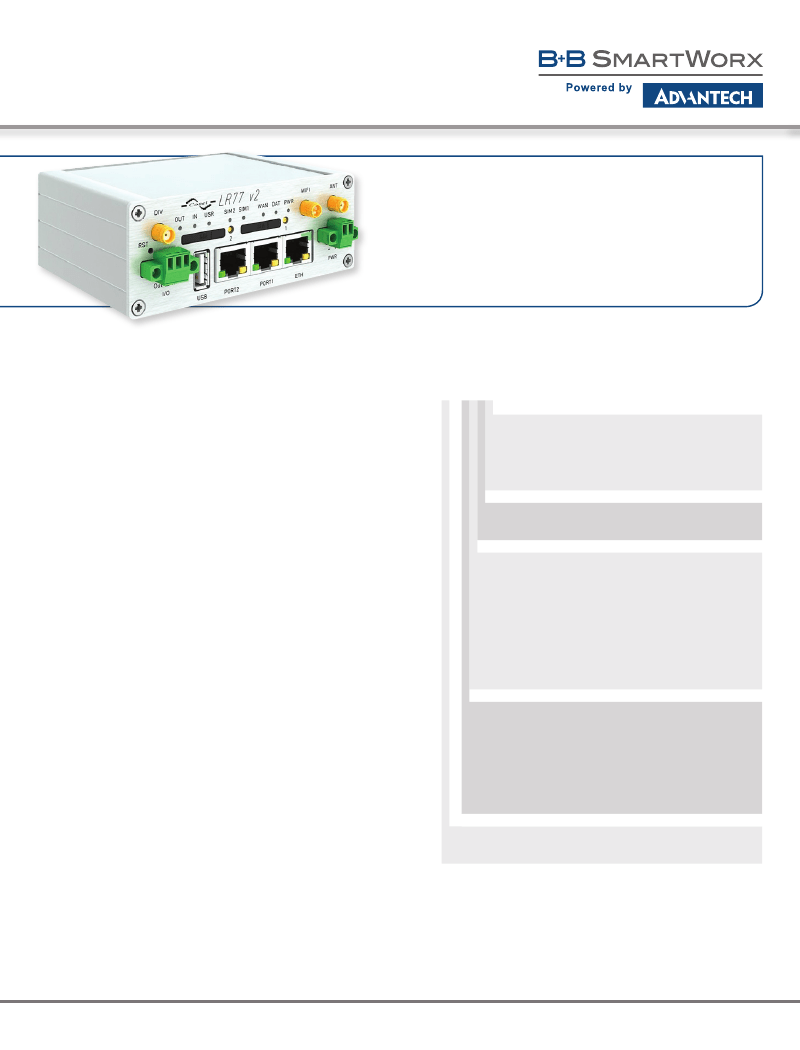

4G LTE router LR77 v2 provides wireless connection of equipment and
devices via Ethernet 10/100 or serial interfaces to the Internet or intranet.
4G router LR77 v2 is ideal for transferring large data loads. With LTE its
ultra fast data transfer speed reaches up to 100 Mbit/s download and up
to 50 Mbit/s upload. The LR77 v2 series is an ideal wireless solution for
traffic and security camera systems, individual computers, LAN networks,
automatic teller machines (ATM) and other self-service terminals, etc.
This extra fast 4G LR77 v2 wireless router is equipped with one Ethernet
10/100, one USB Host port, one binary input/output (I/O) port and one
SIM card. To save and backup communication data, a version with 2 x
SIM cards is available. A wide range of user-defined interface options
further expands optional Port1 and Port2. Port1 is available as an Ethernet
port 10/100, serial interface ports RS232/RS485/RS422/M-Bus/WiFi or
(I/O - CNT). Port2 may be equipped with serial interfaces RS232/RS485/
RS422/M-Bus or (I/O - CNT). Another option is inserting a XC-SW board
to provide 3 x switched Ethernet 10/100 ports. Routers are available in
either plastic or metal casings. FULL version of the router is equipped
with GPS.
Configuration is done via web interface protected by password. The 4G
LTE router supports creation of VPN tunnels using IPsec, OpenVPN and
L2TP to ensure safe communications. Web interface provides detailed
statistics about router activities, signal strength, detailed log, etc.
Supports functions: DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, HTTPS, SSH,
OSPF, RIP, BGP control by SMS and many other functions.
Other diagnostic functins to ensure continuous communication include
automatic inspection of PPP connection with an automatic restart feature
in case of connection losses and a hardware watchdog which monitors
the status of the router. With the help of a start up script window you may
insert Linux scripts for various actions. For some applications it is possible
to create several different configurations or profiles for router (maximum
of 4), and the option to switch between them (for example via SMS,
binary input status, etc.). Cellular LTE wireless router LR77 v2 supports
automatic upgrade of configuration and firmware from the server. This
allows mass reconfiguration of multiple routers in one time. It is also
possible to develop user defined modules that modify LTE router behavior.
APPLICATIONS
ORDERING INFORMATION
Note: Check with your local distributor for availability and options. Contact
Advantech B+B SmartWorx distributors.
BB
-
LR 2 X71XXXX
Accessories
0
1 (set)
2 (set)
3 (set)
4 (set)
Enclosure
1
2
PORT2
(Full version only)
0
1
2
3
4
5
6
7
8
PORT1
0
1
2
3
4
5
6
9
Router version
B
F
No Accessories (DIN holder included)
Accessories with EU power supply
Accessories with UK power supply
Accessories with Australia power supply
Accessories with US power supply
Plastic enclosure
Metal enclosure
No expansion port
ETH
RS232
RS485
RS422
M-BUS
CNT (4× BI, 2×, 1×BO) - I/O port
WiFi
WMBUS (Wireless M-BUS)
No expansion port
ETH
RS232
RS485
RS422
M-BUS
CNT (4× BI, 2×, 1×BO) - I/O port
Switch
Basic
Full
Please note: Isn’t possible to have in the router all combinations of the ports.
Please check your chosen variant with your local distributor.
Transportation and security
IT and communication
Self-service terminals
Energy and power industry
Meteorology, alarm and warning systems
www.advantech-bb.com
/
Enabling an Intelligent Planet
All product specifications are subject to change without notice.
DS_LR77v2_December 12, 2017 10:44 AM
Cellular Routers
LTE
LR77 v2 Series
SPECIFICATIONS
FIXED INTERFACES - BASIC VERSION
1× Ethernet
1× SIM
1× I/O
1× USB
10/100 Mbits, independent or bridged
SIM Card
Binary input/output
USB 2.0 Host, Type A
Sensitivity
Ethernet (10/100Mbps), RS232, RS422/485, M-BUS
I/O Input/Output, Ethernet Switch (with PORT 2)
GPS SPECIFICATIONS
Antenna
Protocols
Frequency
50 Ohms – active
NMEA 0183 v3.0
1575.42MHz
Tracking: -161dBm
Acquisition (Assisted): -158dBm
Acquisition (Standalone): -145dBm
Hot start: 1 s
Warm start: 29 s
Cold start: 32 s
Horizontal: < 2m (50 %); < 5m (90 %)
Altitude: < 4m (50 %); < 8m (90 %)
Velocity: < 0.2 m/s
OPTIONAL INTERFACES
1× PORT 1
ANTENNA CONNECTORS
2× SMA – 50 Ohm
Acquisition time
FIXED INTERFACES - FULL VERSION
1× Ethernet
2× SIM
1× I/O
1× USB
10/100 Mbits, independent or bridged
SIM Card
Binary input/output
USB 2.0 Host, Type A
Ethernet (10/100Mbps), RS232, RS422/485, M-BUS
I/O Input/Output, Ethernet Switch (with PORT 2)
RS232, RS422/485, M-BUS, WMBUS, WiFi
Ethernet Switch (with PORT 1)
2nd SIM card holder (“F” router versions)
Accuracy
CPU & MEMORY
CPU
Flash memory
RAM
M-RAM
32b ARM microprocessor, 0.25 DMIPS per MHz
16 MB DDR SDRAM
64 MB
128 kB
OPTIONAL INTERFACES
1× PORT 1
1× PORT 2
1× Optional
I/O PORT (CNT)
Binary input
Binary output
Reed contact with trigger level 1.3 up to 1.4 V
100 mA/ max. 30 V
ANTENNA CONNECTORS
3× SMA – 50 Ohm
PARAMETERS -
LTE module
9 - 36 VDC
Idle - 2.3 W
GPRS - to 3.5 W (GPRS transmission)
LTE - to 5.5 W (LTE transmission)
HSPA+ parameters
51 x 87 x 116mm
42 x 87 x 113mm
IP30
150g
280g
-40 to +75°C
-40° to +85°C
Operating - 0 to 95% relative humidity non condensing
Storage - 0 to 95% relative humidity non condensing
GPRS/EDGE -
Supported Power
Classes
GPRS/EDGE
UMTS parameters
LTE parameters
Bit rate 100 Mbps (DL) / 50 Mbps (UL)
3GPP rel. 8 standard
Supported bandwidths: 5 MHz, 10 MHz, 20 MHz
Supported frequencies: 800 / 900 / 1800 / 2100 / 2600 MHz
Bit rate 42 Mbps (DL) / 5,76 Mbps (UL)
3GPP rel. 7 standard
UE CAT. 1 to 6, 8, 10, 12, 14
3GPP data compression
Supported frequencies: 900 / 1800 / 2100 MHz
PS bit rate 384 kbps (DL) / 384 kbps (UL)
CS bit rate 64 kbps (DL) / 64 kbps (UL)
W-CDMA FDD standard
Supported frequencies: 900 / 1800 / 2100 MHz
Bit rate 237 kbps (DL) / 59,2 kbps (UL)
GPRS multislot class 10, CS 1 to 4
EDGE multislot class 12, CS 1 to 4,
MCS 1 to 9
Supported frequencies: 900 / 1800 MHz
EGSM 900: Class 4 (33 dBm)
GSM 1800: Class 1 (30 dBm)
EDGE 900: Class E2 (27 dBm)
EDGE 1800: Class E2 (26 dBm)
POWER
Source
Consumption
MECHANICAL
Dimension Plastic version
Dimension Metallic version
Protection
Weight Plastic version
Weight Metallic version
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Humidity
WIFI
*
optional (“F” router versions)
Antenna connector
Supported WiFi band
Standards
R-SMA – 50 Ohms
2.4 GHz
802.11b, 802.11g, 802.11n
11b, 11 Mbps: typ. -85 dBm
11g, 54 Mbps: typ. -70 dBm
(HT20) 11n, MSC7: typ. -66 dBm
(HT40) 11n, MSC7: typ. -62 dBm
11b, 11 Mbps: min. 18, typ. 19, max. 20 dBm
11g, 54 Mbps: min. 14.5, typ. 16, max. 17.5 dBm
802.11n (HT20): min. 13.5, typ. 15, max. 16.5 dBm
802.11n (HT40): min. 13.5, typ. 15, max. 16.5 dBm
Access point, station
STANDARDS/REGULATIONS
Telecom and Emission
EMC
Safety
ETSI EN 301 511 V9.0.2 (2003-03), ETSI EN 301 908-2 V11.1.1
(2016-07), ETSI EN 301 908-13 V11.1.1 (2016-07), ETSI EN 300
328 V2.1.1 (2016-11), ETSI EN 300 220-2 V3.1.1 (2017-02)
ETSI EN 301 489-1 V2.1.1 (2016-11), ETSI EN 301 489-17
V3.1.1 (2017-02), ETSI EN 301 489-3 V2.1.1 (2017-03)
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
+ AC:2011
2.4 GHz supported channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
RX Sensitivity
TX Output Power
Type of device
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Cellular Routers
LTE
LR77 v2 Series
SOFTWARE FEATURES
Linux based, possibility to program your own application
NTP client, NTP Server – time synchronization
SMS communication – AT commands on RS232, Ethernet and I/O
M-RAM memory inside – router statistic´s saving into memory
NETWORKING
DHCP – automatic IP addressing in LAN network
NAT/PAT – IP address and ports translation between inside/outside network
VRRP – virtual backup router function
DynDNS client – access to the router with a dynamic IP address
Dial-in – the ability to communicate over dial CSD call
PPPoE Bridge – PPP frames encapsulation inside ETH frames
VPN TUNNELING
IPsec, OpenVPN, L2TP – secure encrypted tunnels
CONFIGURATION AND DIAGNOSTIC
HTTP server – configuration via web server
Telnet – configuration and access to the file system
SNMP – router diagnostics, communication with I/O and M-Bus
GPRS state signalization by LED
On-line info on GSM signal status (level, cell, neighbors)
SMS info – power on, GPRS connection or disconnection
SMS control – on/off GPRS connection, switch SIM, I/O etc.
Transferred data counting, one more APN as backup
Remote router group configuration change, switching among configuration profiles
SSH – encrypted configuration and access to the file system

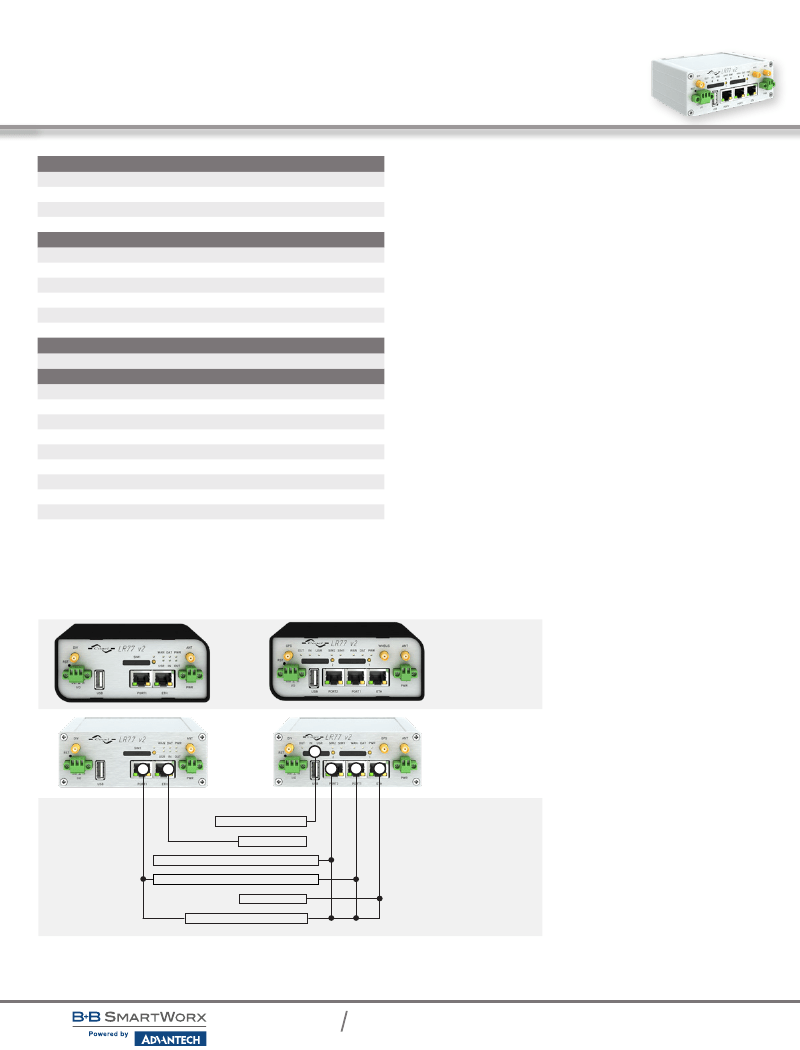

1× SIM card holder, 1× optional port (PORT1)
BASIC VERSION
2× SIM card holder, 2× optional port (PORT1,2)
FULL VERSION
PLASTIC VERSION
METALLIC VERSION
Optional
Optional
Ethernet 10/100
RS232, RS485, MBUS, Wi-Fi, CNT, W-MBUS
Ethernet 10/100, RS232, RS485, CNT, MBUS
Ethernet 10/100
2 or 3 port switch 10/100
orders@advantech-bb.com
support@advantech-bb.com
Optional
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Back up of primary SIM
Cellular Routers
LTE
LR77 v2 Series
ACCESSORIES
ORDER CODE
BB-SBD40
BB-CPD2-B
BB-GA.110.101111
BB-TG.10.0113
BB-AO-ABASE-C16
BB-AW-A24G-M5SRP
BB-AP-AGNSS-SMA
BB-CON-WR3
BB-CON-WR2
BB-RPS-v2-WR2-EU
BB-RPS-v2-WR2-US
BB-RPS-v2-WR2-UK
BB-RPS-v2-WR2-AUS
BB-KD-ETH
Quick Start Guide
INCLUDED IN
PACKAGE
INCLUDED IN
SET PACKAGE
SOLD
SEPARATELY
DESCRIPTION
Metal DIN holder for Metal versions of routers v2
Plastic DIN holder for Plastic versions of routers v2
Magnet mount antenna LTE 698MHz to 960MHz, 1575.42MHz, 1710MHz to 2700MHz, 3500MHz, 1M RG174 Cable,
SMA(M) Connector Typical 40% Efficiency and 3dBi Peak Gain
Antenna LTE/UMTS/GSM, Terminal, SMA-M
Magnetic mount base terminal antenna, 3m cable, SMA connector
Antenna WiFi stick 5dB, SMA-RP connector
Antenna GPS/GLONASS, active (3V), magnetic, 33 - 34dB, 3m cable + SMA connector
3-pin terminal block for I/O
2-pin Terminal block for Power Supply
Power supply with WR connector (2 pins) - 12V/1A - EU plug
Power supply with WR connector (2 pins) - 12V/1A - US plug
Power supply with WR connector (2 pins) - 12V/1A - UK plug
Power supply with WR connector (2 pins) - 12V/1A - AUS plug
Ethernet cross cable 1.5m
2×
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
Router Management Software consisting of two parts:
R-SeeNet Server
application can be programmed to automatically send SNMP
queries (Simple Network Management Protocol) to each router defined in the
network. The application retrieves status information from the routers and
records it in the SQL database.
R-SeeNet PHP
is a web-based application that accesses the SQL database and
provides the network administrator detailed information on individual routers
and network health.
SmartWorx HUB
takes management of your devices to new levels of flexibility and
efficiency. Giving you a complete view of your installed device population, SmartWorx
Hub delivers invaluable configuration, diagnostic and management facilities directly to
your desktop, wherever you are.
Manage a single device or your entire device population at the same time. Whether you
need to modify configuration parameters, download or upgrade installed firmware and
applications or view detailed information regarding network statistics, you can do it all
from any location.
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
京公网安备 11010802033920号
EEWORLD
