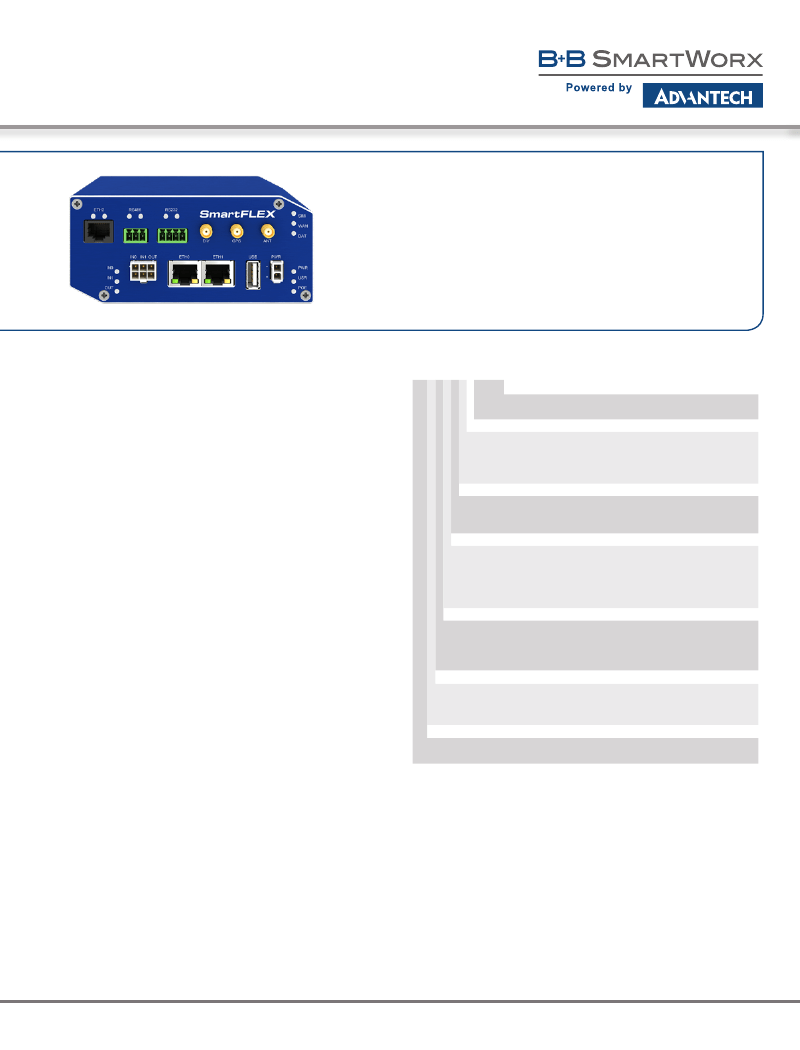

SmartFlex SR303
FLEXIBLE, MODULAR LTE ROUTER
+
Powerful CPU and enhanced memory
+
Extended operational temperature range from -40 °C to +75 °C
+
10-60 VDC operation with transient and reverse polarity voltage
protection
+
Flexible port options – 3-port Switch, Ethernet and RS-232/422/485
serial ports with isolation
+
GPS and GLONASS support
+
MicroSD card holder, In/Out, USB Host
+
Low power consumption mode for solar and battery power applications
+
Optional industrial grade Wi-Fi
+
Optional PoE PSE or PoE PD on ETH0 and ETH1
+
Advanced security features
SmartFlex
TM
cellular router provides secure Internet
connectivity for devices and LANs via the cellular networks.
It canprovide automatic wireless failover for wired networks,
wireless connectivity for devices in remote locations where
cable connections are impractical and wireless connectivity
for mobile assets.
With upload speeds of up to 50 Mbps and download speeds of
up to 100 Mbps, SmartFlex provides ample bandwidth, even for
applications that require video.
SmartFlex places intelligence at the network edge with an
extremely powerful Cortex A8 CPU at 1GHz, 256 MB flash
memory, 512 MB RAM and 128kB M-RAM, providing full support
for LTE (Long Term Evolution) speeds and applications.
A secure Web interface allows users to configure and manage
SmartFlex from remote locations. The router can also upgrade
its configuration and firmware from the operator’s central
server, allowing for simultaneous mass reconfiguration of every
router on the network. Users may insert Linux scripts and can
create multiple configurations for the same router and switch
from one configuration to another at any time.
Modular SmartFlex can be configured for any application.
Standard configuration includes 2 Ethernet ports with 2
independent LANs/IP addresses and also includes 1 USB host
port, 1 microSD card holder, 2 SIM card holders for automatic
failover to an alternate service provider, 2 binary inputs(I/O), 1
binary output (I/O) and onboard GPS.
An optional built-in Wi-Fi module is also available, with industrial
grade operating temperature ranges from -40 to +75 °C (-20 to
+60 °C LTE450 module). Further optional boards include: 3x ETH
(the router can be configured with up to 5 total Ethernet ports
and 3 independent LANs/IP addresses) or ETH/RS-232/485 or
RS-232/485 (isolation strength up to 2.5kV) or RS-232.
The SmartFlex supports real time data encryption and the
creation of VPN tunnels using IPsec, OpenVPN and L2TP. It
supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by
SMS, and numerous other functions, as well as additional
software like SmartCluster VPN Server and R-SeeNet.
SmartFlex Family
2x ETH, 1x USB, 2x BI, 1x BO, MicroSD reader, 2x SIM reader
BB
-
SR3 03 X XXXX
-
YYYY
SWH
Accessories
0
1
5
Enclosure
1
2
Interfaces
0
1
3
4
PoE
0
8
9
WiFi
0
1
Router version
03
No SmartWorx HUB
SmartWorx HUB
No Accessories (DIN holder included)
Accessories with EU power supply
International Power Supply (EU, US, UK, AUS)
Plastic enclosure
Metal enclosure
No optional port
3x ETH Switch
RS232 (5-pin TB), RS485/422 (4-pin TB)
RS232 (4-pin TB), RS485 (3-pin TB), ETH
No PoE
PoE PSE
PoE PD
No Wi
WiFi (TI 2.4 & 5 GHz)
EMEA
ORDERING INFORMATION
Note: Check with your local distributor for availability, options, and HW configuration.
Contact Advantech B+B SmartWorx distributors.
Note: Antennas & Power Supply Sold Separately.
www.advantech-bb.com
/
Enabling an Intelligent Planet
All product specifications are subject to change without notice.
SmartFlex_SR303_February 15, 2018 1:01 PM
SmartFlex SR303
FLEXIBLE, ADAPTABLE LTE ROUTER
HW SPECIFICATIONS
PORTS, LED, ANTENNAS
Up to 5x ETH ports
SIM
LED Indicators
3x ANT - ANT, DIV, GPS
(sold separately)
Wi-Fi Antenna (sold separately)
USB
SD Card
RST
*Optional 3-port SWITCH
*Optional ETH - R232 - RS485
*Optional RS232 - RS485
RJ45, 10/100 Mbps
2 Mini SIMs (2FF) (rear panel)
PWR, DAT, WAN, ETH, SIM, USR, POE, IN0,
IN1, OUT
SMA connectors
R-SMA connector
USB Host connector 2.0
1x Micro SD Card slot (rear panel)
RESET button (rear panel)
3x RJ45, 10/100 Mbps
RJ45, 4-pin terminal block, 3-pin terminal block
connectors – Isolation up to 2.5 kV
5-pin terminal block, 4-pin terminal block
connectors – Isolation up to 2.5 kV
3-port SWITCH
ETH - RS232 - RS485
RS232 - RS485
POWER
Power Supply
(sold separately)
Power Consumption
ENVIRONMENTAL
Temperature Range
Temperature Range LTE450
Humidity
Cold Start
Operating Altitude
Ingress Protection Rating
MECHANICAL
Plastic or metal case with plastic or metal DIN rail
Enclosure
Dimensions
Weight Plastic
Weight Metal
55x97x125 mm
170 g
375 g
Operating: -40 to +75 °C
Storage: -40 to +85 °C
Operating: -20 to +60 °C
Storage: -40 to +85 °C
Operating: 0 to 95 %
Storage (Non-condensing): 0 to 95 %
-35 °C
2000 m / 70 kPa
IP30
POE PARAMETERS
Input voltage
range
Power available
Maximum current
Insul. Strength
10 – 60 VDC (2–Way Molex connector
Idle: 2.5 W
Average: 4 W
Peak: 11 W
Sleep Mode: 10mW
WI-FI - 802.11 A/B/G/N, AP OR CLIENT MODES
Supported Wi-Fi band
Encryption
5 GHz supported
channels
2.4 GHz supported
channels
Number of clients
Authentication
2.4 GHz, 5.4 GHz
None, WEP, TKIP, AES
36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
10
Open, Shared, WPA–PSK, WPA2–PSK
POE PD
parameters for opposite PSE
42.5 – 57 V
25.50 W
600 mA
1.5 kV from the router
none
P0E PSE
44 – 57 V, 65 W
2x 25.50 W
(ETH0, ETH1)
Standards IEEE 802.3at-2009 (PoE+) and IEEE 802.3af-2003 (PoE) supported.
Cabling needed is Category 5, up to 12.5 Ω. It is possible to use a passive PoE
injector
GNSS SPECIFICATIONS
Antenna
Protocols
Frequency GPS
Sensitivity
50 Ohms – active
NMEA 0183 v3.0
1575.42MHz Typical
Tracking: -161dBm
Acquisition (Assisted): -158dBm
Acquisition (Standalone): -145dBm
Hot start: 1 s
Warm start: 29 s
Cold start: 32 s
Horizontal: < 2m (50 %); < 5m (90 %)
Altitude: < 4m (50 %); < 8m (90 %)
Velocity: < 0.2mps
Acquisition time
Accuracy
* Tracking sensitivity is the lowest GPS signal level for which the device can still detect an in-view satellite 98% of the time when in sequential tracking mode.
** Acquisition sensitivity is the lowest GPS signal level for which the device can still detect an in-view satellite 50% of the time.
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
SmartFlex SR303
FLEXIBLE, ADAPTABLE LTE ROUTER
STANDARDS AND REGULATIONS
INDUSTRY CERTIFICATIONS & APPROVALS
SR303
Radio
EMC
ETSI EN 301 511 V12.5.1, ETSI EN 300 440 V2.1.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.1, ETSI EN 301 908-13
V11.1.1, ETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1
ETSI EN 301 489-1 v1.9.2, ETSI EN 301 489-1 V2.1.1, Draft ETSI EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0, ETSI
EN 301 489-17 V3.1.1
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 + AC:2011,
EN 62311:2008
UL 60950-1, 2nd ed. + am1 + am2 *
CAN/CSA C22.2 No. 60950-1-07, 2nd ed. + am1 + am2 *
UL E486108 *
ATEX II 3 G Ex nA IIC T4 Gc, DEMKO 16 ATEX 1801X *
Safety
E-Mark – EMC for devices
E8 homologation number: 10R – 04 7737
in transportation
* Excluding versions with PoE PSE, versions with RS232-RS485-ETH interface or versions with RS232 interface (RJ45).

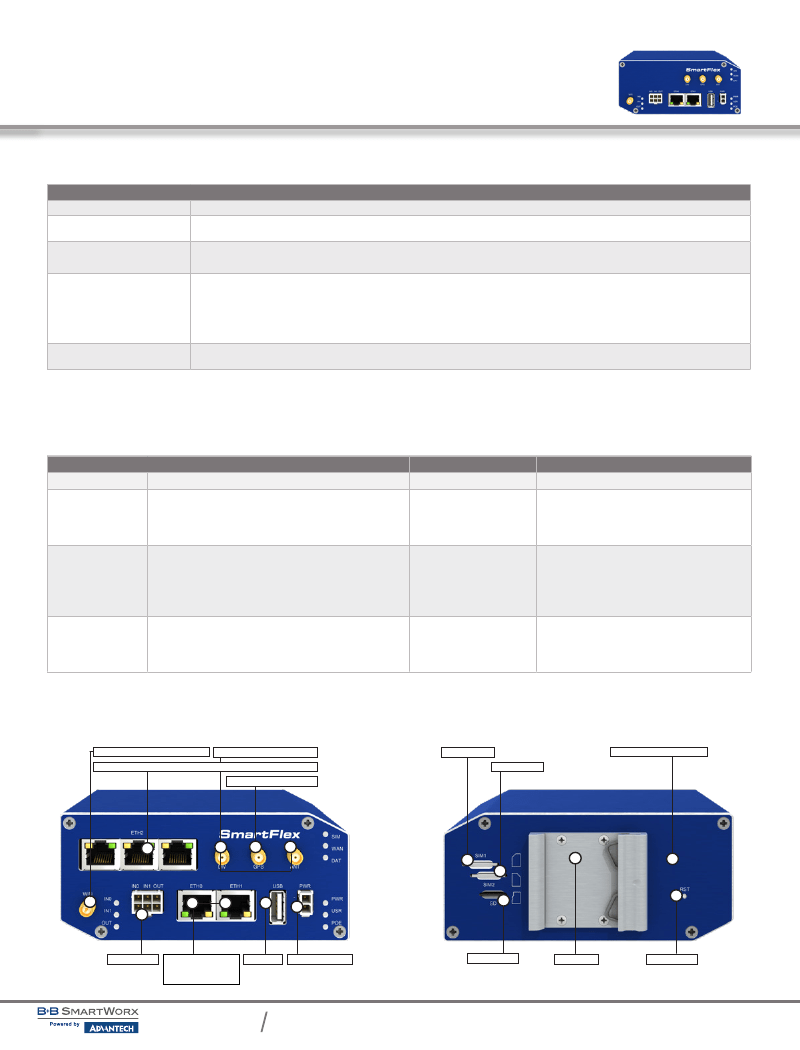

CELLULAR MODULE PARAMETERS
SR303 - EMEA
LTE parameters
Bit rate 100 Mbps (DL) / 50 Mbps (UL)
3GPP rel. 8 standard
Supported bandwidths: 5 MHz, 10 MHz, 20 MHz
Supported frequencies: 800 / 900 / 1800 / 2100 / 2600 MHz
Bit rate 42 Mbps (DL) / 5,76 Mbps (UL)
3GPP rel. 7 standard
UE CAT. 1 to 6, 8, 10, 12, 14
3GPP data compression
Supported frequencies: 900 / 1800 / 2100 MHz
PS bit rate 384 kbps (DL) / 384 kbps (UL)
CS bit rate 64 kbps (DL) / 64 kbps (UL)
W-CDMA FDD standard
Supported frequencies: 900 / 1800 / 2100 MHz
GPRS/EDGE parameters
Bit rate 237 kbps (DL) / 59,2 kbps (UL)
GPRS multislot class 10, CS 1 to 4
EDGE multislot class 12, CS 1 to 4, MCS 1 to 9
Supported frequencies: 900 / 1800 MHz
EGSM 900: Class 4 (33 dBm)
GSM 1800: Class 1 (30 dBm)
EDGE 900: Class E2 (27 dBm)
EDGE 1800: Class E2 (26 dBm)
HSPA+ parameters
GPRS/EDGE power classes
UMTS parameters
WiFi antenna connector *optional
ANT, DIV antenna connector
GPS antenna connector
Primary SIM
Secundary SIM
Robust metal or plastic case
*optional - RS232, ETH - RS232 - RS485, RS232 - RS485, 3-port SWITCH
IN0, IN1, OUT
Ethernet 10/100 ports
*optional PoE PD and
PoE PSD capability
USB Host
Power connector
SD card slot
DIN holder
RESET button
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
SmartFlex SR303
FLEXIBLE, ADAPTABLE LTE ROUTER
ACCESSORIES
ORDER CODE
BB-TG.30.8113
BB-GA.110.101111
BB-AW-A2458G-FSRPK
BB-RPS-v3-MO2-M
BB-RPS-v3-PSE
BB-PWRCORD-US
BB-PWRCORD-EU
BB-PWRCORD-UK
BB-PWRCORD-AUS
BB-SBD40
BB-CPD3
BB-KN-v3-MO2-3
BB-KIO-v3-MO6-3
DESCRIPTION
Antenna LTE, Terminal
Antenna LTE, Magnet Mount
Antenna Wi-Fi, 2.4 & 5.8 GHz
SmartFlex Power Supply, 12V/1A
SmartFlex Power Supply, 48V/1.35A (power cord required)
USA - Power Supply Power Cord
EU - Power Supply Power Cord
UK - Power Supply Power Cord
AU - Power Supply Power Cord
DIN Rail Clip - metal
DIN Rail Clip - plastic
PS Cable 2-wire, MO 2 pins, 3m, v3 routers
IO Cable 6-wire, 3m, v3 routers
SW FEATURES
SOFTWARE
Network and Routing
Security
VPN Tunnelling
Configuration
Firmware Management
Diagnostic
Status
Log
Controlling and
Diagnostic
Event Engine
Other
DHCP Server, , DHCP Client, NAT/PAT, VRRP, Dynamic DNS client, DNS proxy, VLAN, QoS, NTP Client/ Server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS,
SNMP v1/ v2c/ v3, Backup routes, PPP, PPPoE, SSL, Port Forwarding, Host Port Routing, Ethernet Bridging
HTTPS, SSH, VPN tunnels, SFTP, Firewall (IP Filtering, MAC address filtering, Inbound and outbound Port filtering), DMZ (via iptables)
Open VPN client and server and P2P, L2TP, PPTP, GRE, EasyVPN, DMVPN, IPSec with IKEv1 and IKEv2
Web server, SSH, Four configuration switchable profiles, Automatic configuration update from server Backup configuration, Restore configuration
Automatic firmware update from server, Locally via LAN and USB or remotely OTA (HTTP, HTTPS), Over-the-Air software updates, Over-the-Air cellular
module update from FW
One CLICK report – current configuration / factory identification / system log / kernel log / reboot log / routing table, Remote diagnostics possible via
SSH
Network Status, DHCP Status, IPSec Status, Statistics history for last 60 days
System Log, Reboot Log, Kernel Log
SMS, SNMP v1/v2c/v3, Statuses, Log
StartUp script & Up/Down script (Bash), Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature
Report Types: RAP, SMS, email, SNMP Trap
IPv6 support
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
