19-4870; 8/09
DS9093A, DS9093F, DS9093N
iButton Key Ring Mounts
www.maxim-ic.com
FEATURES
Low-cost key ring mounts that hold an
iButton
®
for thumbpad applications.
Key ring mount versions:
DS9093A snap-in angled fob for use with
F5 MicroCan
®
.
DS9093F snap-in fob for use with F5
MicroCan.
DS9093N angled fob for use with F5
MicroCan.

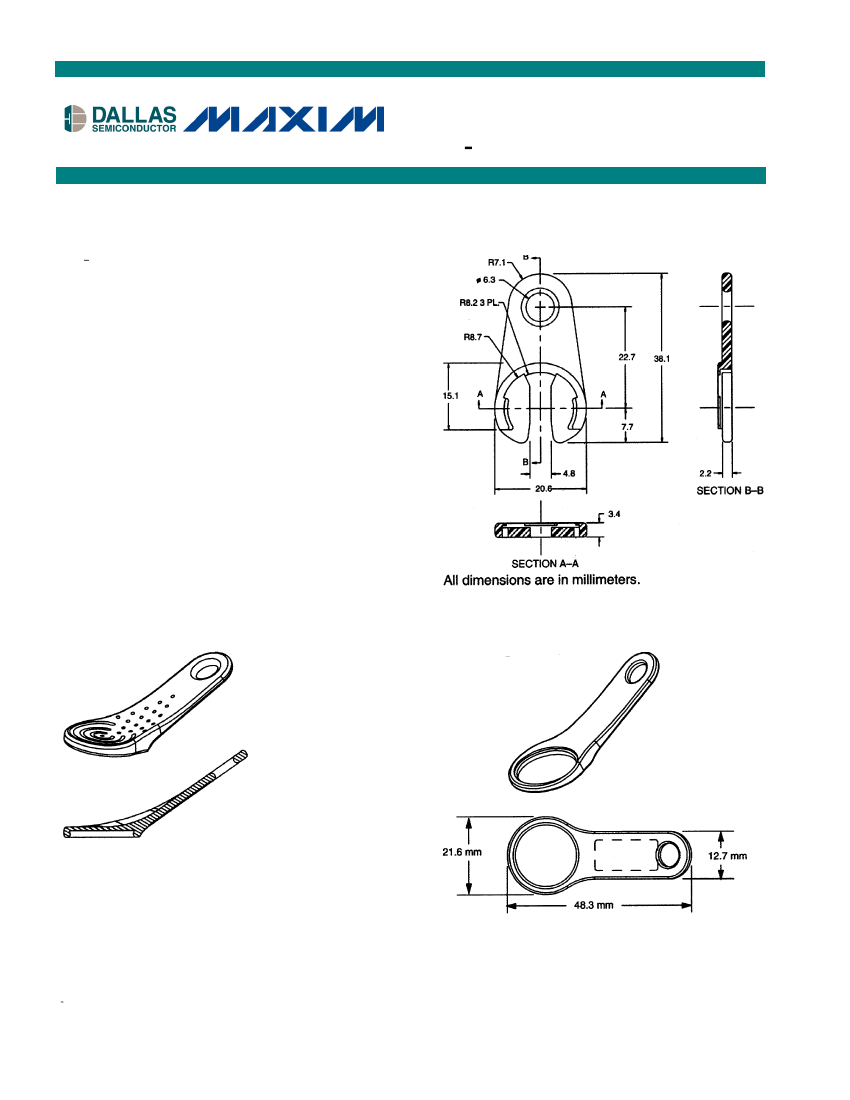

KEY RING MOUNTS
DS9093F
ORDERING INFORMATION
DS9093A+
DS9093AB+
DS9093AY+
DS9093AR+
DS9093AG+
DS9093F+
DS9093N+
black
blue
yellow
red
green
black
black
+Denotes a lead(Pb)-free/RoHS-compliant product.
DS9093A
DS9093N
iButton and MicroCan are registered trademarks of Maxim Integrated Products, Inc.
1 of 3
DS9093A/F/N
DESCRIPTION
The DS9093F plastic snap-in fob offers the simplest way to mount an iButton for applications that require
only momentary contact. The fob can be attached to a key ring for carrying. Do not apply solvents or
adhesives to this fob. This might affect the mechanical strength and reliability.
The DS9093N angled fob is an alternate way to mount an iButton for applications that require only
momentary contact. Due to the different mounting technique, the DS9093N can be used with the F5
MicroCan only. The iButton is inserted into this fob by press-fitting. For permanent mount, the iButton
can be locked by a DS9093RA Lock Ring.
The DS9093A is very similar to the DS9093N. It has about the same size as the DS9093N and can be
used with the F5 MicroCan only. The iButton is inserted by press-fitting the flange of the MicroCan into
the cavity of the fob. In contrast to the DS9093N, no additional parts are needed for permanent mounting.
The DS9093A is available in black, blue, green, red, and yellow.
2 of 3
DS9093A/F/N
REVISION HISTORY
REVISION
DATE
8/09
DESCRIPTION
Replaced the third
Features
bullet with an Ordering
Information
table that
also specifies the color of the DS9093F and DS9093N.
Added a plus sign to each part number, indicating a lead-free product.
PAGES
CHANGED
1
3 of 3
