DS9092R+ Overview

iButton and accessoriesiButton Port

DS9092R+ Parametric

Parameter Name	Attribute value
Maker	Maxim
Product Category	iButton and accessories
product	iButtons
type	Port
used for	DS1402RP, DS1402BP
Encapsulation	Bulk
Description/Function	Tabbed F5 MicroCan
series	DS9092R
Factory packaging quantity	100
unit weight	596 mg

Preview

Download Datasheet

View All

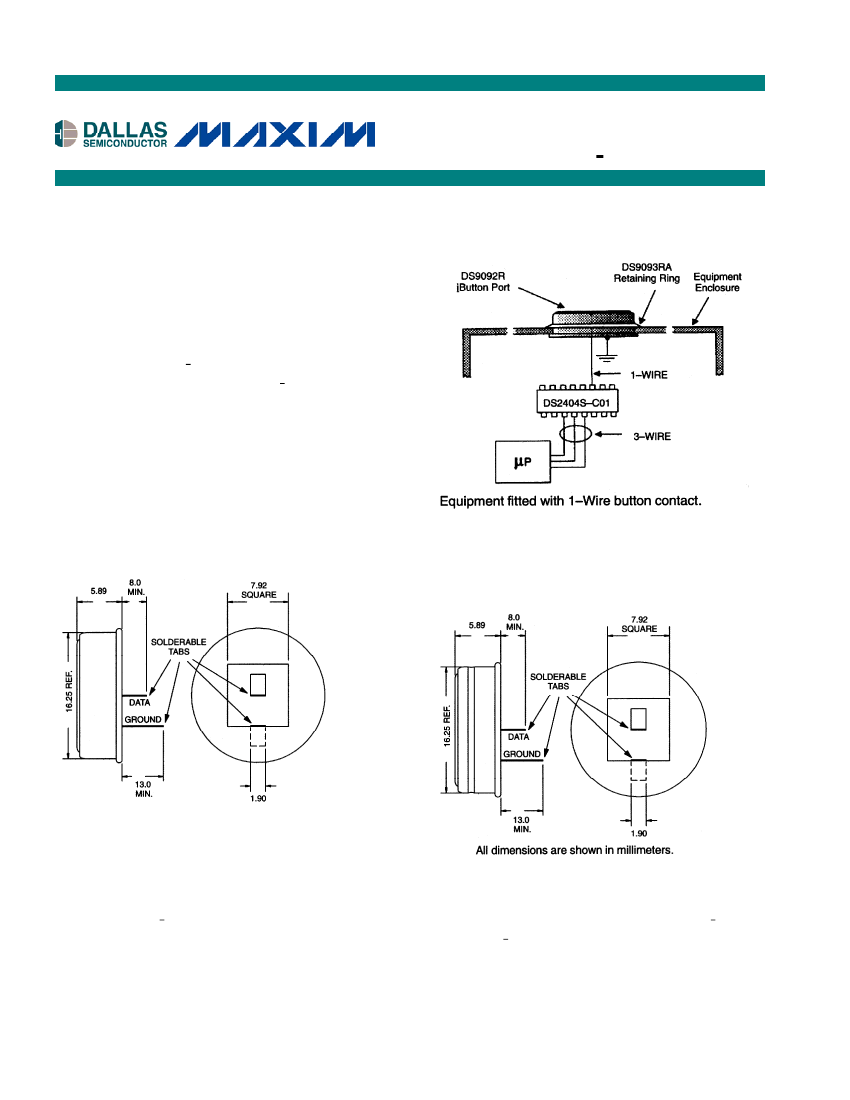

19-4869; 8/09

DS9092R

iButton

TM

Port

www.maxim-ic.com

FEATURES



Empty stainless steel F5 MicroCan with

opening in rear and solder tabs

Acts as a touch contact for remotely located

1-Wire

TM

devices

Together with DS2404S-C01 makes complex

functions involving microcontrollers behave

as if they were iButtons

DS9092R for DS9100-based iButton probes

DS9092RG grooved version for Blue Dot

Receptors

APPLICATION

ORDERING INFORMATION

DS9092R+ Tabbed F5 MicroCan

DS9092RG+ Tabbed F5 MicroCan with groove

+Denotes a lead(Pb)-free/RoHS-compliant product.

DS9092R Tabbed MicroCan

DS9092RG Tabbed MicroCan with

Groove

DESCRIPTION

The DS9092R iButton Port provides the electrical contact necessary for mating remotely located iButtons

or other 1-Wire MicroLAN devices with reader/writers. The iButton port is available with groove

(DS9092RG) and without (DS9092R). For applications where only a touch contact is needed either

version will perform well. For dwelled-contact applications the DS9092R (without groove) is the

preferred choice for use with the DS1402BP/DS1402RP MicroLAN cables. The grooved DS9092RG

works best with the DS1402D-type cables featuring a Blue Dot Receptor.

1 of 2

DS9092R+ Related Products

	DS9092R+	DS9092RG+
Description	iButton and accessoriesiButton Port	iButton and accessoriesiButton Port
Maker	Maxim	Maxim
Product Category	iButton and accessories	iButton and accessories
product	iButtons	iButtons
type	Port	Port
used for	DS1402RP, DS1402BP	DS1402D
Encapsulation	Bulk	Bulk
Description/Function	Tabbed F5 MicroCan	Tabbed F5 MicroCan with groove
series	DS9092R	DS9092RG
Factory packaging quantity	100	100
