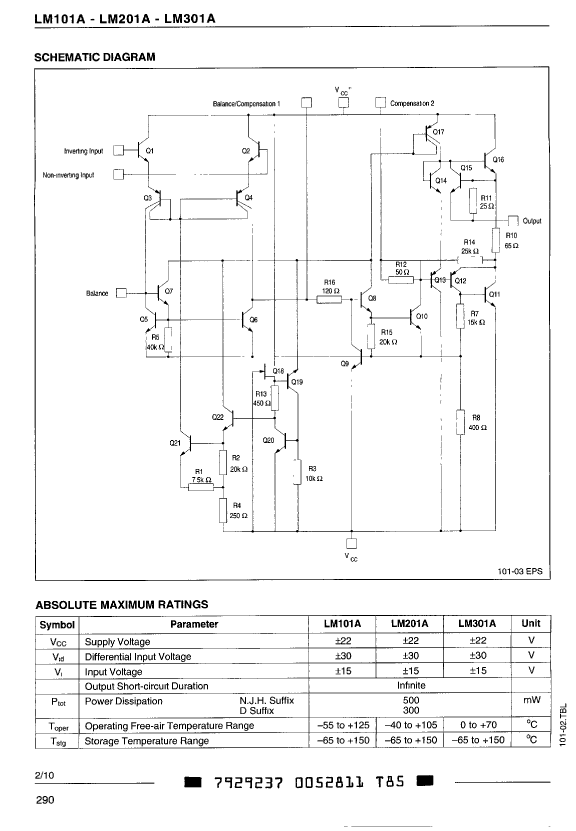

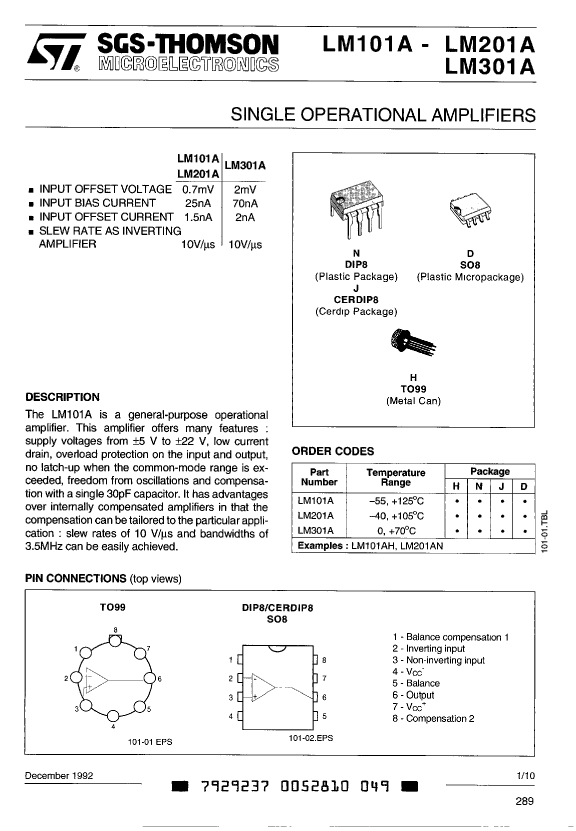

Basic information of LM101AH amplifier:
LM101AH is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are METAL CAN, TO-99, 8 PIN
LM101AH amplifier core information:
The minimum operating temperature of the LM101AH is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.075 µA Its maximum average bias current is 0.1 µA

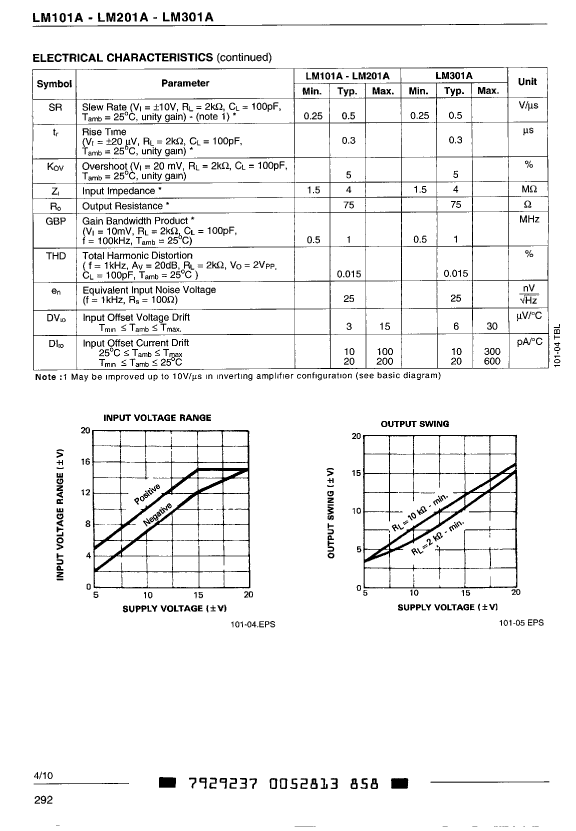

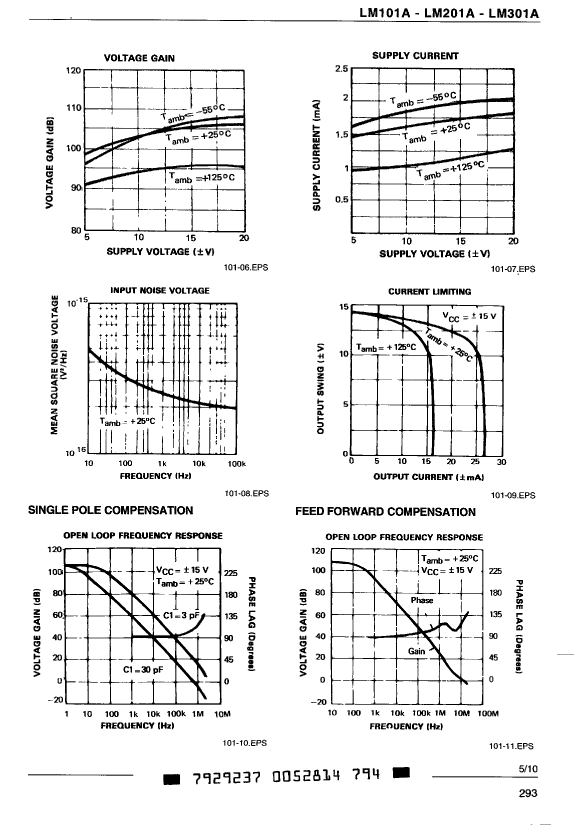

How to simply check the efficiency of an amplifier? Looking at its slew rate, the LM101AH has a nominal slew rate of 0.5 V/us. The manufacturer specifies a maximum slew rate for the LM101AH of 3 mA and a minimum slew rate of 0.25 V/us. Its minimum voltage gain is 25000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LM101AH gain becomes 0.707 times the low-frequency gain is 1000 kHz.
The nominal supply voltage of LM101AH is 20 V, and its corresponding nominal negative supply voltage is -20 V. The input offset voltage of LM101AH is 3000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM101AH:
LM101AH has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
LM101AH amplifier additional information:
LM101AH adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LM101AH is: NO. Its temperature grade is: MILITARY. LM101AH is not Rohs certified.
It contains lead. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The package code of LM101AH is: TO-99. The material of LM101AH package is mostly METAL.
And its package shape is ROUND. The LM101AH package pin format is: CYLINDRICAL. Its terminal form is: WIRE.
Basic information of LM101AH amplifier:
LM101AH is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are METAL CAN, TO-99, 8 PIN
LM101AH amplifier core information:
The minimum operating temperature of the LM101AH is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.075 µA Its maximum average bias current is 0.1 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the LM101AH has a nominal slew rate of 0.5 V/us. The manufacturer specifies a maximum slew rate for the LM101AH of 3 mA and a minimum slew rate of 0.25 V/us. Its minimum voltage gain is 25000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LM101AH gain becomes 0.707 times the low-frequency gain is 1000 kHz.
The nominal supply voltage of LM101AH is 20 V, and its corresponding nominal negative supply voltage is -20 V. The input offset voltage of LM101AH is 3000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM101AH:
LM101AH has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8
LM101AH amplifier additional information:
LM101AH adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LM101AH is: NO. Its temperature grade is: MILITARY. LM101AH is not Rohs certified.
It contains lead. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The package code of LM101AH is: TO-99. The material of LM101AH package is mostly METAL.
And its package shape is ROUND. The LM101AH package pin format is: CYLINDRICAL. Its terminal form is: WIRE.

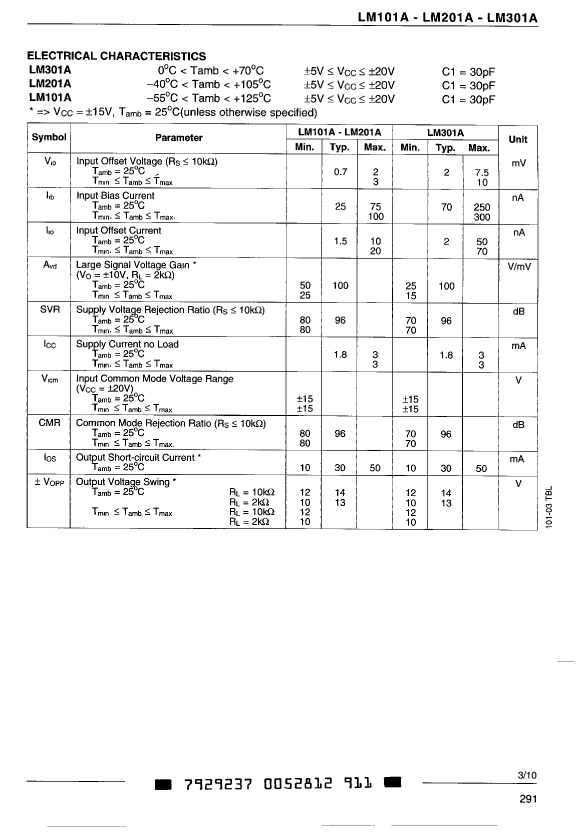

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | STMicroelectronics |
| Parts packaging code | TO-99 |
| package instruction | METAL CAN, TO-99, 8 PIN |
| Contacts | 8 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.1 µA |
| Maximum bias current (IIB) at 25C | 0.075 µA |
| Nominal Common Mode Rejection Ratio | 80 dB |
| frequency compensation | NO |
| Maximum input offset voltage | 3000 µV |
| JESD-30 code | O-MBCY-W8 |
| JESD-609 code | e0 |
| low-dissonance | NO |
| Negative supply voltage upper limit | -22 V |
| Nominal Negative Supply Voltage (Vsup) | -20 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | METAL |
| encapsulated code | TO-99 |
| Encapsulate equivalent code | CAN8,.2 |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-5/+-20 V |
| Certification status | Not Qualified |
| minimum slew rate | 0.25 V/us |
| Nominal slew rate | 0.5 V/us |
| Maximum slew rate | 3 mA |
| Supply voltage upper limit | 22 V |
| Nominal supply voltage (Vsup) | 20 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 1000 kHz |
| Minimum voltage gain | 25000 |
| Base Number Matches | 1 |
| LM101AH | LM101AJ | LM201AH | LM201AJ | LM301AJ | LM301AH | |
|---|---|---|---|---|---|---|
| Description | OP-AMP, 3000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN | OP-AMP, 3000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP8, CERDIP-8 | OP-AMP, 3000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN | OP-AMP, 3000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP8, CERDIP-8 | OP-AMP, 10000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP8, CERDIP-8 | OP-AMP, 10000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | TO-99 | DIP | TO-99 | DIP | DIP | TO-99 |
| package instruction | METAL CAN, TO-99, 8 PIN | CERDIP-8 | TO-99, CAN8,.2 | DIP, DIP8,.3 | DIP, DIP8,.3 | TO-99, CAN8,.2 |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.1 µA | 0.1 µA | 0.1 µA | 0.1 µA | 0.3 µA | 0.3 µA |
| Maximum bias current (IIB) at 25C | 0.075 µA | 0.075 µA | 0.075 µA | 0.075 µA | 0.1 µA | 0.1 µA |
| Nominal Common Mode Rejection Ratio | 80 dB | 80 dB | 80 dB | 80 dB | 70 dB | 70 dB |
| frequency compensation | NO | NO | NO | NO | NO | NO |
| Maximum input offset voltage | 3000 µV | 3000 µV | 3000 µV | 3000 µV | 10000 µV | 10000 µV |
| JESD-30 code | O-MBCY-W8 | R-CDIP-T8 | O-MBCY-W8 | R-CDIP-T8 | R-CDIP-T8 | O-MBCY-W8 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| low-dissonance | NO | NO | NO | NO | NO | NO |
| Negative supply voltage upper limit | -22 V | -22 V | -22 V | -22 V | -22 V | -22 V |
| Nominal Negative Supply Voltage (Vsup) | -20 V | -20 V | -20 V | -20 V | -20 V | -20 V |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 105 °C | 105 °C | 70 °C | 70 °C |
| Minimum operating temperature | -55 °C | -55 °C | -40 °C | -40 °C | - | - |
| Package body material | METAL | CERAMIC, METAL-SEALED COFIRED | METAL | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | METAL |
| encapsulated code | TO-99 | DIP | TO-99 | DIP | DIP | TO-99 |
| Encapsulate equivalent code | CAN8,.2 | DIP8,.3 | CAN8,.2 | DIP8,.3 | DIP8,.3 | CAN8,.2 |
| Package shape | ROUND | RECTANGULAR | ROUND | RECTANGULAR | RECTANGULAR | ROUND |
| Package form | CYLINDRICAL | IN-LINE | CYLINDRICAL | IN-LINE | IN-LINE | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | +-5/+-20 V | +-5/+-20 V | +-5/+-20 V | +-5/+-20 V | +-5/+-20 V | +-5/+-20 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| minimum slew rate | 0.25 V/us | 0.25 V/us | 0.25 V/us | 0.25 V/us | 0.25 V/us | 0.25 V/us |
| Nominal slew rate | 0.5 V/us | 0.5 V/us | 0.5 V/us | 0.5 V/us | 0.5 V/us | 0.5 V/us |
| Maximum slew rate | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA |
| Supply voltage upper limit | 22 V | 22 V | 22 V | 22 V | 22 V | 22 V |
| Nominal supply voltage (Vsup) | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V |
| surface mount | NO | NO | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | INDUSTRIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | THROUGH-HOLE | WIRE | THROUGH-HOLE | THROUGH-HOLE | WIRE |
| Terminal location | BOTTOM | DUAL | BOTTOM | DUAL | DUAL | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 1000 kHz | 1000 kHz | 1000 kHz | 1000 kHz | 1000 kHz | 1000 kHz |
| Minimum voltage gain | 25000 | 25000 | 25000 | 25000 | 25000 | 25000 |
| Maker | STMicroelectronics | - | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Part Number | Manufacturer | Description |
|---|---|---|
| LM101AH | Texas Instruments(德州仪器) | Operational Amplifier 8-TO-99 -55 to 125 |
| LM201AH | Rochester Electronics | OP-AMP, 3000uV OFFSET-MAX, 1MHz BAND WIDTH, MBCY8, METAL CAN, 8 PIN |
| JM38510/10103BGA | ON Semiconductor(安森美) | Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8 |
| LM201AH/NOPB | Texas Instruments(德州仪器) | Operational Amplifier 8-TO-99 -40 to 85 |
| JL101ABGA | Texas Instruments(德州仪器) | Operational Amplifier 8-TO-99 -55 to 125 |
| LM101AH/NOPB | Texas Instruments(德州仪器) | Operational Amplifier 8-TO-99 -55 to 125 |
| LM101AH/883 | Texas Instruments(德州仪器) | Operational Amplifier 8-TO-99 -55 to 125 |
| M38510/10103BGC | Raytheon Company | Operational Amplifier, 1 Func, 3000uV Offset-Max, MBCY8, METAL CAN-8 |
| JL101ASGA | Texas Instruments(德州仪器) | JL101ASGA |
| LM101AH/883B | Raytheon Company | Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8, |
| LM101AH-MLS | Texas Instruments(德州仪器) | OP-AMP, 3000uV OFFSET-MAX, MBCY8 |
| RH101AMH | Linear ( ADI ) | IC OP-AMP, 3000 uV OFFSET-MAX, MBCY8, METAL CAN, TO-5, 8 PIN, Operational Amplifier |
| JM38510/10103G | Texas Instruments(德州仪器) | OP-AMP, 3000uV OFFSET-MAX, MBCY8 |
