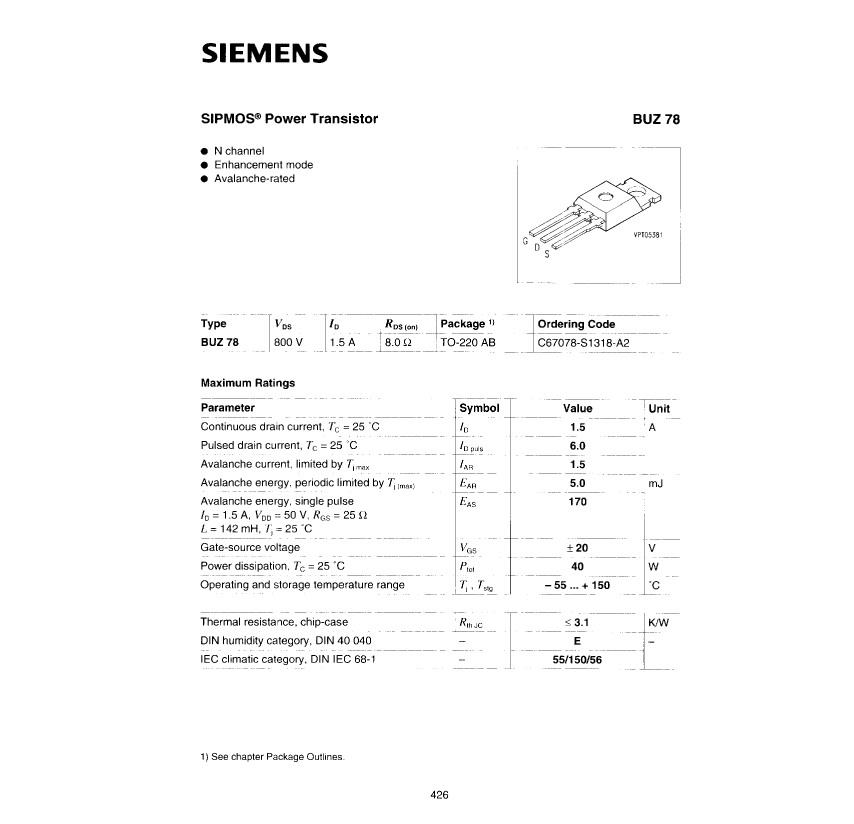

Power Field-Effect Transistor, 1.5A I(D), 800V, 8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 4 PIN

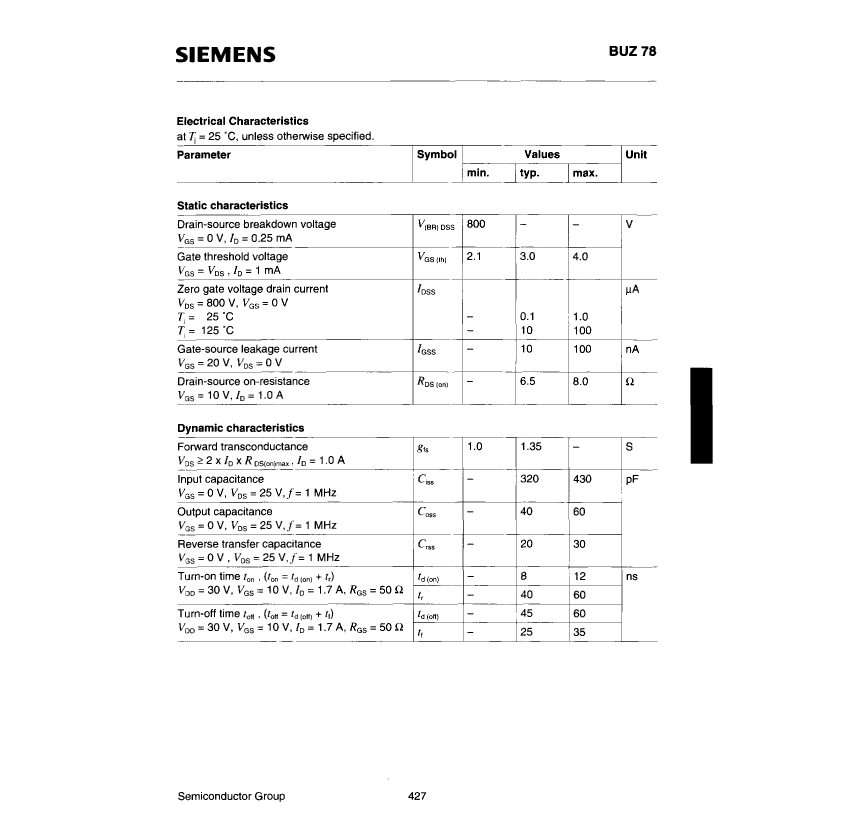

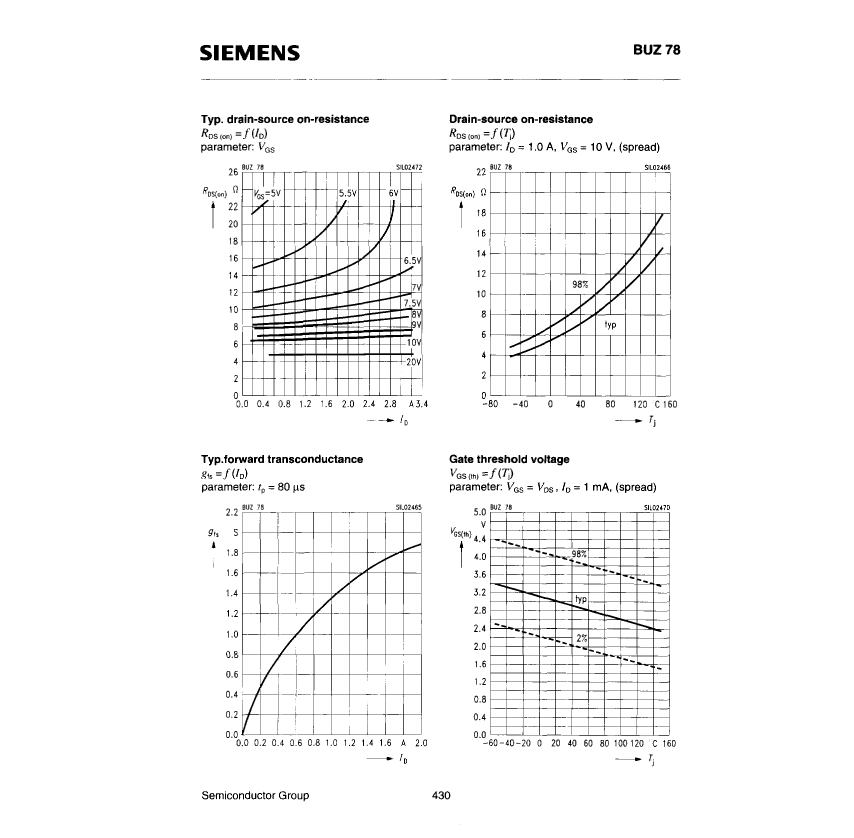

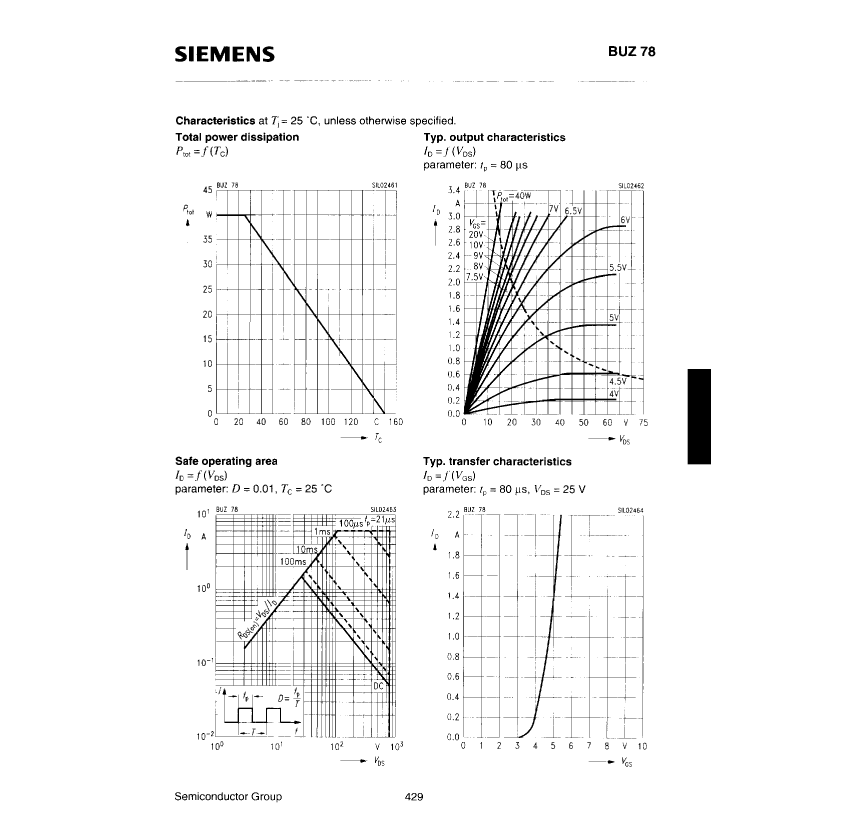

| Parameter Name | Attribute value |
| Maker | SIEMENS |
| Parts packaging code | TO-220AB |
| package instruction | SMALL OUTLINE, R-PSSO-G3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Avalanche Energy Efficiency Rating (Eas) | 170 mJ |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 800 V |
| Maximum drain current (ID) | 1.5 A |
| Maximum drain-source on-resistance | 8 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR |
| Maximum feedback capacitance (Crss) | 30 pF |
| JESD-30 code | R-PSSO-G3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Operating mode | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Polarity/channel type | N-CHANNEL |
| Maximum power consumption environment | 40 W |
| Maximum pulsed drain current (IDM) | 6 A |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | GULL WING |
| Terminal location | SINGLE |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Maximum off time (toff) | 95 ns |
| Maximum opening time (tons) | 72 ns |
| Base Number Matches | 1 |
| BUZ78-E3044 | BUZ78-E3046 | BUZ78-E3045 | |
|---|---|---|---|
| Description | Power Field-Effect Transistor, 1.5A I(D), 800V, 8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 4 PIN | Power Field-Effect Transistor, 1.5A I(D), 800V, 8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN | Power Field-Effect Transistor, 1.5A I(D), 800V, 8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN |
| Maker | SIEMENS | SIEMENS | SIEMENS |
| Parts packaging code | TO-220AB | TO-220AB | TO-220AB |
| package instruction | SMALL OUTLINE, R-PSSO-G3 | IN-LINE, R-PSIP-T3 | SMALL OUTLINE, R-PSSO-G2 |
| Contacts | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown |
| Is Samacsys | N | N | N |
| Avalanche Energy Efficiency Rating (Eas) | 170 mJ | 170 mJ | 170 mJ |
| Configuration | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 800 V | 800 V | 800 V |
| Maximum drain current (ID) | 1.5 A | 1.5 A | 1.5 A |
| Maximum drain-source on-resistance | 8 Ω | 8 Ω | 8 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR |
| Maximum feedback capacitance (Crss) | 30 pF | 30 pF | 30 pF |
| JESD-30 code | R-PSSO-G3 | R-PSIP-T3 | R-PSSO-G2 |
| Number of components | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 2 |
| Operating mode | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | SMALL OUTLINE |
| Polarity/channel type | N-CHANNEL | N-CHANNEL | N-CHANNEL |
| Maximum power consumption environment | 40 W | 40 W | 40 W |
| Maximum pulsed drain current (IDM) | 6 A | 6 A | 6 A |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | NO | YES |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal location | SINGLE | SINGLE | SINGLE |
| transistor applications | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON |
| Maximum off time (toff) | 95 ns | 95 ns | 95 ns |
| Maximum opening time (tons) | 72 ns | 72 ns | 72 ns |
| Base Number Matches | 1 | 1 | 1 |
