BSX46-16 datasheet, PDF - EEWORLD Datasheet

BSX46-16: DescriptionTRANSISTOR,BJT,NPN,60V V(BR)CEO,1A I(C),TO-205AD; CategoryThe transistor; File Size76KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

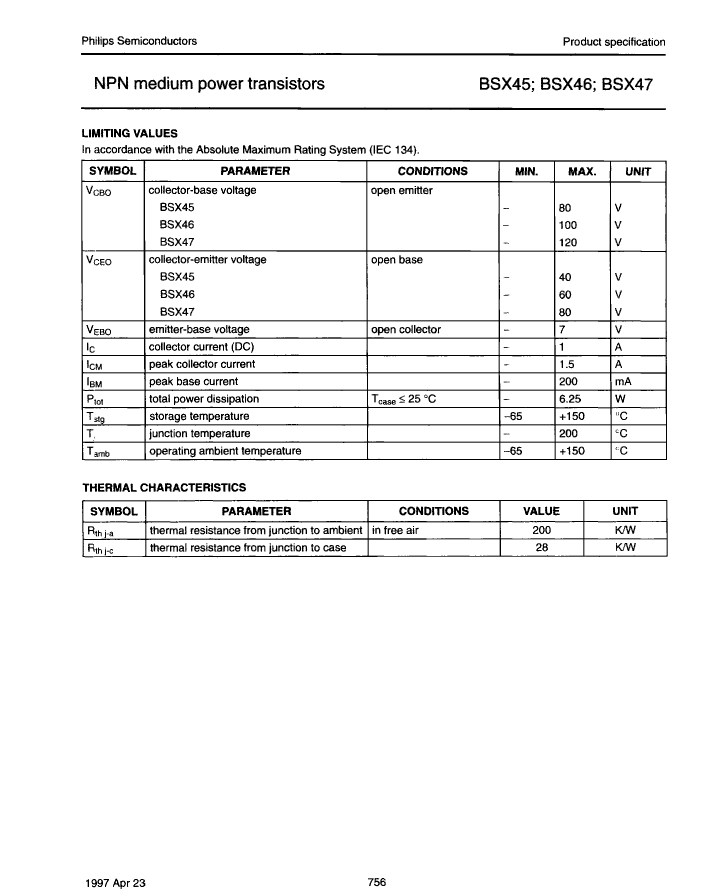

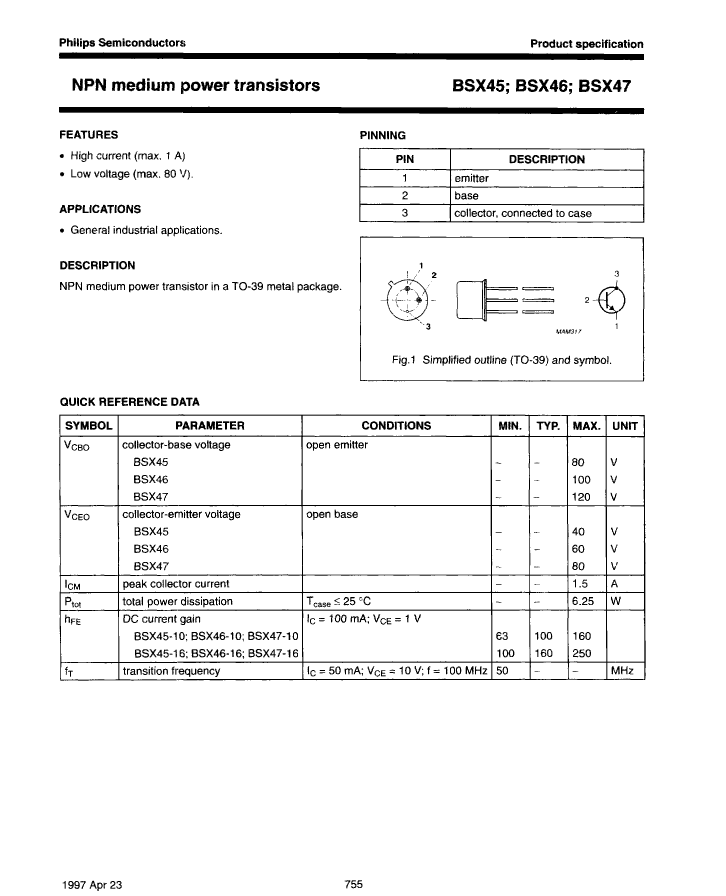

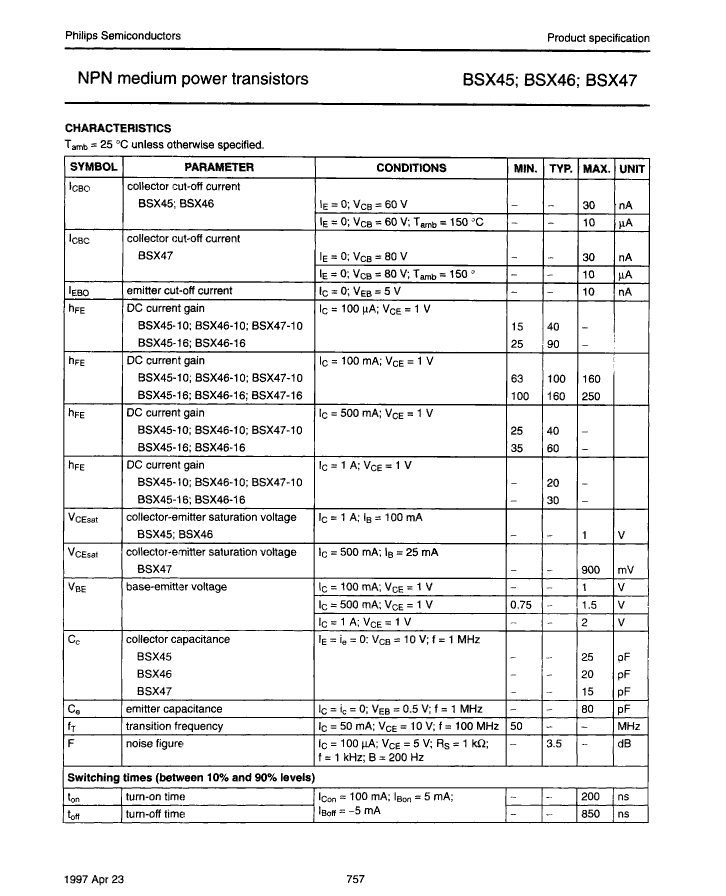

BSX46-16 Overview

TRANSISTOR,BJT,NPN,60V V(BR)CEO,1A I(C),TO-205AD

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Maximum collector current (IC)	1 A
Configuration	Single
Minimum DC current gain (hFE)	100
JESD-609 code	e0
Maximum operating temperature	175 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	5 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	50 MHz
Base Number Matches	1

	BSX46-16	BSX46-10	BSX47-10	BSX45	BSX45-10	BSX46	BSX47
Description	TRANSISTOR,BJT,NPN,60V V(BR)CEO,1A I(C),TO-205AD	TRANSISTOR,BJT,NPN,60V V(BR)CEO,1A I(C),TO-205AD	TRANSISTOR,BJT,NPN,80V V(BR)CEO,1A I(C),TO-205AD	TRANSISTOR 1000 mA, 40 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39, BIP General Purpose Small Signal	TRANSISTOR,BJT,NPN,40V V(BR)CEO,1A I(C),TO-205AD	TRANSISTOR 1000 mA, 60 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39, BIP General Purpose Small Signal	TRANSISTOR 1000 mA, 80 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39, BIP General Purpose Small Signal
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	compliant	unknown	unknown	compliant
Maximum collector current (IC)	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Configuration	Single	Single	Single	SINGLE	Single	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	63	63	40	63	40	40
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN
surface mount	NO	NO	NO	NO	NO	NO	NO
Nominal transition frequency (fT)	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz	50 MHz
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	-	-
JESD-609 code	e0	e0	e0	-	e0	-	-
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	-	200 °C
Maximum power dissipation(Abs)	5 W	5 W	5 W	5 W	5 W	-	5 W
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	-
